Product Description
Product Description:

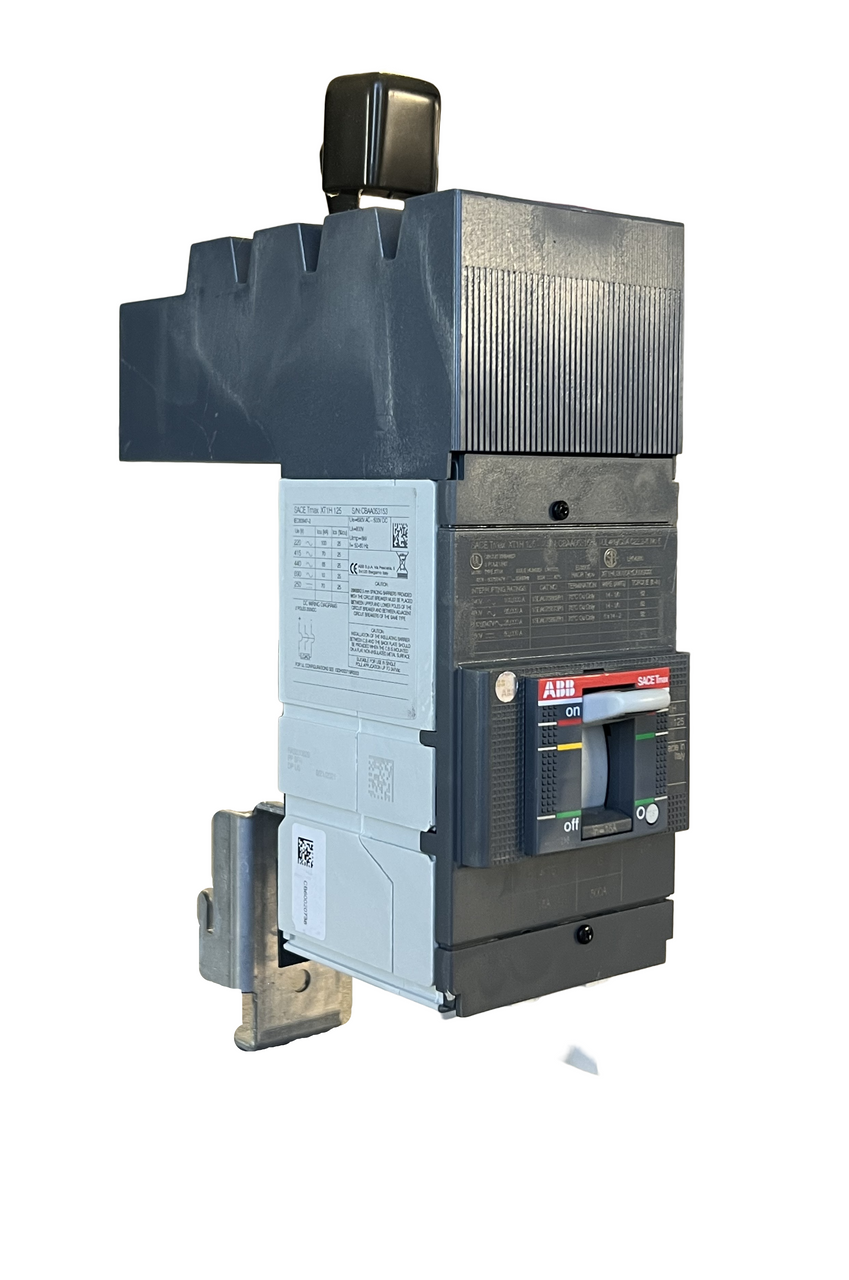

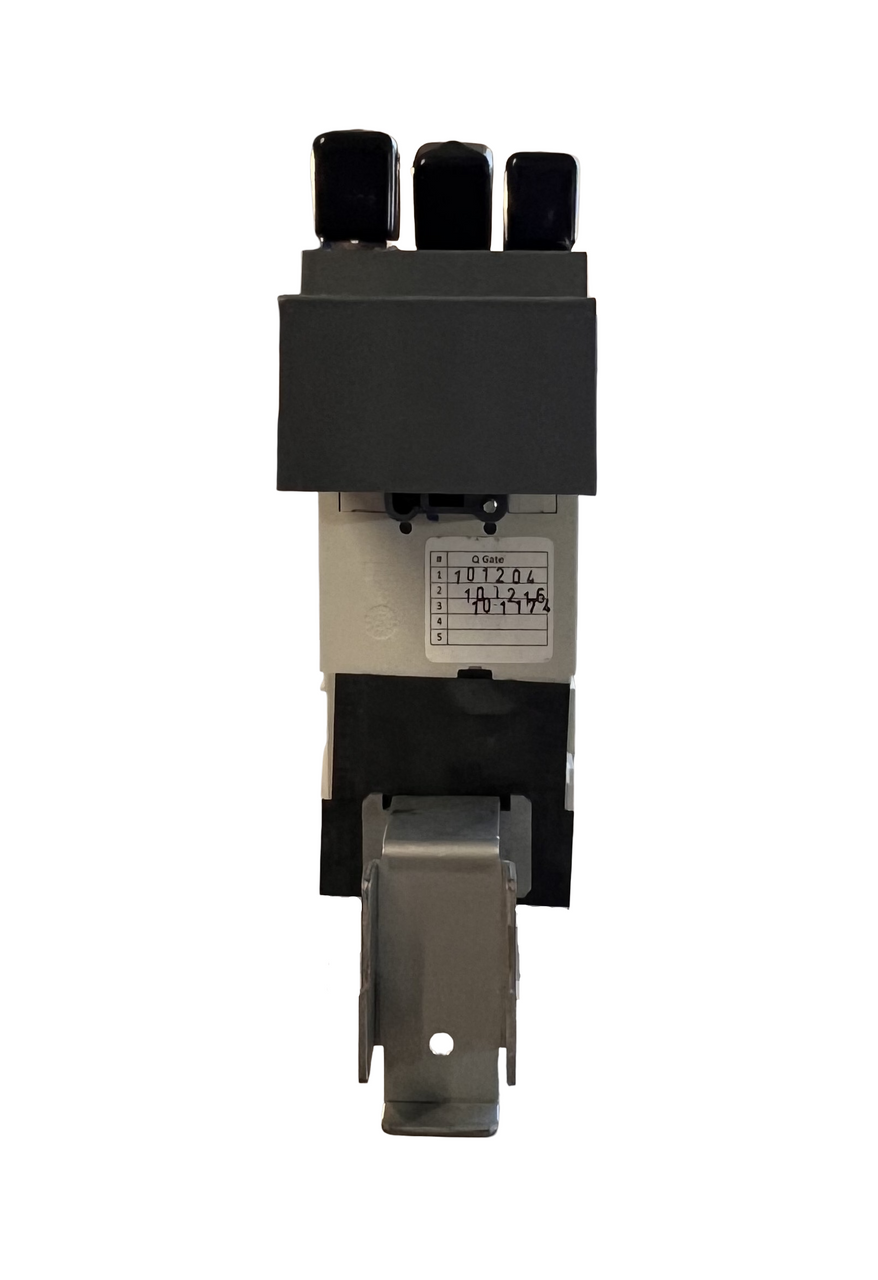

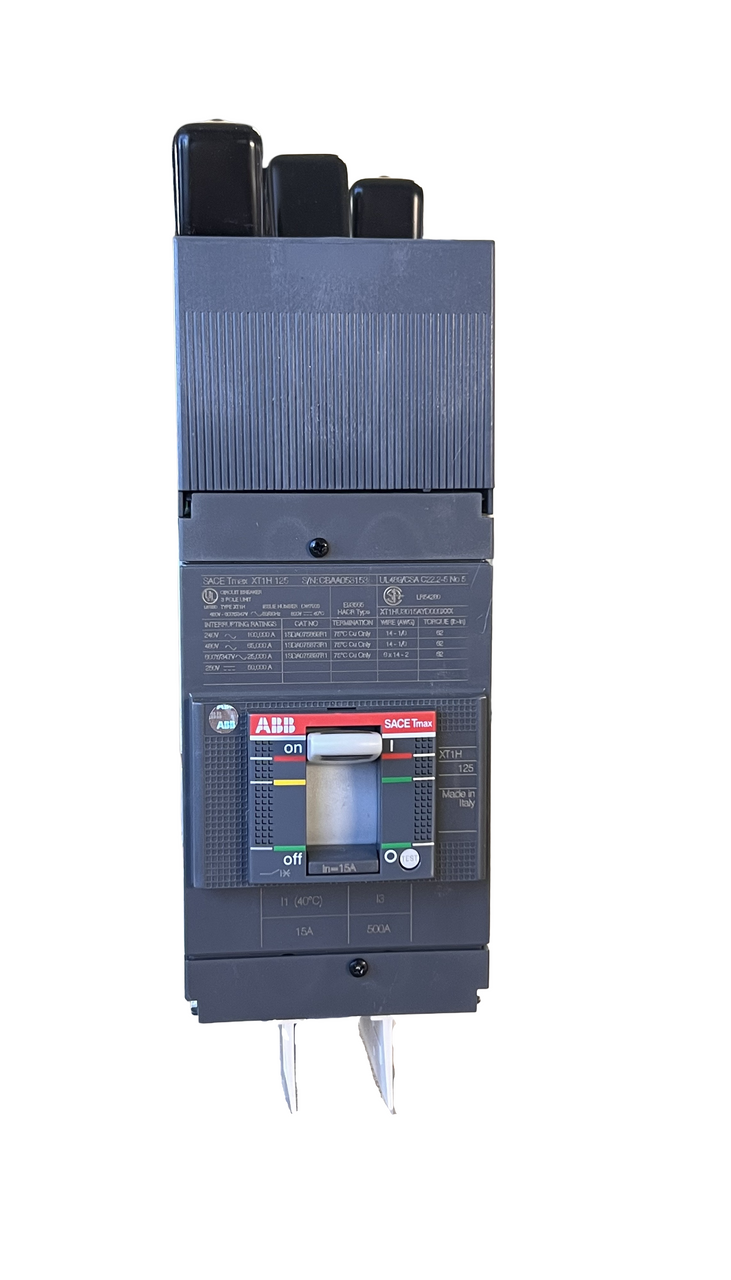

The ABB XT1HU3015AYD000XXX is a high-performance 3-pole molded case circuit breaker from the Tmax XT1H series, designed for reliable overcurrent protection in low-voltage electrical systems. With a 15 amp rating, fixed thermal magnetic trip, and interrupting capacity of 65kA at 480V AC, it’s ideal for demanding industrial and commercial applications. UL 489 and CSA certified for North American use.
Key Features:
-
✅ Current Rating: 15 Amps
-
✅ Interrupting Capacity: 65kA at 480V AC / 25kA at 600Y/347V AC
-
✅ Voltage Rating: 600Y/347V AC max
-
✅ Trip Unit: Fixed Thermal Magnetic
-
✅ Poles: 3-Pole Configuration
-
✅ Frame Size: XT1H – Compact 125A Frame
-
✅ Mounting Style: Front Terminal Bolt-On
-
✅ Certifications: UL 489, CSA
-
✅ Ideal Use: Industrial panels, motor control, power distribution, and panel retrofits
