Product Description:

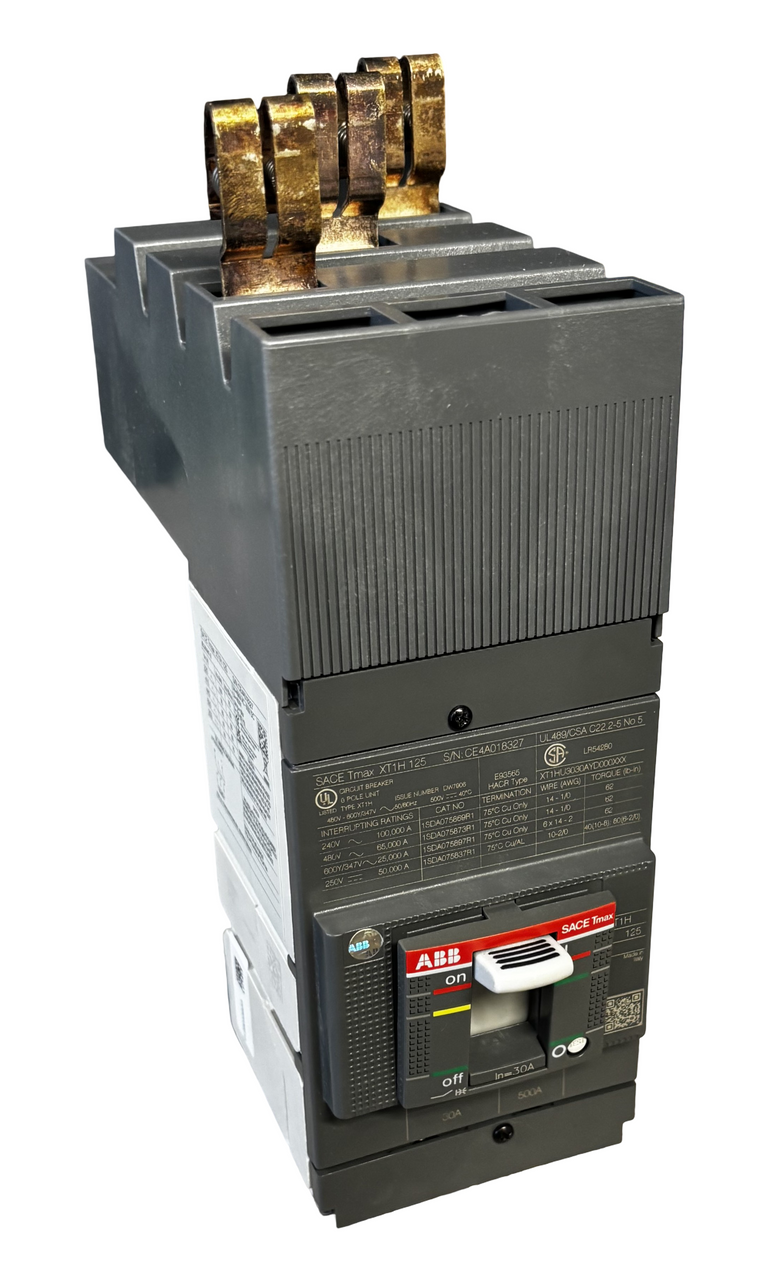

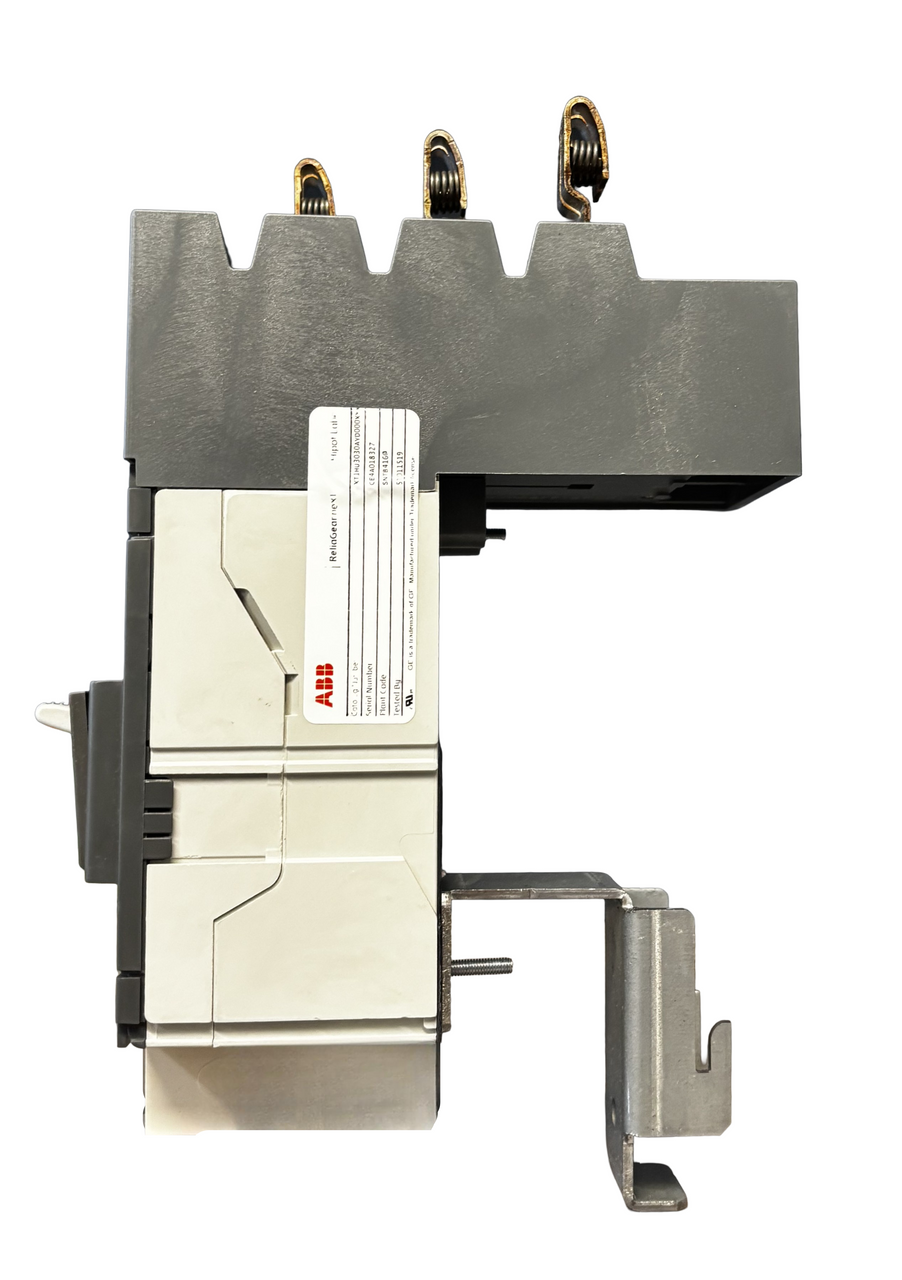

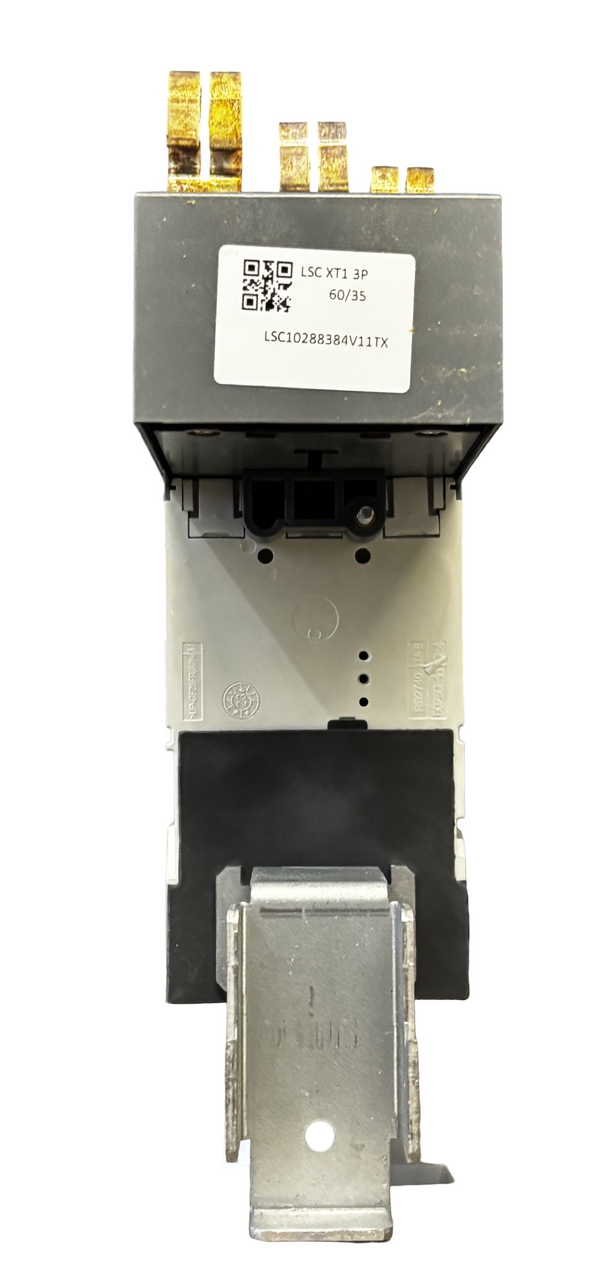

The XT1HU3030AYD000XXX is a highly reliable molded‑case circuit breaker engineered for low‑voltage distribution systems. With its 30 A thermal‑magnetic trip and 65 kA short‑circuit interrupting capacity at 480 VAC, it’s ideal for commercial and industrial panelboards and load feeders. Compatible with copper or aluminum wiring, the bolt‑on design ensures secure and easy installation. UL, CSA, and IEC compliance ensures safe operation in demanding electrical environments.
Key Features:
-
✅ Brand: ABB, SACE™ Tmax® XT1H series
-
✅ Frame Type: XT1 125A thermal‑magnetic trip unit (TMF)
-
✅ Current Rating: 30 A, 3‑pole configuration
-
✅ Voltage Rating: 480 VAC, compatible with up to 600Y/347 VAC (UL/CSA)
-
✅ Interrupting Capacity: 65 kAIC @ 480 VAC (typical rating); also capable of higher ratings at other voltages
-

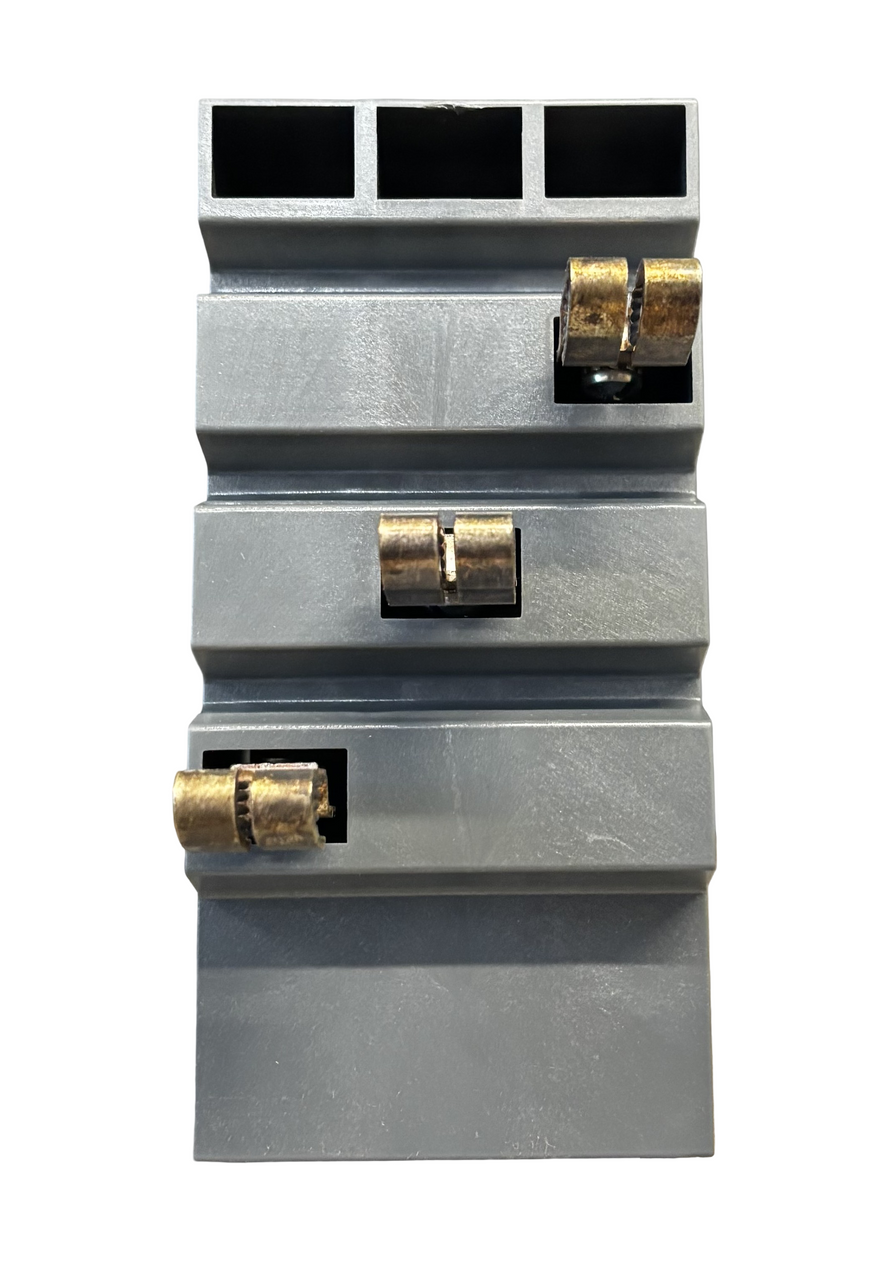

✅ Connection: Bolt‑on line/load terminals, AWG 10 to 2/0 (Cu/Al)
-
✅ Certifications: UL Listed, CSA Certified, IEC compliant
