Product Description:

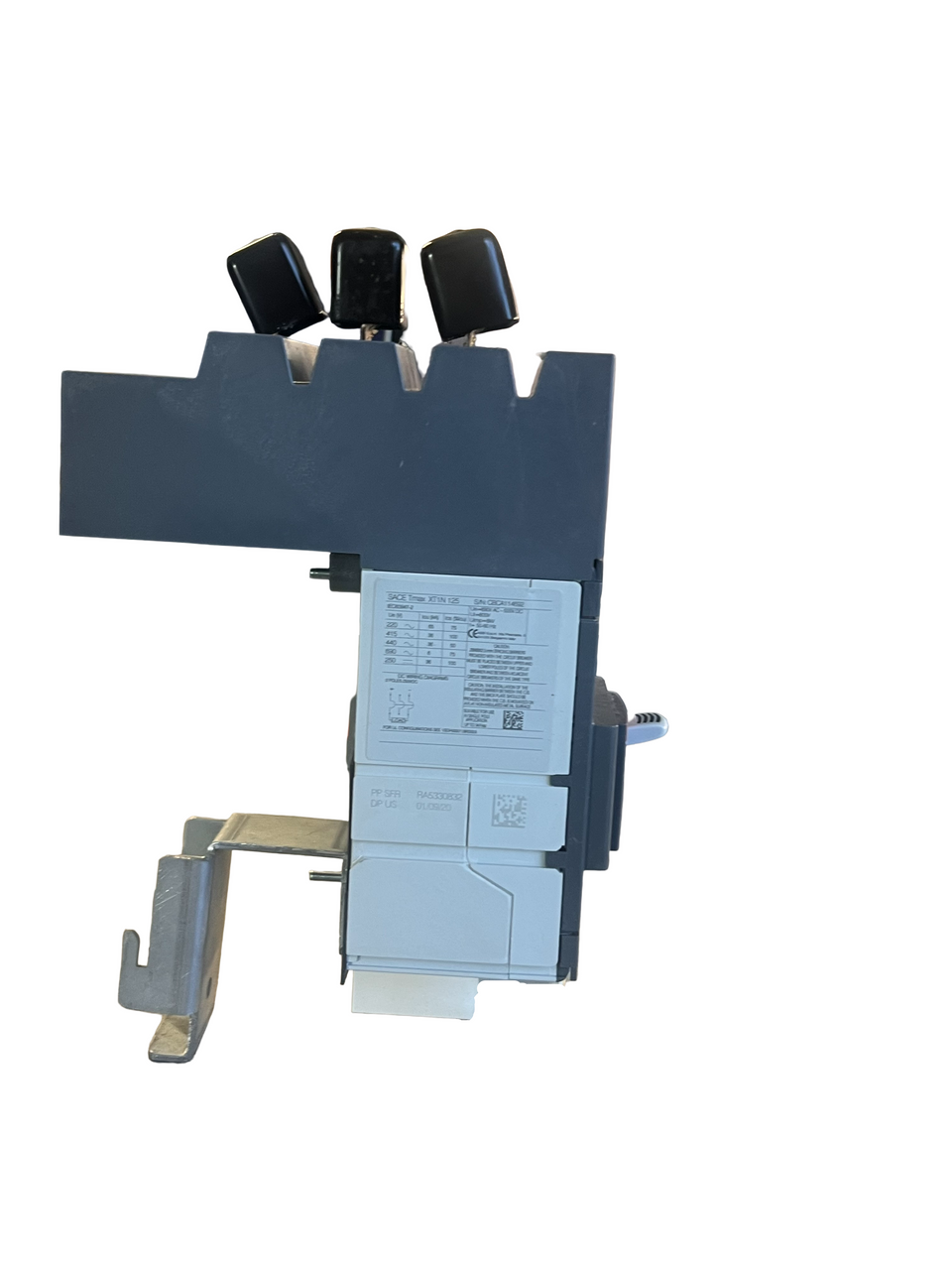

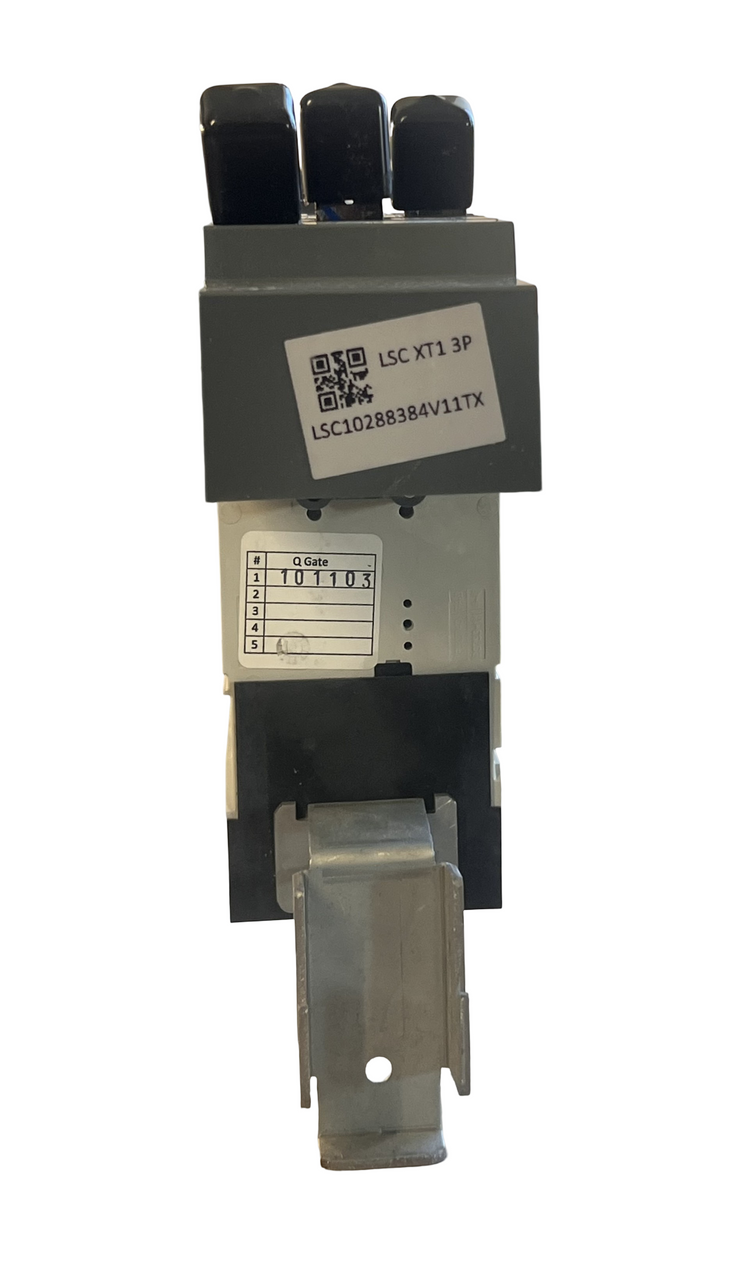

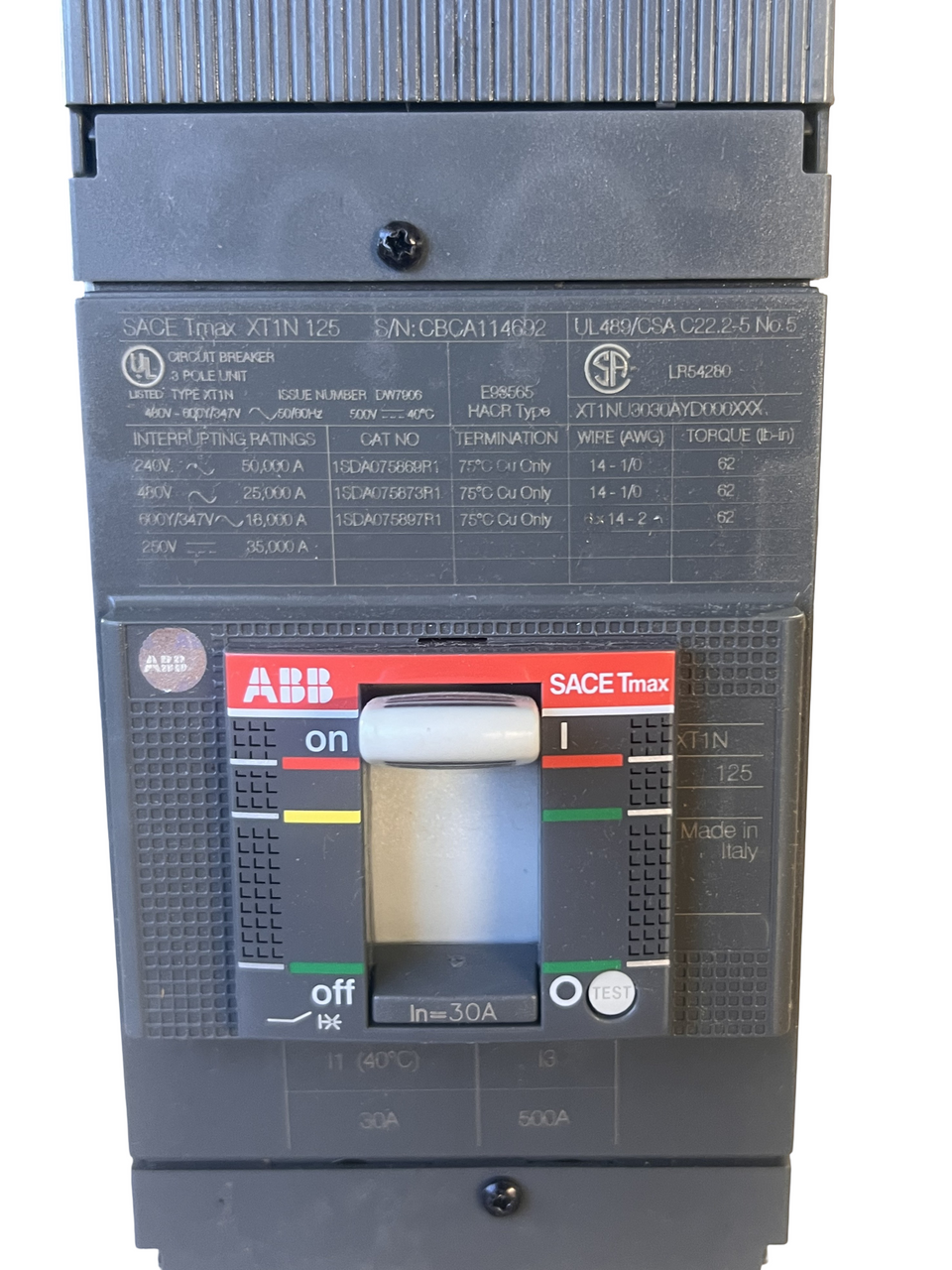

The ABB XT1NU3030AYD000XXX is a fixed thermal-magnetic molded-case circuit breaker (MCCB) from the Tmax XT series. Specifically built for low-voltage applications, it offers a compact XT1N frame delivering 30 A protection for 3-phase circuits up to 600 VAC. With a 25 kA interrupt rating at 480 VAC (18 kA at 600 VAC), it ensures rugged protection for branch circuits or motor feeders. Ideal for industrial and commercial switchgear, panelboards, and power distribution systems.
Key Product Features
-
Brand: ABB – SACE Tmax XT1N frame design
-
Amperage: 30 A fixed thermal-magnetic trip unit (TMF)
-
Voltage: Rated for 600 VAC (UL/CSA), also supports 600Y/347 VAC
-
Poles: 3‑Pole configuration for 3-phase applications
-
Interrupt Rating: 25 kA at 480 VAC (up to ~18 kA at 600 VAC)
-
Trip Unit: Thermal‑magnetic for reliable overload and short-circuit protection
-
Terminations: Front flat copper terminals supporting AWG 10–2/0 Cu/Al wiring
-
Certifications: UL and CSA approved, IEC dual rated
