Product Description

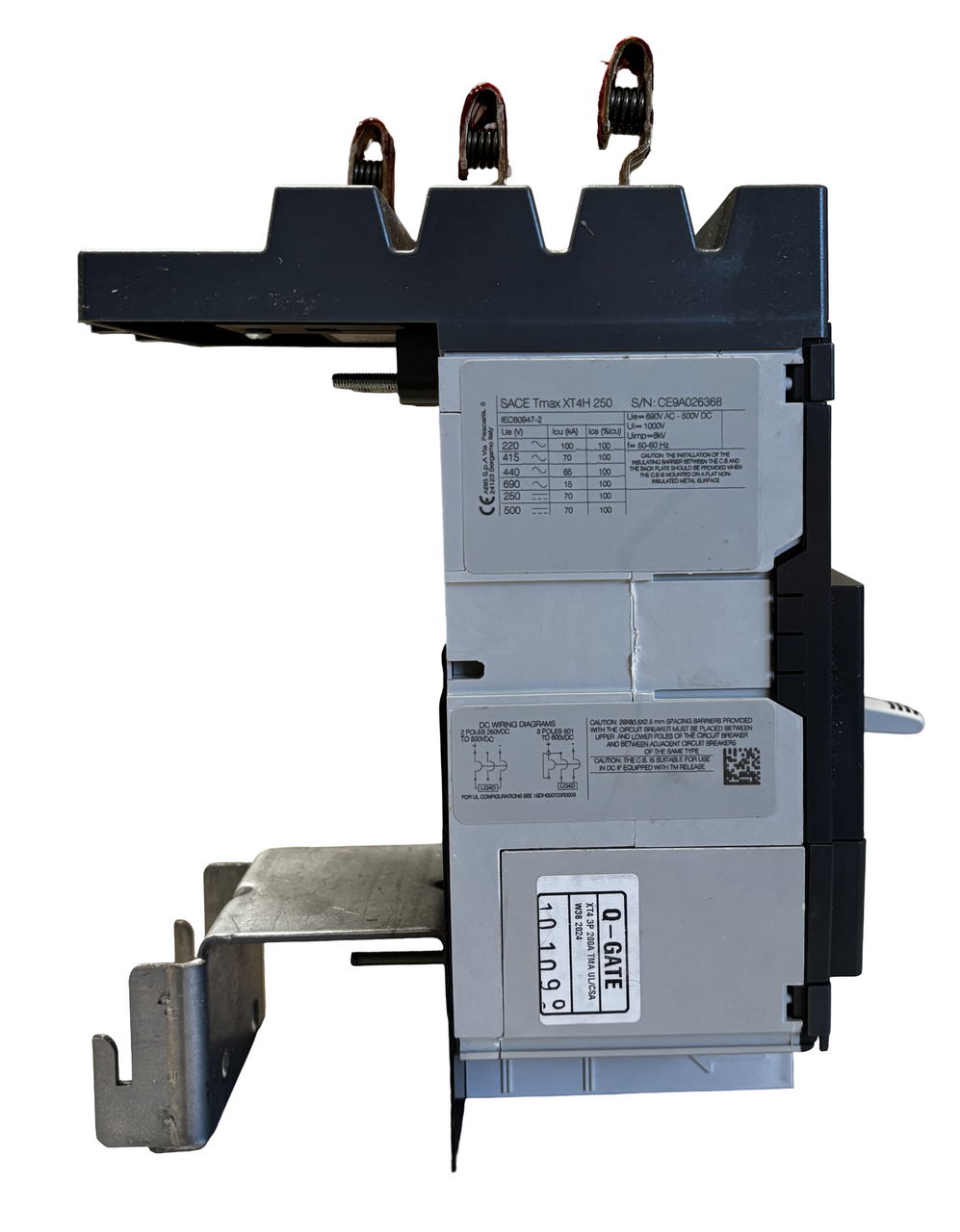

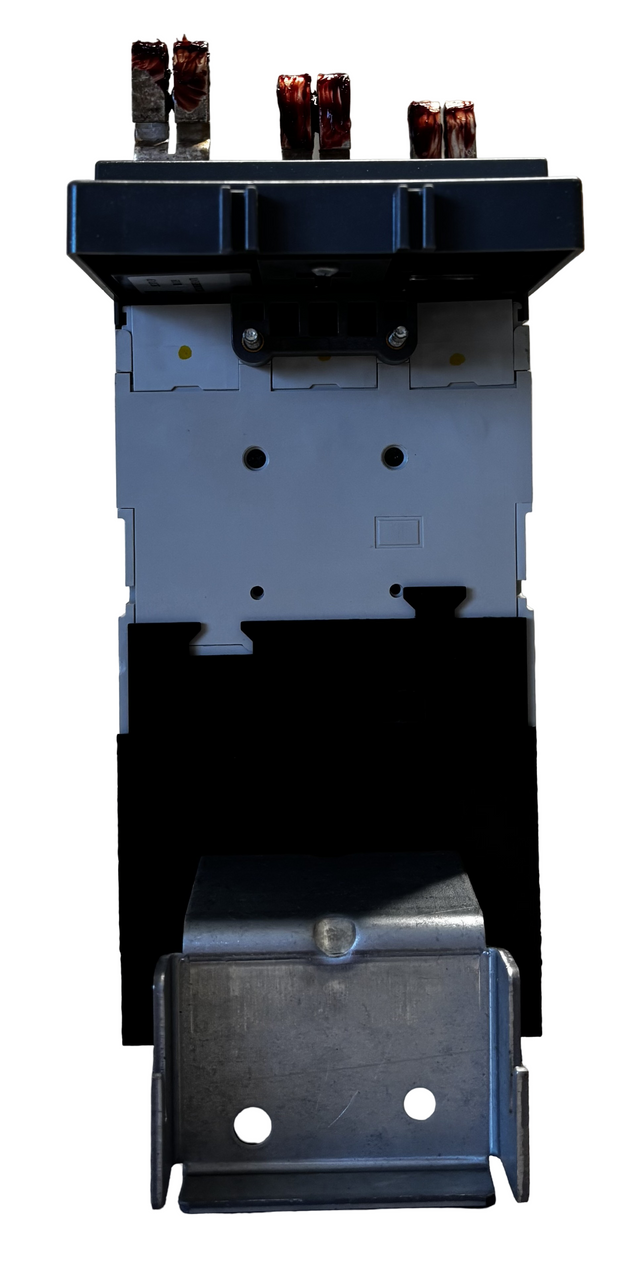

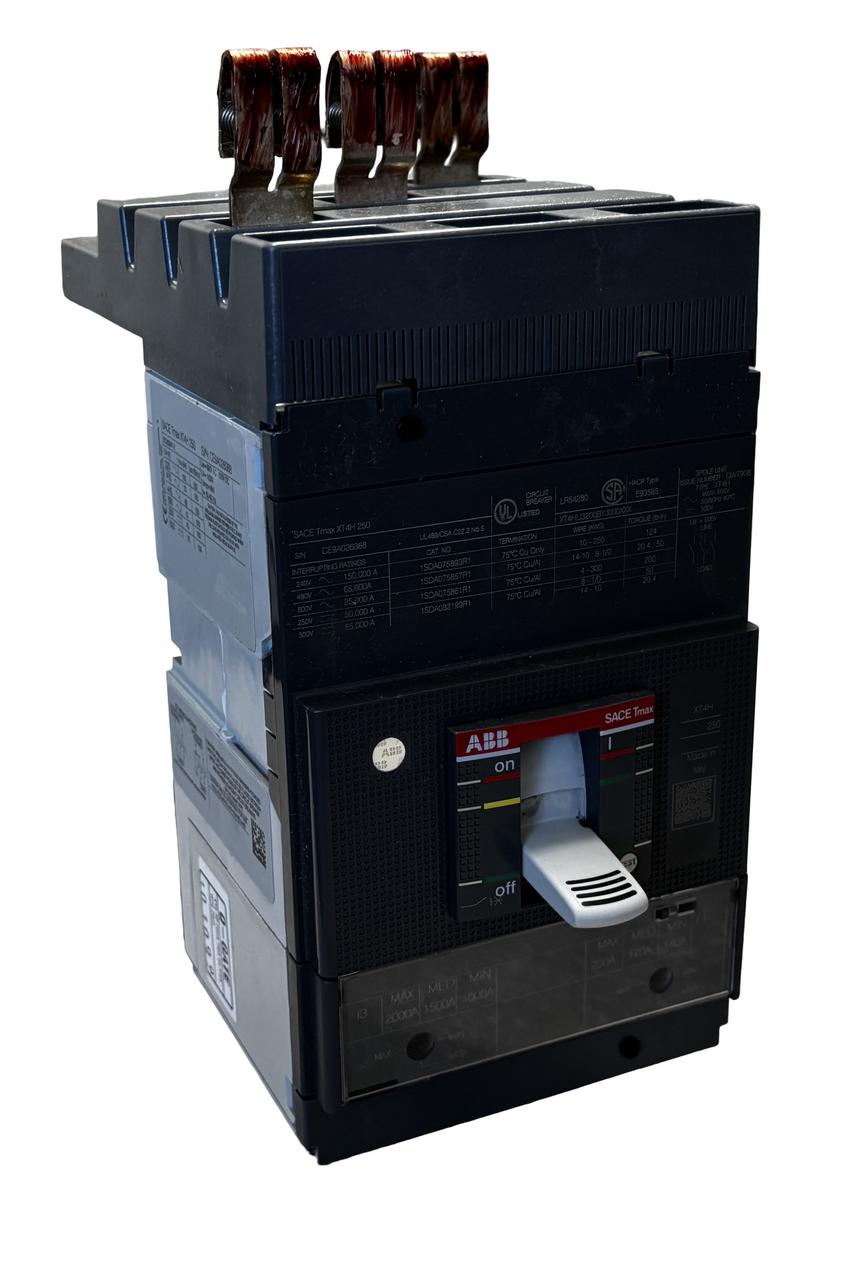

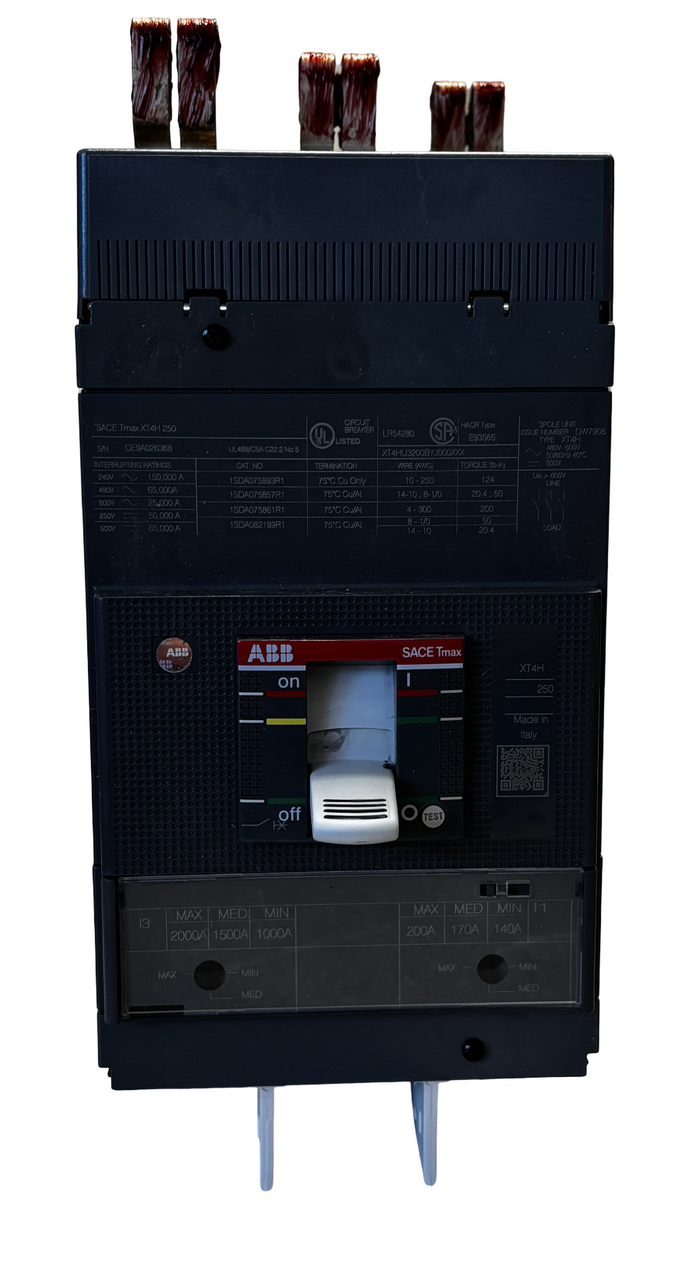

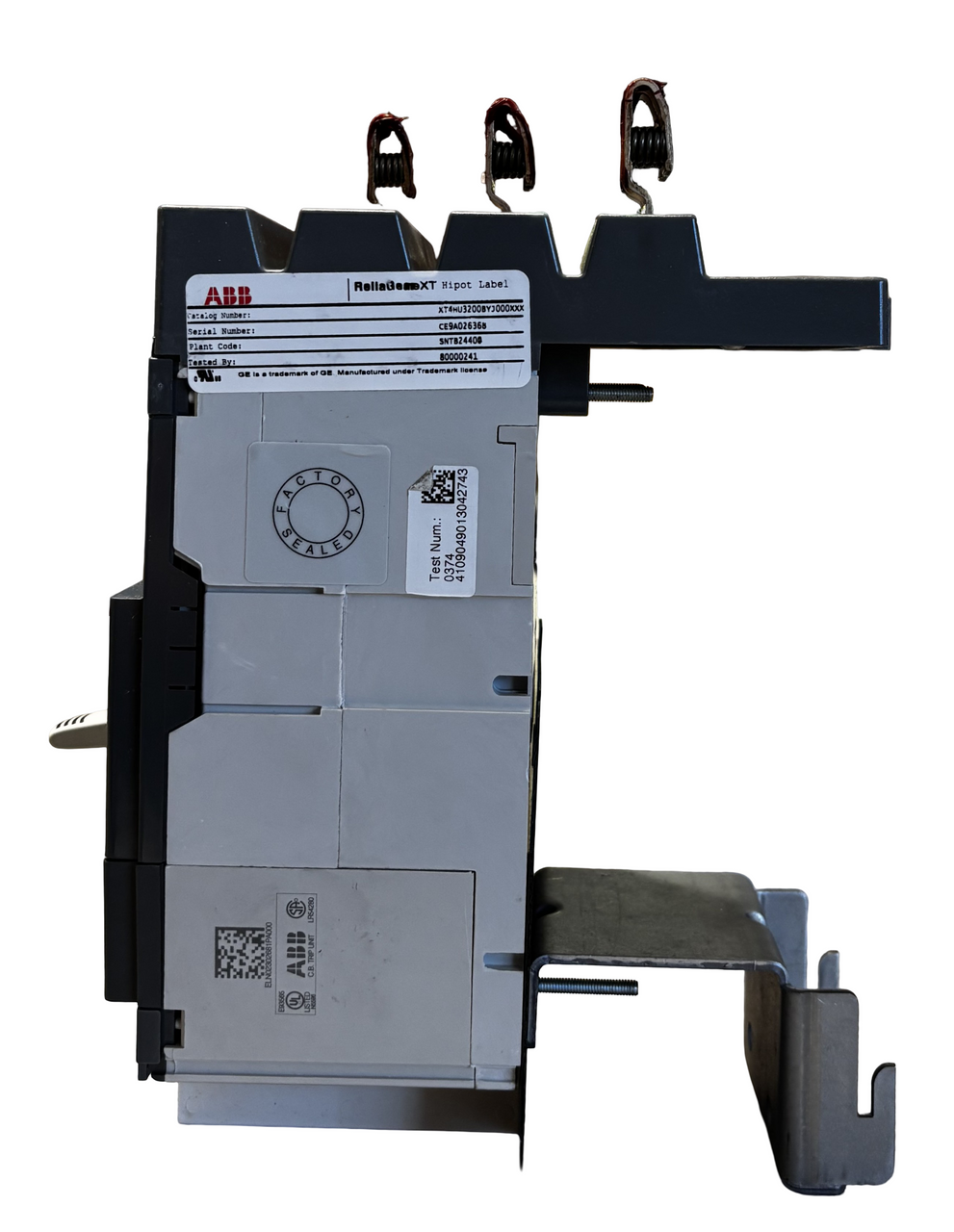

ABB XT4HU3200BYJ000XXX - Tmax XT4H 200A 3-Pole Molded Case Circuit Breaker
Product Type: Molded Case Circuit Breaker (MCCB)
Brand: ABB SACE Tmax XT
Model: XT4HU3200BYJ000XXX
Key Features & Benefits:
-
High Performance Protection: Part of the Tmax XT series, offering advanced protection against overloads, short circuits, and ground faults for enhanced system reliability and safety.
-
Optimal for Power Distribution: Ideal for main low voltage switchboards and sub-switchboards in various installations, from residential to heavy-duty industrial applications (e.g., commercial, industrial, ships, chemical plants, airports).
-
Compact & Easy to Install: Progressively smaller in size, designed for ease of use, and installation flexibility with a wide range of accessories.
-
Thermal Magnetic Trip Unit (TMA): Features a reliable thermal-magnetic adjustable release (TMA R 200) for precise overcurrent protection.
-
Robust & Durable: Engineered with double insulation and high resistance to environmental conditions, ensuring a longer lifespan and reliable performance in demanding environments.
-
UL/CSA Approved: Meets rigorous safety and performance standards, providing peace of mind for North American installations.
-
3-Pole Configuration: Provides comprehensive protection for three-phase electrical systems.
-
200 Amp Rated Current: Suitable for a wide range of applications requiring 200A protection.
-
High Interrupting Capacity: Boasts a 65 kAIC (kiloampere interrupting capacity) at 480 VAC, ensuring effective fault current interruption.
-

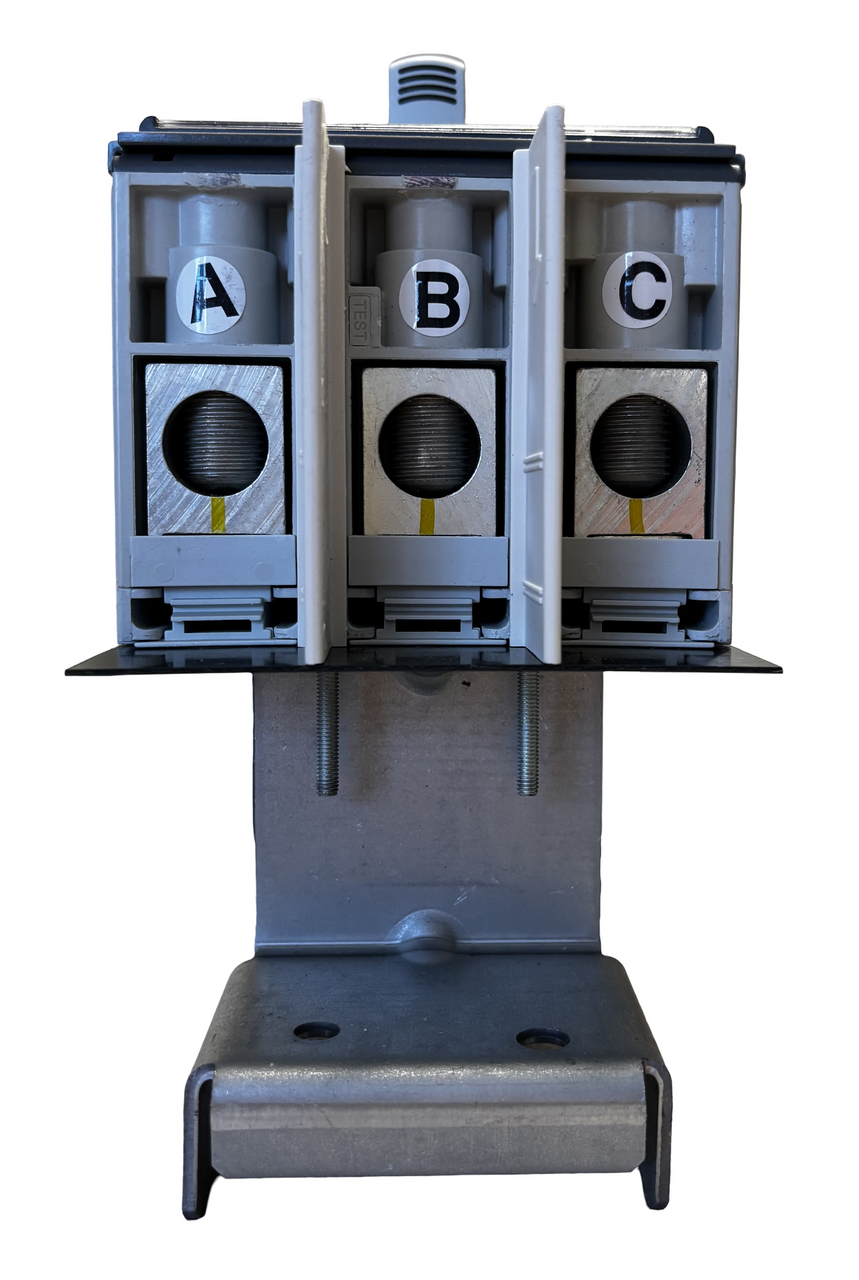

Front Terminals: Designed with front flat terminals for convenient wiring.
Specifications:
-
Rated Current (In): 200 A
-
Rated Uninterrupted Current (Iu): 250 A (Frame size)
-
Number of Poles: 3-Pole
-
Trip Type: Thermal Magnetic Adjustable (TMA)
-
Interrupting Rating (AIC):
-
65 kA @ 480 VAC
-
25 kA @ 600 VAC
-
-
Rated Operational Voltage (Ue): 600 V AC / 600 V DC
-
Frame Size: XT4 (250A frame)
-
Connection Type: Fixed with Front Terminals
-
Dimensions (Approx.): 6.3 in (H) x 4.13 in (W) x 3.25 in (D)
-
Weight (Approx.): 2.5 kg (5.5 lbs)
-
Standards: UL, CSA, IEC
Common Applications:
-
General disconnection in sub-switchboards
-
Switching and insulation for lines, bus bars, and equipment groups
-
Bus ties
-
Power distribution in commercial and industrial facilities
-
Motor protection
-
Generator protection
