Product Description

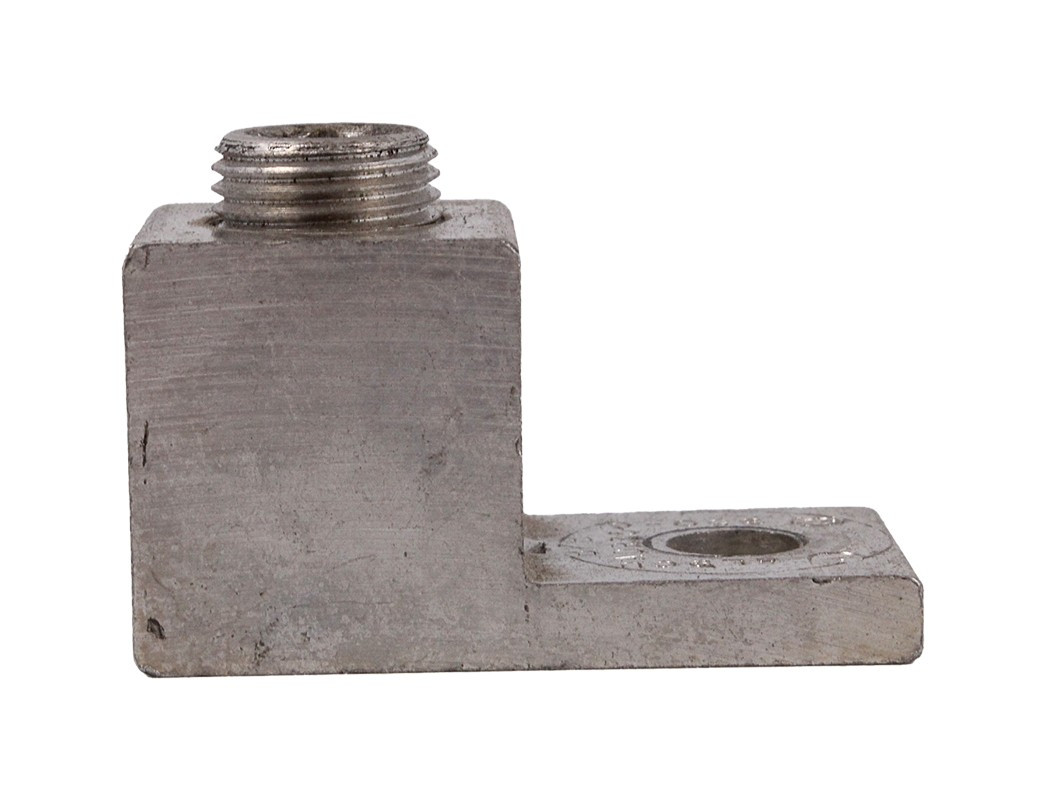

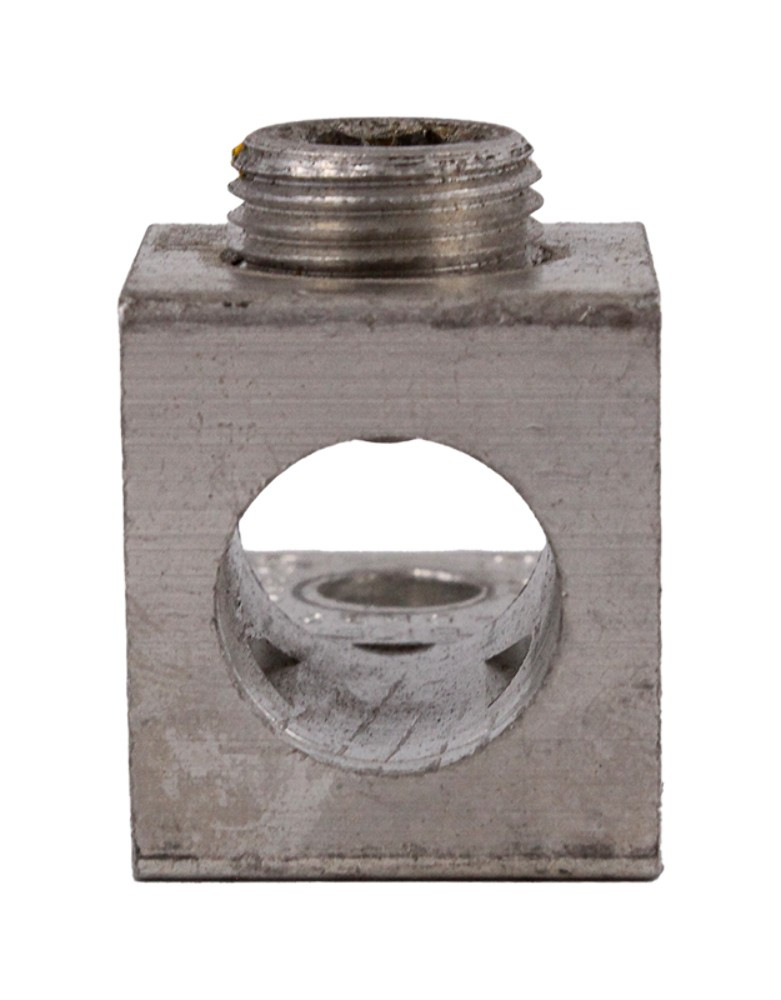

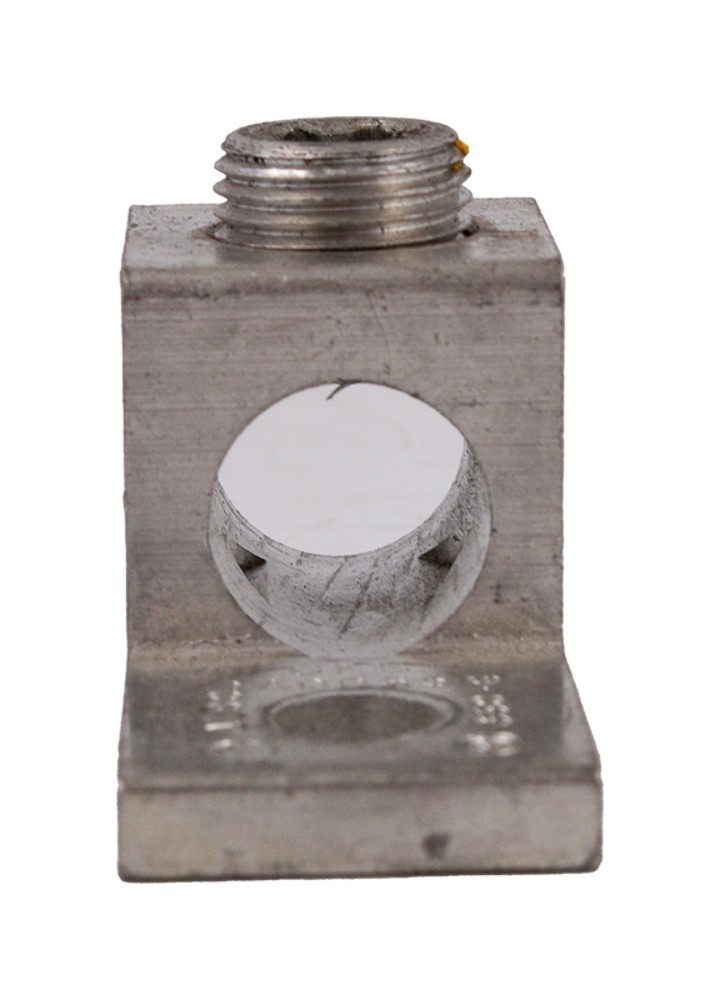

The Blackburn ADR35 is a high-quality, dual-rated mechanical terminal lug designed for secure and reliable connections with aluminum or stranded copper conductors. Manufactured by Blackburn (ABB Installation Products), this lug features a high-strength aluminum body with electro-tin plating to prevent corrosion and ensure low contact resistance. It accommodates conductors from 6 AWG to 350 kcmil and is designed for a single conductor per lug. The 1-hole mounting pad fits a 3/8-inch stud or bolt, and installation is solderless using a socket screw, requiring no specialized tools. Rated for 600 VAC and up to 35 kV with proper insulation, the ADR35 is perfect for commercial and industrial power distribution systems.
Features & Specifications:
• Brand: Blackburn (ABB Installation Products)
• Model: ADR35
• Product Type: Mechanical Terminal Lug (Connector)
• Material: Aluminum alloy, electro-tin plated
• Conductor Range: 6 AWG to 350 kcmil (dual-rated for aluminum and copper)
• Number of Conductors: 1 per lug
• Mounting: 1-hole, 3/8-inch stud
• Installation: Solderless mechanical connection, socket screw
• Voltage Rating: 600 VAC (up to 35 kV if properly insulated)
• Dimensions: 2-1/4" L x 1-1/8" W x 1-1/4" H
• Series: ADR-ALCUL
Applications:
Industrial and commercial electrical panels, junction boxes, and equipment connections.
