Product Description

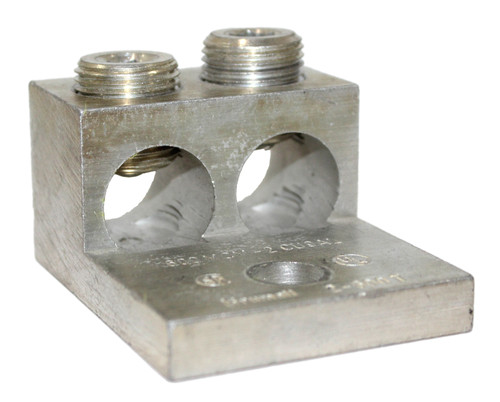

The Brumall 2-350TP is a professional-grade, double-barrel mechanical lug engineered for high-density power distribution. Designed to consolidate two large conductors onto a single 3/8" mounting stud, this lug is a favorite for industrial motor controls, transformer pads, and switchgear.
What sets this lug apart is the "Turn Prevent" (TP) technology. It features a specialized integrated rib that acts as a physical anti-rotational stop. This design ensures the lug remains perfectly aligned and won't shift or twist when tightening heavy 350 MCM cables, providing a safer and more permanent electrical connection.
Precision-machined from high-strength aluminum alloy and finished with premium electro-tin plating, the 2-350TP provides maximum conductivity while preventing oxidation. Its CU9AL dual-rating ensures it is fully certified for use with both copper and aluminum conductors.
Technical Specifications
-
Manufacturer: Brumall Manufacturing
-
Part Number: 2-350TP
-
Configuration: Double-Barrel (2 Ports) / Single-Hole Mount
-
Conductor Range: Two (2) Wires: 350 kcmil (MCM) down to 6 AWG
-
Material: High-Strength Aluminum Alloy
-
Finish: Electro-Tin Plated
-
Rating: Dual-Rated CU9AL (AL9CU)
-
Temperature Rating: 90°C (194°F)
-
Voltage Rating: 600V - 2000V (Standard) / Up to 35kV (Uninsulated)
-
Mounting Hole Size: 3/8-inch (0.406" diameter)
-
Anti-Turn Geometry: Center of hole is 0.625" from the TP rib wall
-
Termination Type: Internal Hex Mechanical Screw
Physical Dimensions
-
Overall Length: 2.25 inches (57.2 mm)
-
Width: 1.25 inches (31.8 mm)
-
Height: 1.81 inches (46.0 mm)
Key Features & Benefits
-
Turn Prevent (TP) Rib: Eliminates the risk of the lug rotating during high-torque installation, protecting the integrity of the busbar connection and neighboring components.
-
Dual-Conductor Capacity: Lands two large feeders on a single mounting point, significantly reducing the space required for power distribution blocks and gutters.
-
Universal CU9AL Compatibility: Certified for both copper and aluminum stranded conductors, preventing galvanic corrosion and providing field flexibility.
-
Corrosion Protection: Durable tin plating ensures a long-lasting, low-resistance connection even in damp or humid industrial environments.
-
Reusable Connection: The mechanical screw design allows for easy maintenance, testing, or system upgrades without the need for specialized crimping dies.
