Product Description

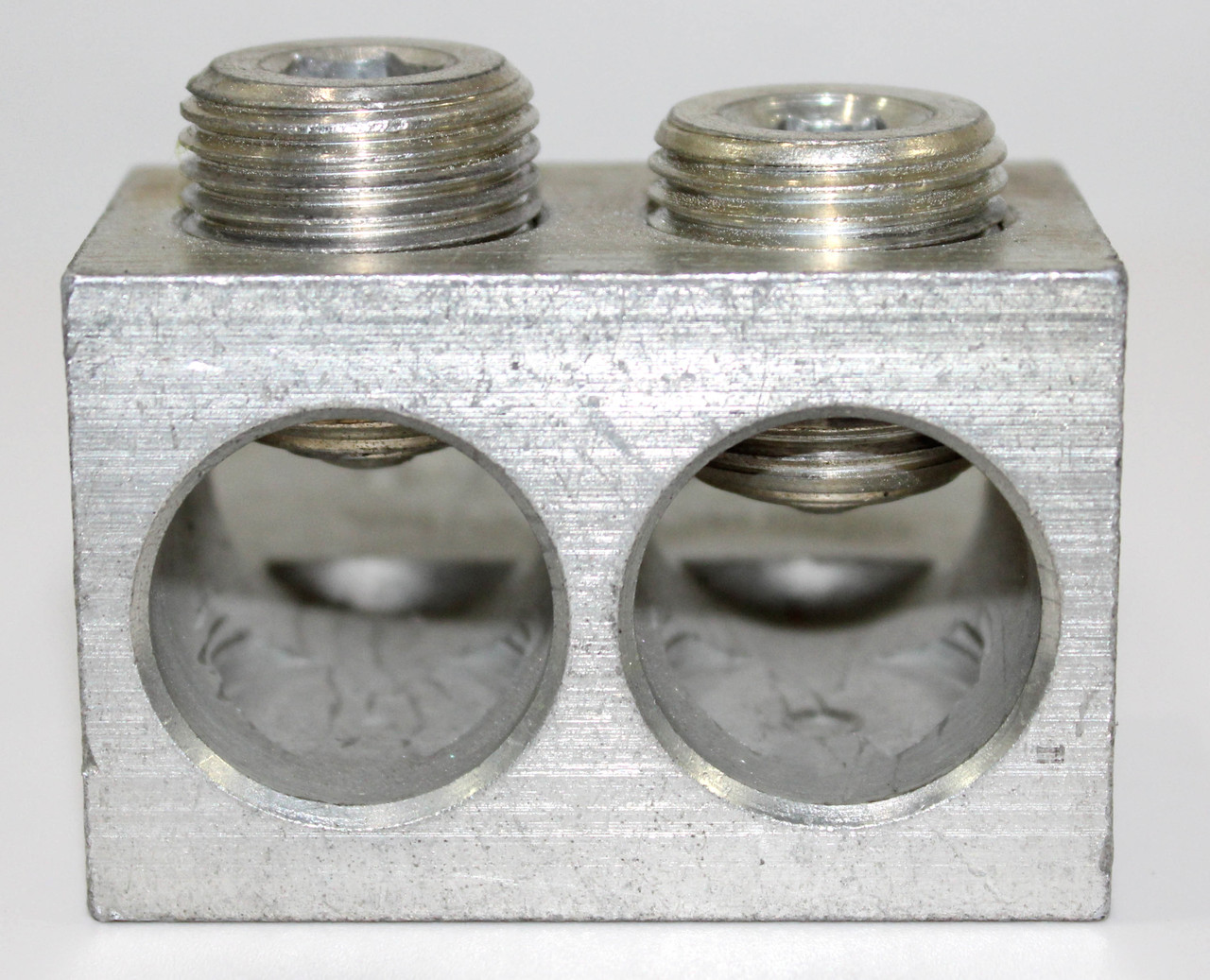

The Brumall 2-600T is a heavy-duty, dual-barrel mechanical terminal lug engineered for high-capacity power distribution. Designed to consolidate two large-gauge feeders into a single mounting point, this lug is a critical component for industrial switchgear, large motor control centers, and panelboard assemblies. Its robust design is optimized for space efficiency without compromising electrical integrity.
Precision-machined from high-strength 6061-T6 aluminum alloy and finished with premium electro-tin plating, the 2-600T ensures maximum conductivity while providing superior resistance to oxidation. Its AL9CU dual-rating ensures it is fully certified for use with both copper and aluminum conductors in demanding environments ranging from standard 600V up to 35kV.
Technical Specifications
-
Manufacturer: Brumall Manufacturing
-
Part Number: 2-600T (Standard Side-by-Side)
-
Configuration: 2-Barrel (Double Port)
-
Conductor Range: Two (2) Wires: 2 AWG up to 600 kcmil (MCM)
-
Material: High-Strength 6061-T6 Aluminum Alloy
-
Finish: Electro-Tin Plated
-
Rating: Dual-Rated AL9CU (CU9AL)
-
Temperature Rating: 90°C (194°F)
-
Voltage Rating: 600V (Standard) / Up to 35kV (Uninsulated)
-
Mounting Hole: Single 17/32-inch (Standard)
-
Termination Type: Hex Socket Mechanical Set Screw
Physical Dimensions
-
Overall Length: ~3.18 inches (Standard Mechanical Lug)
-
Panelboard Variant (600T-2 Stacker): Up to 5.06 inches
-
Design Advantage: High-density barrel placement allows for maximum wire capacity in a compact footprint.
Key Features & Benefits
-
Dual-Conductor Efficiency: Lands two massive 600 MCM feeders on a single mounting point, significantly reducing the space required on busbars and equipment pads.
-
Universal AL9CU Compatibility: Certified for both copper and aluminum stranded conductors, preventing galvanic corrosion and providing total field flexibility.
-
Corrosion Protection: Premium tin plating provides a durable barrier against oxidation, essential for maintaining low contact resistance in harsh industrial atmospheres.
-
High-Torque Hardware: Equipped with rugged hex socket screws designed to provide the high clamping force necessary for a gas-tight, permanent electrical bond.
-
Industrial Durability: Constructed from extruded aluminum for higher structural integrity than cast alternatives, ensuring the lug body resists cracking under extreme torque.
