Product Description

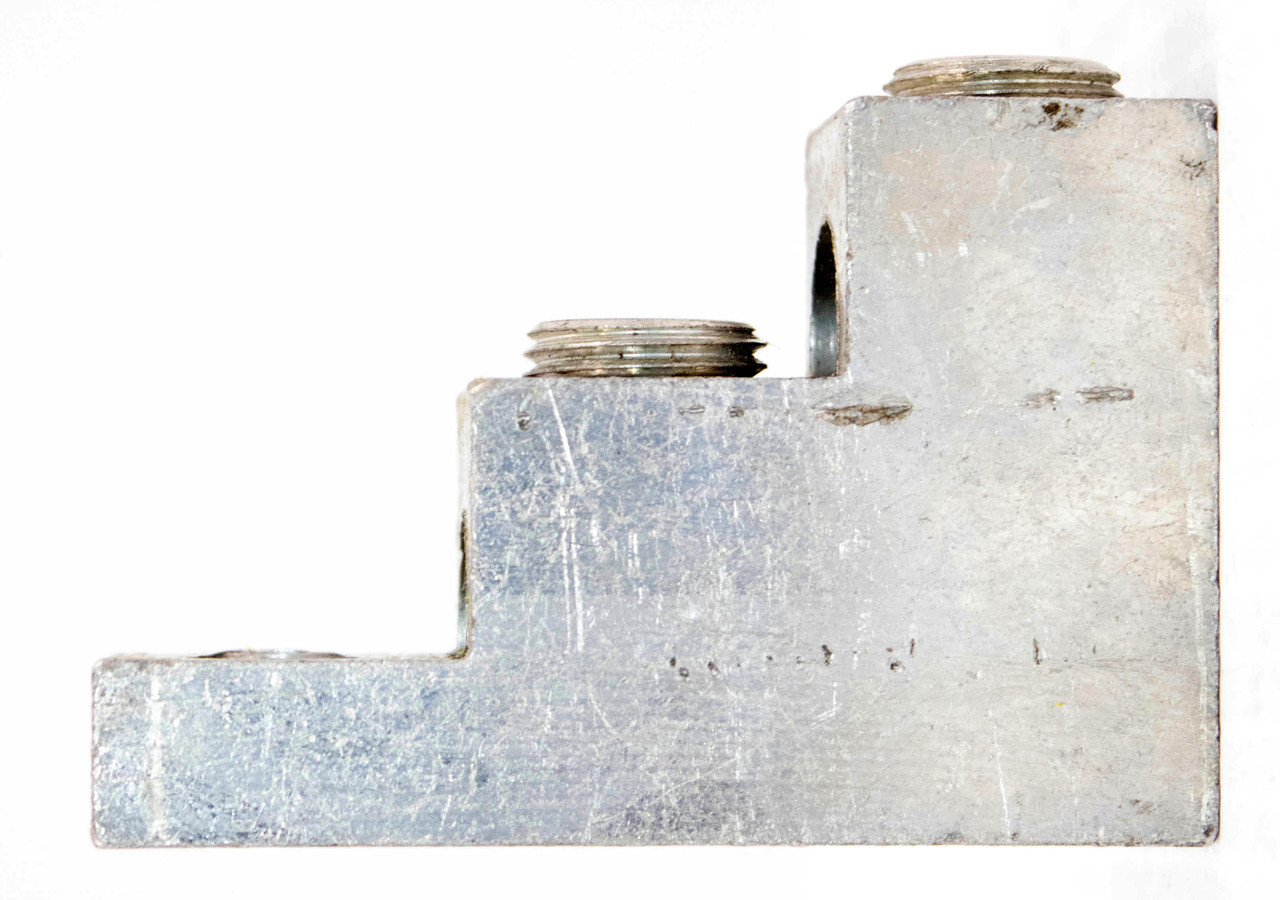

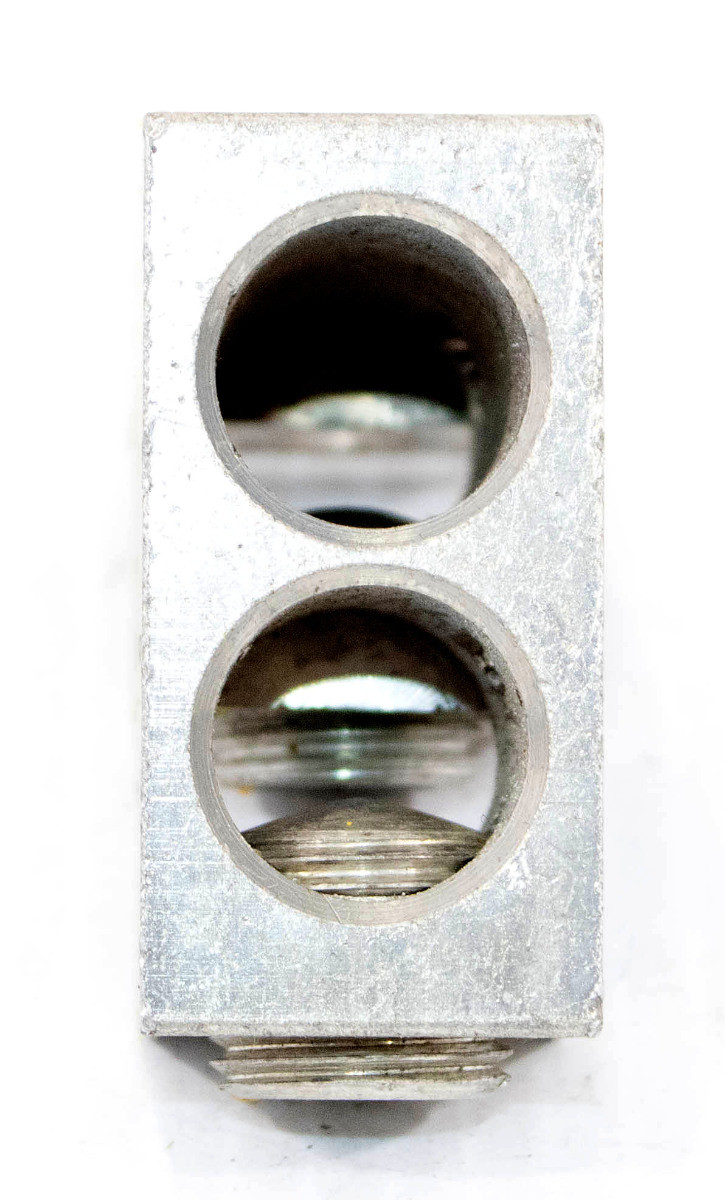

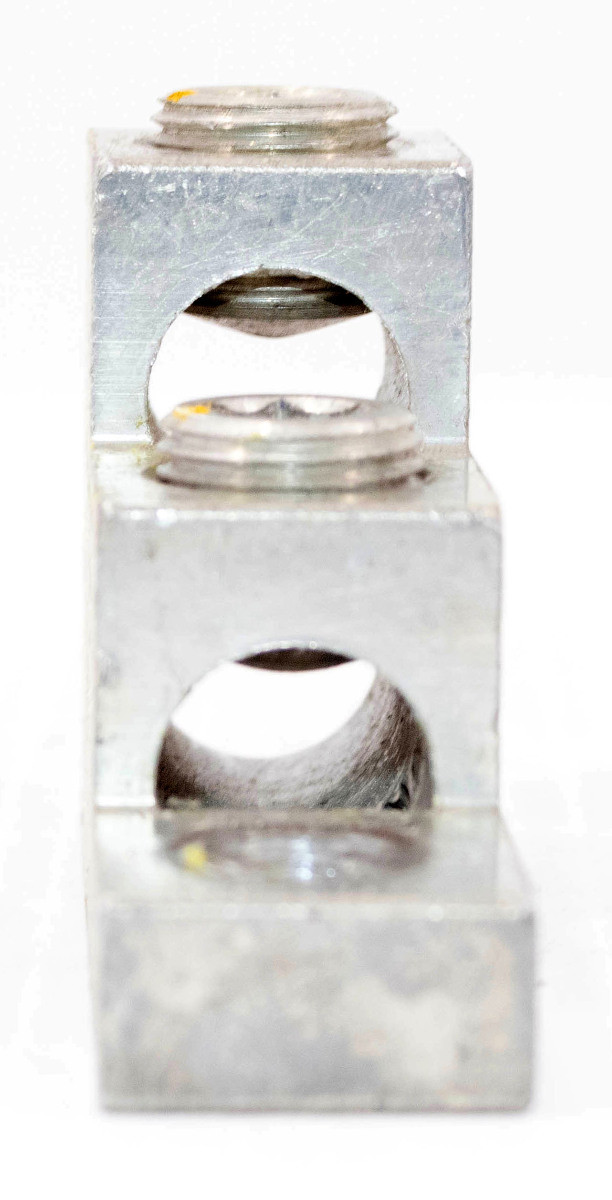

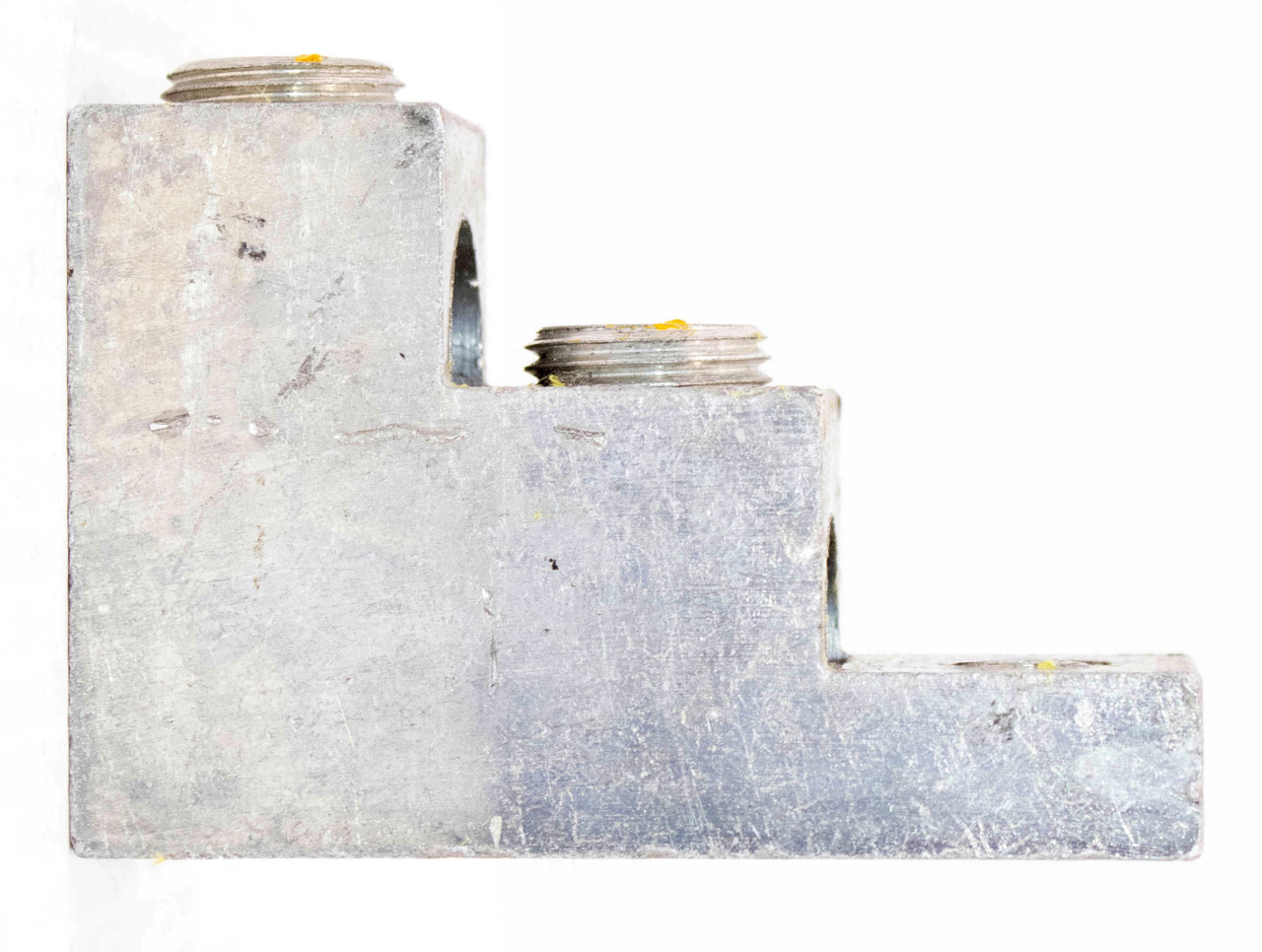

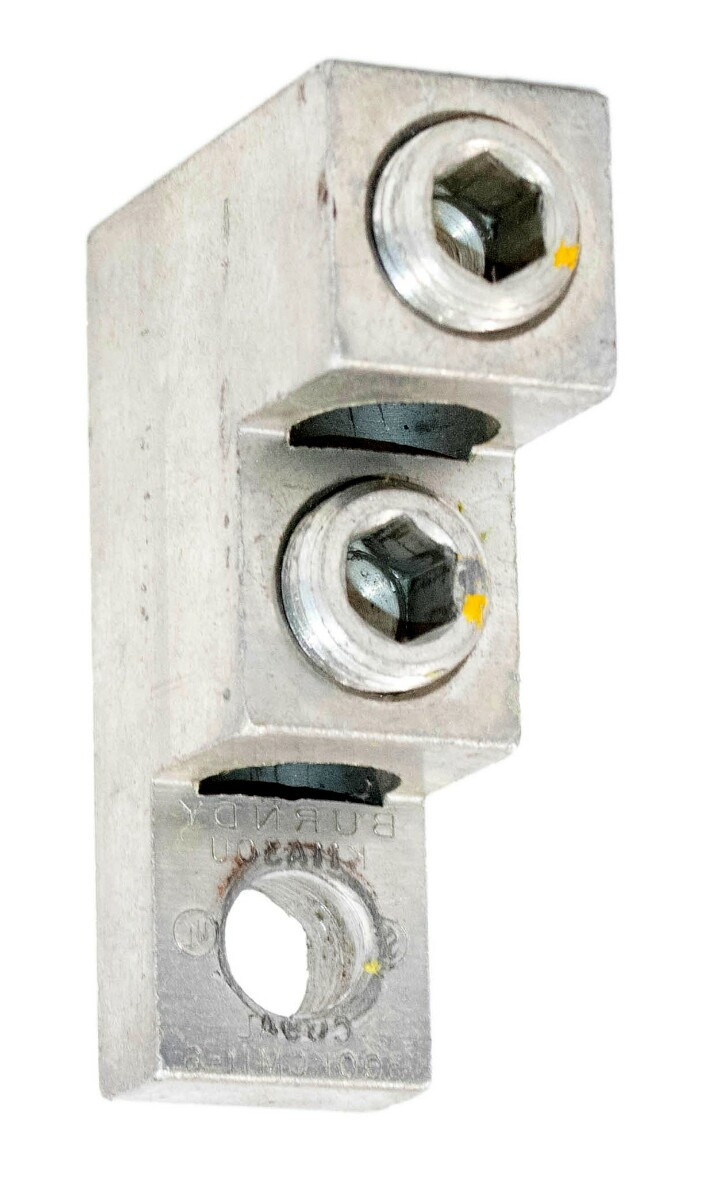

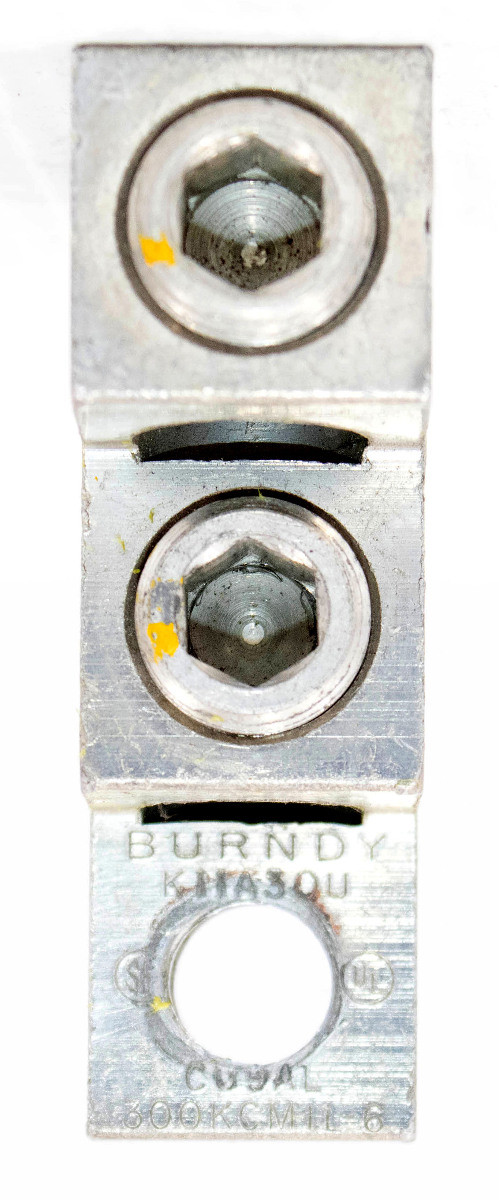

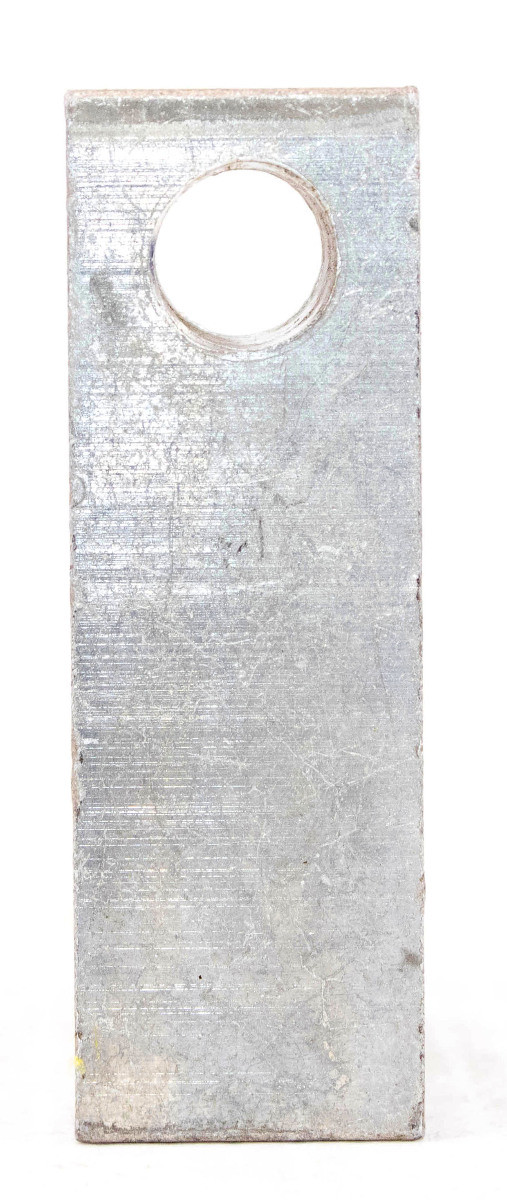

The Burndy K11A30U is a dual-rated mechanical terminal lug designed for connecting aluminum or copper conductors in panelboards and electrical installations.
Featuring a stacked one-hole design, it accommodates two conductors securely, making it ideal for tight spaces or applications where stacked connections are preferred.
Constructed from high-strength extruded aluminum alloy with electro-tin plating, this lug ensures low contact resistance and corrosion resistance, providing reliable, long-lasting electrical connections.
Rated for up to 90°C, the K11A30U is perfect for general power and grounding applications in industrial and commercial environments.
Key Specifications
• Product Type: Universal Mechanical Terminal Lug
• Manufacturer: Burndy (Hubbell Brand)
• Material: Aluminum alloy, electro-tin plated
• Conductor Range: 6 AWG to 300 kcmil, dual-rated for Cu/Al
• Number of Conductors: 2 (stacked configuration)
• Mounting: One-hole pad
• Stud Size: 5/16 inch
• Installation: Two hex set screws, 275 in-lb torque
• Temperature Rating: 90°C (194°F)
• Dimensions: Approx. 3.5 in L × 2 in W × 1 in H
Applications
• Panelboards
• Grounding connections
• General-purpose electrical distribution
• Space-limited installations requiring stacked conductors
