Product Description

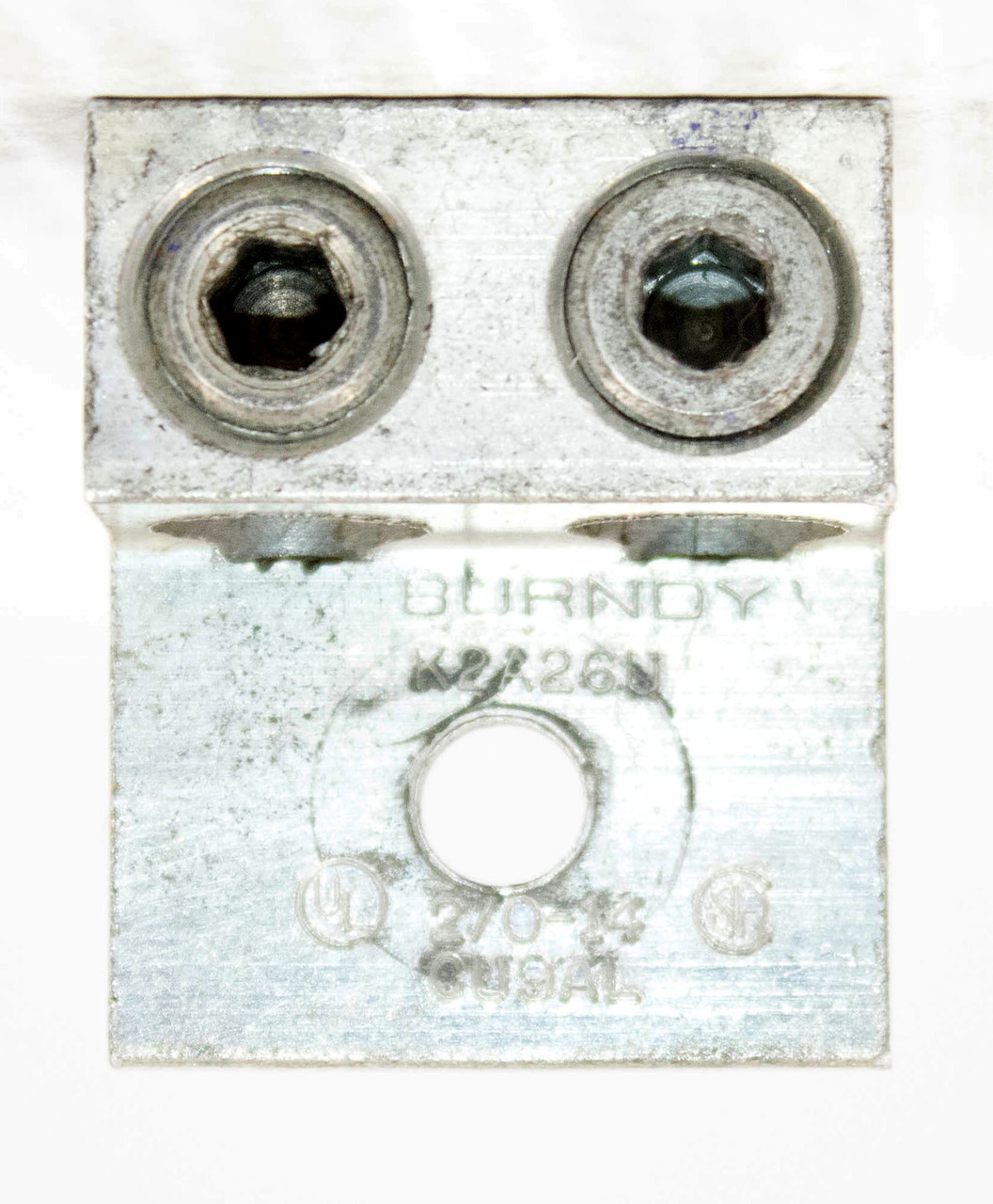

The Burndy K2A26U is a high-efficiency, dual-barrel mechanical terminal lug designed to consolidate two separate conductors into a single mounting point. Manufactured from high-strength extruded aluminum alloy, this lug is a cornerstone of the K2A-U series, providing a space-saving solution for power distribution and grounding. Its 2-port design allows for clean, professional wiring in industrial control panels, motor centers, and electrical enclosures without requiring multiple mounting holes.
Every K2A26U is finished with premium electro-tin plating to inhibit corrosion and maintain low contact resistance over the life of the connection. With its AL9CU dual-rating, it is fully certified for use with both copper and aluminum conductors, offering maximum versatility for modern electrical projects.
Technical Specifications
-
Manufacturer: Burndy (Hubbell)
-
Part Number: K2A26U
-
UPC: 781810370155
-
Conductor Range: 14 AWG up to 2/0 AWG (Stranded)
-
Configuration: 2-Barrel (2-Port) / Single-Hole Mount
-
Material: High-Strength Extruded Aluminum Alloy
-
Finish: Electro-Tin Plated
-
Rating: Dual-Rated AL9CU (CU9AL)
-
Temperature Rating: 90°C (194°F)
-
Voltage Rating: 600V
-
Mounting Hole Size: 1/4-inch Stud
-
Screw Type: Dual Slotted Set Screws

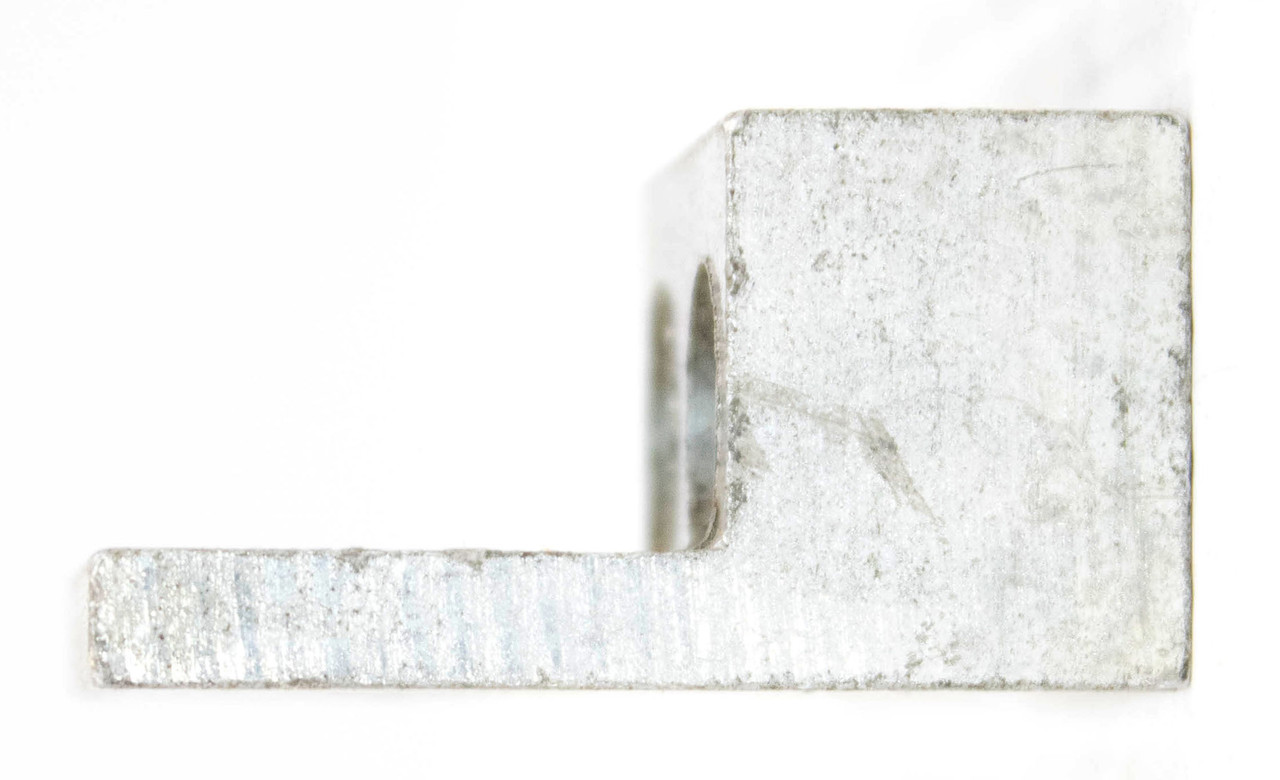

Physical Dimensions
-
Overall Length: 1.47 inches
-
Width: ~1.13 to 1.27 inches
-
Height: ~0.80 inches
-
Design Advantage: The compact 1.47" profile is ideal for tight wiring gutters and shallow panelboard applications where horizontal space is limited.
Key Features & Benefits
-
Dual-Port Efficiency: Lands two separate 2/0 AWG feeders on a single 1/4" stud, reducing the footprint needed on busbars and saving valuable equipment space.
-
Universal AL9CU Compatibility: Certified for both copper and aluminum wires, preventing galvanic corrosion and simplifying job-site inventory management.
-
Corrosion Protection: Durable tin plating provides a robust barrier against oxidation, essential for long-term reliability in damp or industrial environments.
-
High-Strength Extrusion: Built from high-grade aluminum to withstand high-clamping pressures without mechanical failure or cracking.
-
No Specialized Tooling: Features slotted set screws that allow for secure termination using standard hand tools—no hydraulic crimpers or specialized dies required.
