Product Description

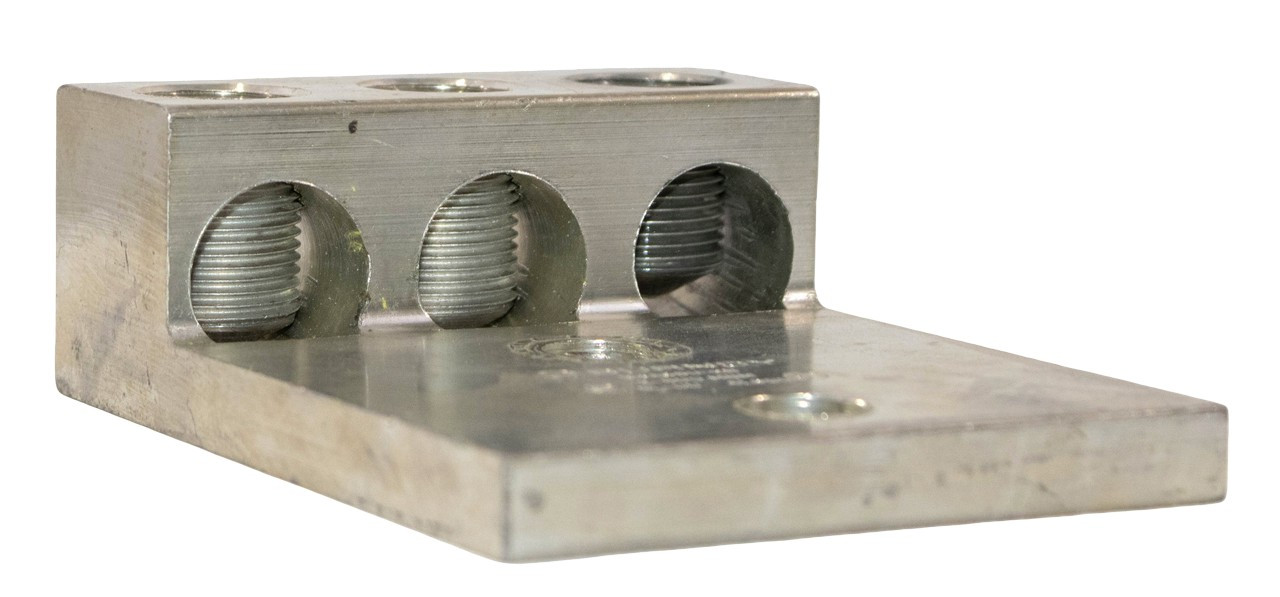

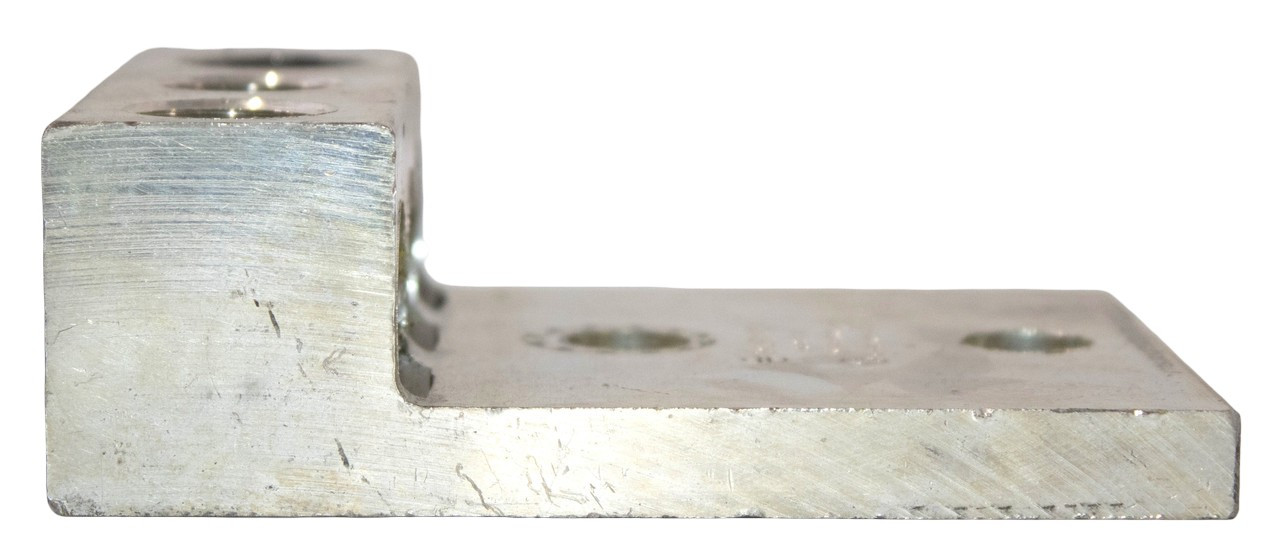

The Burndy K3A36U-2N is a universal, dual-rated mechanical bolted lug designed for secure and reliable electrical connections in commercial and industrial power distribution systems. Manufactured from high-strength aluminum alloy and electro-tin plated for corrosion resistance, this connector is suitable for both copper and aluminum conductors. Its three-port design allows multiple conductors to be terminated in a single lug, while the two-hole mounting pattern provides a stable, vibration-resistant installation.
Key Features
Dual-rated for use with copper and aluminum conductors
Three-port design supports multiple conductor terminations
Electro-tin plated aluminum construction for corrosion resistance
Two-hole mounting reduces rotation and improves stability
Mechanical set-screw connection requires no crimping tools
Technical Specifications
Manufacturer: Burndy
Part Number: K3A36U-2N
Material: High-strength aluminum alloy, electro-tin plated
Conductor Range: 2 AWG to 600 kcmil stranded copper or aluminum
Number of Ports: 3
Voltage Rating: Up to 600 V
Mounting Holes: Two
Stud Size: 1/2 inch
Hole Spacing: 1.75 inches (1-3/4 inch)
Installation Torque: 375 lb-in
Connection Type: Mechanical bolted lug with slotted set screws
Applications
Power distribution and control panels
Switchgear and panelboards
Industrial and commercial electrical systems
Grounding and bonding applications
