Product Description

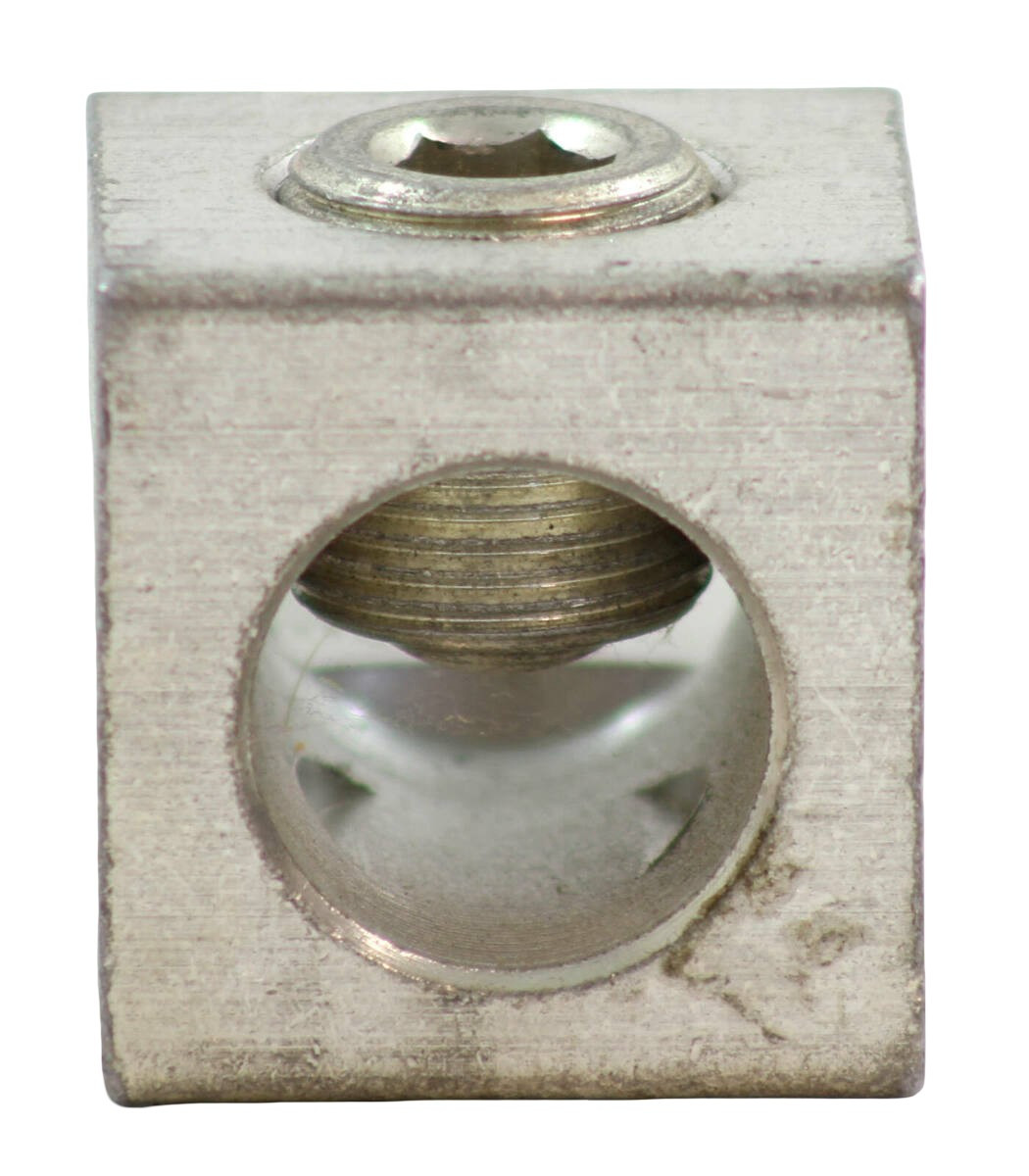

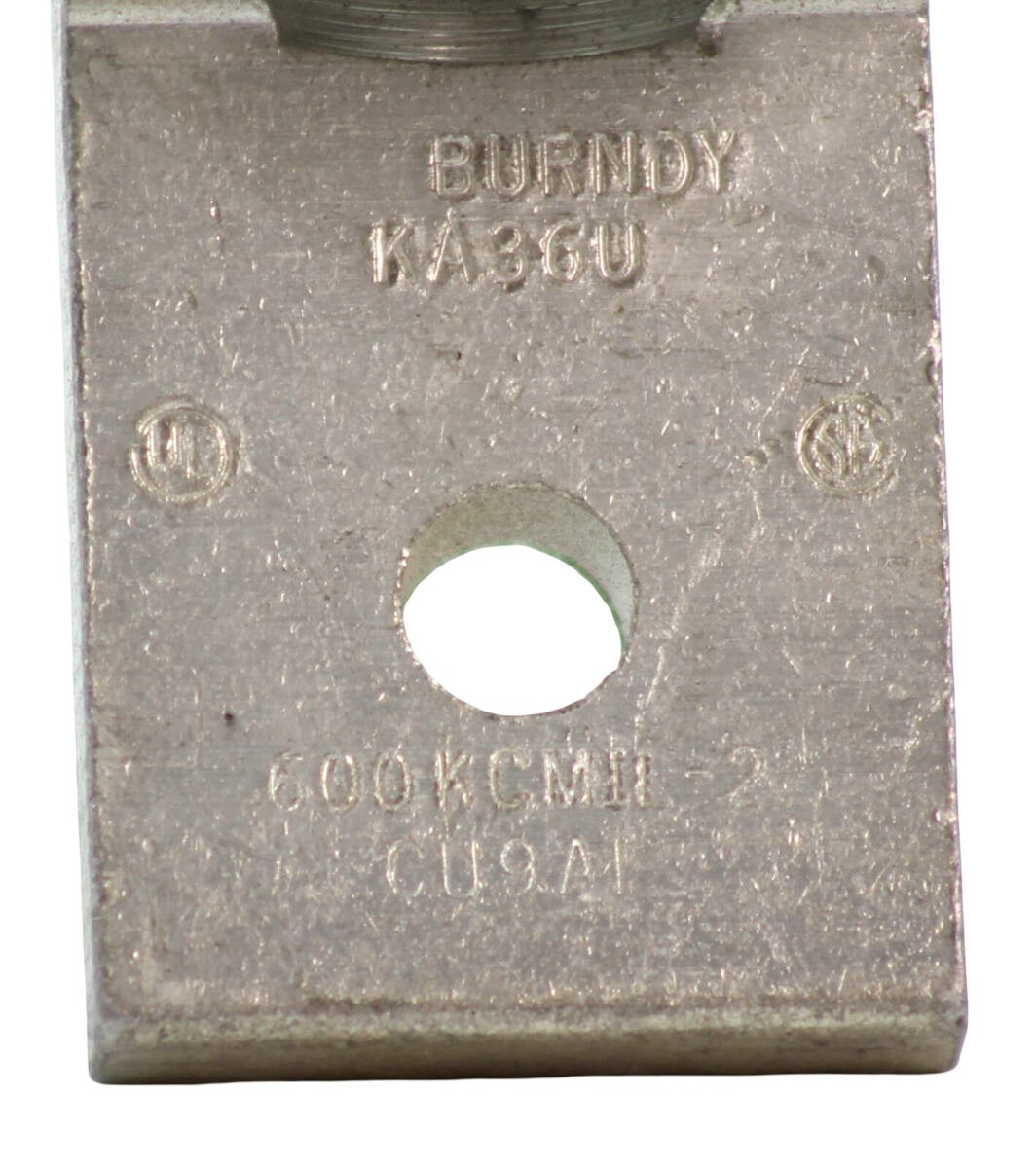

The Burndy KA36U Aluminum Mechanical Lug is designed for reliable termination of single conductors ranging from 2 AWG to 600 MCM. Constructed from high-strength aluminum with a tin-plated finish, this lug provides excellent conductivity and corrosion resistance for long-term performance.
Featuring a single port, 1-hole mounting design, the KA36U allows quick and secure installation in industrial, commercial, and utility electrical systems. It is suitable for use with both copper and aluminum conductors, making it a versatile solution for power distribution and control applications.
Key Features
-
✅ Single conductor mechanical lug
-
✅ Conductor range: 2 AWG – 600 MCM
-
✅ One mounting hole design
-
✅ Tin-plated aluminum construction
-
✅ Accepts copper or aluminum conductors
-
✅ Set-screw termination for secure connection
-
✅ UL listed for electrical safety
Applications
-
Power distribution systems
-
Panelboards and switchgear
-
Industrial and commercial electrical installations
-
Control panels and equipment grounding
Specifications
-
Brand: Burndy
-
Model: KA36U
-
Type: Mechanical Lug
-
Number of Conductors: 1
-
Conductor Size Range: 2–600 MCM
-
Mounting Holes: 1
-
Material: Tin-Plated Aluminum
-
Termination Type: Set Screw
-
Compliance: UL Listed
