Product Description

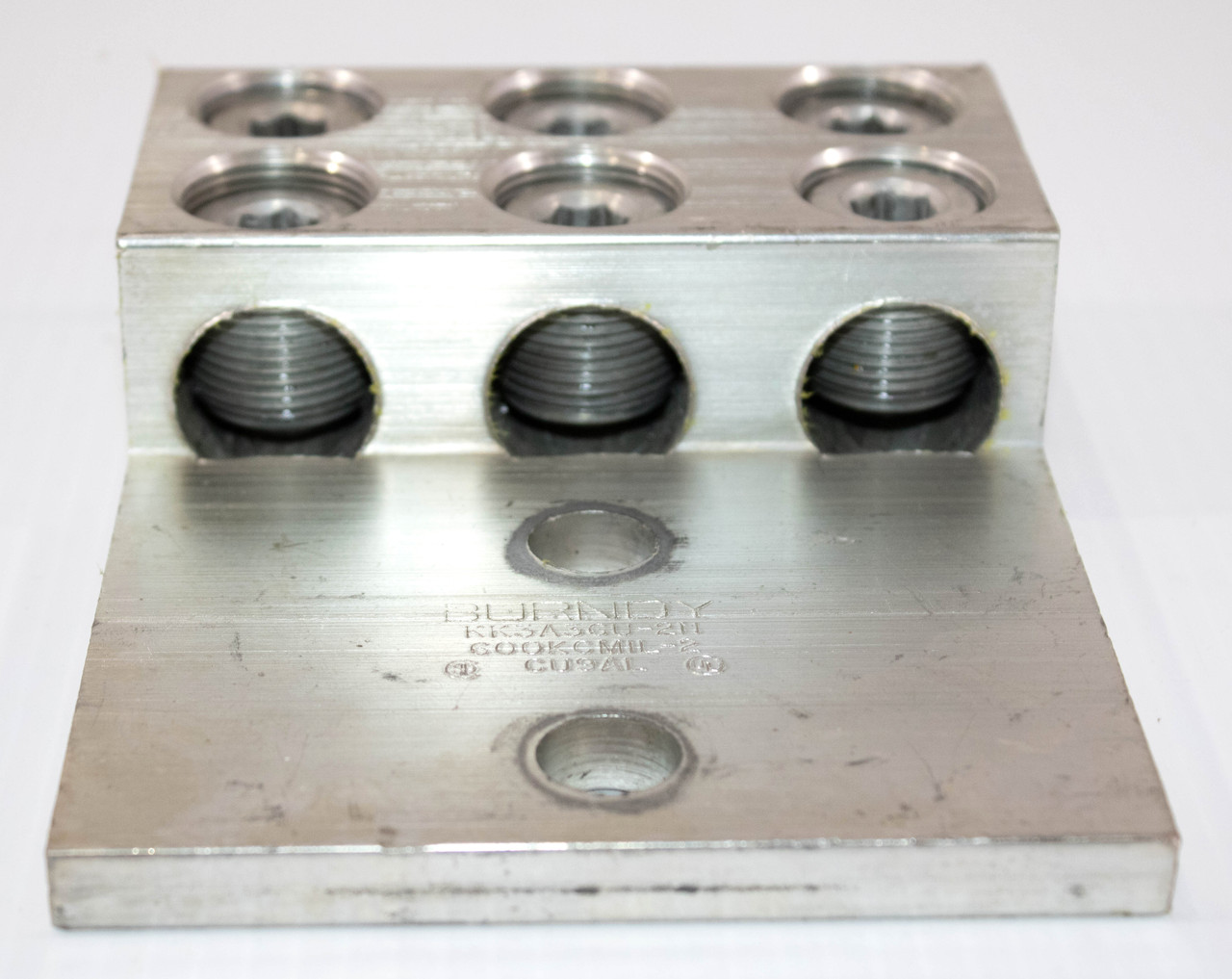

The Burndy KK3A36U-2N is a heavy-duty, dual-rated universal mechanical terminal lug engineered to securely connect up to three copper or aluminum conductors across a wide wire range. UL Listed and CSA Certified, this robust aluminum lug delivers dependable performance in demanding power distribution and industrial electrical applications.
Features & Specifications:
-
Conductor Range: 2 AWG to 600 kcmil stranded copper or aluminum wire
-
Conductor Count: Accommodates three (3) conductors
-
Material: High-strength aluminum alloy with electro-tin plating for corrosion resistance and low contact resistance
-
Stud Holes: Two mounting holes for 1/2-inch studs with 1.75-inch spacing
-
Installation: Six hex screws with recommended installation torque of 375 lb-in
-
Certifications: UL Listed and CSA Certified
Physical Dimensions:
-
Overall Length: 5.5 inches
-
Overall Width: 4.22 inches
Applications:
Ideal for power distribution, switchgear, grounding systems, and industrial electrical installations requiring secure termination of multiple copper or aluminum conductors.
