Product Description

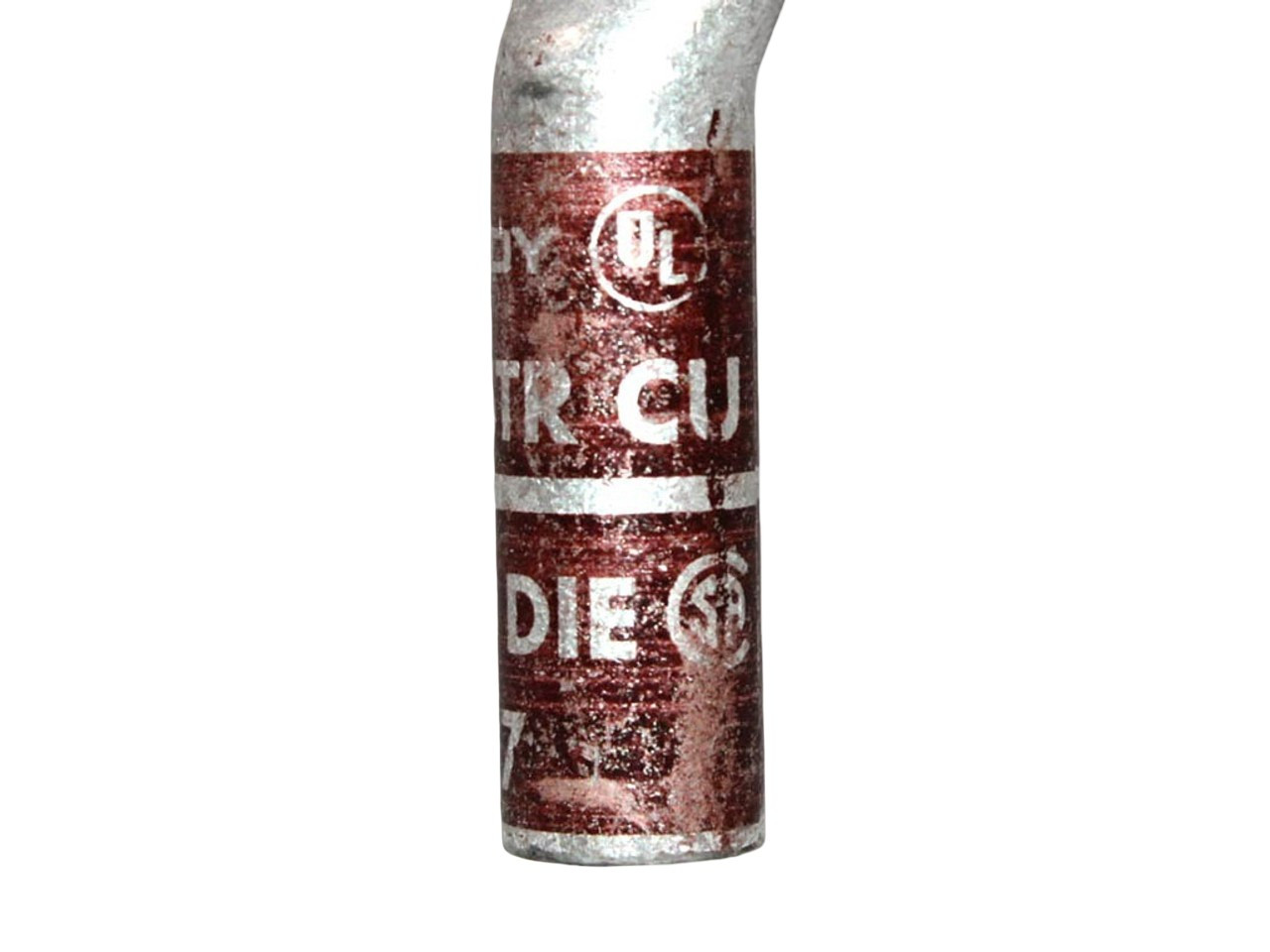

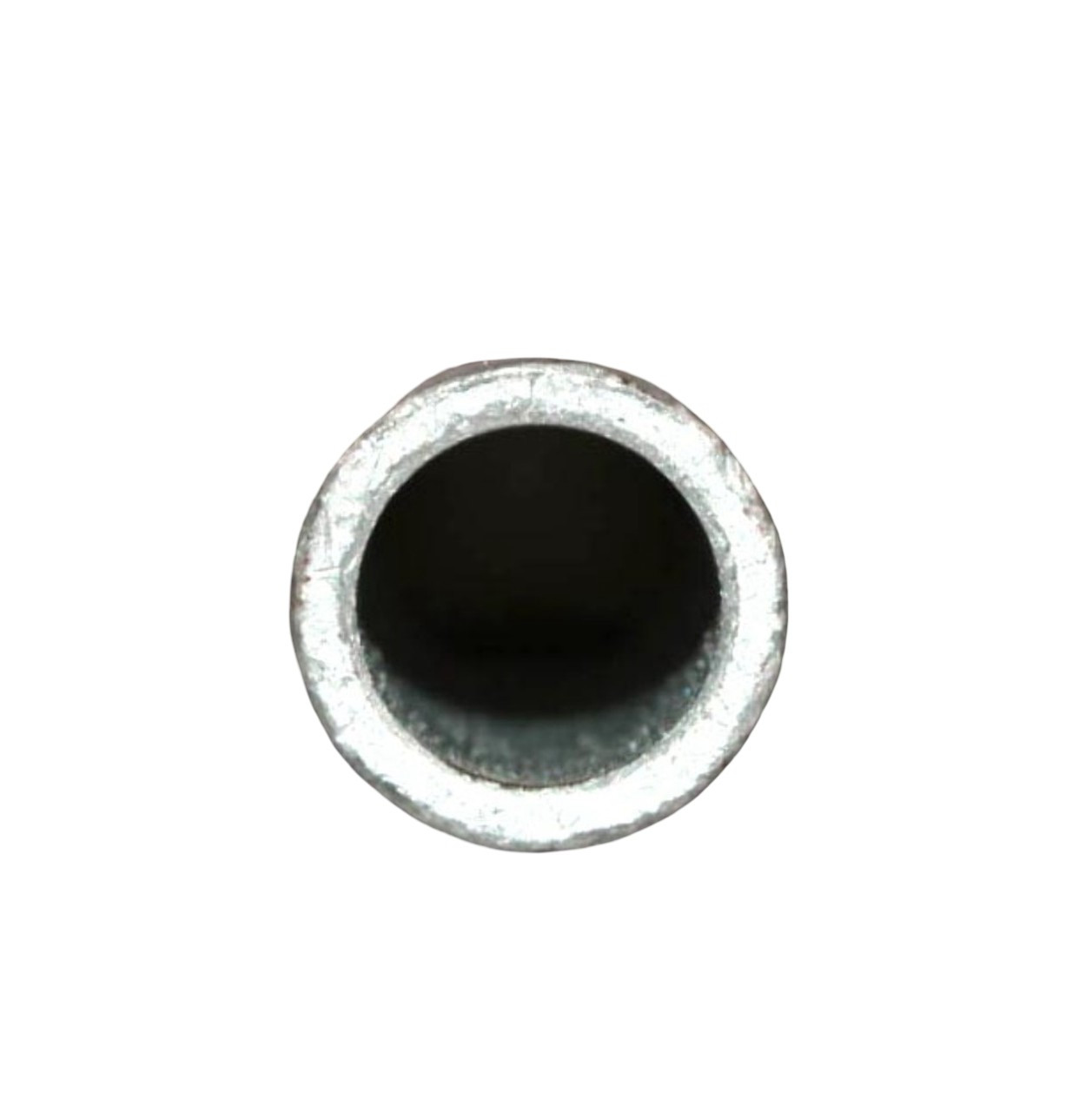

The Burndy YA2C-2TC38 is a high-quality tin-plated copper compression lug (Hylug™) designed for secure, permanent termination of 2 AWG stranded copper wire. Its long barrel and two-hole mounting configuration make it ideal for industrial control panels, communications systems, and other applications requiring reliable, high-performance electrical connections.
Features & Specifications:
-
Conductor Range: 2 AWG stranded copper wire (Code/Navy)
-
Material: High-conductivity electrolytic copper, electro-tin plated for corrosion resistance
-
Design: Two-hole mount, long barrel (1-1/4 inches), no inspection window
-
Mounting:
-
Stud Size: 3/8 inch
-
Hole Spacing: 1 inch center-to-center
-
-
Ratings:
-
Voltage: Rated for 600 V up to 35 kV applications
-
Temperature: Maximum operating temperature 90°C (194°F)
-
-
Installation: Requires compression tooling (Die Code 10, Color Code Brown)
-
Additional Features: Internally chamfered barrel for smooth wire insertion
Applications:
Perfect for industrial control panels, communications systems, and other electrical applications where secure, permanent connections are essential.
