Product Description

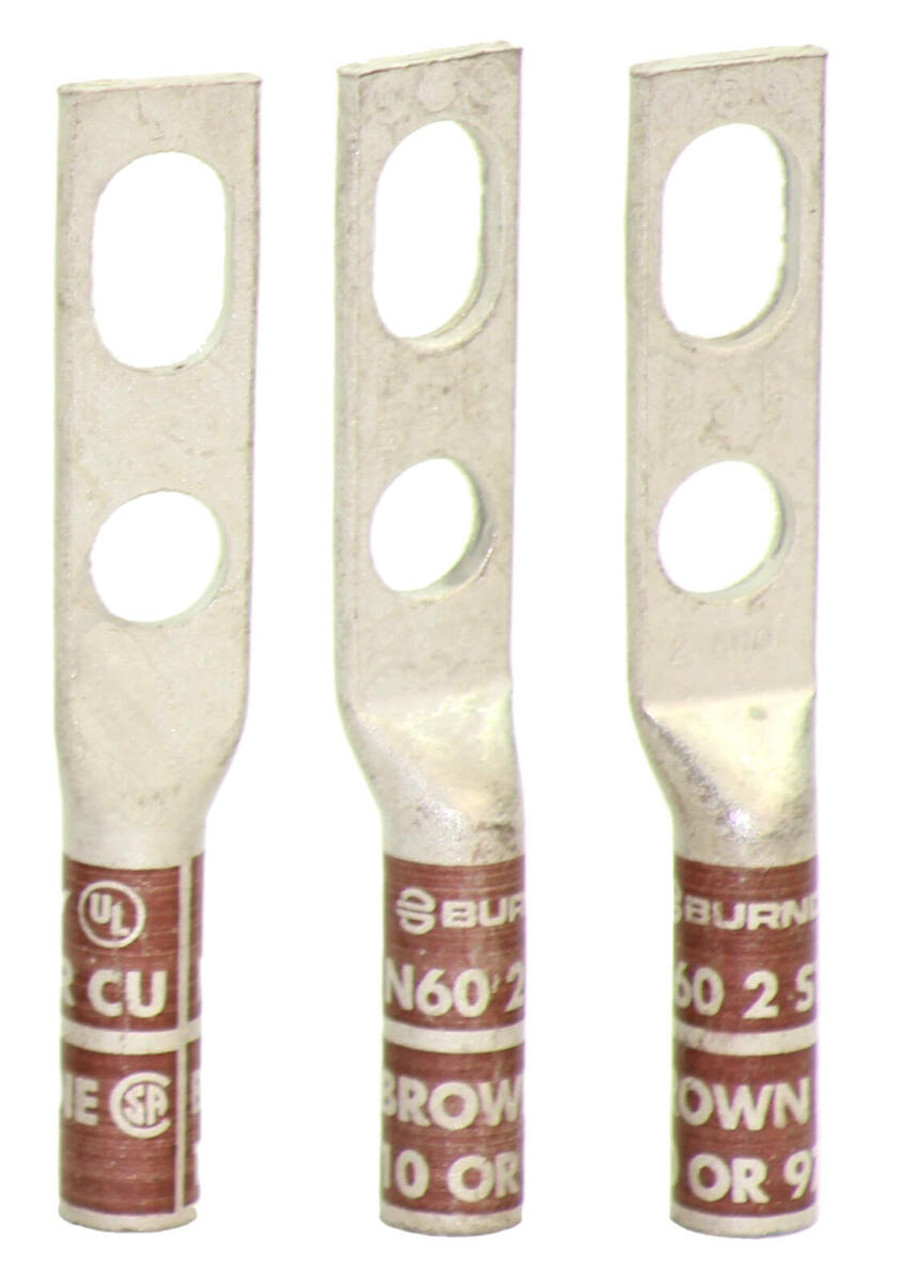

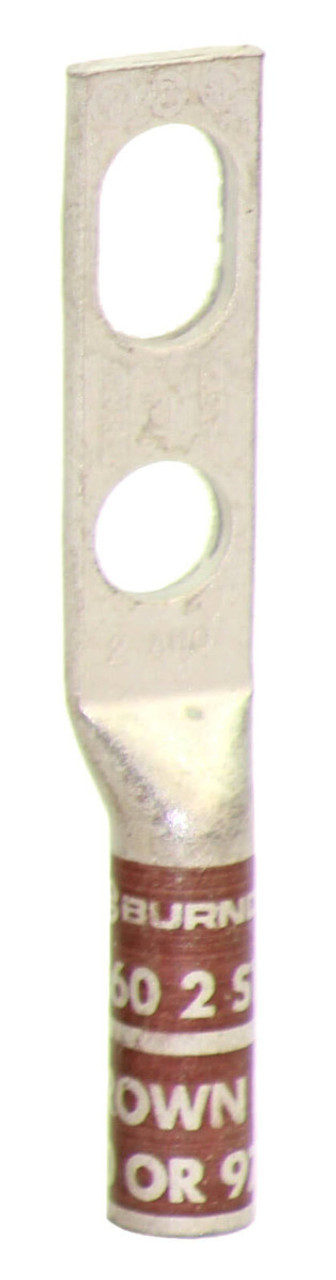

The Burndy YA2C2TC38SL is a high-performance, tin-plated copper compression lug designed for terminating 2 AWG stranded copper conductors in demanding electrical applications. Featuring a two-hole, long-barrel design with slotted hole spacing, this Hylug™ terminal provides enhanced mounting flexibility while delivering excellent electrical conductivity and mechanical strength.
Electro-tin plating improves corrosion resistance, and the chamfered barrel entry helps prevent conductor strand damage during installation. This lug is UL Listed and CSA Certified for reliable, code-compliant performance.
Features & Specifications:
-
Conductor Size: 2 AWG stranded copper wire
-
Material: High-conductivity copper, electro-tin plated
-
Barrel Style: Long barrel with chamfered (skived) wire entry
-
Hole Configuration: Two holes with slotted spacing
-
Stud Size: 3/8 inch
-
Hole Spacing: Approx. 0.75–1.0 inch on center (slotted)
-
Color Code: Brown (Die Index 10)
-
Voltage Rating: Rated up to 35 kV when properly insulated
-
Certifications: UL Listed, CSA Certified
-
Overall Length: 3.42 inches
Applications:
Ideal for use in panelboards, switchgear, control panels, grounding systems, and industrial or commercial power distribution installations requiring secure and permanent copper conductor terminations.
