Product Description

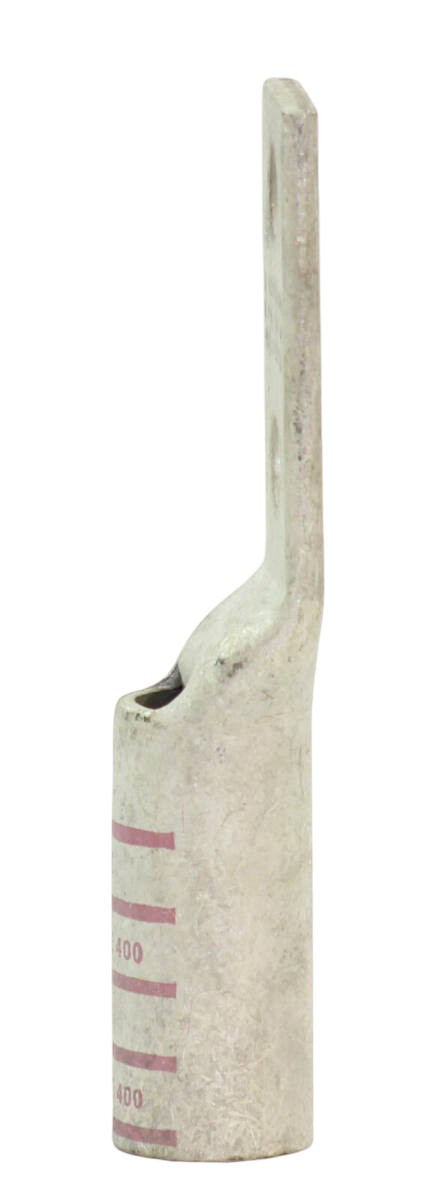

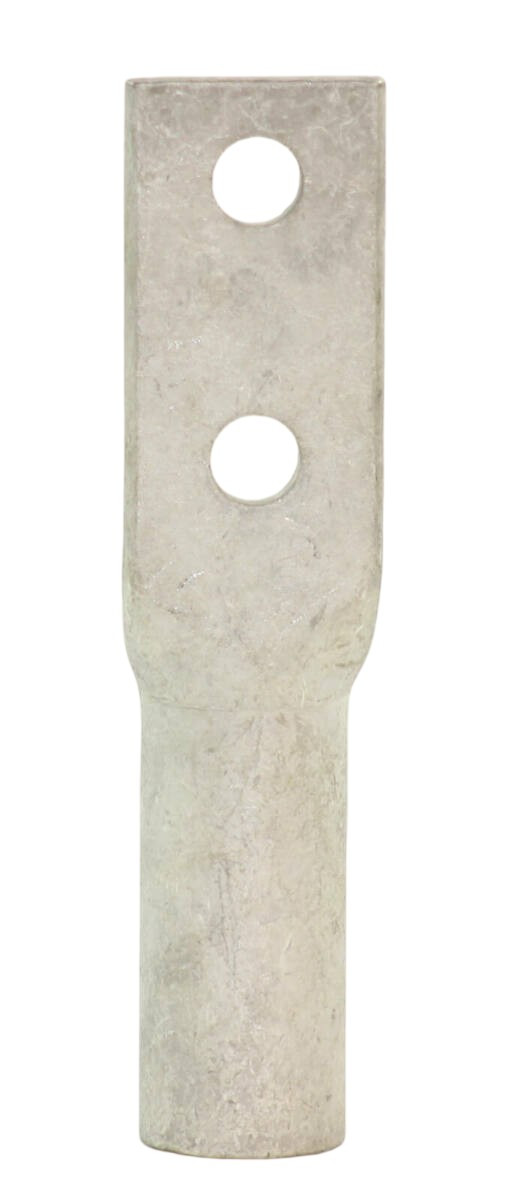

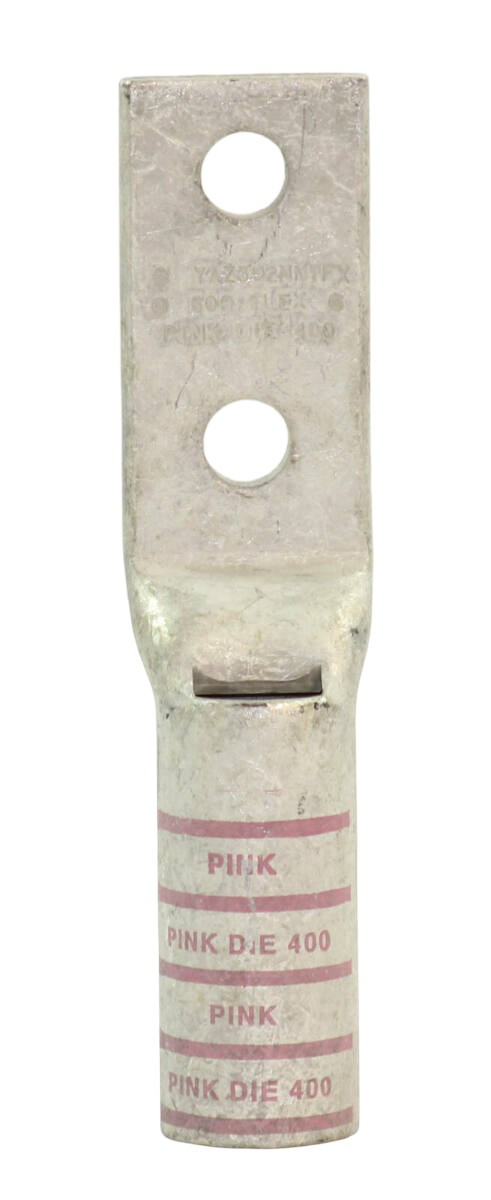

The Burndy YAZ392NNTFX is a durable copper compression lug (Hylug™) engineered for secure, long-lasting wire terminations in commercial and industrial electrical systems. Designed for 600 kcmil stranded copper wire, it features a long barrel for enhanced mechanical strength and two mounting holes for 1/2-inch studs. Its electro-tin plated copper construction ensures excellent conductivity and corrosion resistance, while the internal chamfer simplifies wire insertion. The lug is color-coded pink (400 die index) for correct crimping tool selection, making installation efficient and reliable.
Key Features
-
High-conductivity copper construction with electro-tin plating for corrosion resistance
-
Long barrel design (2.88 inches) for multiple crimps and added mechanical strength
-
Two mounting holes for 1/2-inch studs with 1-3/4 inch spacing
-
Internal chamfer for easy wire insertion
-
Rated for 600 kcmil stranded copper wire
-
Voltage Rating: 600 V (suitable for up to 35 kV applications)
-
Die Index: Pink (400) for proper crimping tool selection
Technical Specifications
-
Material: Copper, electro-tin plated
-
Conductor Size: 600 kcmil stranded copper
-
Barrel Length: 2.88 inches
-
Mounting: Two holes, 1/2-inch studs, 1-3/4 inch spacing
-
Voltage Rating: Up to 600 V AC, 35 kV insulation applications
-
Die Index: 400 (Pink)
Applications
-
Commercial and industrial electrical terminations
-
Power distribution panels and switchgear
-
High-current control systems
-
Grounding and bonding installations
