Product Description

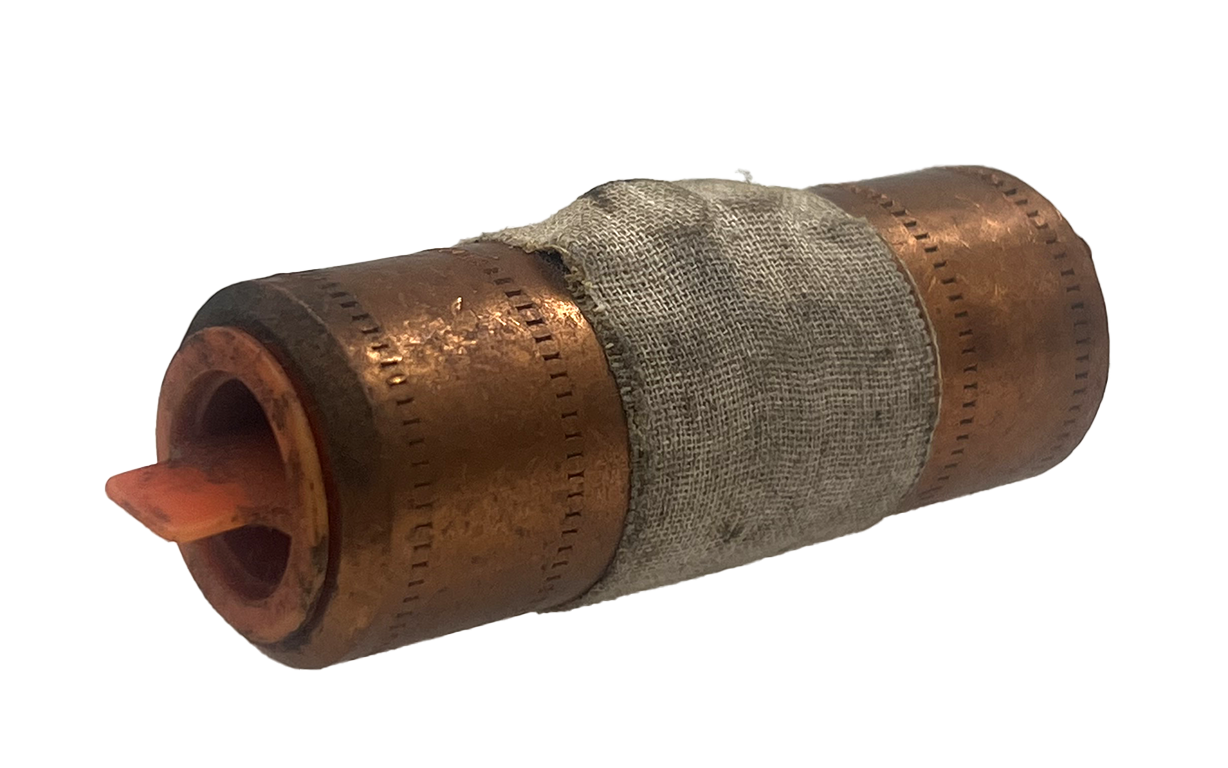

The Burndy YGHS29 is a heavy-duty copper irreversible compression ground splice designed for secure grounding of 250 kcmil stranded copper conductors. Part of the HYGROUND system, this splice is suitable for direct burial in earth or concrete, providing a permanent and reliable connection that meets NEC grounding standards.
Built for durability, the YGHS29 features irreversible compression, inspection probe holes, a center stop, and comes pre-filled with PENETROX compound to prevent corrosion and ensure a long-lasting electrical connection.
Features & Specifications:
-
Part Number: YGHS29
-
Brand: Burndy
-
Conductor Size: 250 kcmil stranded copper
-
Material: High-conductivity pure wrought copper
-
Application: Heavy-duty grounding, suitable for direct burial in earth or concrete
-
Installation: Irreversible compression ensures permanent secure connection
-
Inspection Feature: Conductor insertion can be verified via inspection probe holes
-
Center Stop: Prevents over-insertion of the conductor
-
Pre-filled: Includes PENETROX compound, strip-sealed to resist corrosion
-
Die Index: 18 (or U31RT die with compatible tools)
-
Dimensions: 2.59 inches length, 0.95 inches outer diameter
-
Standards Compliance: NEC sections 250-50 and 250-64
Applications:
-
Industrial and commercial grounding systems
-
Direct burial grounding in earth or concrete
-
Electrical utility and construction projects
-
Permanent, high-reliability grounding connections
