Product Description

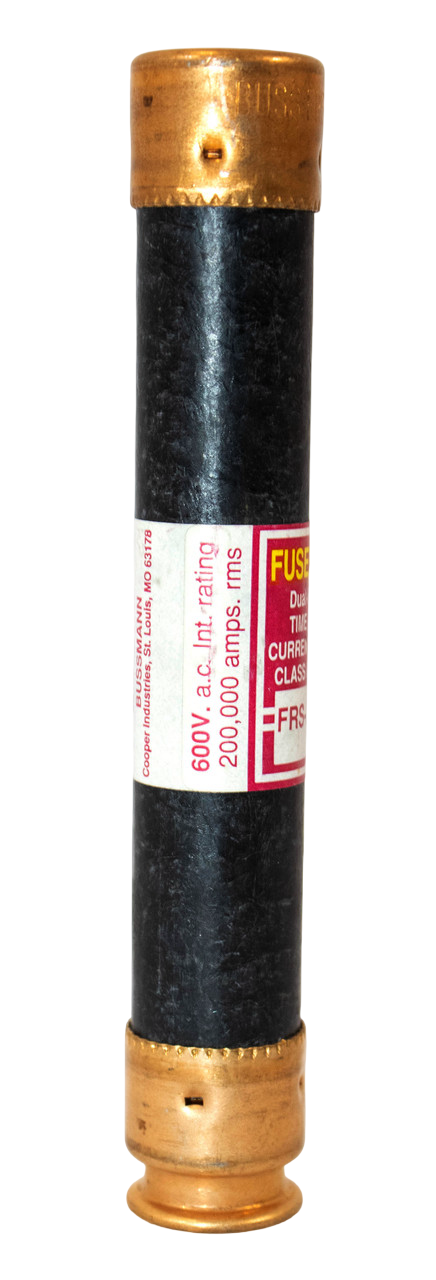

The Bussmann FRS-R-3-2/10 fuse is part of the Fusetron® FRS-R series of dual-element, time-delay, current-limiting cartridge fuses designed for demanding industrial branch-circuit and motor-control applications. Rated at 3.2 Amps, 600 V AC (and 300 V DC on lower ratings) with a formidable interrupting capacity of 200 kA RMS at 600 V AC.
This fuse tolerates inrush currents from motors and transformers thanks to its time-delay design, while its current-limiting capability significantly reduces let-through energy for enhanced protection of downstream equipment.
Product Details
-
Brand: Bussmann / Eaton
-
Model / Part Number: FRS-R-3-2/10
-
Condition: Used
-
Fuse Type: Dual-Element, Time-Delay, Current-Limiting
-
Current Rating: 3.2 A
-
Voltage Rating: 600 V AC (300 V DC for applicable ratings)
-
Interrupting Rating: 200 kA RMS at 600 V AC (20 kA at 300 V DC)
-
Fuse Class: Class RK5
-
Body Size / Style: Approx. 0.81″ diameter × 5.0″ length cartridge fuse
-
Applications: Motor control centers, industrial panels, branch circuit protection, circuits subject to inrush currents.
Key Features
-
Dual-element construction (time-delay + current-limiting) allows tolerance of startup surges (e.g., motors, transformers) while maintaining robust fault protection.
-
High interrupting capacity (200 kA) ensures dependable performance in high-fault environments.
-
Compact Class RK5 size cartridge simplifies installation in standard holders while delivering full performance.
-
Rejection-style or appropriate mount prevents substitution of lower rated fuses, enhancing system safety.
