Product Description

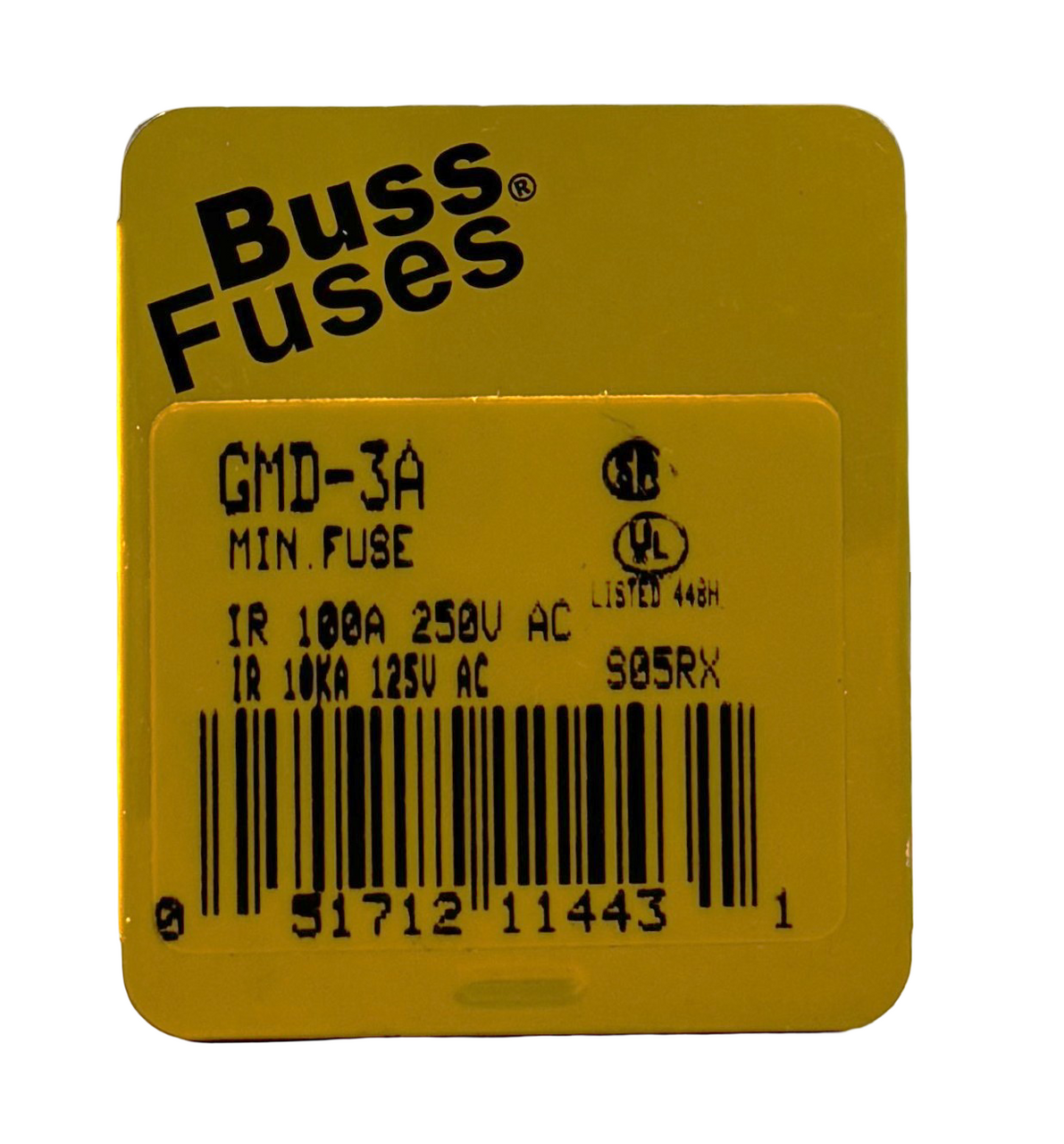

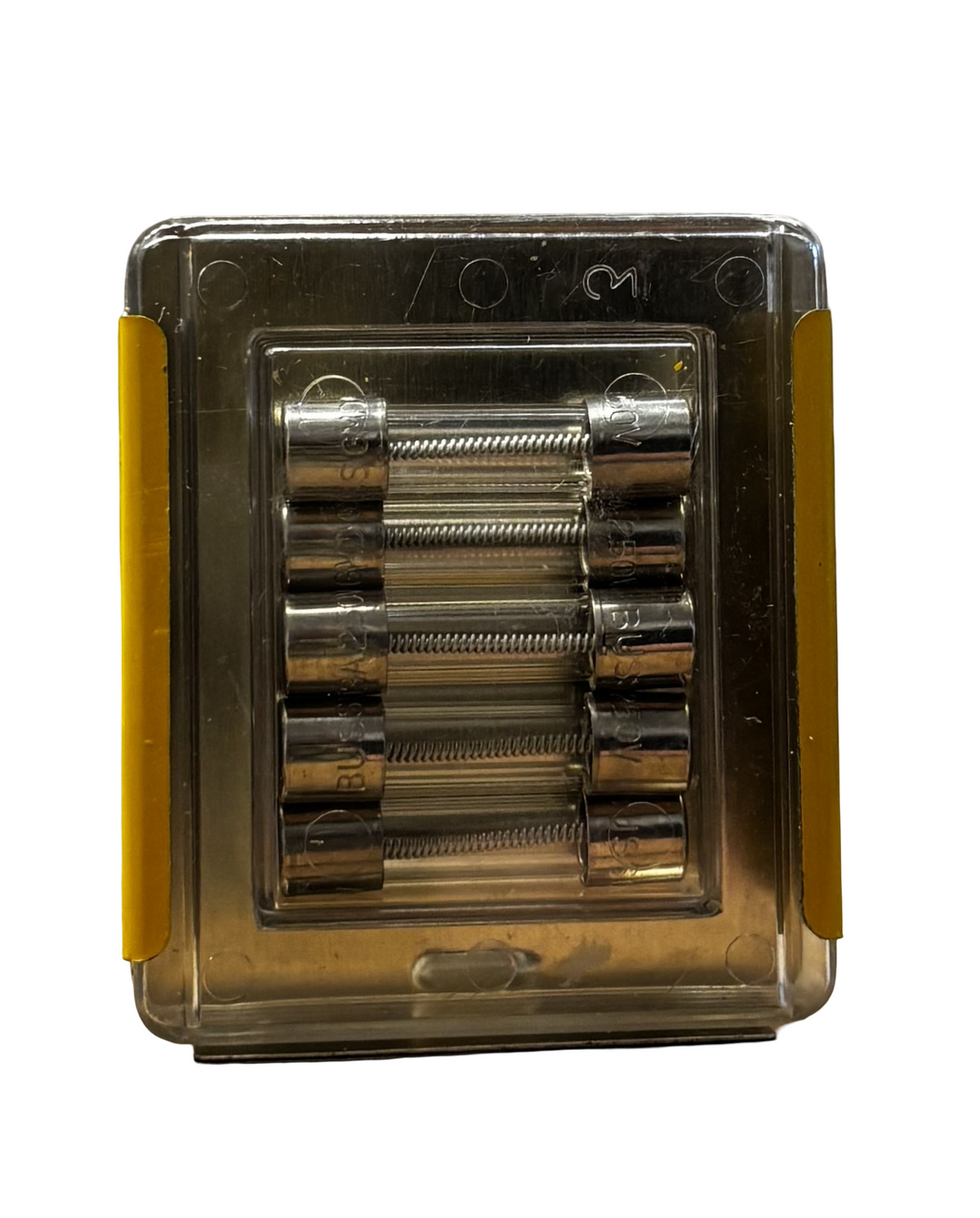

The Bussmann GMD-3A Time-Delay Fuse (Pack of 5) is a high-quality, small-dimension electronic fuse designed for precise circuit protection in electronic applications.
Rated at 3A with a voltage rating of 250V AC / 32V DC, this fuse provides reliable time-delay protection, allowing temporary current surges without blowing. It features a glass tube body with nickel-plated brass endcaps and ferrule-to-ferrule connections for secure installation.
Engineered for durability and consistent performance, the GMD-3A is ideal for electronic circuits that require accurate and dependable overcurrent protection.
Features / Specifications
• Manufacturer: Bussmann
• Part Number: GMD-3A
• Package Quantity: 5 fuses
• Type: Time-Delay Electronic Fuse (Small Dimension)
• Amperage Rating: 3A
• Voltage Rating: 250V AC / 32V DC (self-certified)
• Interrupt Rating: 100 AIC at 250V AC, 10 kAIC at 125V AC
• Non-Indicating
• Response Time:
– 60 min max at 135% rated current
– 5 s min at 200% rated current
– 2 min max at 200% rated current
• Construction: Glass tube, nickel-plated brass endcaps
• Connection Type: Ferrule end x ferrule end
• Dimensions: Height: 0.788 in | Length: 0.25 in | Width: 0.197 in
• Application: Ideal for electronic circuits and sensitive electronic equipment
