Product Description

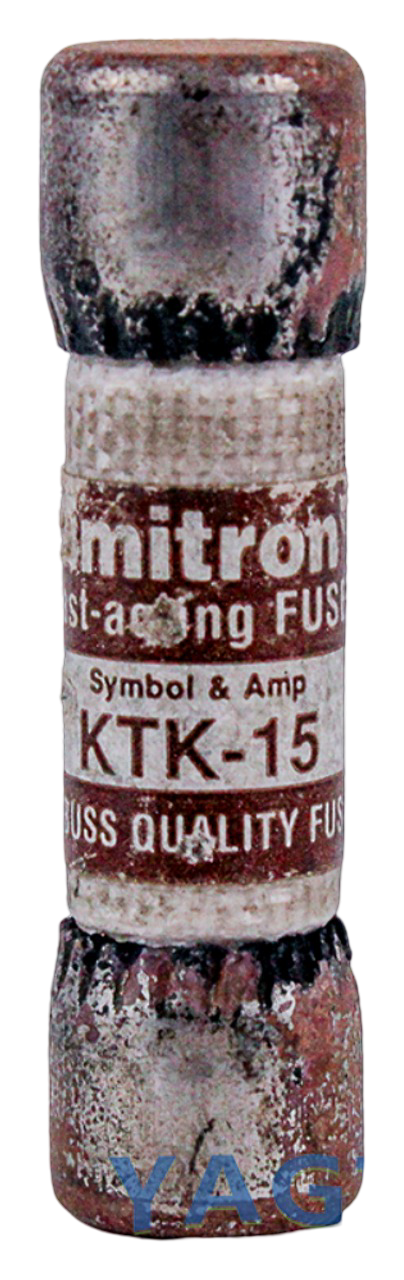

The Bussmann KTK-15 cartridge fuse is a compact, high-performance fast-acting fuse rated at 15 Amps and 600 VAC. It supports a high interrupting rating of 100 kA at 600 VAC.
The 13/32″ × 1½″ melamine-tube fuse with nickel-plated end-caps is designed for use in control circuits, lighting circuit protection, meter circuits and other industrial applications.
Product Details
-
Brand: Bussmann (Eaton)
-
Model / Part Number: KTK-15
-
Condition: Used
-
Current Rating: 15 A
-
Voltage Rating: 600 V AC
-
Interrupting Rating: 100 kA at 600 V AC
-
Body Style / Size: 13/32″ × 1½″ (10.3 mm × 38.1 mm) cartridge fuse
-
Fuse Class / Series: KTK (Limitron fast-acting supplemental)
-
Applications: Control circuits, lighting protection, meter circuits, small branch circuit protection in industrial panels.
Key Features
-
Fast-acting design for excellent protection of resistive loads and prevention of short-circuit damage.
-
High interrupting capacity of 100 kA ensures reliable operation under high fault conditions.
-
Compact midget cartridge size saves panel space and simplifies installation.
-
Melamine tube construction with nickel-plated bronze end caps offers robust durability and consistent performance.
