Product Description

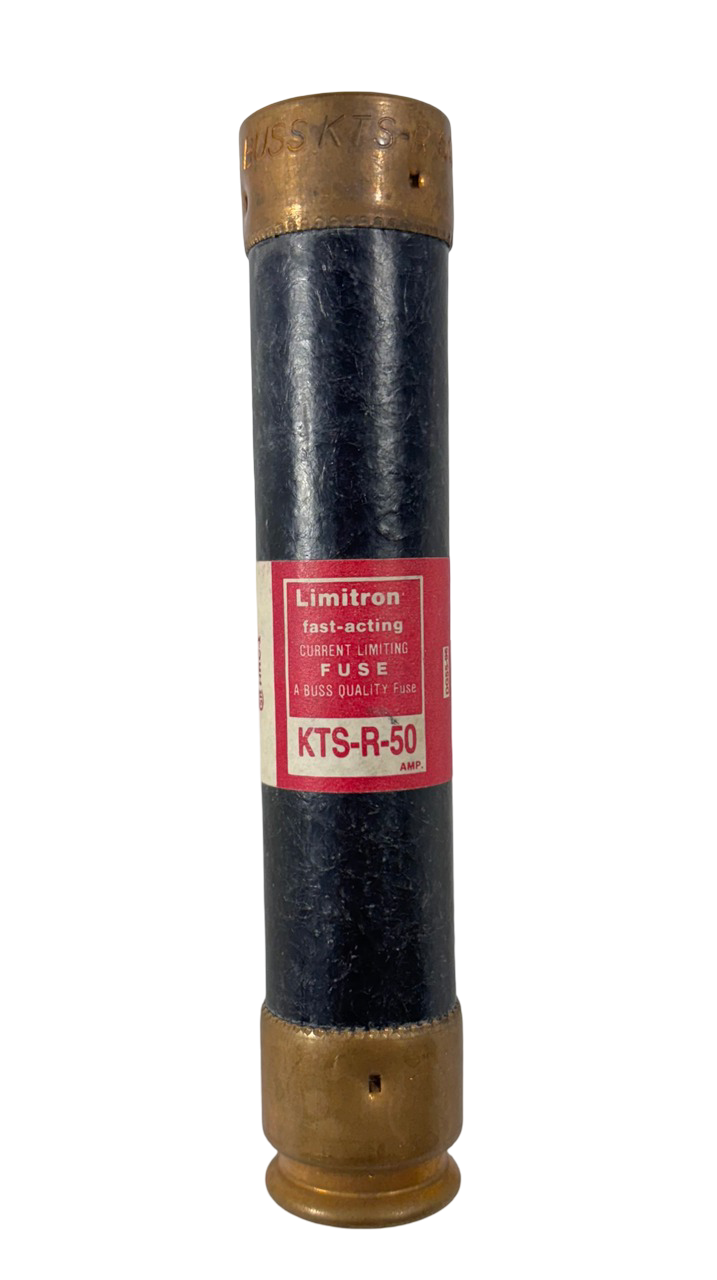

The Bussmann KTS-R-50 is a 50 Amp, 600 Volt AC, Class RK1 fast-acting current-limiting fuse from the Limitron® family. Engineered for industrial and commercial panelboards, feeders, and branch circuits with no heavy surge currents, it offers rapid interruption and dependable protection against overloads and short circuits. With its high interrupting capacity and compact cartridge design, the KTS-R-50 helps protect equipment and enhances safety in demanding electrical systems.
Product Details
-
Brand: Bussmann / Eaton
- Condition: Used
-
Model / Part No.: KTS-R-50
-
Amperage Rating: 50 A
-
Voltage Rating: 600 V AC
-
Fuse Class: RK1
-
Type: Fast-Acting, Current-Limiting Cartridge Fuse
-
Interrupt Rating: 200 kA at 600V AC
-
Body Style: Cartridge with ferrule-end terminals, melamine glass tube
-
Typical Applications: Panelboards, feeders, general electrical distribution circuits (non-heavy surge)
Key Features
-
Fast-acting fuse for immediate reaction to overloads and short-circuits
-
Current-limiting design helps reduce fault energy and protect downstream components
-
High interrupting capacity (200 kA) suitable for demanding industrial or commercial installations
-
Compact cartridge configuration with ferrule ends — easy to install in standard fuse holders
-
Class RK1 rating for general-purpose AC circuits up to 600 V
