Product Description

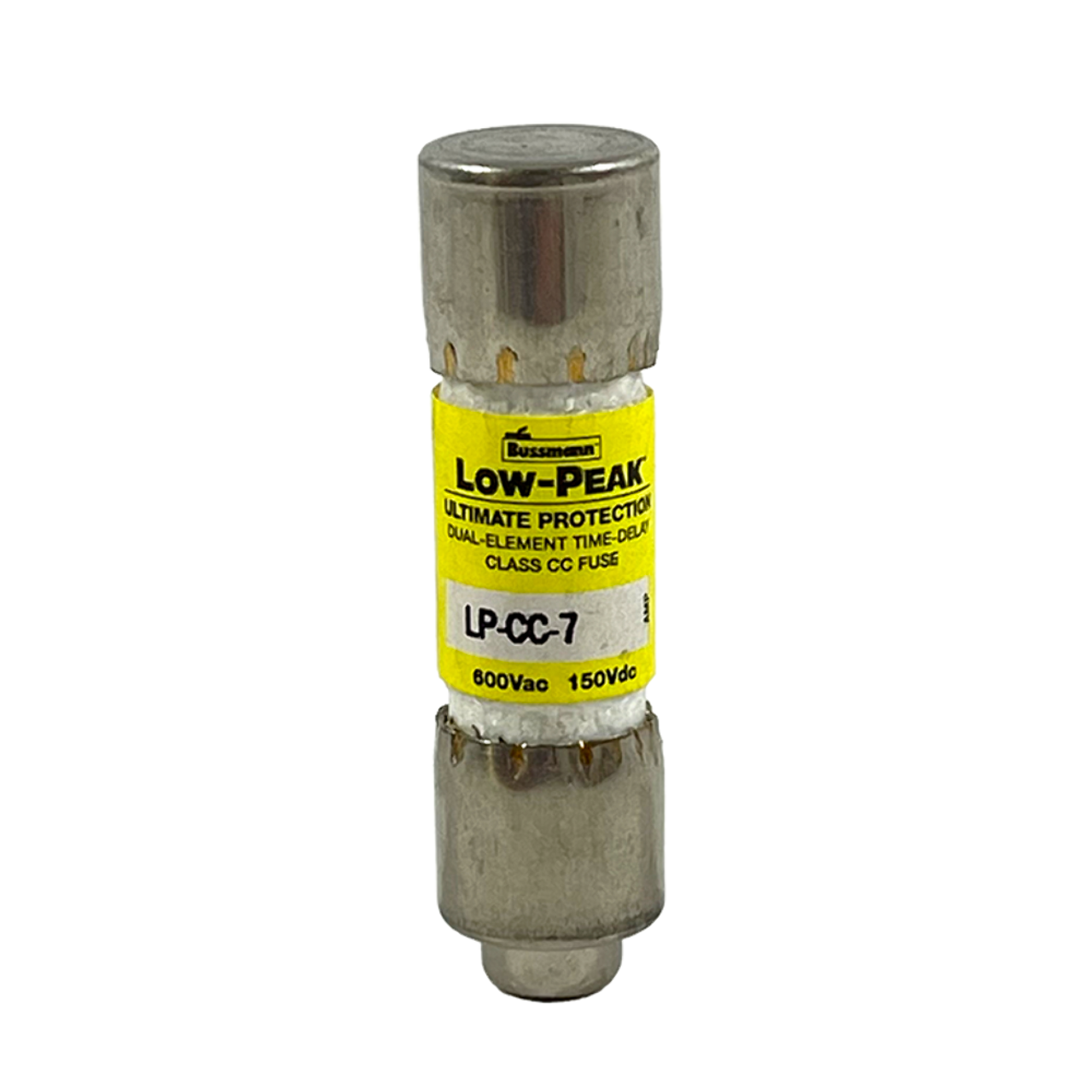

The Bussmann LP-CC-7 is a high-performance Low-Peak® Class CC fuse designed for superior short-circuit and overload protection in industrial and commercial electrical systems. Featuring a dual-element time-delay design, it safely manages high inrush currents—making it ideal for motor loads, control circuits, and lighting systems. With ratings of 7A, 600VAC, and 150VDC, this fuse delivers reliable, current-limiting protection in compact installations.
Product Details
-
Brand: Bussmann / Eaton
-
Model: LP-CC-7
-
Series: Low-Peak®
-
Fuse Class: CC
-
Amperage: 7A
-
Voltage Rating: 600VAC / 150VDC
-
Interrupting Rating: 200kA AC
-
Fuse Type: Dual-Element, Time-Delay
-
Current Limiting: Yes
-
Body Style: Midget / Cartridge
-
Applications: Control panels, motor circuits, lighting, load protection
-
Condition: New
Key Features
• Dual-element design delivers superior time-delay performance
• Handles high inrush currents without nuisance tripping
• High AC interrupting rating up to 200kA for advanced protection
• Current-limiting design reduces fault energy and equipment damage
• Compact Class CC size fits space-restricted installations
• Suitable for both AC and DC applications (600VAC / 150VDC)
SKU: IS.11072024.18
