Product Description

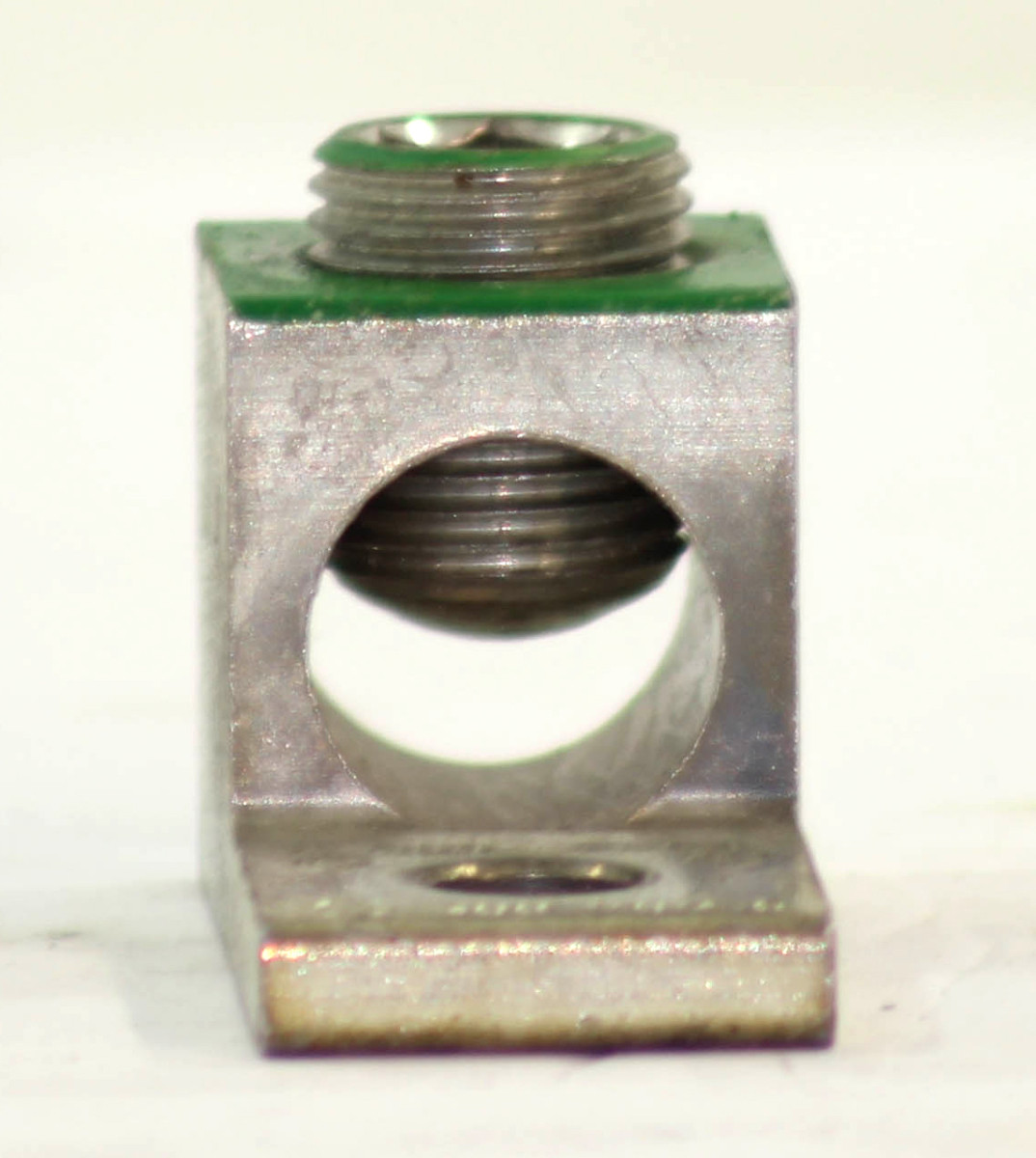

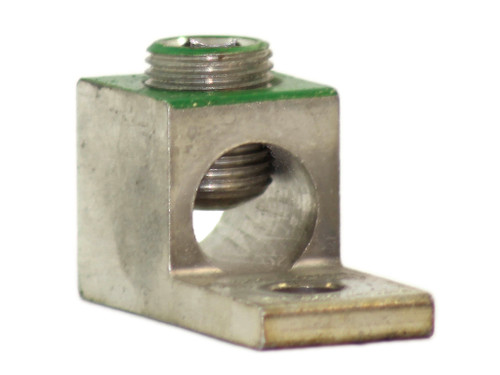

The CMC LA-300 is a high-capacity, single-port mechanical terminal lug engineered for mission-critical power applications. Part of the renowned Hubbell CMC "LA" series of solderless connectors, this lug is precision-machined from high-strength 6061-T6 extruded aluminum alloy. It is designed to bridge the gap between standard branch circuits and heavy feeders, supporting a wide conductor range from 6 AWG up to 300 kcmil.
Every LA-300 is electro-tin plated to ensure a gas-tight electrical bond, low contact resistance, and maximum protection against galvanic corrosion. This dual-rated (CU9AL) connector is now certified for use with both standard rigid and flexible (fine strand) conductors, making it one of the most versatile mechanical lugs in its class for industrial machinery and motor leads.
? Technical Specifications
-
Manufacturer: CMC (Connector Mfg. Co. / Hubbell)
-
Part Number: LA-300
-
Conductor Range: 6 AWG up to 300 kcmil (MCM)
-
Conductor Type: Rigid Stranded & Flex Cable (Fine Strand)
-
Material: 6061-T6 High-Strength Aluminum Alloy
-
Plating: Electro-Tin Plated (Corrosion Resistant)
-
Rating: Dual-Rated CU9AL (Aluminum and Copper compatible)
-
Temperature Rating: 90°C (194°F)
-
Mounting Hole: Single Hole (Fits 5/16" or 3/8" studs depending on sub-variant)
-
Configuration: 1 Port / Solderless Mechanical Connection
? Physical Dimensions
-
Length: 2.00 inches
-
Width: 1.00 inch
-
Height: 1.13 inches
-
Design: Robust body with heavy-wall construction for high-torque reliability.
✅ Key Features & Benefits
-
Flex Cable Rated: Specifically tested and rated for fine-strand flexible conductors, ideal for motor leads and high-vibration industrial environments.
-
Solderless Simplicity: Features a high-pressure mechanical set-screw that allows for secure termination using standard Allen wrenches—no hydraulic crimpers required.
-
Reusable Design: Engineered for multiple uses, these connectors are perfect for maintenance schedules, temporary power setups, or system upgrades.
-
Dual-Metal Safety: Certified for both copper and aluminum wires, preventing the chemical reactions that lead to failure in mixed-metal systems.
-
Anti-Turn Compatibility: Compatible with CMC’s anti-turn series design to prevent the lug from rotating during installation or high-vibration operation.
