Product Description

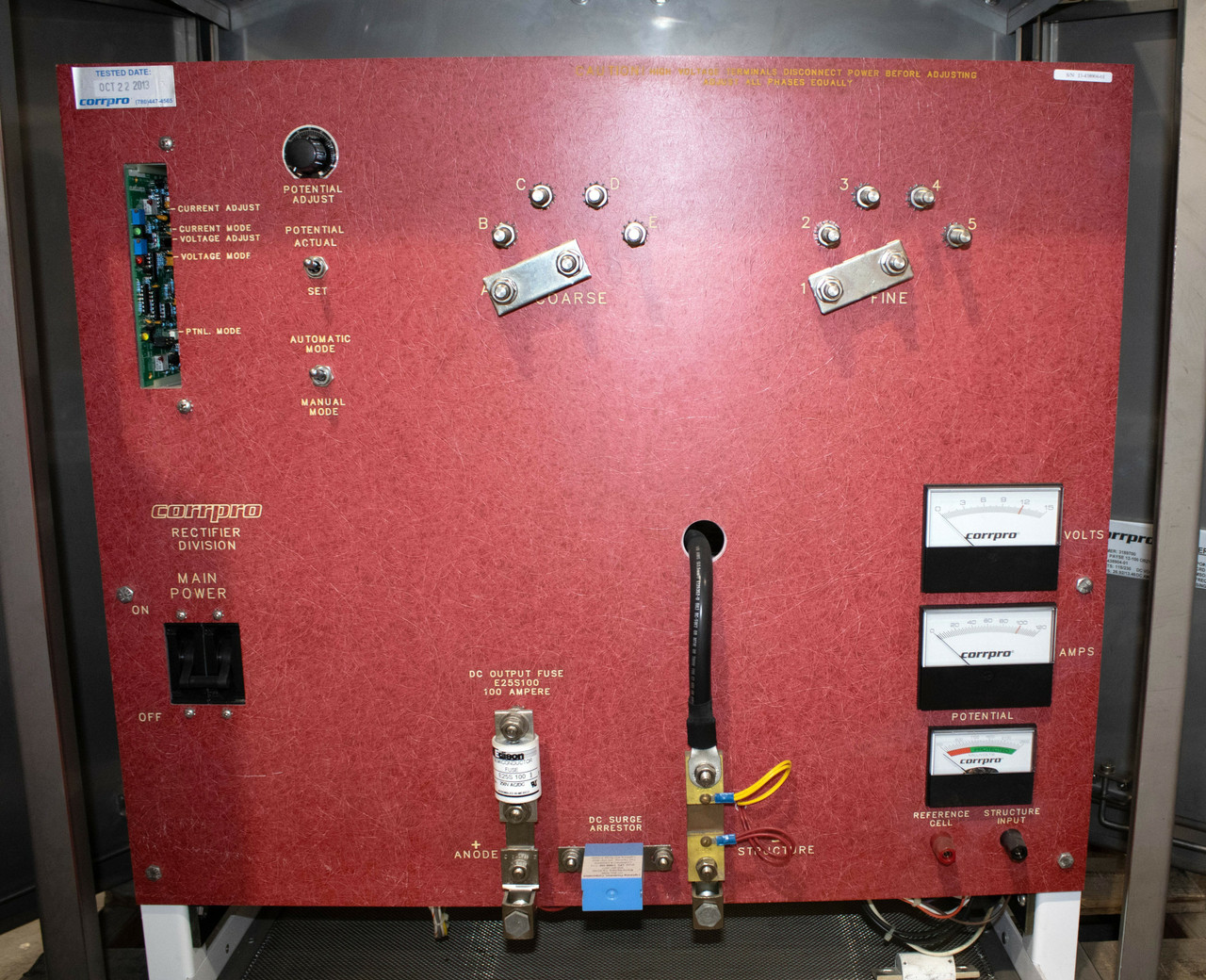

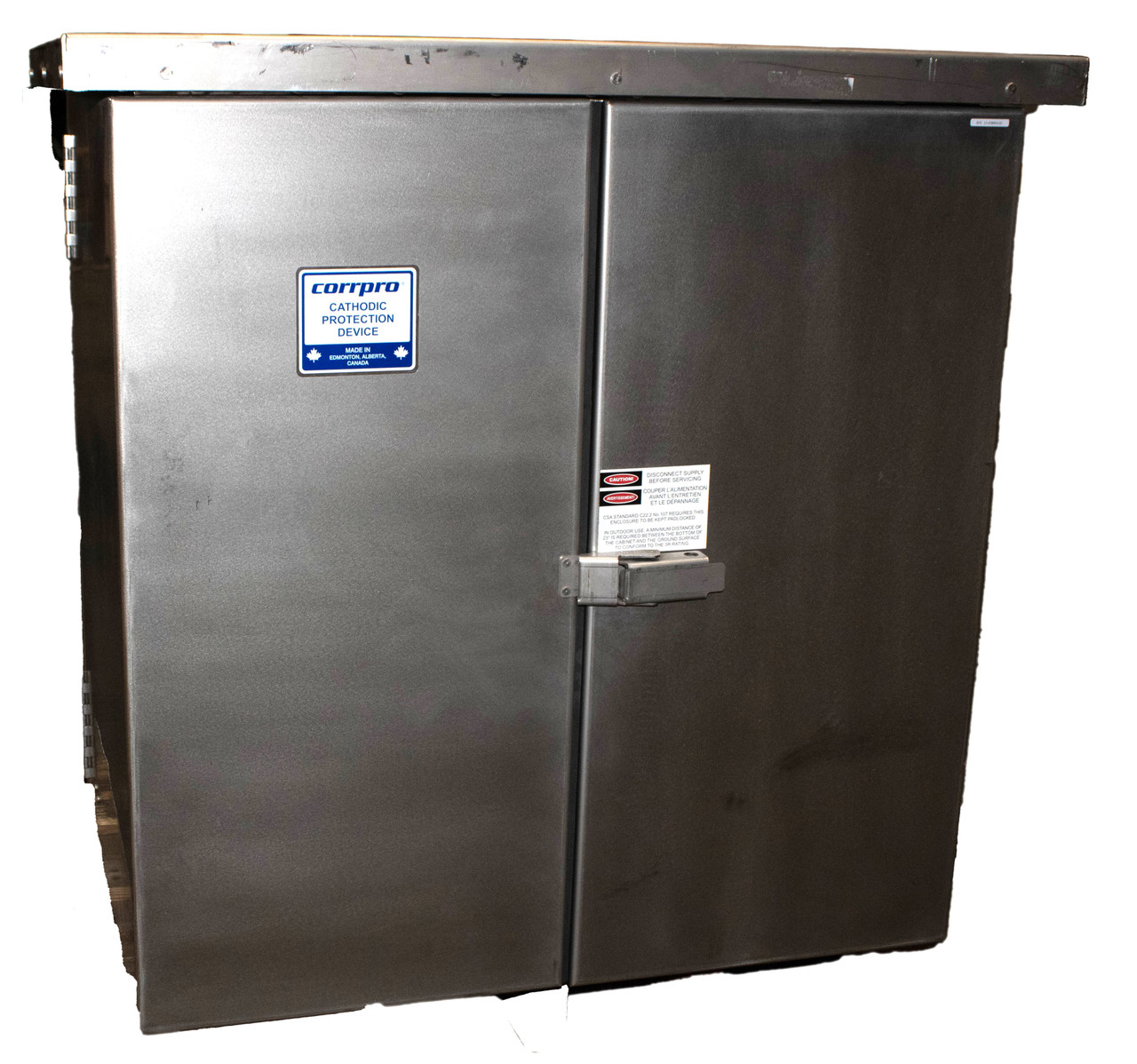

The Corrpro 12-100 ORZ113 Cathodic Protection Rectifier is a single-phase industrial rectifier designed for corrosion control and cathodic protection applications. With a 115/230V AC input, 26.92/13.46A output, and 3096 VA rating, this NEMA 3R-rated unit is ideal for outdoor or harsh environments, ensuring reliable, long-term protection of metallic structures. Built to meet rigorous industrial standards, it is suitable for pipelines, tanks, and other critical infrastructure requiring durable cathodic protection systems.
Key Features:
-

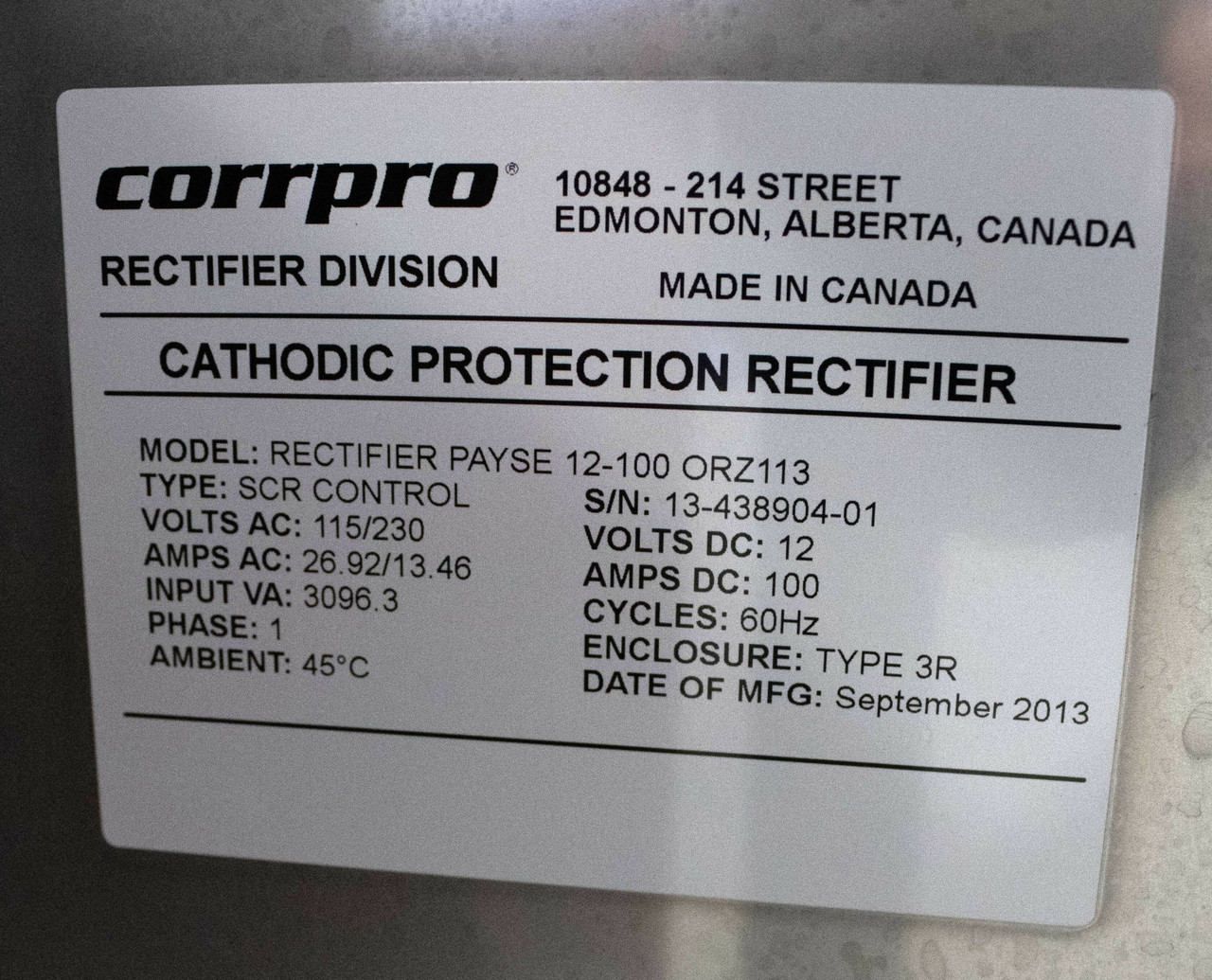

Brand: Corrpro
-
Model: 12-100 ORZ113
-
Type: Cathodic Protection Rectifier
-
Input Voltage: 115/230 VAC
-
Output Current: 26.92 / 13.46 A
-
Power Rating: 3096 VA
-
Phase: Single-Phase (1PH)
-
Enclosure: NEMA 3R (Outdoor Rated)
-
Applications: Pipeline protection, tank protection, industrial cathodic systems
Applications:
-
Cathodic protection for pipelines
-
Corrosion control on storage tanks
-
Industrial corrosion mitigation
-
Metal structure protection in harsh environments
-
Outdoor and NEMA 3R-rated installations
