Product Description

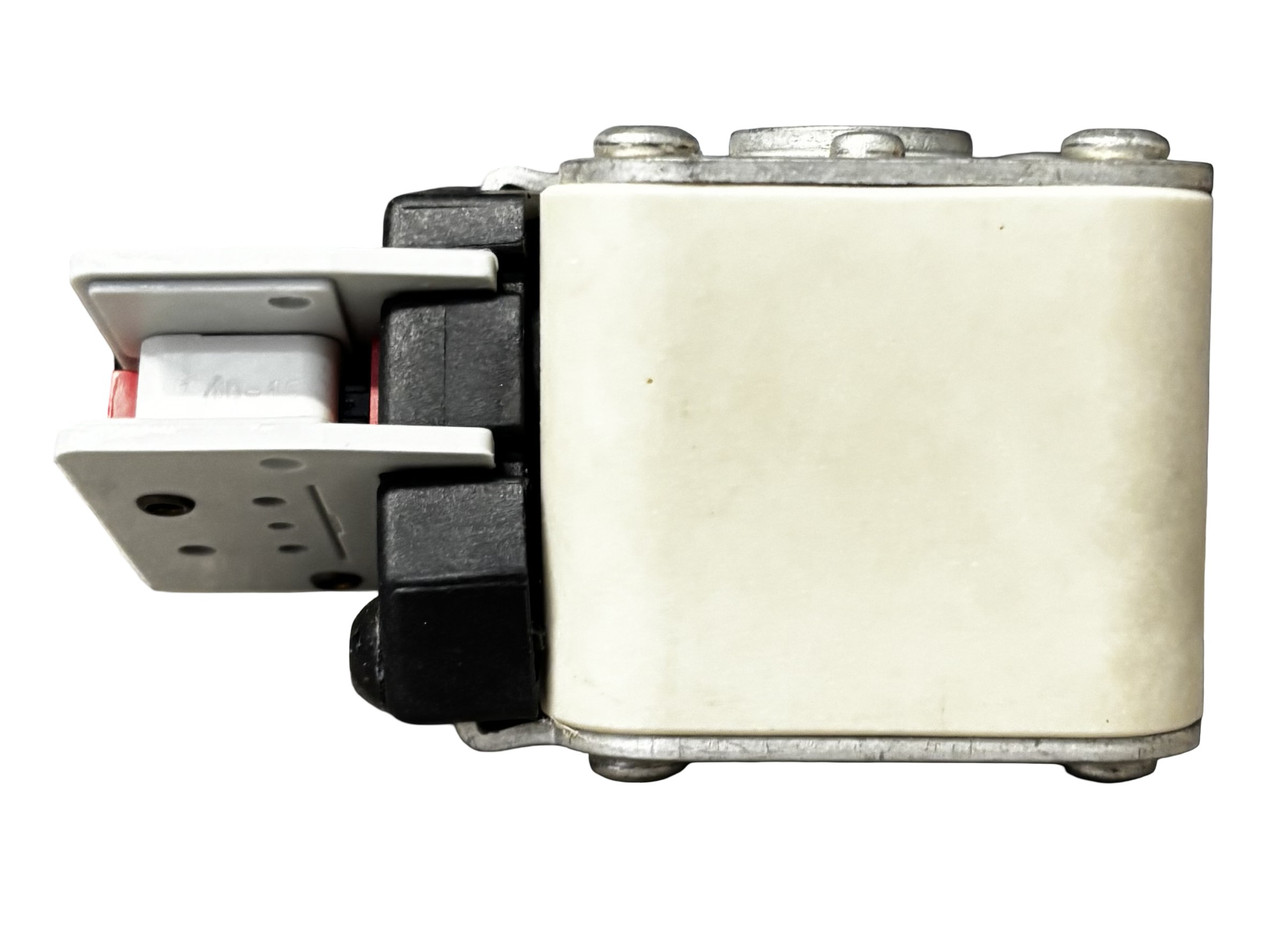

The Eaton 170M4567 is a high-speed aR fuse-link designed to protect sensitive power electronics and semiconductor devices in demanding industrial applications. Rated at 700 Amps and 690V AC, this IEC and UL listed fuse delivers ultra-fast fault interruption to minimize damage to critical equipment.
This size 1 fuse-link features a compact square-body design and includes a single visual indicator for quick status identification. It is supplied with an Eaton 170H0069 microswitch (5A, 250V) to provide remote fuse indication, making it ideal for systems that require monitoring and fast maintenance response.
Key Features & Specifications
• Manufacturer: Eaton
• Model / Part Number: 170M4567
• Fuse Type: High-Speed Fuse-Link (aR – semiconductor protection)
• Amperage Rating: 700 A
• Voltage Rating: 690 V AC
• Fuse Size: Size 1
• Standards: IEC and UL Listed
• Body Dimensions: 53 x 69 x 51 mm
• Indication: Single visual indicator
• Included Accessory: Microswitch 170H0069
• Microswitch Rating: 5 A, 250 V
• Application Category: Ultra-fast acting for power electronics
Applications
• Semiconductor protection (IGBTs, diodes, thyristors)
• Industrial motor drives and soft starters
• Power converters and rectifier systems
• High-performance industrial power distribution equipment
