Product Description
The Eaton MBE1224PVL100S Solar Power Center Meter Breaker combines utility metering, main disconnect, and solar-ready capability in one convenient enclosure.
Designed for residential and light commercial solar applications, this BR Series Power Center supports up to 100A service and 100A maximum photovoltaic (PV) input, providing a simple, code-compliant solution for solar energy integration.

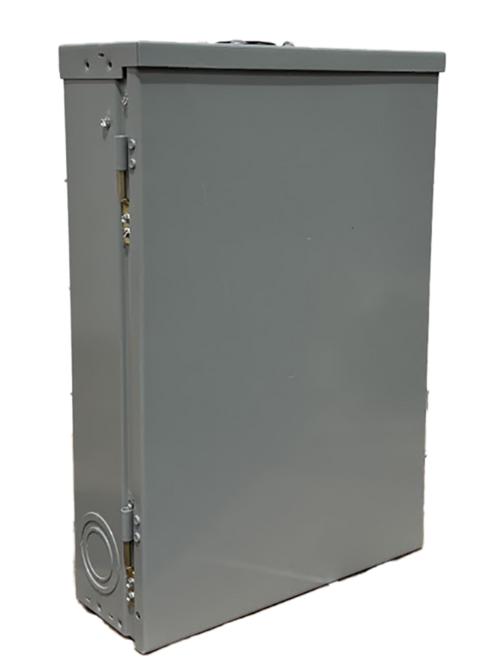

Featuring a side-by-side design for efficient wiring, the Eaton MBE1224PVL100S includes 12 spaces, 24 circuits, and a surface mount NEMA 3R galvanized steel enclosure for durable outdoor protection. Compatible with overhead or underground feeds, it ensures flexibility for any installation.
• Features & Specifications
• Brand: Eaton
• Model: MBE1224PVL100S
• Type: Solar Power Center Meter Breaker
• Series: BR (Solar-Ready)
• Main Breaker Rating: 100A
• Voltage: 120/240V AC
• Max PV Input: 100A
• Bus Material: Aluminum, 100A Rated
• Interrupt Rating: 10 kAIC
• Spaces / Circuits: 12 Spaces / 24 Circuits
• Feed Type: Overhead / Underground (OH/UG)
• Mounting Type: Surface Mount
• Enclosure: NEMA 3R Galvanized Steel (Outdoor Rated)
• Box Size: 18
• Configuration: Side-by-Side Layout for Simplified Wiring
• Application: Residential / Solar-Ready / Outdoor Metered Service
