Product Description

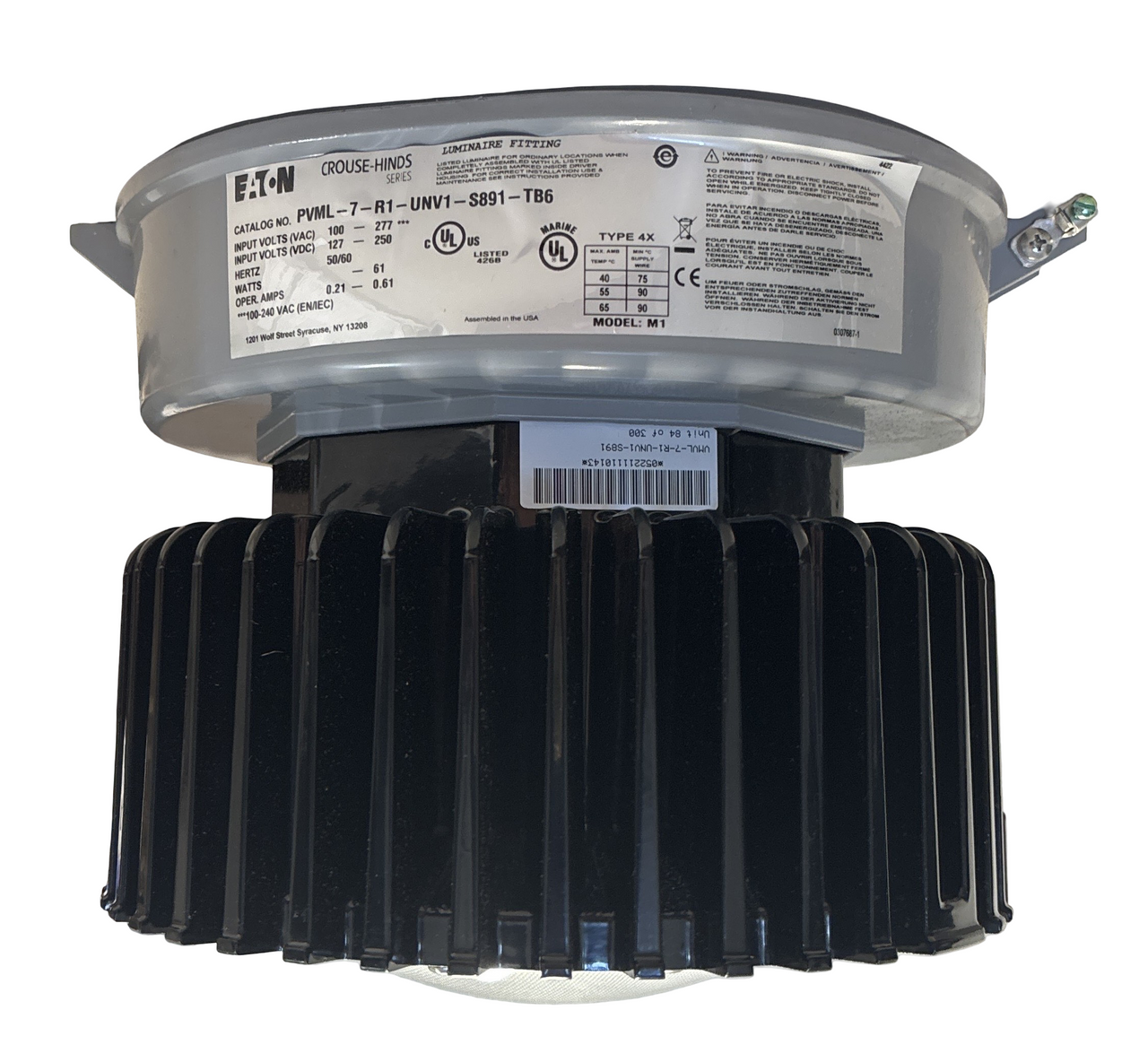

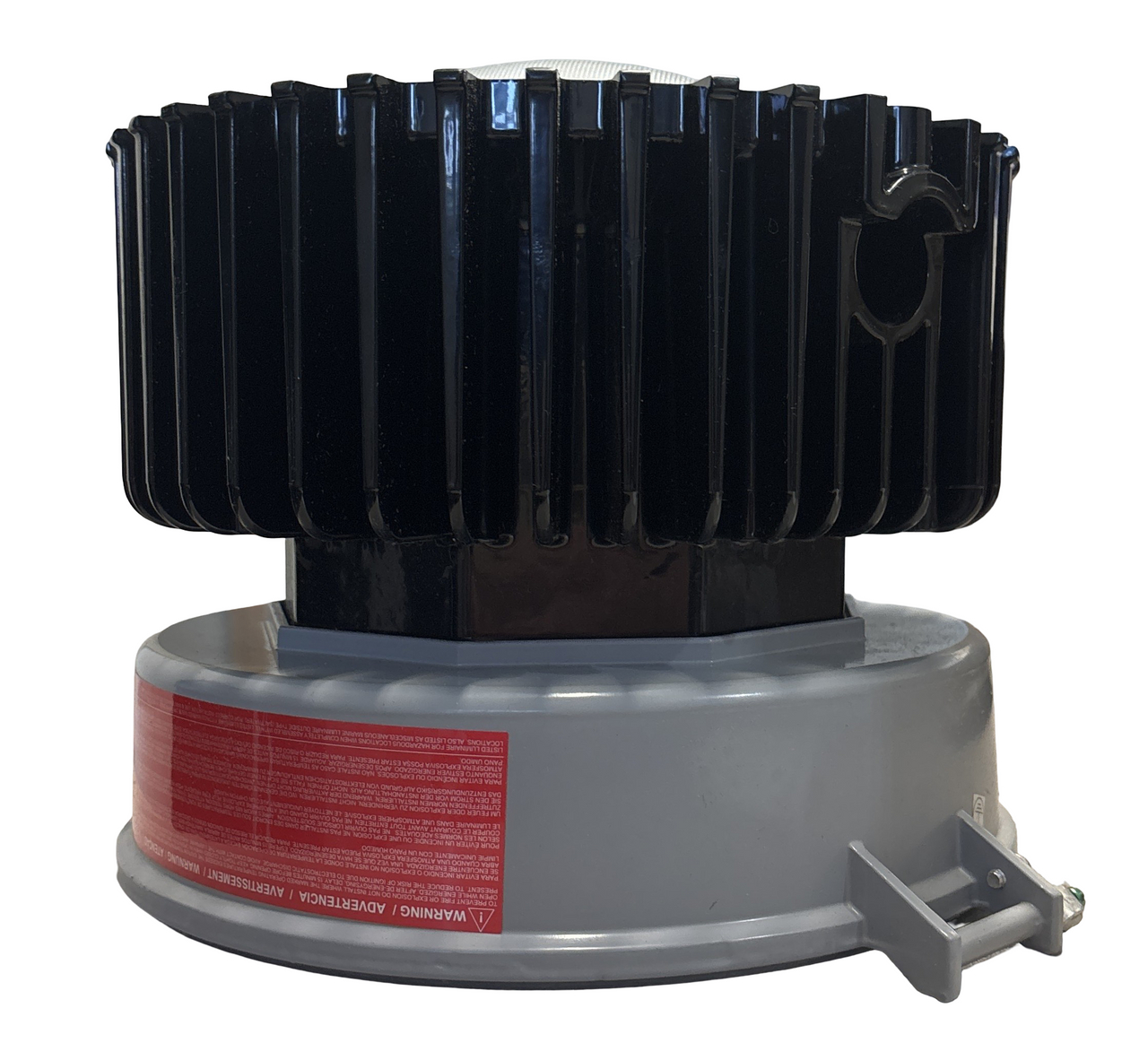

The Eaton PVML-7-N-J-R1-UNV1-S891 Champ Pro PVML LED Fixture is a high-performance, energy-efficient lighting solution designed for commercial and industrial outdoor applications.
This fixture provides neutral white illumination, equivalent to a 175W HID, delivering 7,000 lumens at 129 lm/W efficiency.
Featuring a die-cast aluminum housing and diffused glass lens, this fixture ensures durable construction and uniform light distribution.
The stanchion is angled at 25° for optimized light coverage in Type I roadway and pathway applications, and the fixture is compatible with 1-1/2" trade size poles.
With wide voltage compatibility (100-277 Vac / 127-250 Vdc) and a power draw of only 57W, the Eaton PVML LED offers energy savings without compromising brightness.
⚙️ Key Features & Specifications
• Brand: Eaton
• Model: PVML-7-N-J-R1-UNV1-S891
• Type: Champ Pro PVML LED Fixture
• Wattage Equivalent: 175W HID
• Actual Wattage: 57W
• Light Output: 7,000 lumens
• Efficacy: 129 lm/W
• Color: Neutral White
• Lens Type: Diffused Glass
• Guard: No Guard
• Housing: Die-cast Aluminum
• Stanchion Angle: 25°
• Distribution Type: Type I
• Mounting: 1-1/2" trade size
• Voltage: 100-277 Vac / 127-250 Vdc
