Product Description

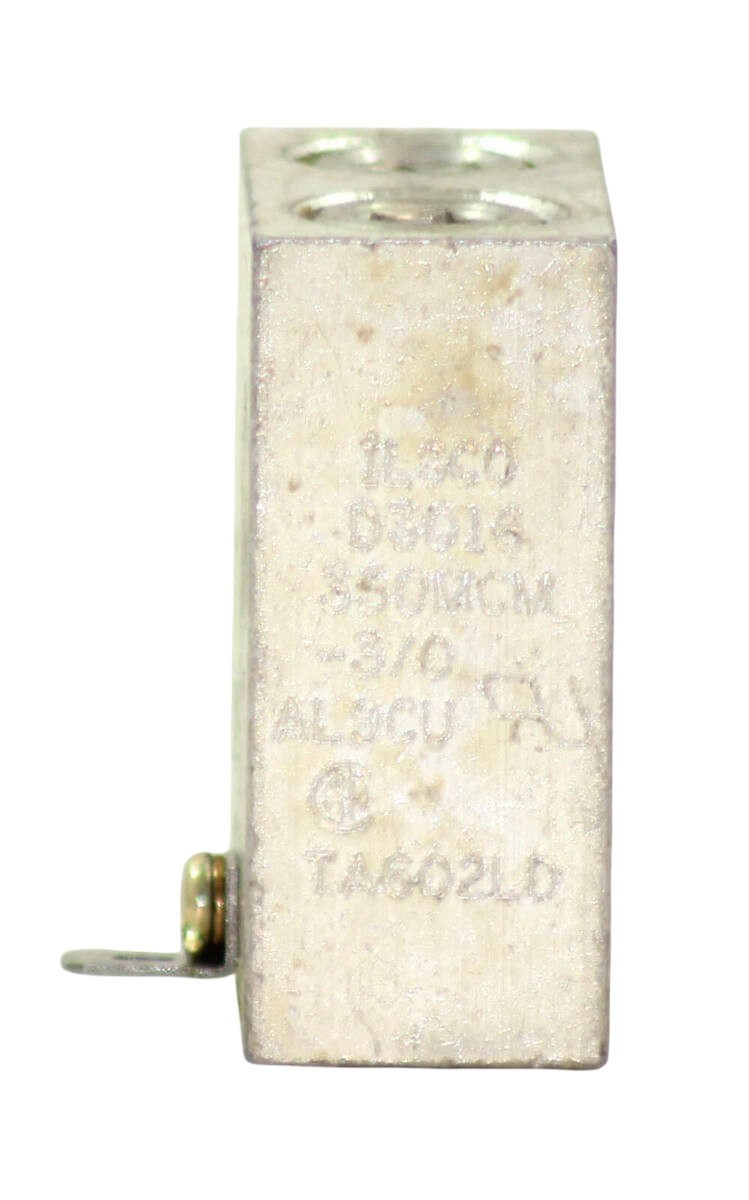

The Eaton TA602LDCW (Cutler-Hammer) is a professional-grade, pressure-type terminal kit engineered for use with Series C and Series G molded case circuit breakers. This specialized terminal includes a control wire termination port, allowing for secondary monitoring, signaling, or control circuits to be connected directly at the breaker without the need for auxiliary lugs.
Fabricated from high-strength, tin-plated aluminum, this terminal is dual-rated for both copper and aluminum conductors, providing a secure, low-resistance connection for high-amperage industrial power systems.
Technical Specifications
-
Manufacturer: Eaton (Cutler-Hammer)
-
Part Number: TA602LDCW
-
Amperage Rating: 500 Amps
-
Voltage Rating: 600 VAC / 250 VDC Maximum
-
Main Conductor Range: 3/0 AWG to 350 kcmil (Cu/Al)
-
Control Wire Port: Integrated separate terminal for control wiring
-
Material: Tin-plated aluminum alloy
-
Frame Compatibility: J-Frame and K-Frame (Series C and G)
-
Breaker Types: Suitable for LD, HLD, LDC, and similar frame types
-
Dimensions: 2.6" L x 1.8" W x 1.8" H
-
Installation Torque: Secure to breaker using 7/32" socket; torque to 6-8 lb-ft
Key Features & Benefits
-
Integrated Control Wiring: Features a built-in secondary port, eliminating the clutter of extra lugs for remote signaling or control power.
-
Dual-Rated (AL9CU): Fully certified for use with both copper and aluminum wiring, offering maximum flexibility across different job sites.
-
Corrosion Protection: The electro-tin plating ensures long-term durability and prevents oxidation, even in high-humidity industrial environments.
-
High-Capacity Design: Optimized for 500A service, providing a robust mechanical grip that manages thermal expansion effectively.
-
Standard Line/Load Fit: Designed as a direct-fit replacement or upgrade for Eaton standard line and load terminals.
Applications
-
Industrial Control Panels: Essential for wiring auxiliary signals to PLCs or remote indicators.
-
Switchboards & Panelboards: Used for primary power termination in 500A distribution systems.
-
Commercial Machinery: Ideal for large-scale HVAC units or motor control centers requiring control feedback.
