Product Description

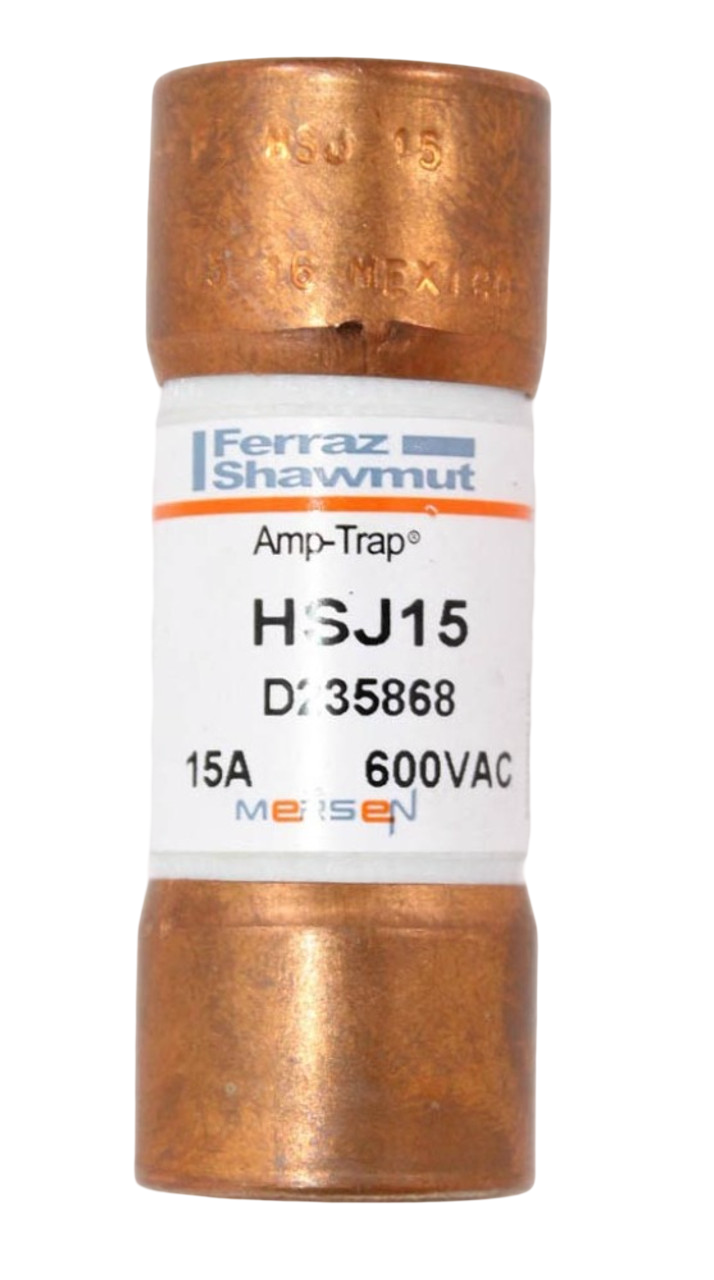

The Ferraz Shawmut HSJ15 is a high-performance “High Speed / Class J” cartridge fuse designed for demanding industrial and electronic applications. This fuse offers a 15 amp rating at up to 600 V AC (and 500 V DC) with a 200 kA AC interrupting rating, combining the branch‐circuit protection of a Class J fuse with the low I²t characteristics of a semiconductor fuse.
Ideal for motor controllers, soft‐starters, drives, solid‐state relays, control panels and other systems with high inrush or switching loads, it provides reliable protection while minimizing thermal energy let‐through and reducing equipment stress.
Product Details
-
Brand: Mersen (previously Ferraz Shawmut)
-
Series / Model: HSJ15
-
Condition: Used
-
Type: High Speed / Class J Fuse – current‐limiting, dual‐element time‐delay (in effect)
-
Current Rating: 15 A
-
Voltage Rating: 600 V AC / 500 V DC
-
Interrupting Rating: 200 kA RMS symmetrical at 600 V AC (with some sources self‐certified to 300 kA)
-
Fuse Class: Class J (High Speed)
-
Body Style: Cartridge fuse (approximate length ~2.25″, diameter ~0.81″)
-
Applications: Electronic motor controllers, branch circuits, drives, soft‐starters, industrial panels, semiconductor protection
Key Features
-
Branch circuit protection meeting Class J standards, yet optimized for low I²t (reduces stress on semiconductors).
-
High interrupt rating (200 kA) to handle heavy short‐circuit conditions.
-
Compact cartridge size saves panel space and fits standard Class J holders.
-
Suitable for AC and DC applications (dual rating).
-
Designed for equipment with high inrush or starting loads: soft‐starters, motor controls, drives.
