Product Description

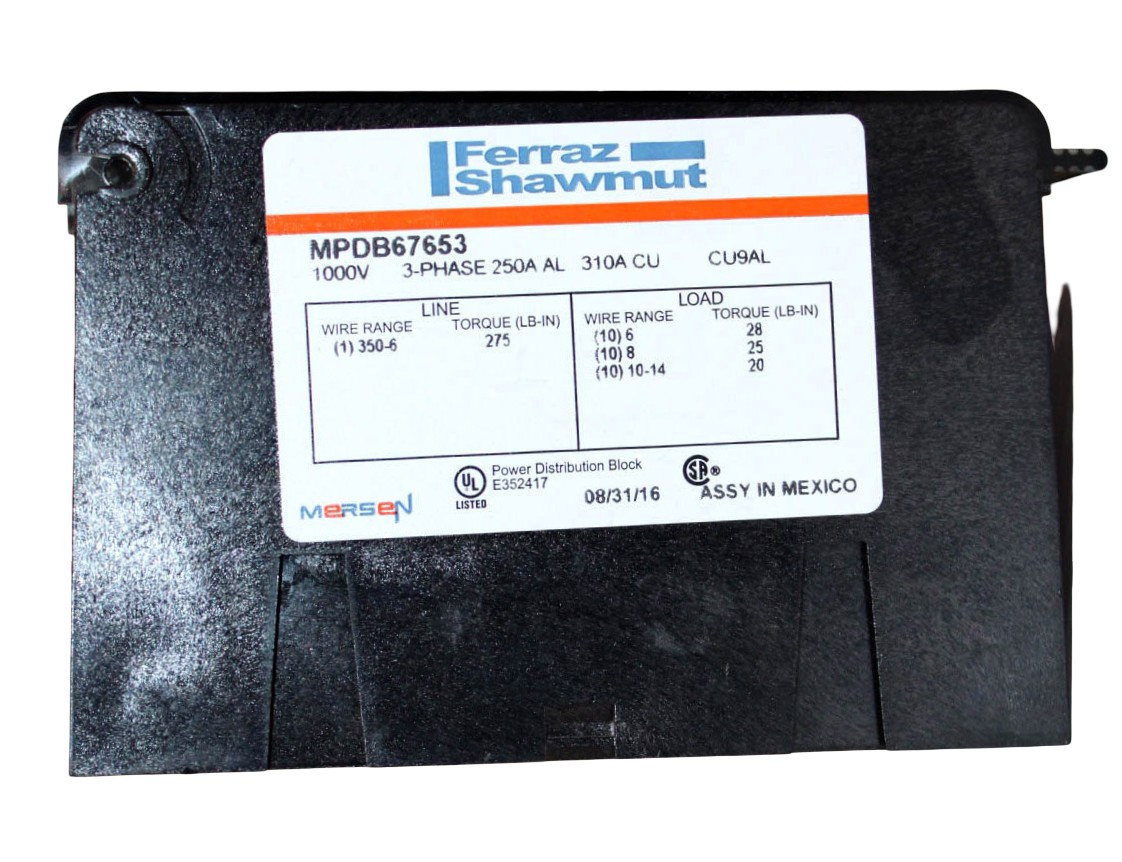

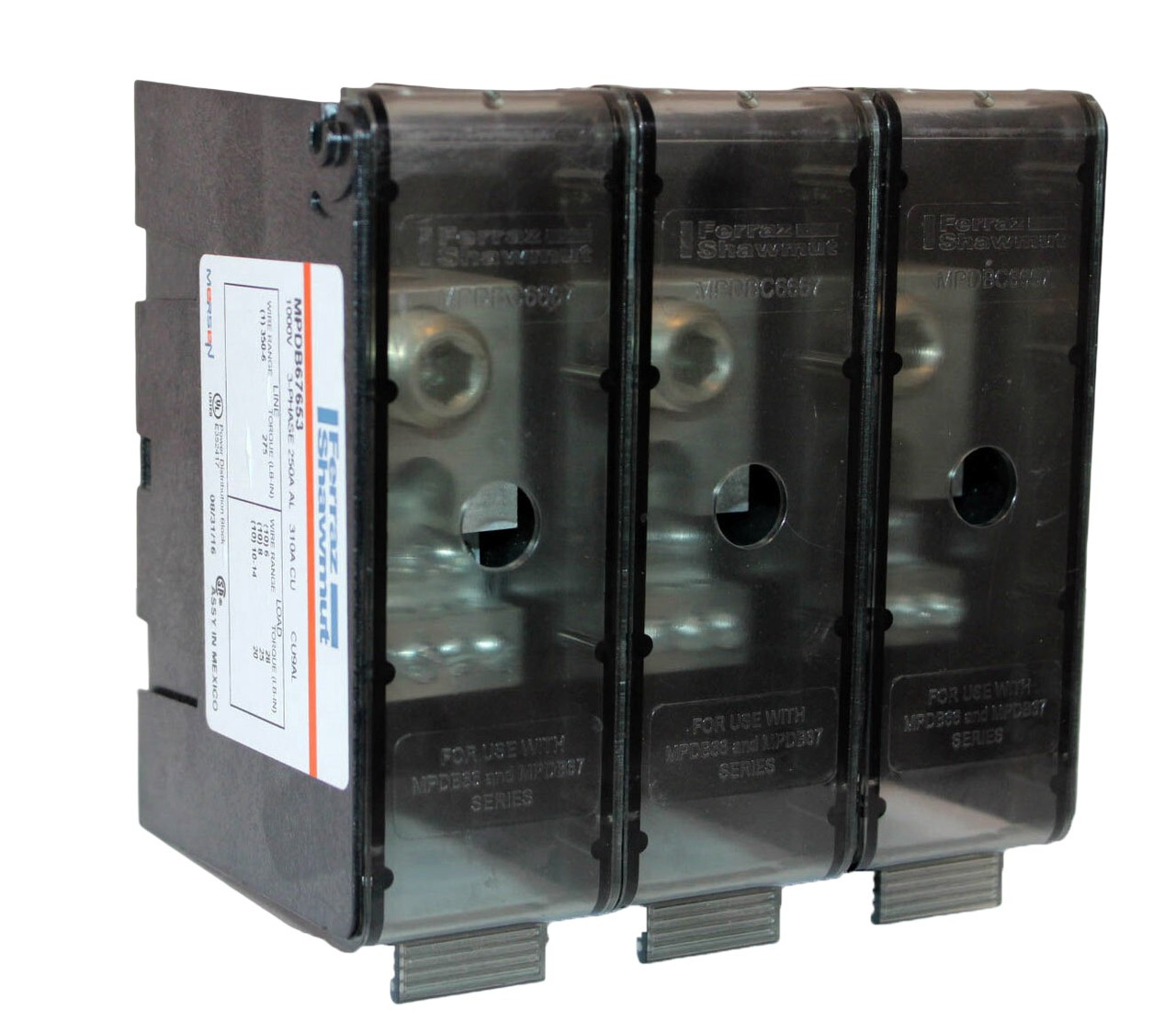

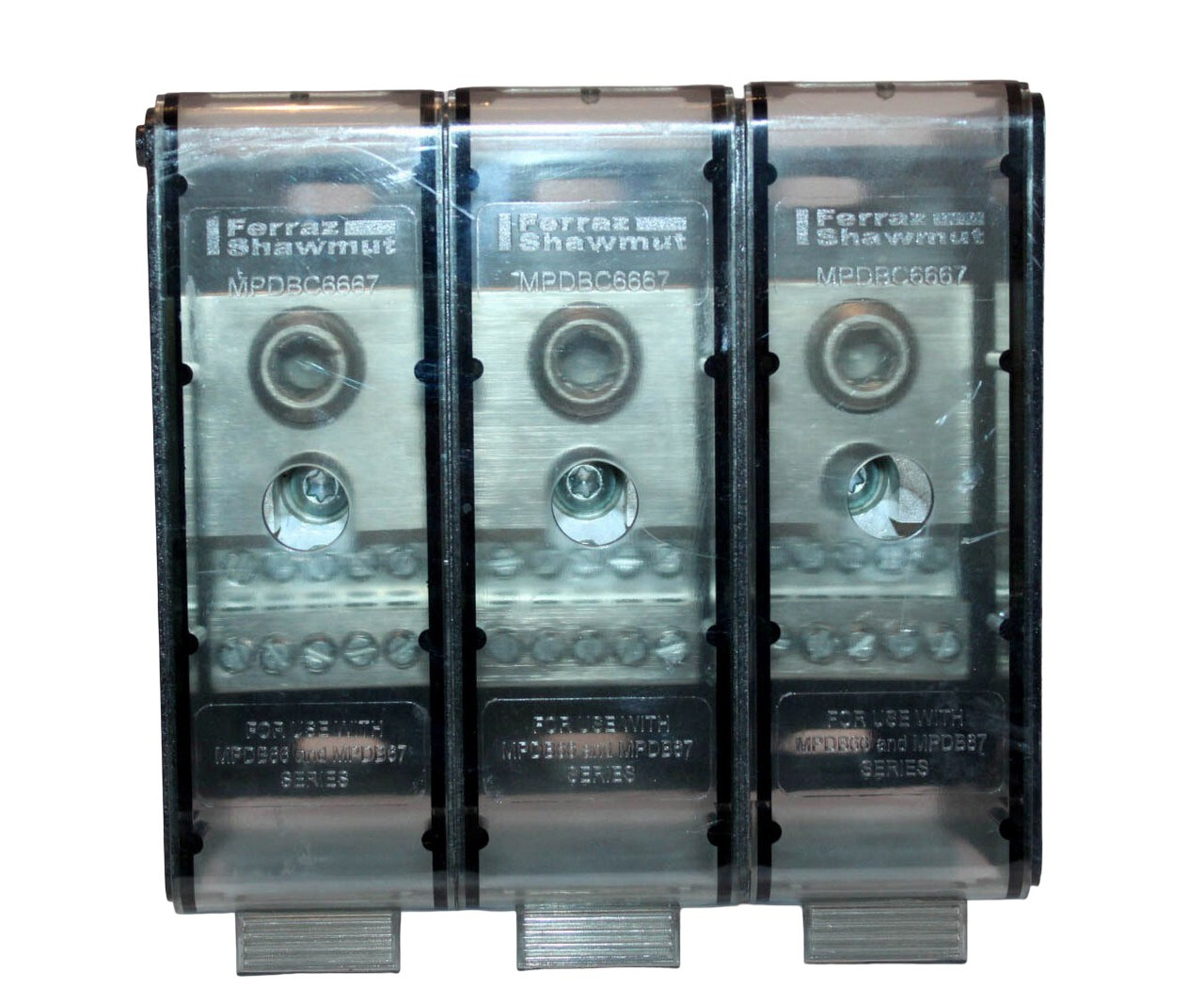

The Ferraz Shawmut MPDB67653 is a high-quality 3-pole power distribution block designed for industrial and commercial electrical systems. Dual-rated for aluminum and copper conductors, it provides safe and efficient power splitting and cable splicing. Constructed with tin-plated aluminum connectors and a durable polycarbonate insulator, this PDB ensures reliable performance under heavy-duty conditions.
Features & Specifications:
-

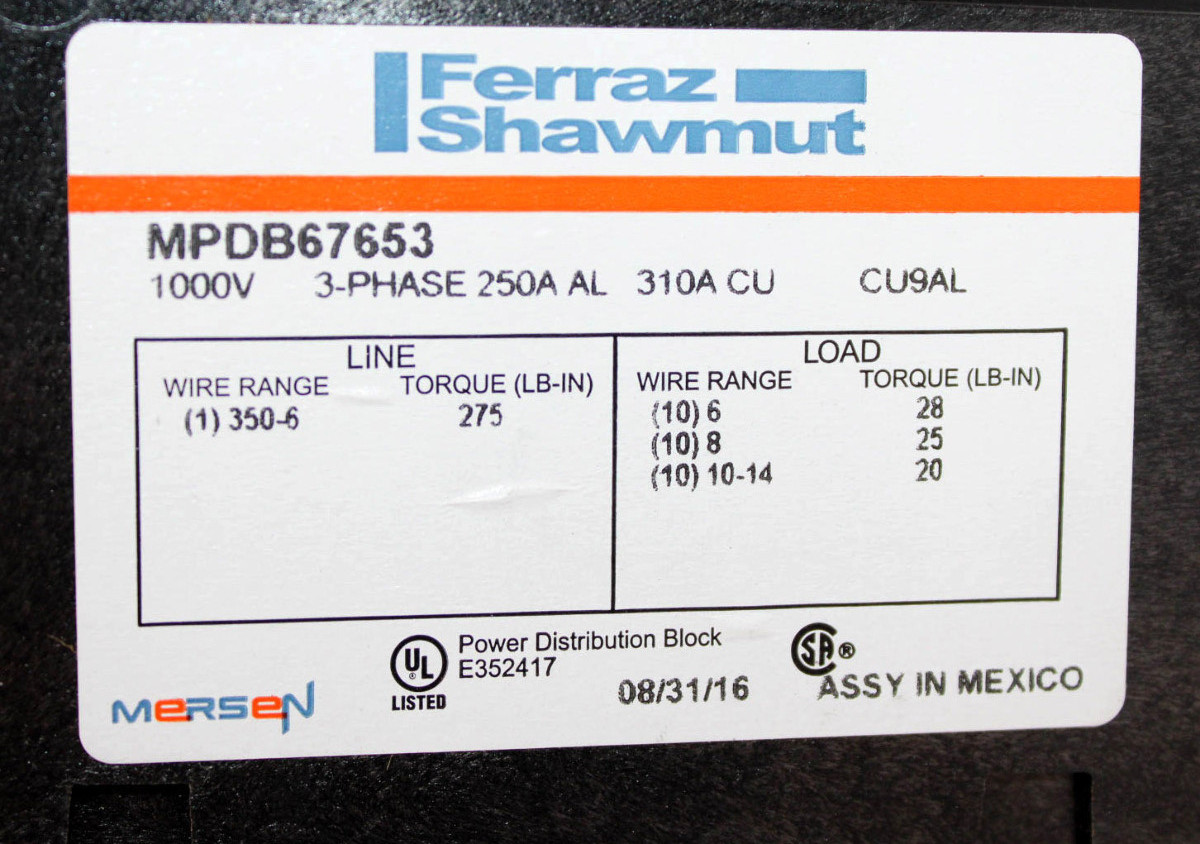

Current Rating: 310 A (Copper) / 250 A (Aluminum)
-
Voltage Rating: 1000 VAC/DC (UL 1953) or 600 VAC (UL 508A)
-
Poles: 3-pole configuration
-
Primary Wire Range: 6 AWG – 350 kcmil
-
Secondary Wire Range: 14 AWG – 6 AWG (10 openings per pole)
-

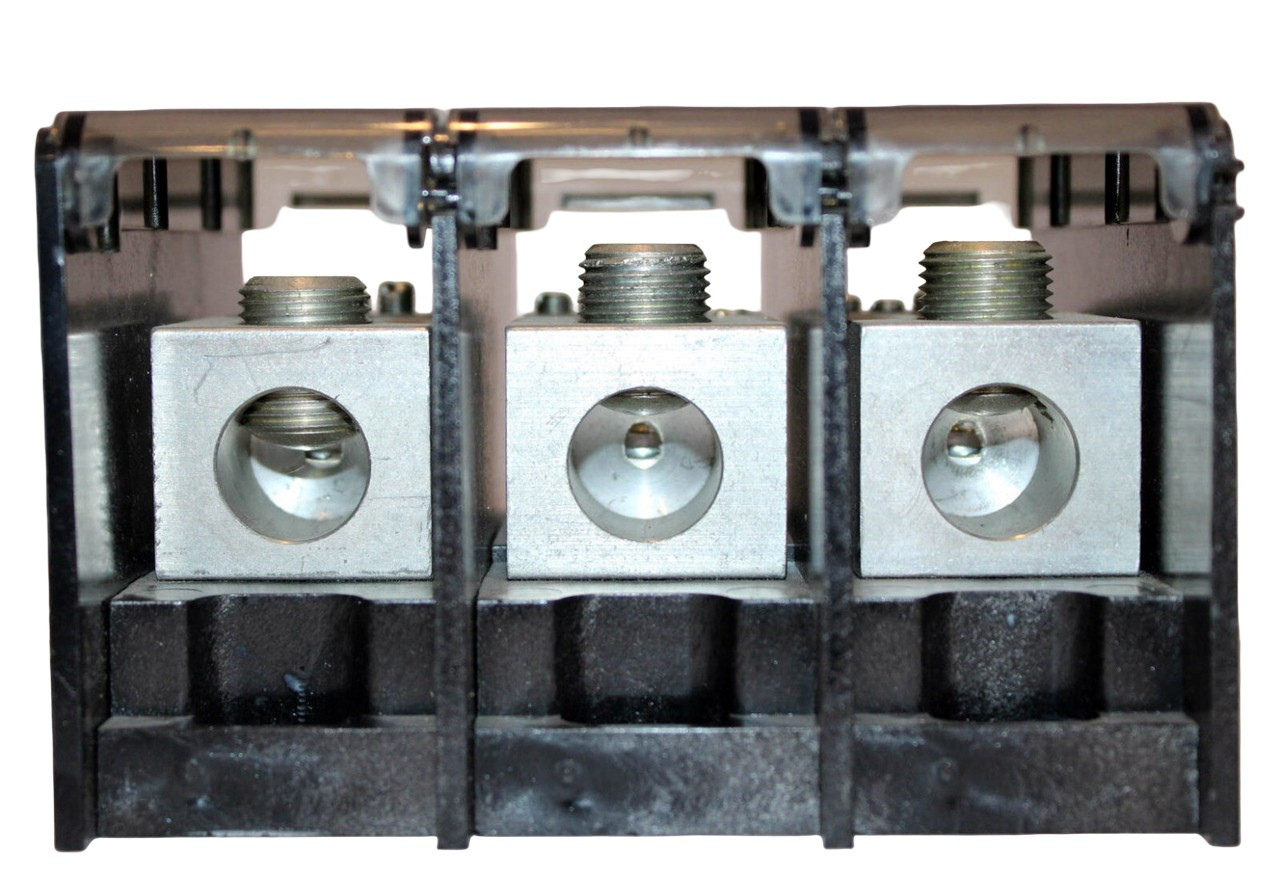

Material: Tin-plated aluminum connectors with glass-filled polycarbonate housing
-
Application: Industrial power distribution, cable splicing, and control panel wiring
