Product Description

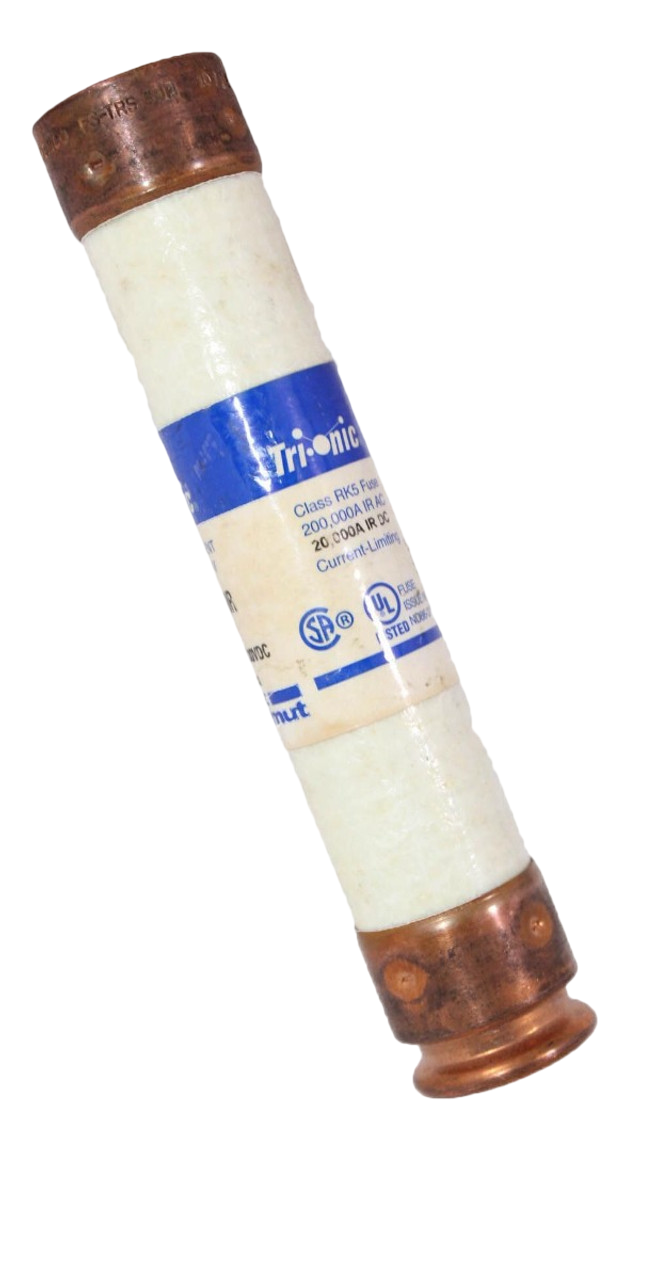

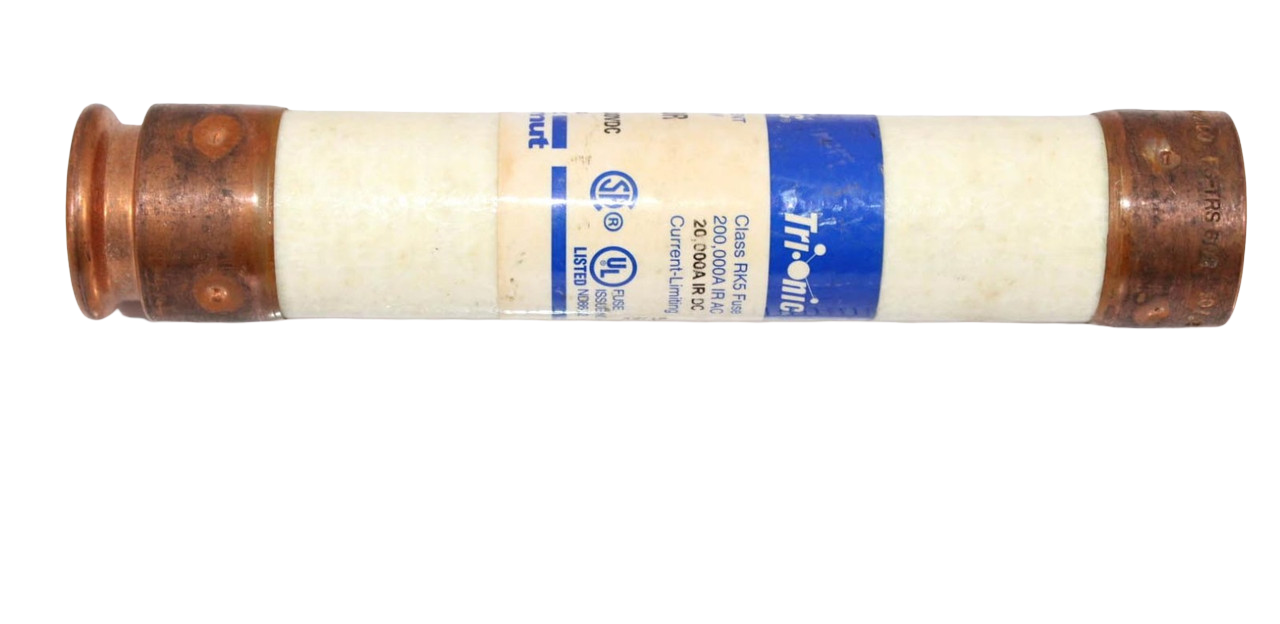

The Ferraz Shawmut TRS60R is a 60-amp, 600-volt AC (300-volt DC) time-delay, current-limiting fuse from the Tri-Onic Class RK5 series. Designed for industrial and commercial power systems, this dual-element fuse provides superior overload protection while easily handling motor startup and inrush currents. Ideal for feeders, branch circuits, motors, transformers, and general electrical distribution equipment.

Its high interrupting rating and current-limiting performance help protect valuable equipment and maintain system reliability in demanding environments.

Product Details

• Brand: Ferraz Shawmut / Mersen

• Model: TRS60R

• Series: Tri-Onic TRS-R

• Fuse Class: RK5

• Amperage Rating: 60A

• Voltage Rating: 600V AC / 300V DC

• Interrupting Rating: 200kA AC

• Type: Dual-Element, Time-Delay, Current-Limiting

• Body Style: Cylindrical cartridge

• Dimensions: Approx. 5-1/2" length × 1-1/16" diameter

• Terminals: Ferrule ends (clip/fuse-block mount)

• Approvals: UL Listed, CSA Certified

• Condition: Used

• Typical Applications: Motors, control panels, feeders, distribution circuits, HVAC, transformers, and industrial machinery

Key Features

• Time-delay design prevents nuisance openings during motor startup.

• Current-limiting construction reduces damage under short-circuit conditions.

• High 200kA interrupting rating for demanding industrial power systems.

• Dual-element fuse provides precise overload protection.

• Compatible with standard Class RK5 fuse holders.

• Durable construction for harsh environments.

TRS60R-UA2-YAG
