Product Description

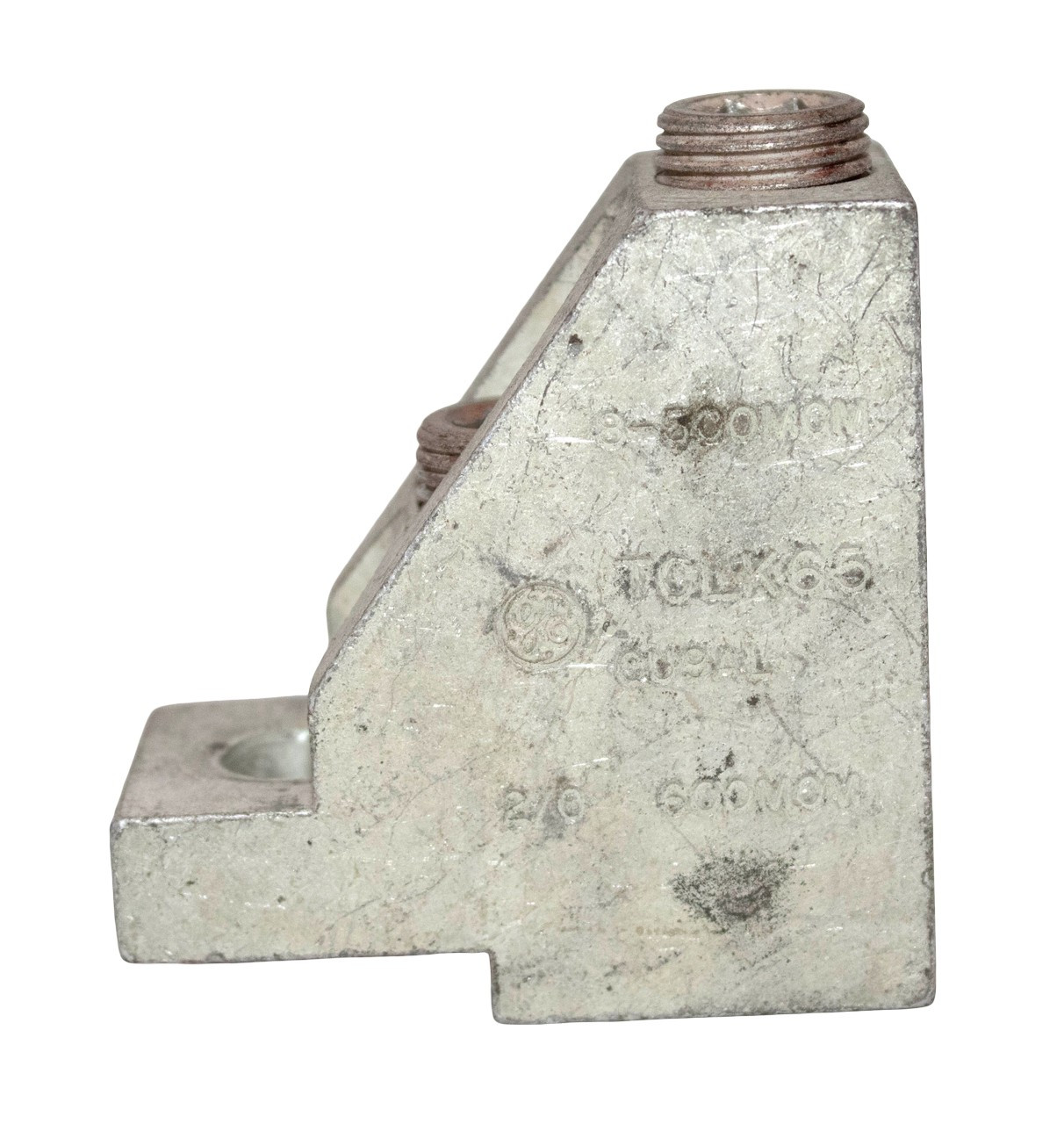

The General Electric TCLK65 is a high-capacity mechanical lug terminal kit engineered specifically for GE Spectra Series SG-frame molded case circuit breakers. This dual-barrel kit provides a secure, low-resistance connection for both line and load applications in heavy-duty industrial and commercial power distribution systems.
Constructed from high-strength plated aluminum alloy, these lugs are dual-rated (CU9AL) to ensure reliable performance with both copper and aluminum conductors.
Technical Specifications
-
Manufacturer: General Electric (GE / ABB)
-
Part Number: TCLK65
-
Amperage Rating: 600 Amps
-
Voltage Rating: 600 VAC
-

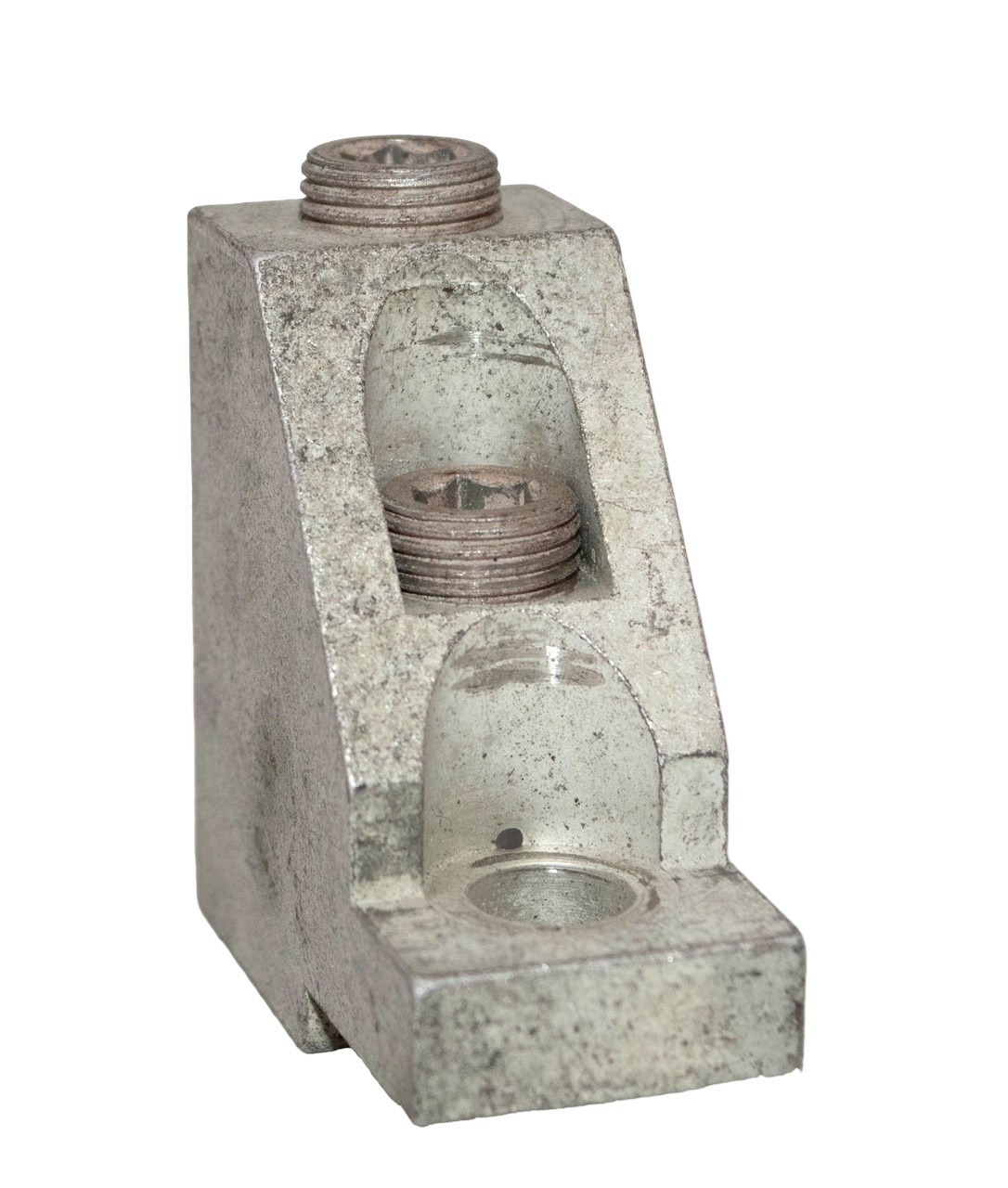

Number of Ports/Barrels: 2 (Dual-conductor entries per lug)
-

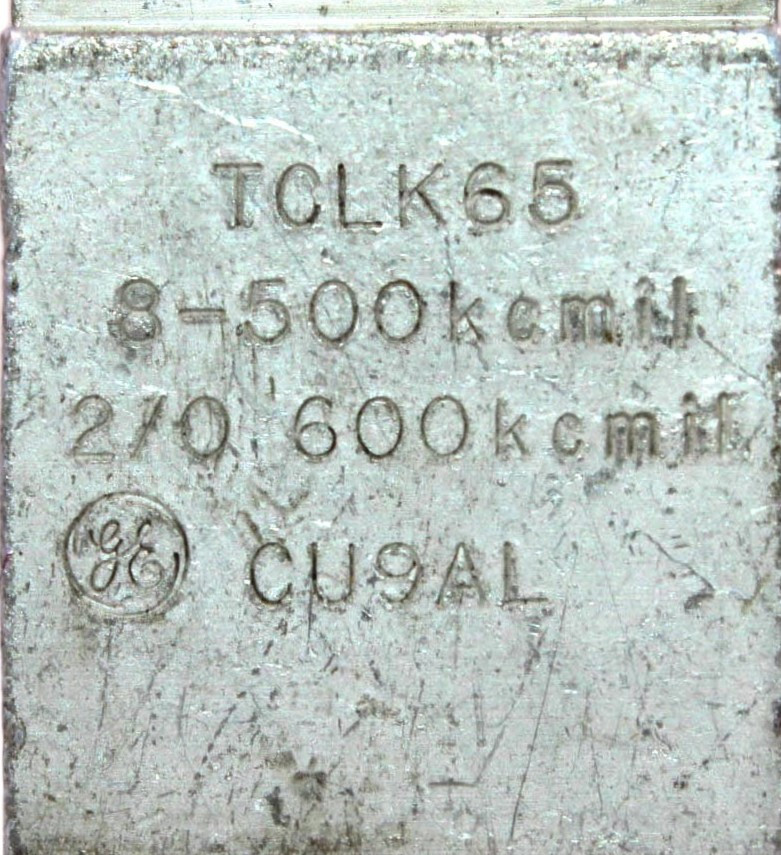

Conductor Range (Copper): 8 AWG to 500 kcmil
-
Conductor Range (Aluminum): 2/0 AWG to 600 kcmil
-
Material: Plated extruded aluminum alloy
-
Wire Type Compatibility: Copper or Aluminum (CU9AL Rated)
-

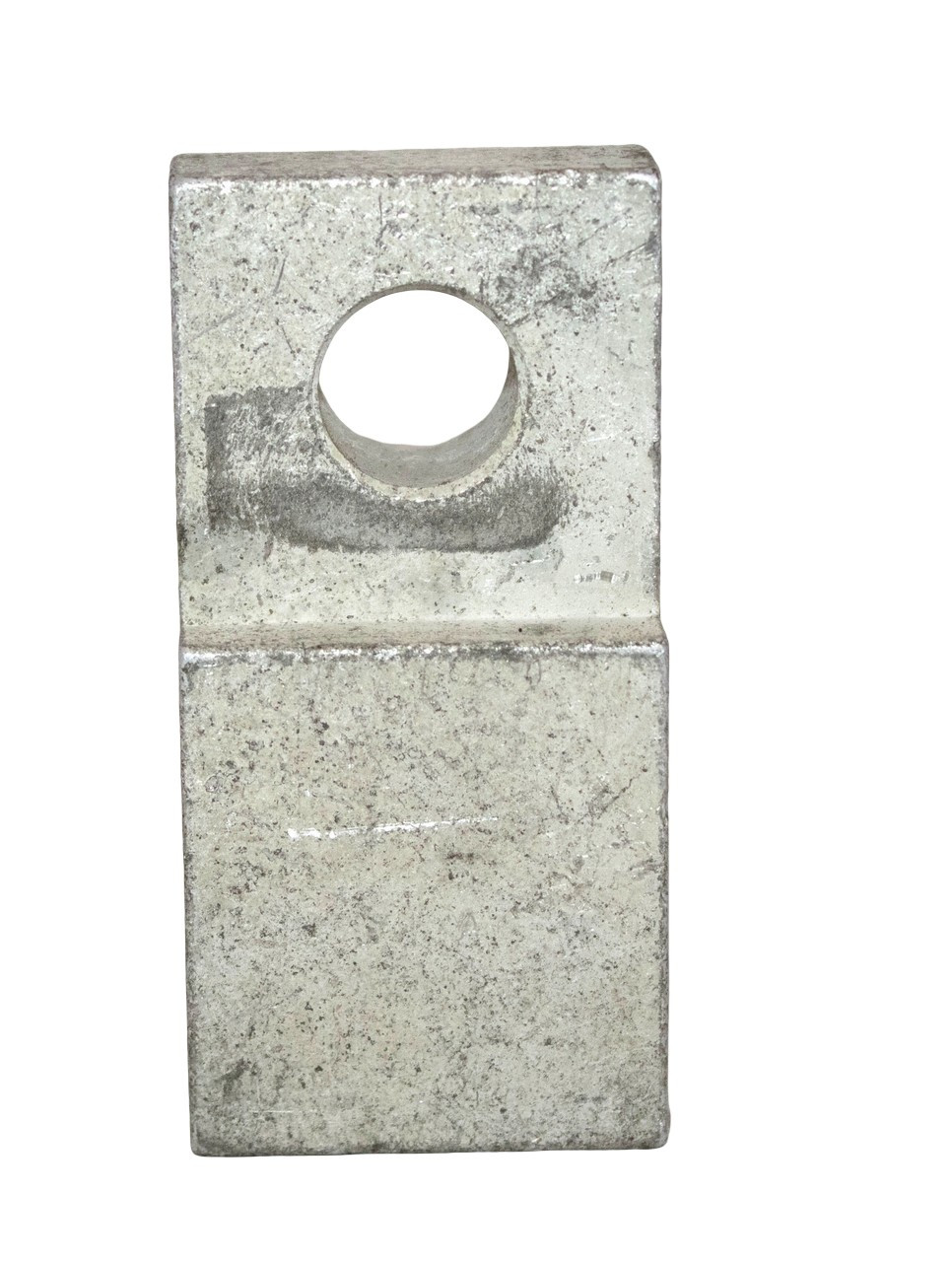

Mounting: 1 Mounting hole per lug
-
Compatible Frames: Spectra SGHB, SGHH, SGLB, SGLL, SGPB, SGPP-Frame Breakers
Key Features & Benefits
-
OEM Compatibility: Precision-engineered for a perfect fit on GE Spectra SG-Frame circuit breakers, ensuring electrical integrity.
-
Dual-Barrel Design: Allows for the termination of two conductors per phase, supporting high-amperage 600A loads efficiently.
-
Plated Aluminum Alloy: Offers superior durability and corrosion resistance, essential for long-term industrial use.
-
Versatile Termination: CU9AL rating provides the flexibility to use either copper or aluminum cabling without the risk of galvanic corrosion.
Applications
-
Industrial Power Distribution: Essential for connecting high-capacity feeders to SG-frame breakers.
-
Commercial Electrical Panels: Used in service entrance equipment and motor control centers.
-
Retrofitting & Maintenance: Ideal for upgrading existing Spectra series breaker installations or replacing damaged terminals.
