Product Description
General Electric CR407D5 Combo Motor Starter – 300-Line, 45 A / 600 V, up to 25 HP
Product Overview
The GE CR407D5 is a rugged combination motor starter in the 300‑line designed for heavy-duty industrial motor control. Rated for 45 amps and up to 600 V, it supports motors up to 25 horsepower when used properly. This model comes with a Size‑2 starter, making it suitable for higher-current applications in commercial or industrial settings.
Specifications
-
Brand: General Electric
-
Model: CR407D5
-
Series: 300-Line combination starter
-

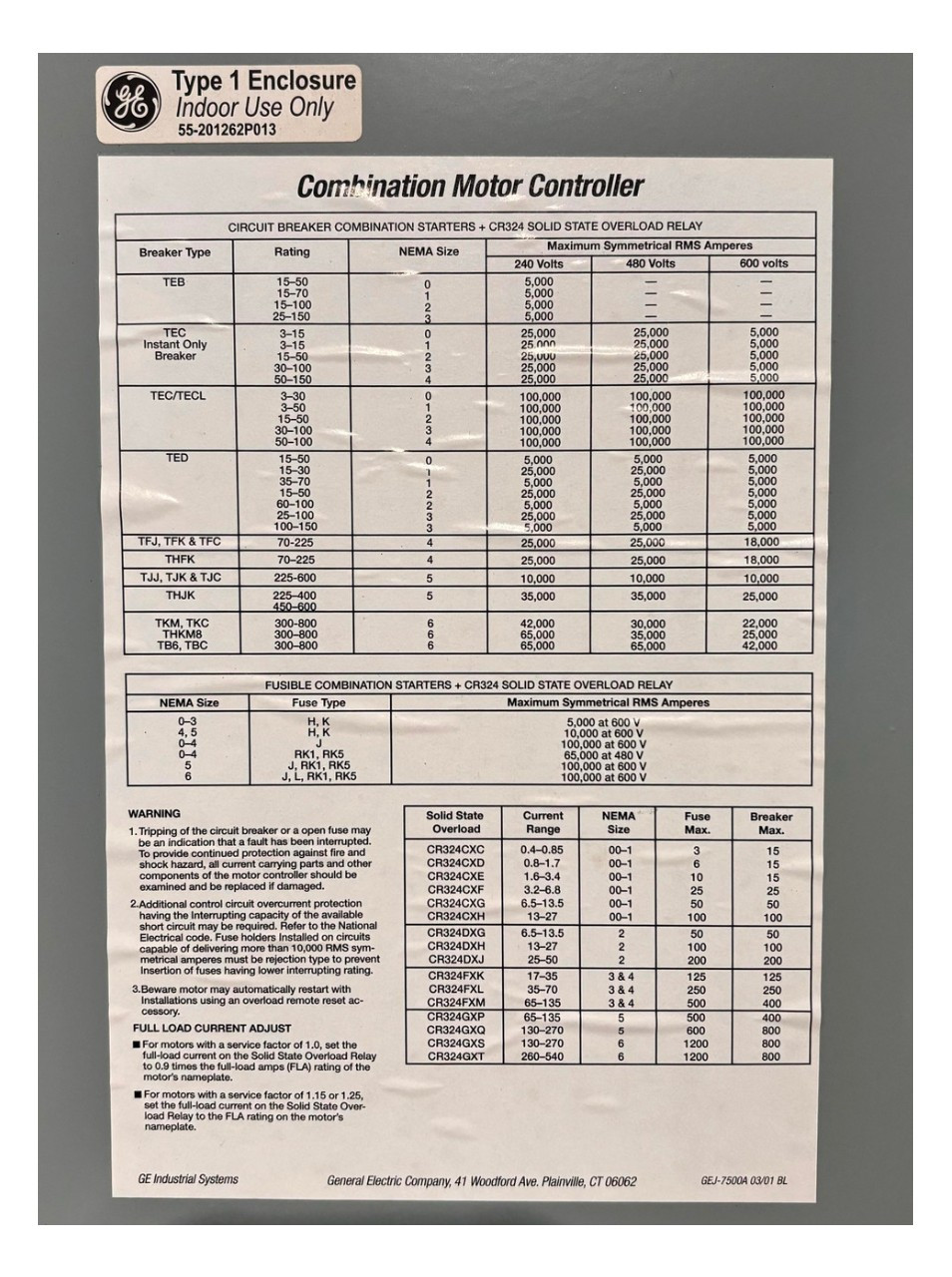

Type 1 Enclosure: 55-201262P013
-
Maximum Current: 45 A
-
Maximum Voltage: 600 V AC
-
Horsepower Rating: up to 25 HP
-
Starter: CR407D514TJDGAAA, Size 2, 45A, 600V, 25HP max
-
Overload Relay: CR324DXJS, 25–50A, solid-state
-
Phase: 3-Phase
-
Breaker: Spectra RMS SELA36AT0030 Frame, SRPE30A Rating Plug, 30A, 600V, 3P
-
Fuses: (3) Ferraz Shawmut ATMR1-1/2, 1-1/2A, 600V, Class CC
-

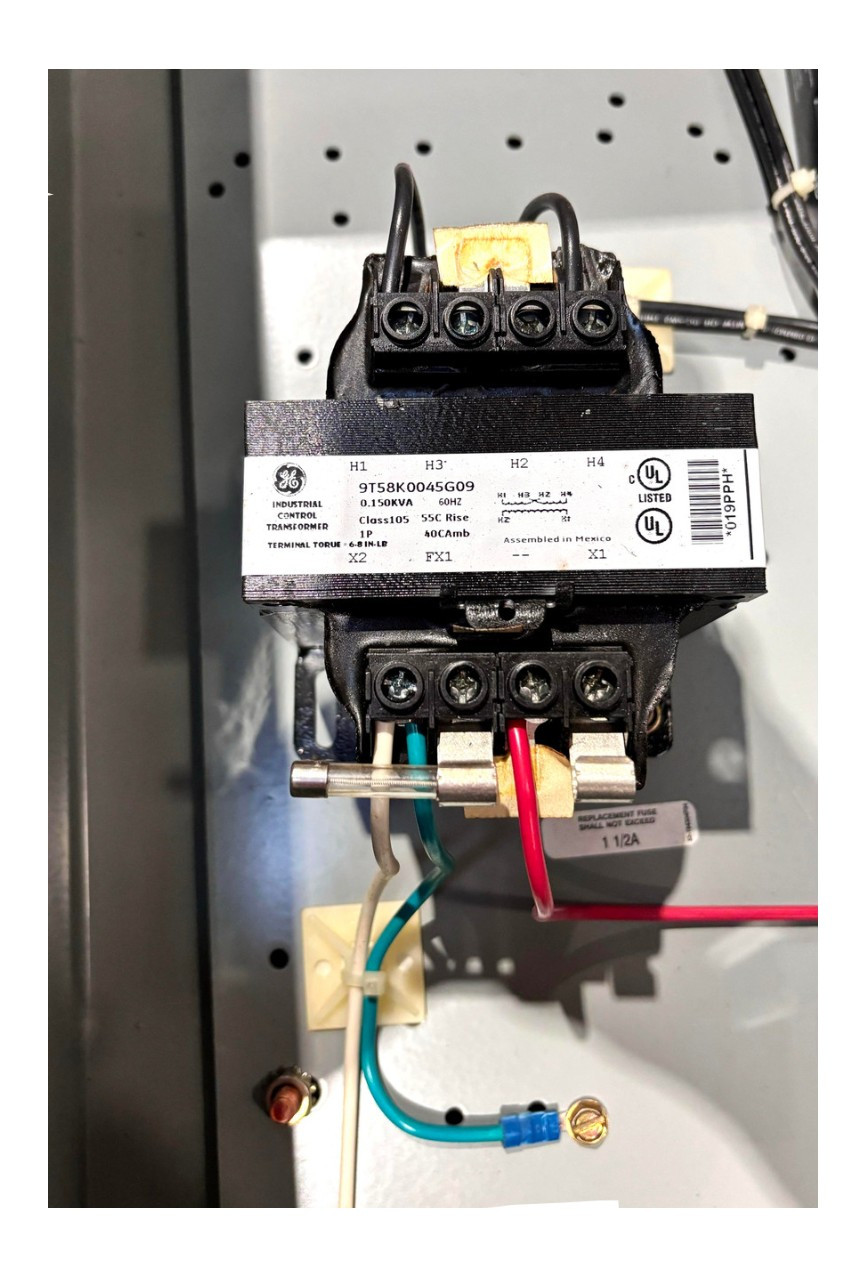

Industrial Control Transformer: 9T58K0045G09, 0.15kVA, 60Hz, 1 Pole
-
Use Case: Industrial motor control, heavy machinery, pump motors, HVAC systems, industrial equipment
