Product Description

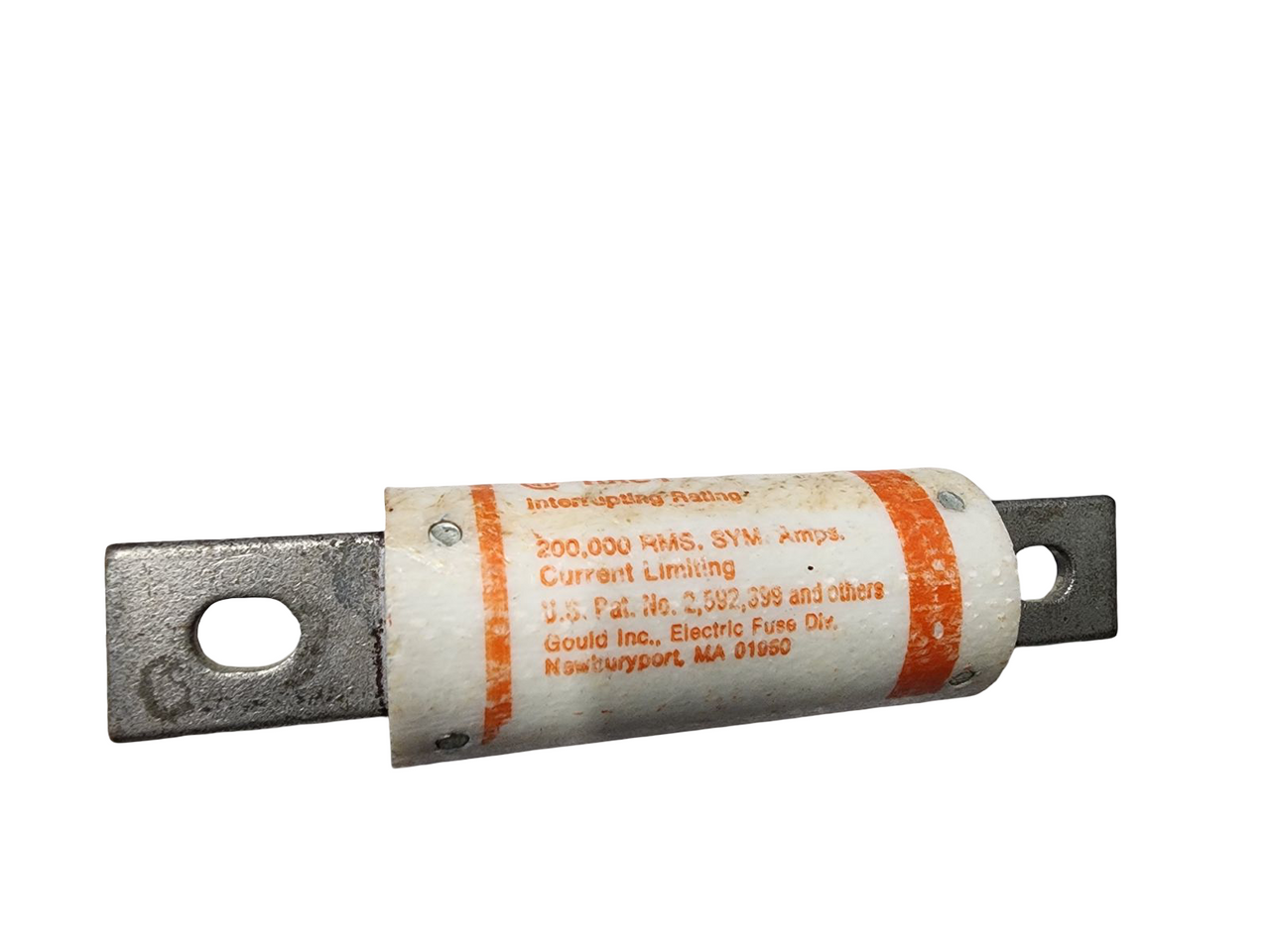

The A4J80 is an 80 Amp, 600 Volt (AC) / 300 V (DC) fast-acting, current-limiting fuse from Gould Shawmut’s Amp-Trap® A4J series. It’s built for industrial and commercial applications where reliable protection against overloads and short circuits is needed. With high interrupt capacity and precise current-limiting, it safeguards panelboards, feeders, lighting, and general-purpose loads with minimal let-through energy, helping protect circuits and equipment from damaging fault currents.
Product Details
-
Brand: Gould Shawmut / Mersen
- Condition: Used
-
Model / Part Number: A4J80
-
Series: Amp-Trap A4J (Class J)
-
Amperage: 80A
-
Voltage Rating: 600 VAC / 300 VDC
-
Interrupt Rating: 200 kA (AC) / 100 kA (DC)
-
Body Style: Cylindrical cartridge, blade/clip mount fuse
-
Fuse Class: Class J, Fast-Acting / Current Limiting
-
Body Dimensions: ~1-1/8" diameter × 4-4/8" length
Key Features
-
High current-limiting performance — minimizes let-through energy to protect downstream components.
-
Fast-acting fuse — rapid response to overloads and short-circuit conditions.
-
Class J rating — compact size with high interrupt rating for industrial and commercial panelboards, feeders, and general loads.
-
Durable fiberglass/polyester body — stable in harsh industrial environments; prevents misapplication with other fuse classes.
-
Wide application range — suitable for lighting, heating, bus-ducts, panelboards, feeder circuits, capacitors, and many general-purpose loads.
