Product Description

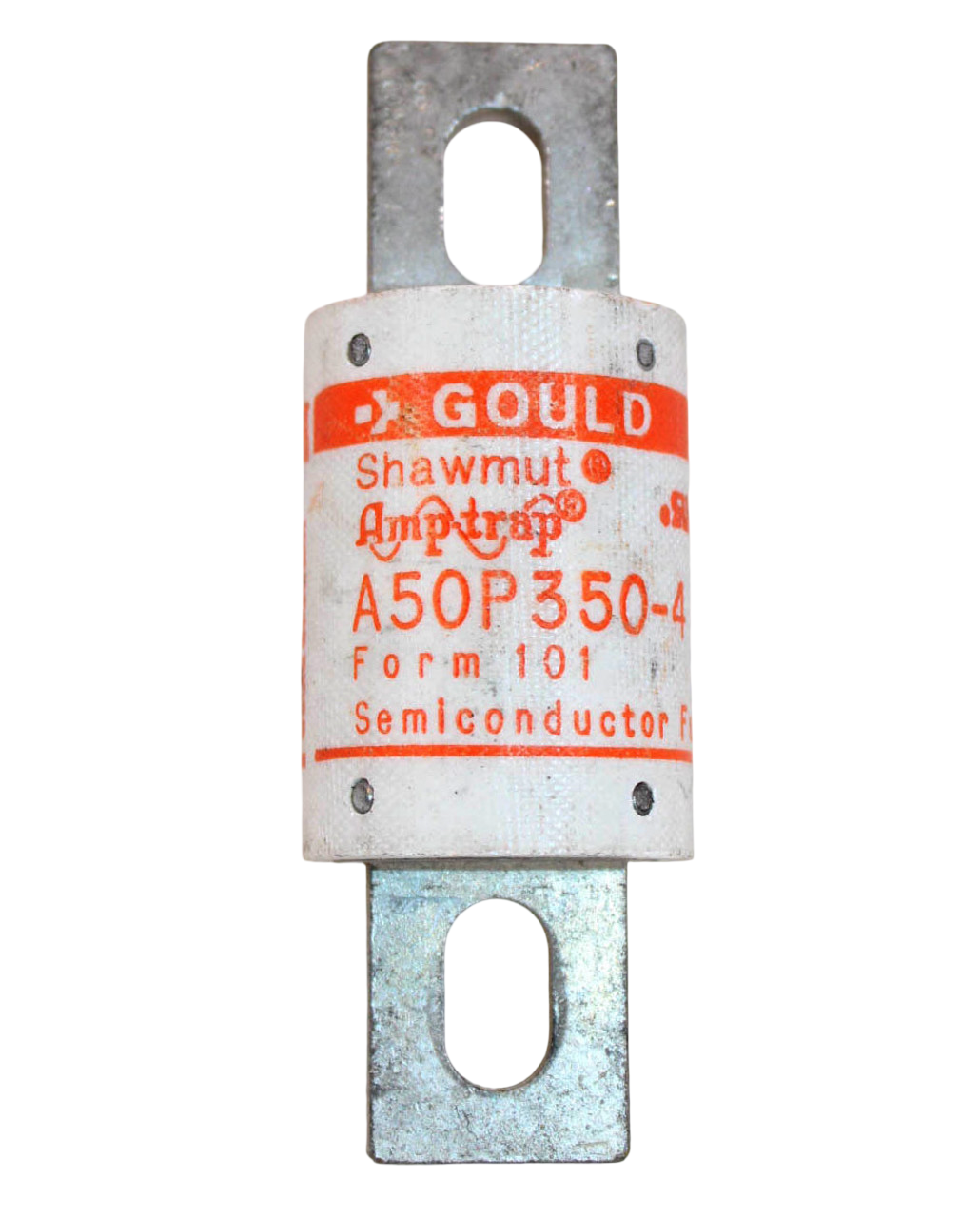

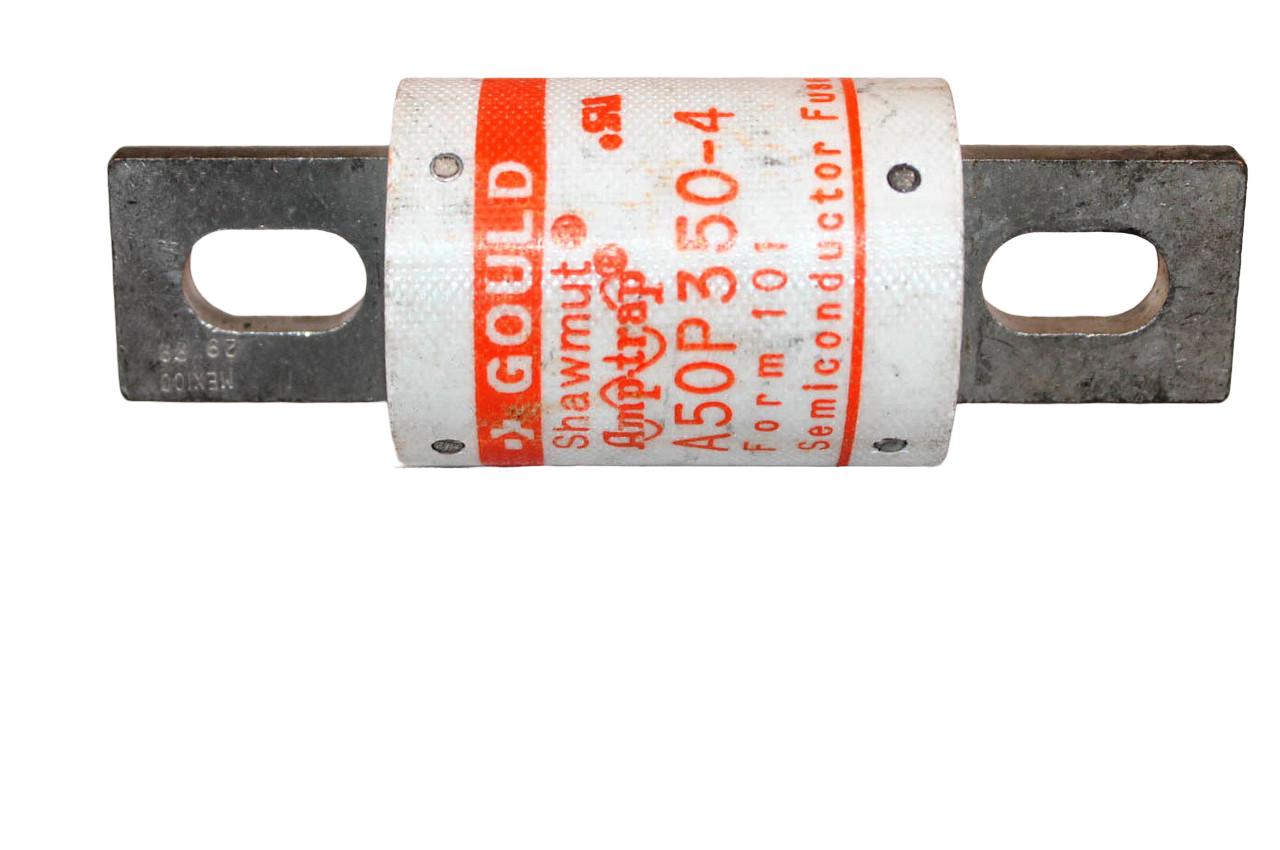

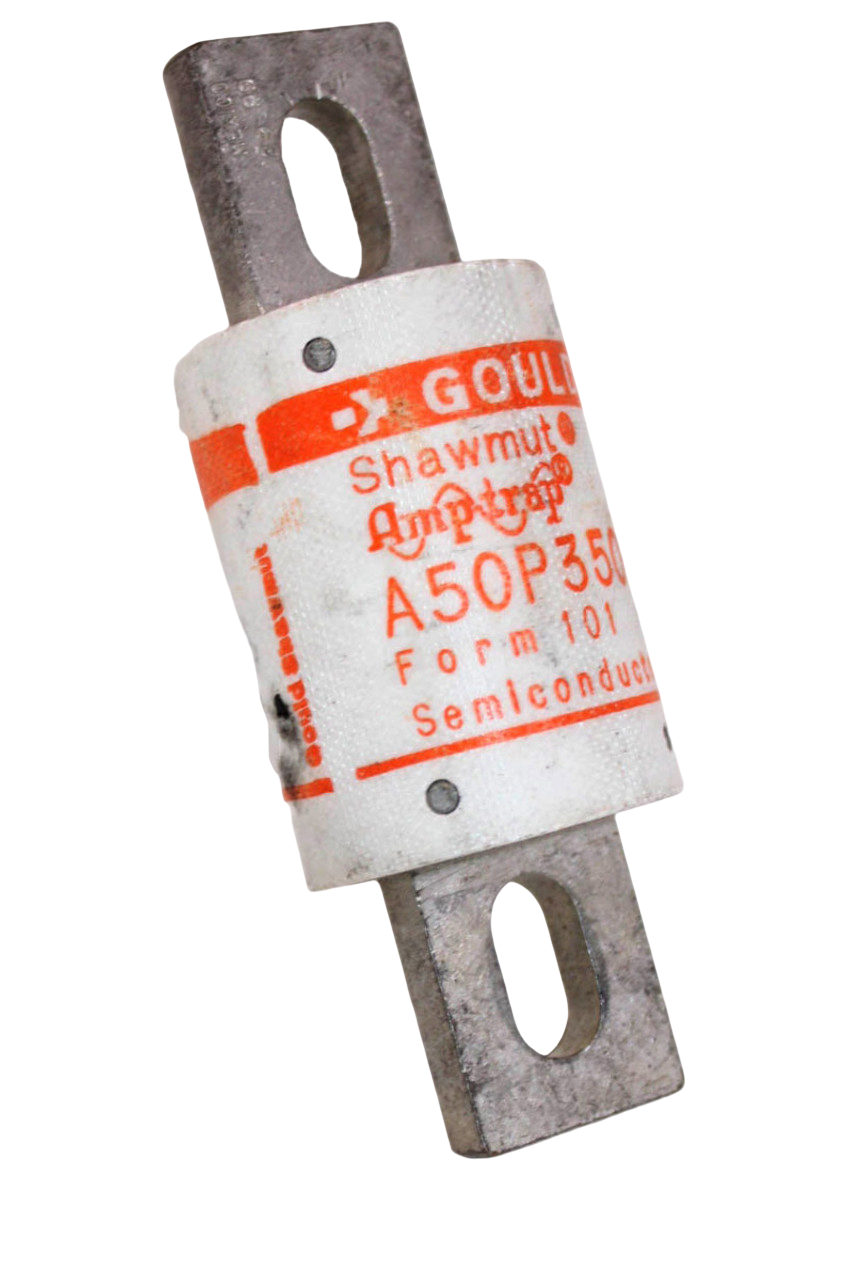

The A50P350-4 Fuse is a 350 A, 500 V AC / 450 V DC high‑speed semiconductor cartridge fuse designed for demanding industrial and commercial applications. Part of the Amp‑Trap® Form 101 family, it’s engineered to provide very fast overcurrent interruption — ideal for protecting DC drives, uninterruptible power supplies (UPS), inverters, and other sensitive electronic and power systems. Its controlled-arc behavior and current-limiting characteristics help minimize stress on downstream components during fault clearing, improving equipment safety and longevity.
Product Details
-
Brand: Gould Shawmut / Mersen
-
Model / Part Number: A50P350-4
-
Amperage Rating: 350 A
-
Voltage Rating: 500 V AC / 450 V DC
-
Fuse Type: Semiconductor / High‑Speed / Current‑Limiting / Amp‑Trap® Form 101
-
Interrupting Rating: 100 kA AC, 79 kA DC
-
Response Time: Very fast – Form 101 (designed for fast interruption)
-
Body Style / Terminals: Blade-type cartridge fuse, cylindrical body, approx. 1.5 in diameter × 4.34 in length
-
Approvals: UL‑recognized component (UL File 60314, Guide JFHR2)
- Condition: Used
Key Features
-
High‑speed, current‑limiting protection — fast response minimizes damage in fault events.
-
Designed to protect DC drives, UPS, inverters, and other sensitive equipment ≤ 500 V.
-
Low I²t and controlled arc voltage reduce thermal and electrical stress on downstream components during fault clearing.
-
Compact cartridge/blade format — easier installation in compatible fuse blocks or holders.
-
UL / safety‑standards compliance — suitable for industrial and commercial use.
