Product Description

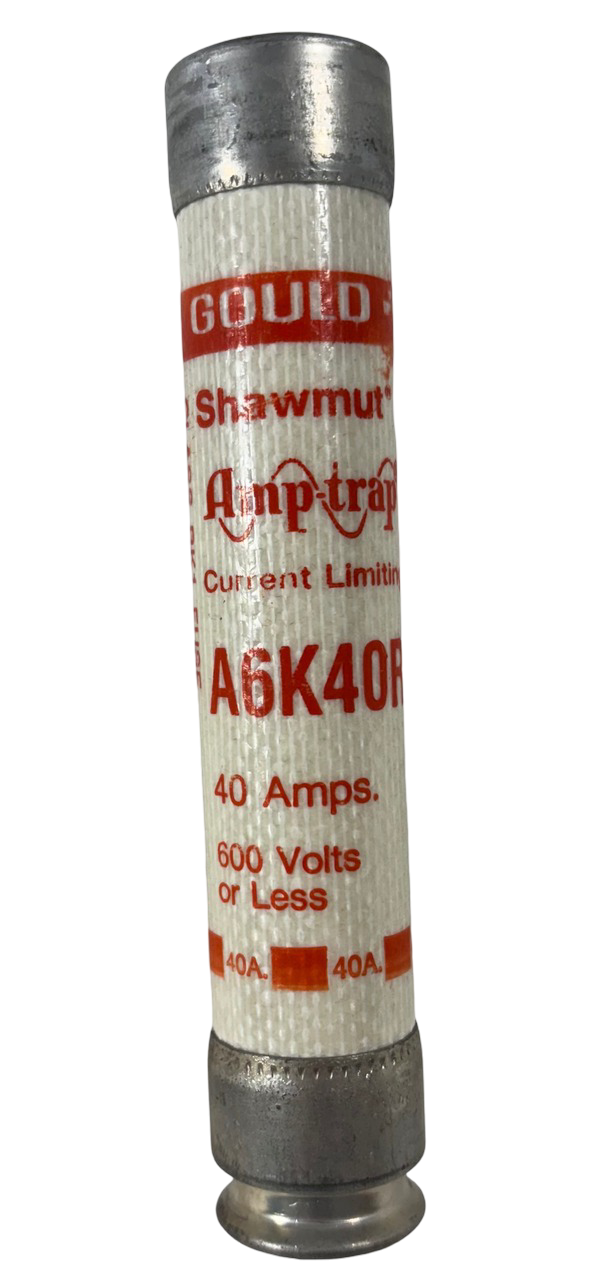

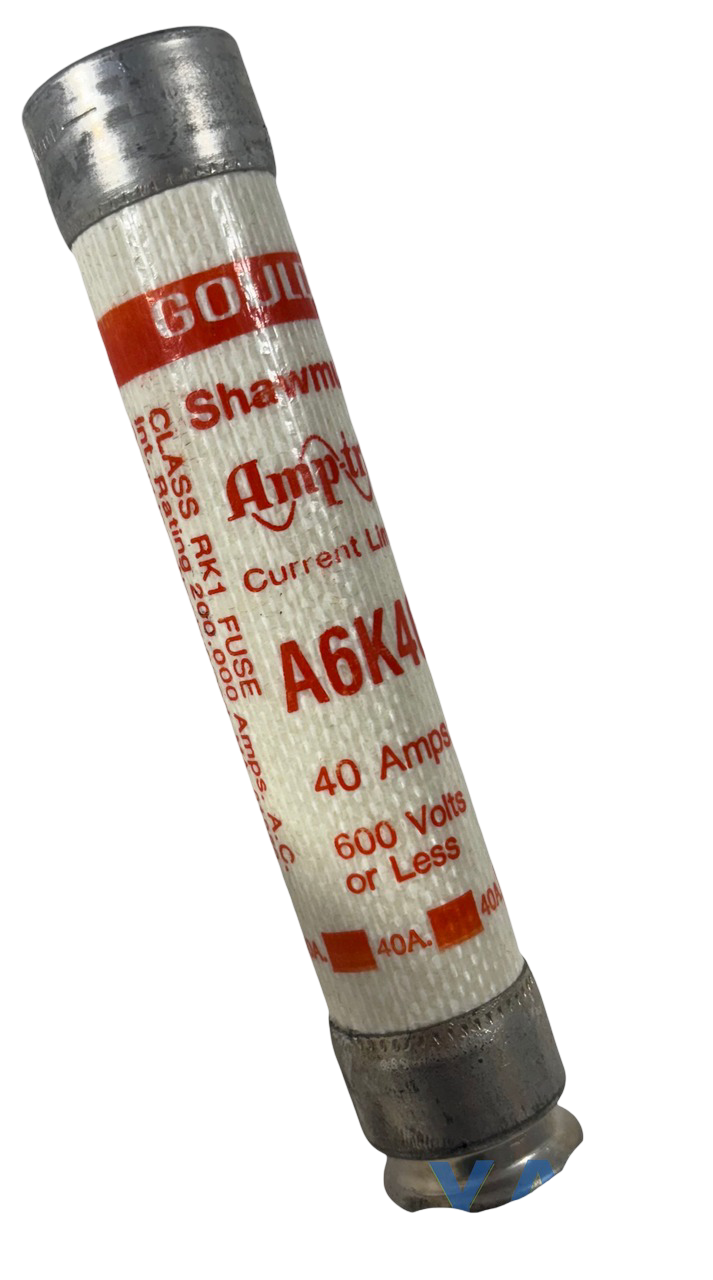

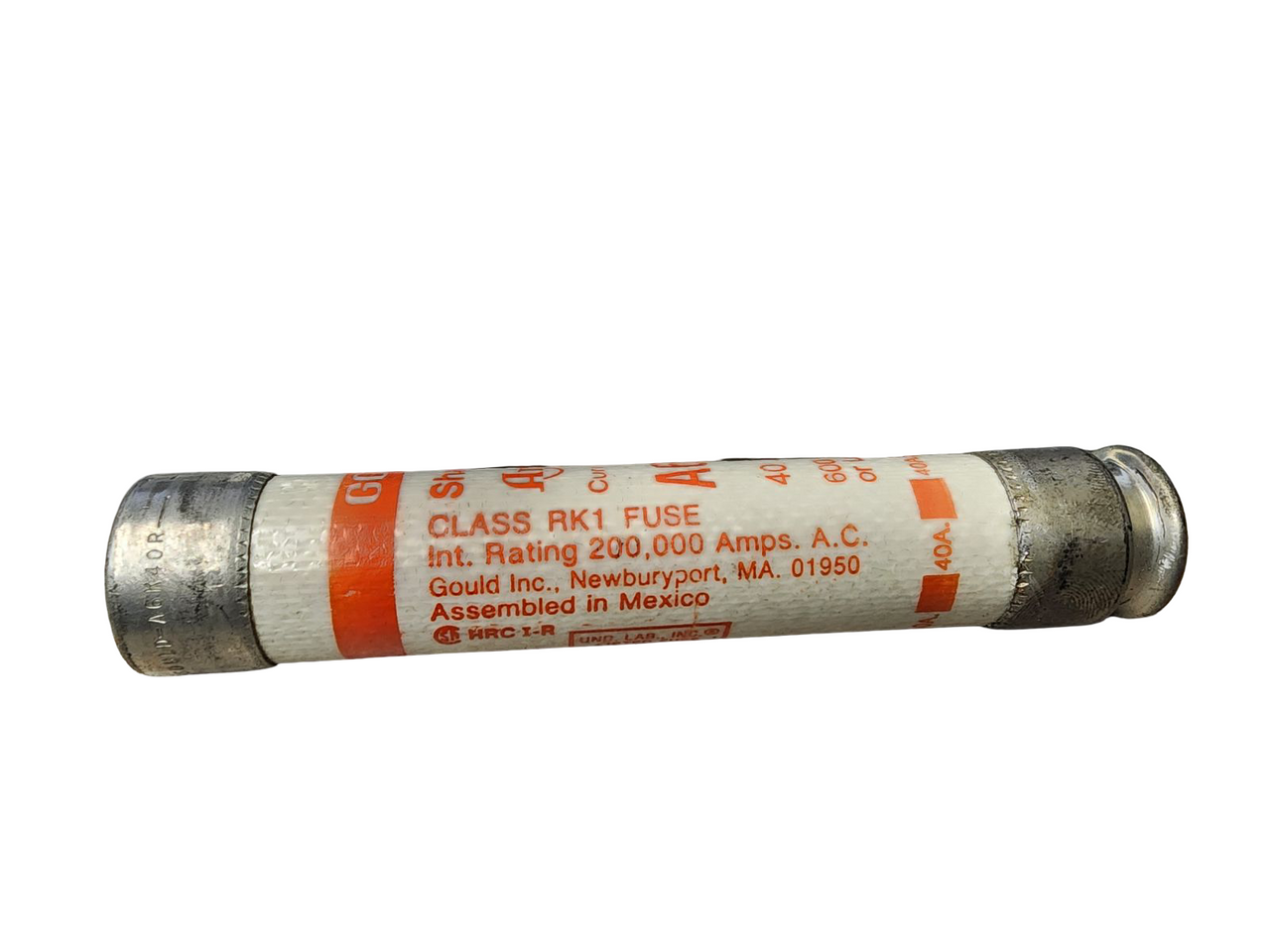

The A6K40R fuse is a 40 Amp, 600 Volt AC / 300 V DC fast‑acting, current‑limiting cartridge fuse designed for branch circuits, feeder circuits, panelboards, and industrial electrical systems. As part of the Amp‑Trap® A6K‑R series, the A6K40R delivers reliable overload and short‑circuit protection where high available fault currents exist. Its rejection‑style design helps prevent installation of incorrect fuse classes, making it a reliable choice for maintenance, repairs, or equipment builds.
Product Details
-
Brand: Gould Shawmut / Mersen
-
Model / Part Number: A6K40R
-
Series: A6K‑R (Class RK1)
-
Amperage: 40 A
-
Voltage Rating: 600 V AC / 300 V DC
-
Fuse Type: Fast‑Acting, Current‑Limiting Cartridge Fuse
-
Interrupt Rating: 200 kA AC / 20 kA DC (high short‑circuit interrupt capacity)
-
Body Style: Cylindrical cartridge, ~1‑1/16" diameter × 5‑1/2" length
-
Terminal Type: Ferrule / Clip‑mount cartridge fuse
-
Safety Approvals: UL 248‑12 / CSA compliant for Class RK1 fuses
- Condition: Used
-
Typical Applications: Panelboards, load centers, switchboards, bus ducts, feeder circuits, branch circuits, non-inductive loads, lighting, and general industrial/commercial wiring systems.
Key Features
-
Fast‑acting, current‑limiting design for reliable protection under overload or short‑circuit conditions
-
High interrupting rating (200 kA AC) ensures safety in high fault-current environments
-
Rejection‑style RK1 cartridge — prevents use of incorrect fuse types or classes in compatible fuse holders
-
Durable fiberglass/polymers body for stability and longevity in harsh industrial environments
-
Compact cartridge size for easy installation and replacement in standard fuse blocks, panelboards, or switchgear systems
