Product Description

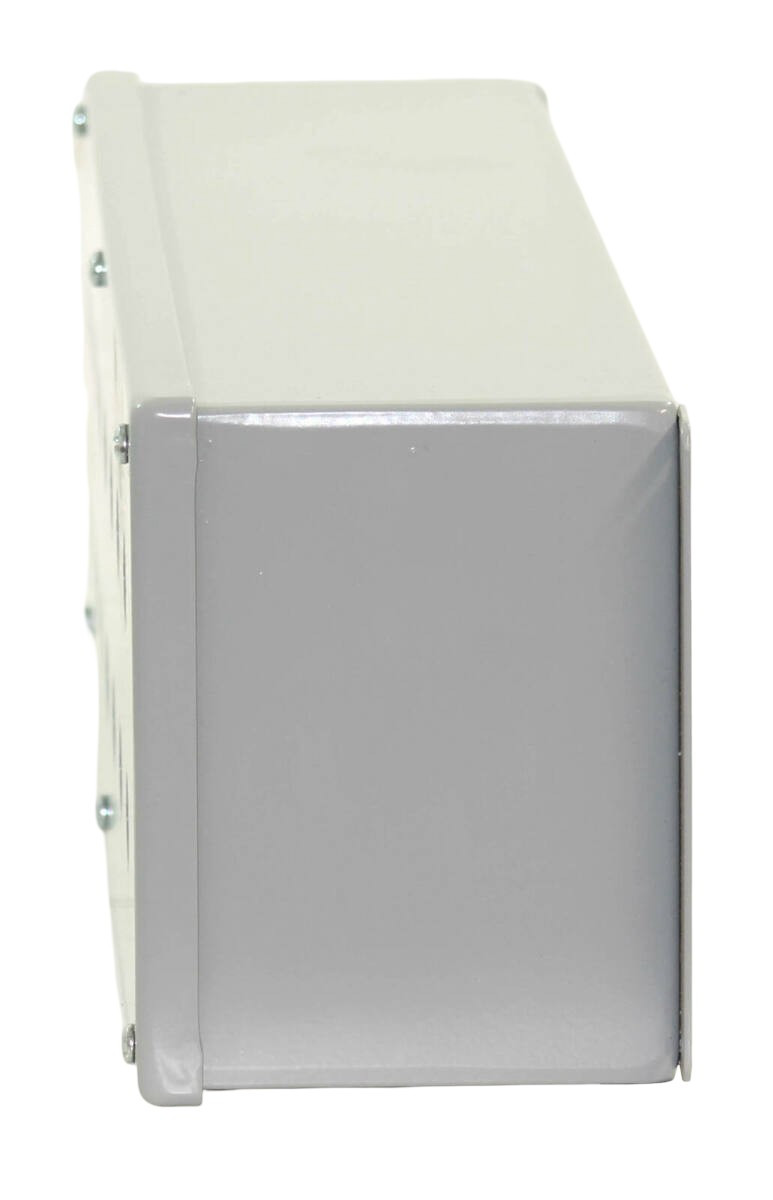

The Hoffman E16SPBXVM is an extra-deep, wall-mount pushbutton enclosure constructed from high-quality mild steel.
Designed to house up to 16 standard 22.5 mm pushbuttons or switches, this enclosure provides NEMA 12/IP65 protection for industrial control applications, ensuring resistance to dust, oil, and water ingress.
Its durable construction and practical design make it ideal for industrial panels, machinery control, and operator interface systems.
Key Features:
• Material: 14-gauge mild steel body, 16-gauge cover
• Dimensions: 20.75" H x 6.25" W x 4.75" D
• Hole Quantity/Size: 16 holes for 22.5 mm devices
• NEMA Rating: Type 12 and 13, IP65 rated
• Finish: ANSI 61 gray polyester powder coat
• Continuously welded and ground smooth seams
• Captivated cover screws threading into sealed wells
• Oil-resistant gasket for reliable sealing
• Internal detachable hinge holds cover open during wiring

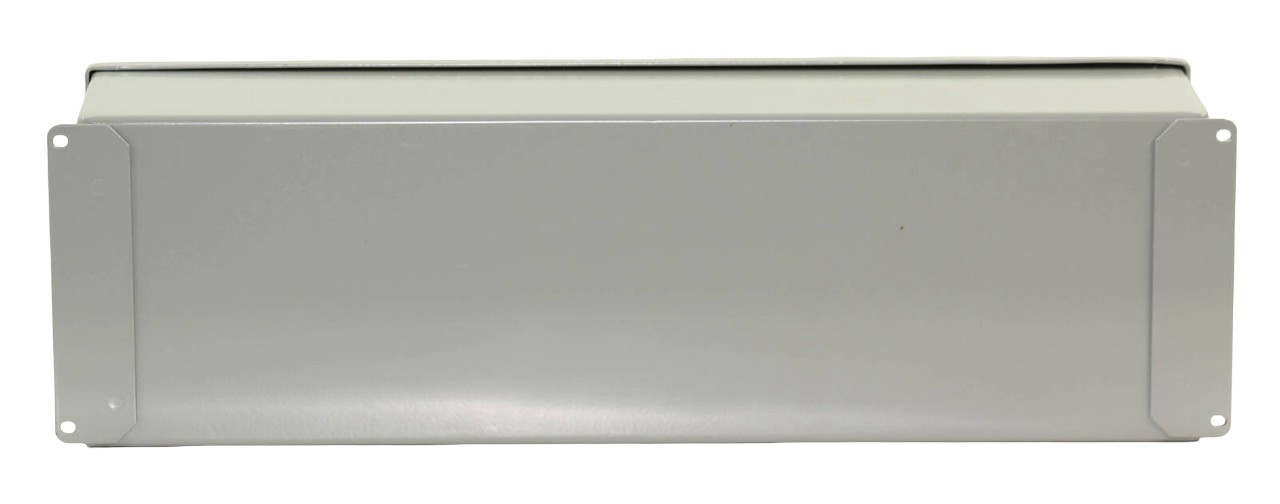

• External welded-on mounting brackets for wall installation
Technical Specifications:
• Manufacturer: Hoffman (nVent)
• Enclosure Type: Wall-mount pushbutton box
• Application: Houses 22.5 mm pushbuttons and switches in industrial control systems
• Mounting: Wall-mounted with external brackets
• Protection: Dust, oil, and water-resistant
Applications:
• Industrial control panels
• Machinery operator interfaces
• Factory automation systems
• Pushbutton and switch mounting in harsh environments
• Electrical panel upgrade projects
