Product Description

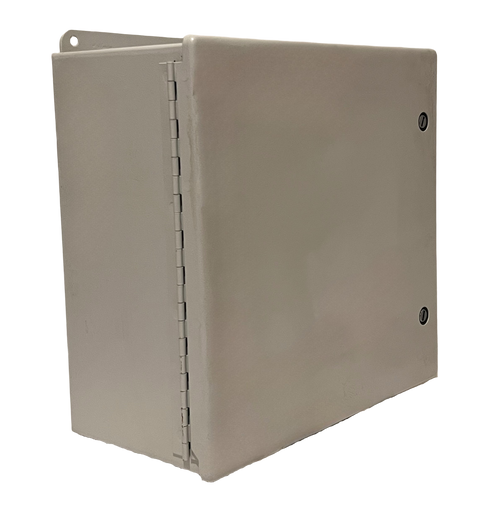

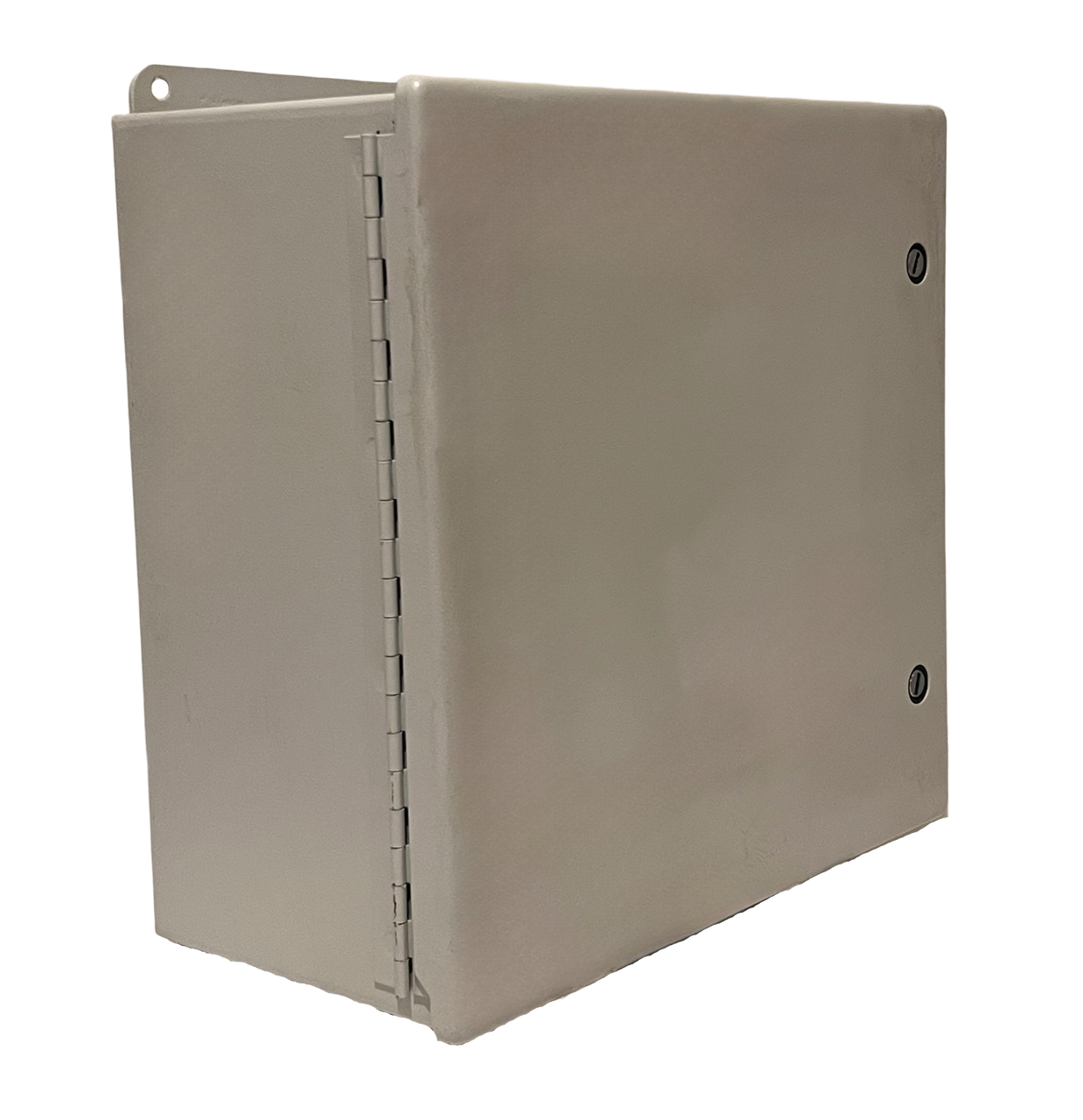

The Hoffman A1212CHFL is a durable steel junction box enclosure designed for industrial and commercial electrical applications. Rated NEMA Type 4 and 12 and IP66, it provides superior protection for electrical and electronic components from dust, water, ice, and corrosive environments.
Featuring a continuous hinge cover and quarter-turn latches, the A1212CHFL offers easy access while maintaining a watertight, secure seal. Its 14-gauge mild steel construction with a light gray polyester powder finish ensures long-lasting corrosion resistance. Pre-welded mounting brackets make wall installation fast and convenient.
Features & Specifications:
-
Brand: Hoffman
-
Model: A1212CHFL
-
Dimensions: 12 in x 12 in x 6 in (H x W x D)
-
Material: 14-gauge mild steel
-
NEMA Rating: Type 4, 12 (IP66) – dust-tight, water-resistant, corrosion-resistant
-
Finish: Light gray (RAL 7035) polyester powder paint inside and out
-

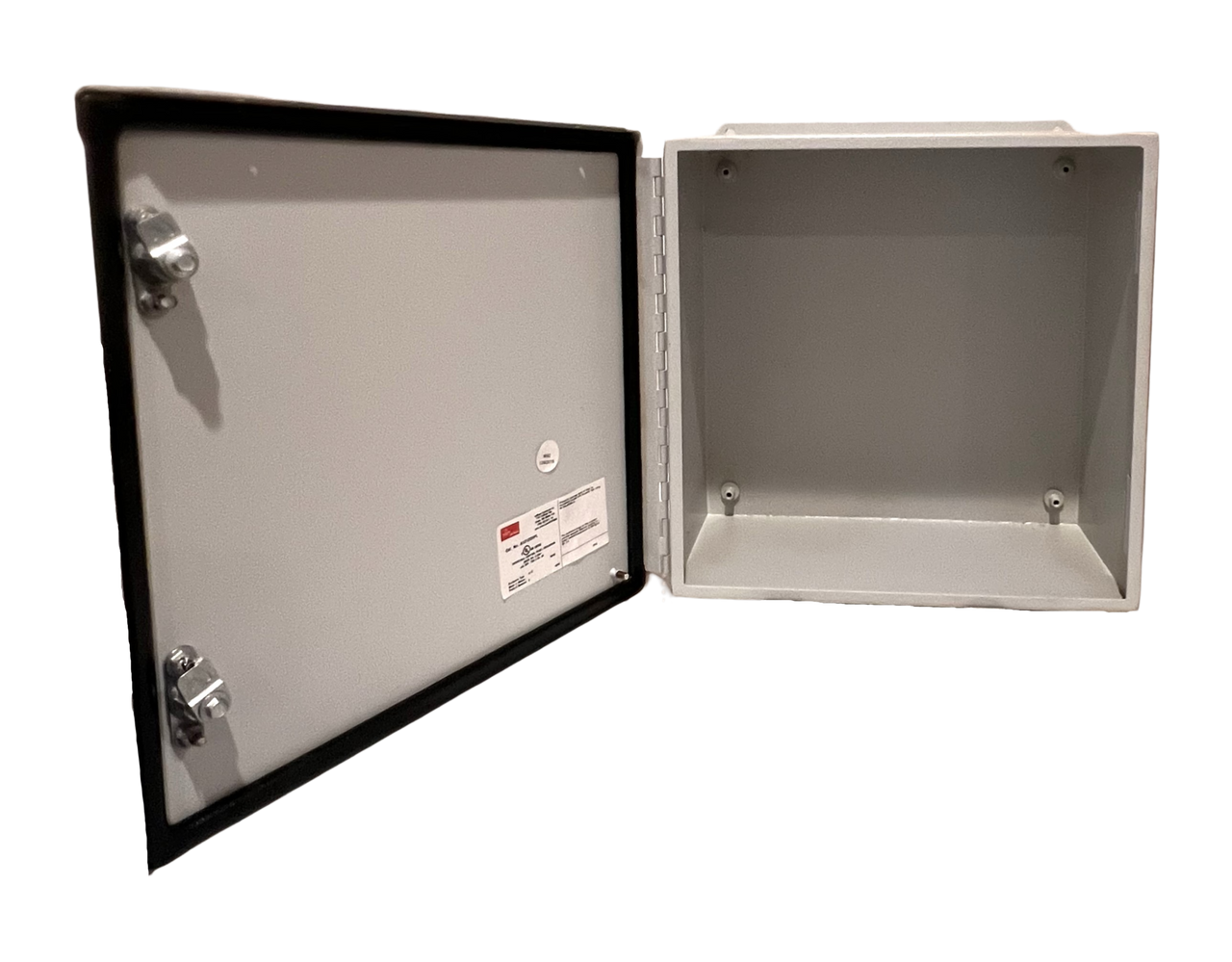

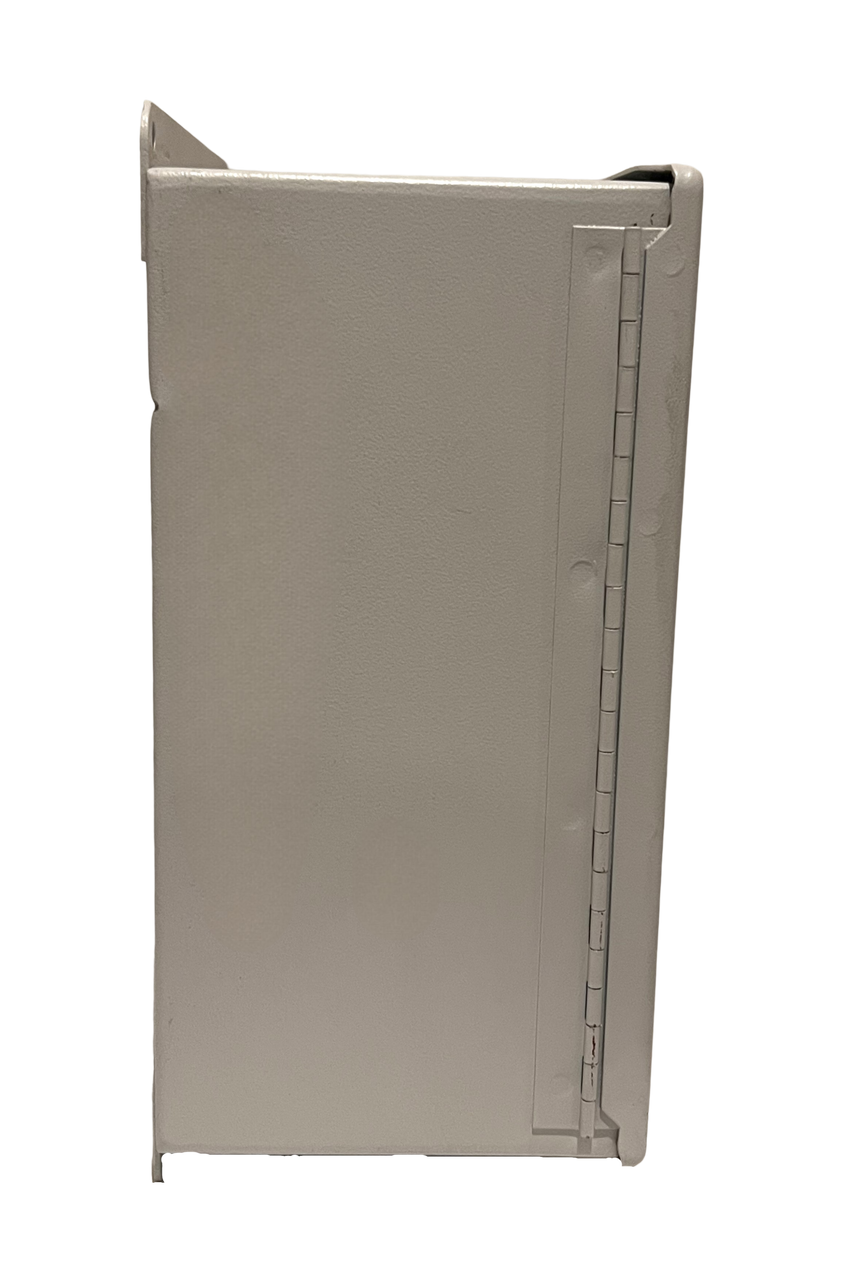

Cover Type: Continuous hinge with oil-resistant, foam-in-place gasket
-

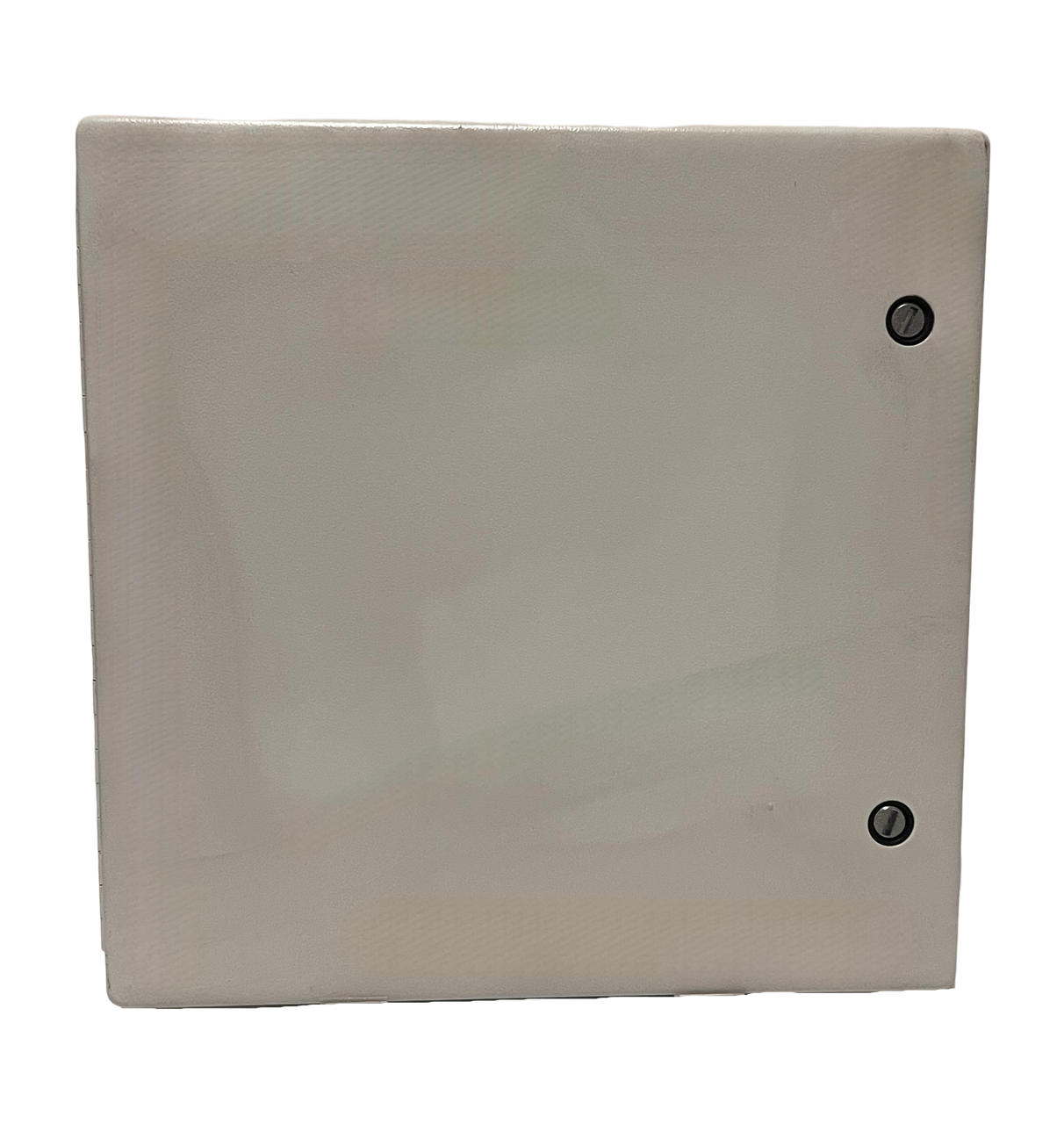

Closure Method: Two quarter-turn slotted latches
-

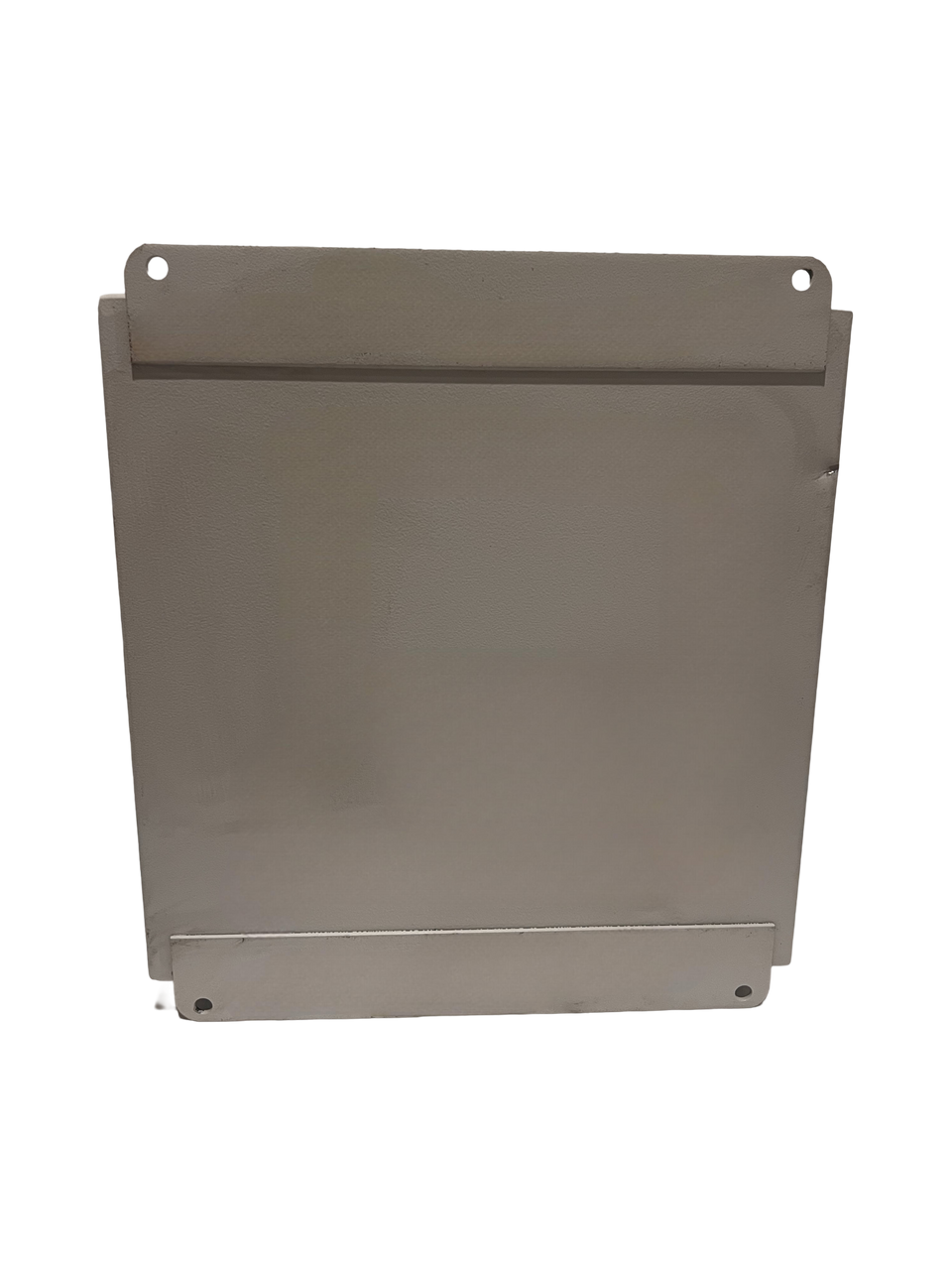

Mounting: External welded-on brackets for wall installation
-
Applications: Industrial, commercial, and outdoor electrical installations, motor controls, sensor enclosures, junction connections
