Product Description

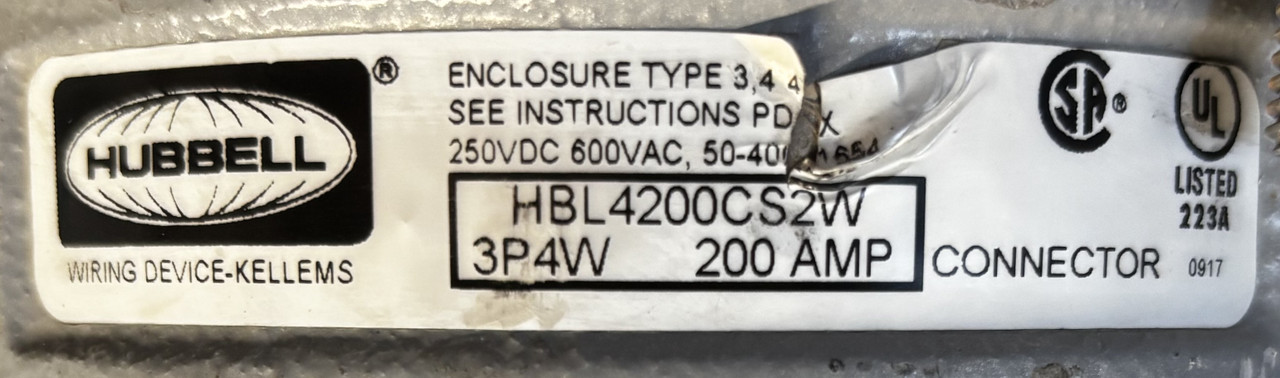

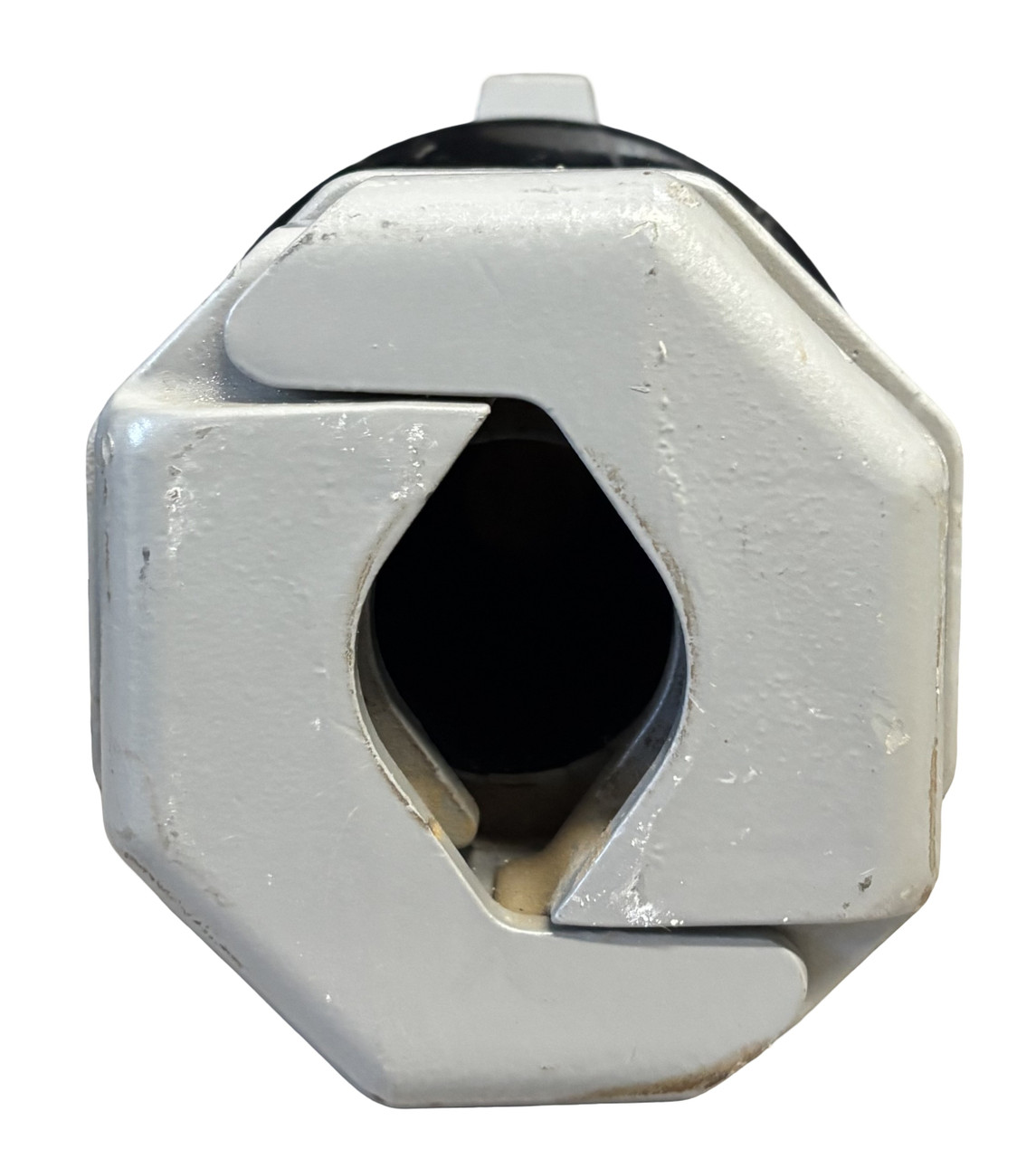

The Hubbell HBL4200CS2W is a heavy-duty, industrial-grade 200 Amp, 3-pole, 4-wire female pin and sleeve connector designed for demanding commercial, industrial, and outdoor electrical applications. Rated IP67 and NEMA 3/4/4X, this connector ensures watertight protection in harsh environments. Built with Valox® 357 composite housing, epoxy-painted aluminum shroud, and brass contacts, it provides long-lasting reliability and safe, secure connections.
Product Features
• 200A, 600 VAC / 250 VDC, 3-pole connector
• 4-wire configuration, grounding style 2
• IP67 and NEMA 3/4/4X watertight rating
• Housing made from Valox® 357 composite material
• Epoxy-painted aluminum shroud for additional protection
• Brass contacts for corrosion resistance and electrical conductivity
• Pressure screw terminals for secure wiring
• Accepts #1 AWG to #250 MCM copper wire
• Accommodates cords with outer diameter 1.0–2.5 inches
• Spring-loaded, gasketed cover for dust-tight seal
• Pin chamber confines arcing for safer operation
