Product Description

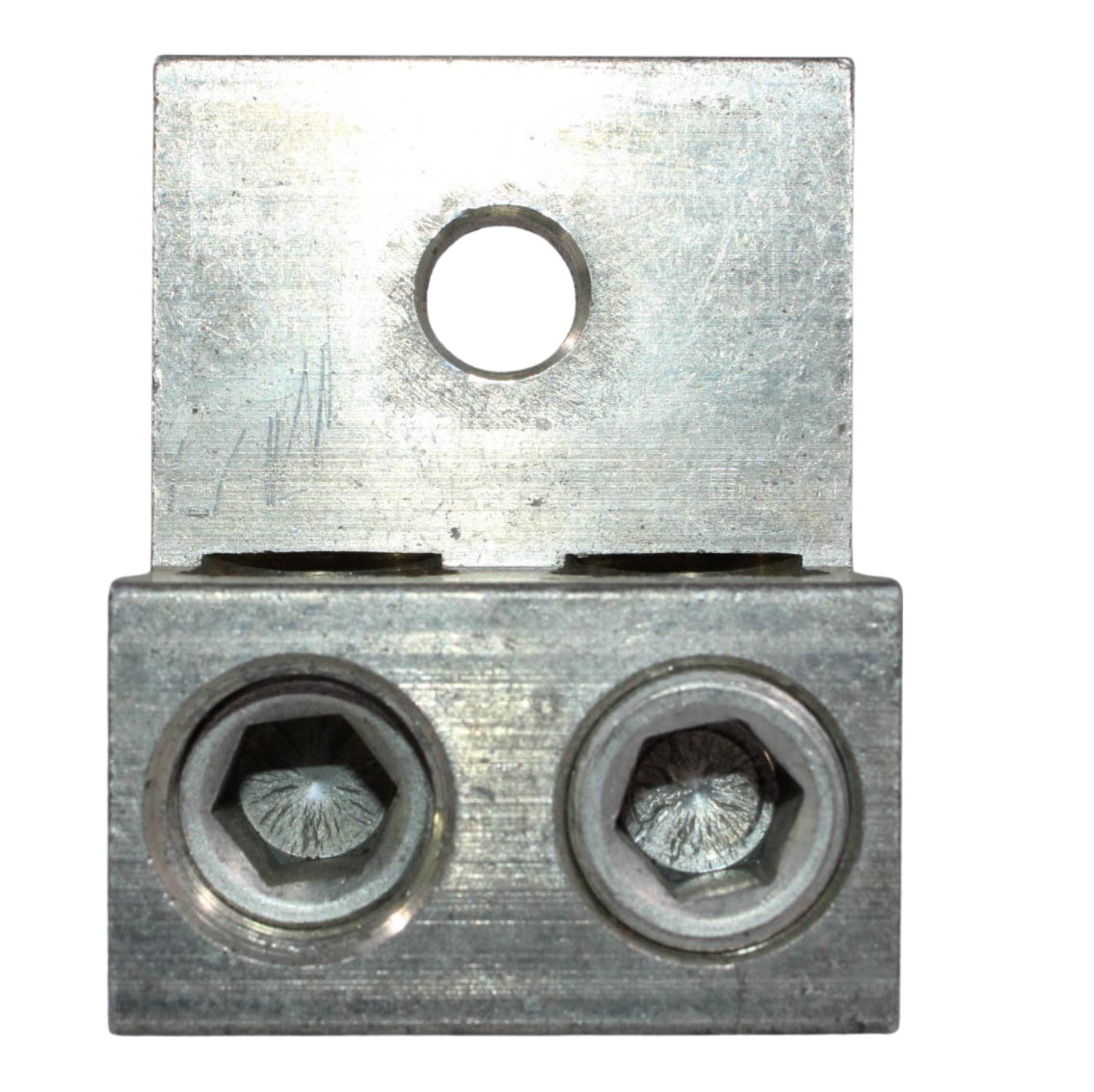

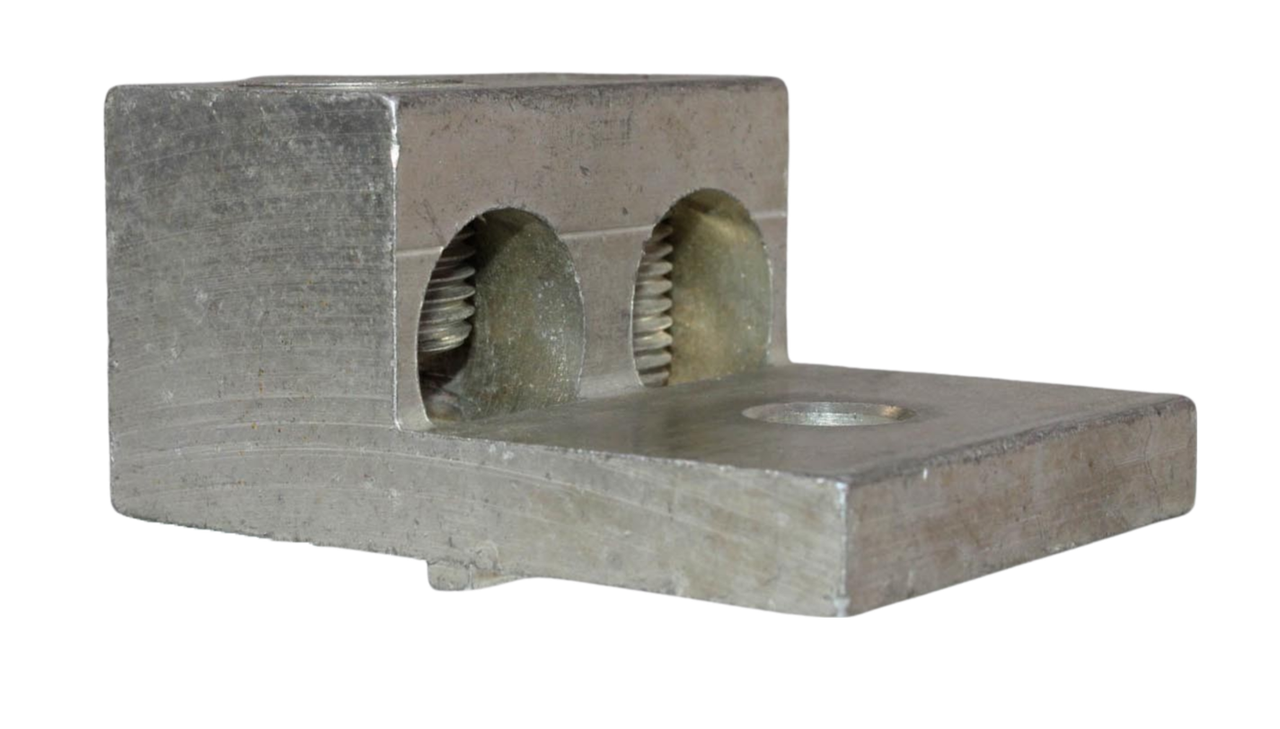

The International Hydraulics (IHI) 2S600 is a high-capacity, double-barrel mechanical terminal designed for efficient power distribution. This lug allows for the secure termination of two large-gauge conductors into a single mounting point, making it an ideal choice for transformers, switchgear, and heavy-duty motor control centers.
Precision-manufactured from high-strength 6061-T6 aluminum alloy and finished with electro-tin plating, the 2S600 is built for durability and low contact resistance. Its CU9AL dual-rating ensures total compatibility with both copper and aluminum conductors, providing a versatile solution for a wide range of industrial electrical applications.
? Technical Specifications
-
Manufacturer: International Hydraulics Inc (IHI)
-
Part Number: 2S600
-
Configuration: Double-Barrel (2 Ports)
-
Conductor Range: 600 kcmil (MCM) down to 4 AWG
-
Material: 6061-T6 High-Strength Aluminum Alloy
-
Plating: Electro-Tin Plated
-
Mounting: Single 1/2" Bolt Hole
-
Voltage Rating: 600V (Up to 35kV in uninsulated applications)
-
Temperature Rating: 90°C
-
Dual-Rated: CU9AL (Suitable for Copper and Aluminum wire)
✅ Key Features & Benefits
-
High-Density Termination: Consolidates two conductors into one mounting point, significantly reducing the bus bar surface area required compared to using two separate single-barrel lugs.
-
Corrosion Resistance: The electro-tin plating prevents oxidation and protects against galvanic corrosion when used in copper-to-aluminum transitions.
-
Mechanical Reliability: Uses high-pressure set screws to create a gas-tight electrical bond without the need for specialized hydraulic crimping tools or dies.
-

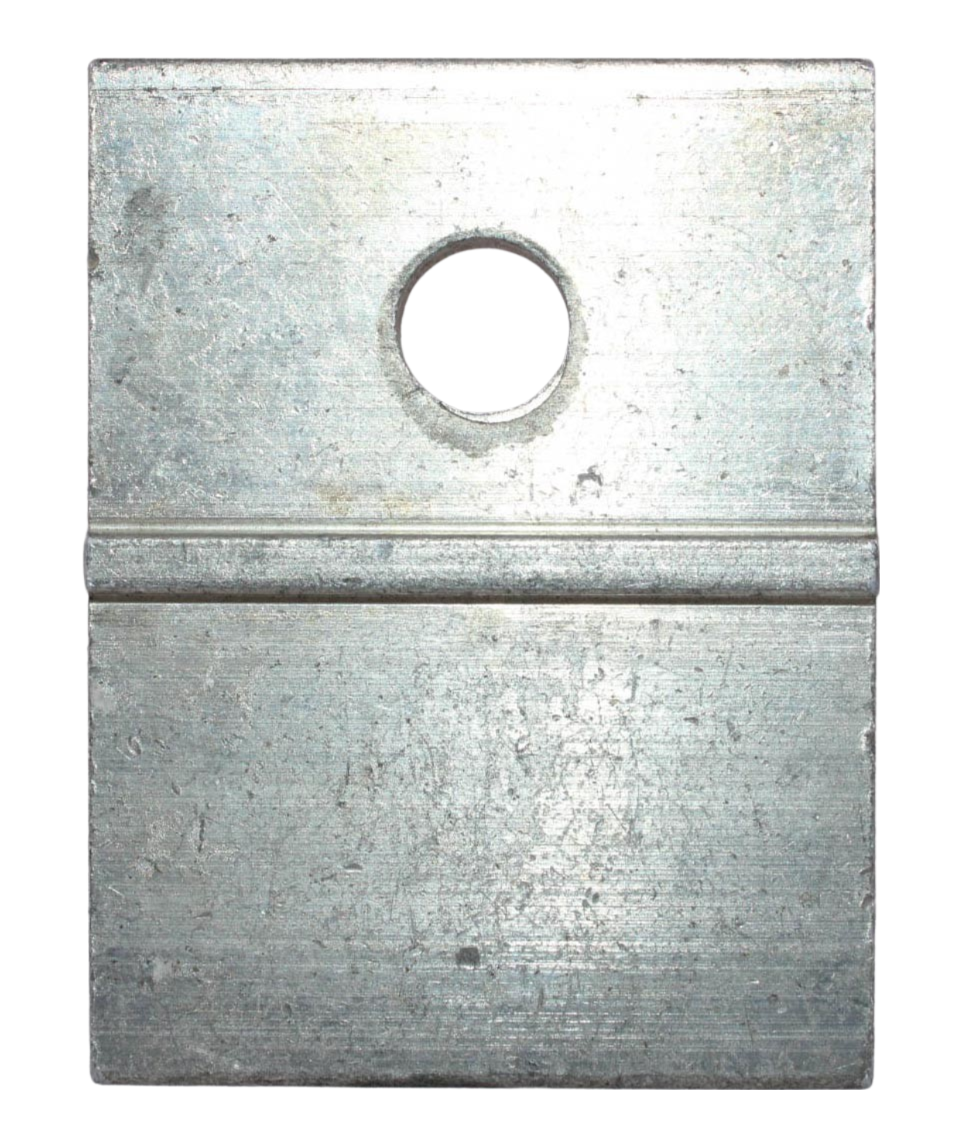

Versatile Mounting: Designed with a 1/2" mounting hole to fit standard industrial bus bar and transformer spade configurations.
?️ Key Variants & Specialized Models
-

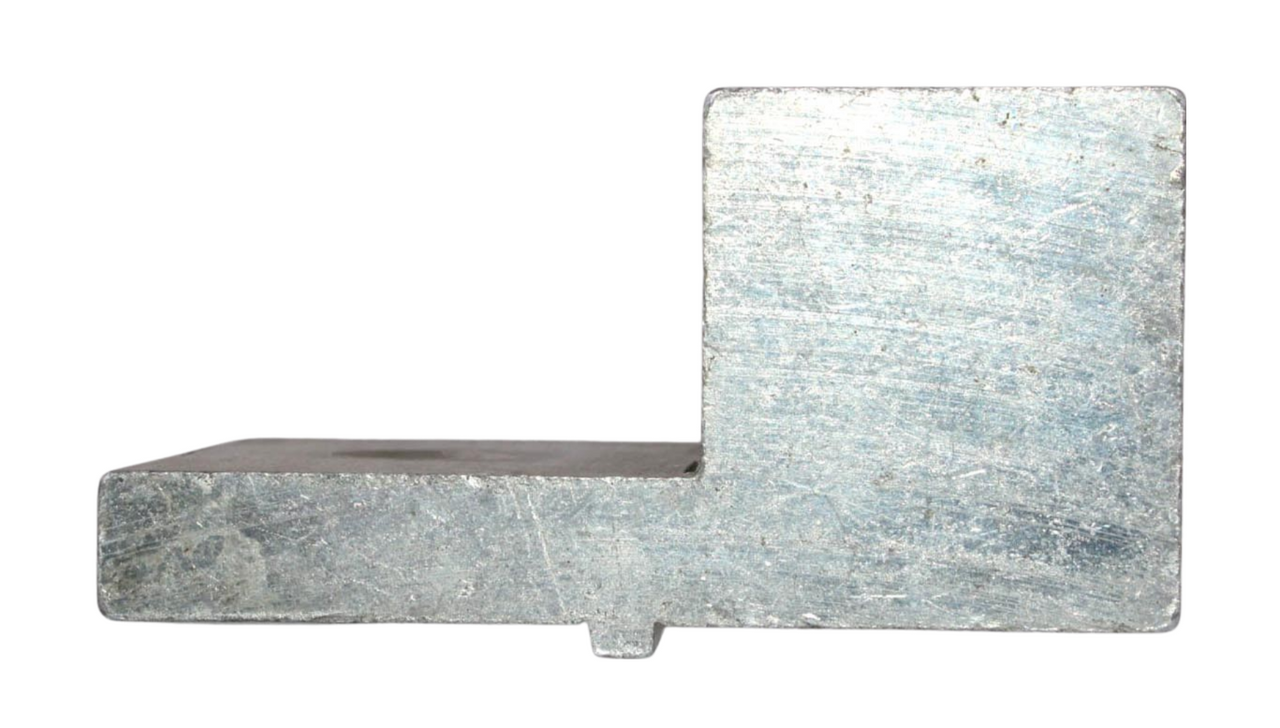

2S600TP (Turn Prevent): Features a built-in "Turn Prevent" rib on the bottom of the tang to keep the lug from rotating on the bus bar during high-torque wire installation.
-
2S600-53-63-M (Metric): Specifically engineered for international projects, featuring 10mm hex socket screws instead of standard imperial sizes.
-
FLEX Wire Support: Select models (like the 2S600TP) are UL approved for Flexible (FLEX) wire classes G, H, I, J, K, supporting a range from 2 AWG to 444 kcmil.
