Product Description

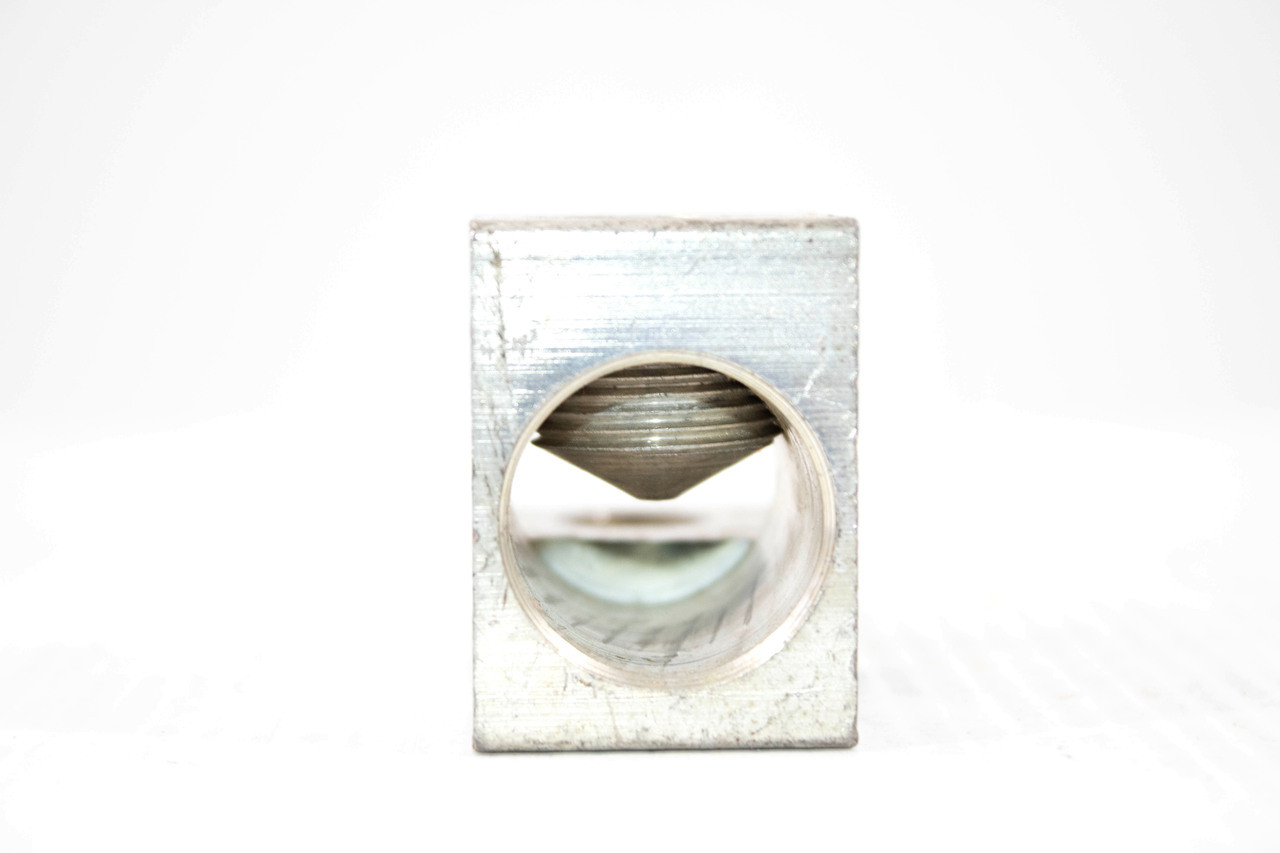

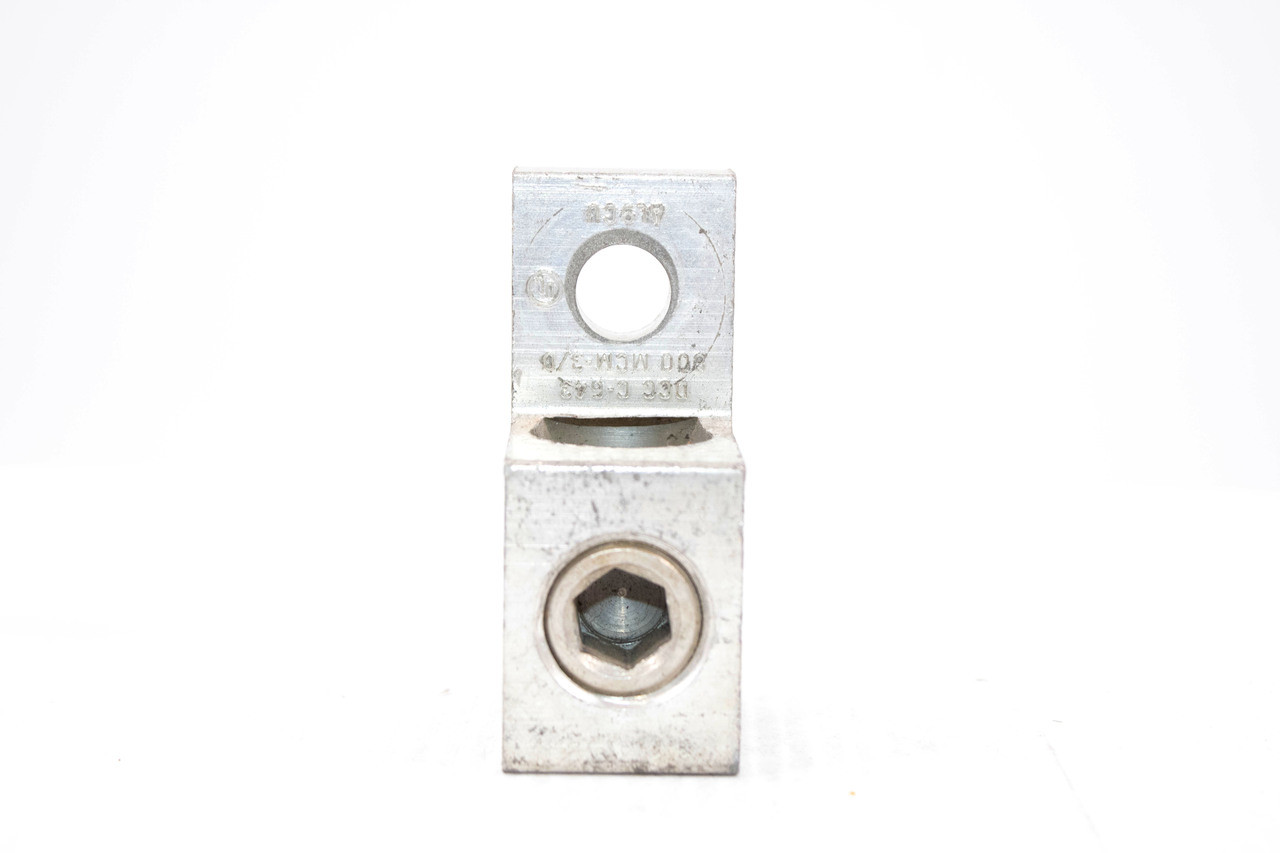

The Ilsco C643 is a high-quality, dual-rated aluminum mechanical lug designed for secure wire termination in industrial, commercial, and utility electrical systems. It provides a reliable connection for both copper and aluminum conductors, with a robust electro-tin plated aluminum body that ensures low contact resistance and excellent corrosion resistance. Perfect for power distribution, switchgear, and grounding applications.
────────────────────────
Specifications
• Product Type: Mechanical Lug / Terminal
• Material: Aluminum, electro-tin plated
• Conductor Range (Copper): 800 kcmil to 3/0 AWG
• Conductor Range (Aluminum): 800 kcmil to 250 kcmil
• Ports: 1 port (conductor entry)
• Mounting Holes: 1 hole
• Mounting Hole Size: 9/16 inch
• Voltage Rating: Suitable for up to 35 kV (commonly used at 600V)
────────────────────────
Features & Benefits
• Dual-rated for aluminum and copper conductors (AL9CU)
• Single-port, single-hole design for easy installation
• Electro-tin plating minimizes contact resistance and corrosion
• High-strength aluminum alloy construction ensures durability
• Ideal for industrial panels, switchgear, and grounding systems
────────────────────────
Applications
• Industrial and commercial electrical panels
• Power distribution and grounding connections
• Switchgear, transformers, and utility installations
