Product Description

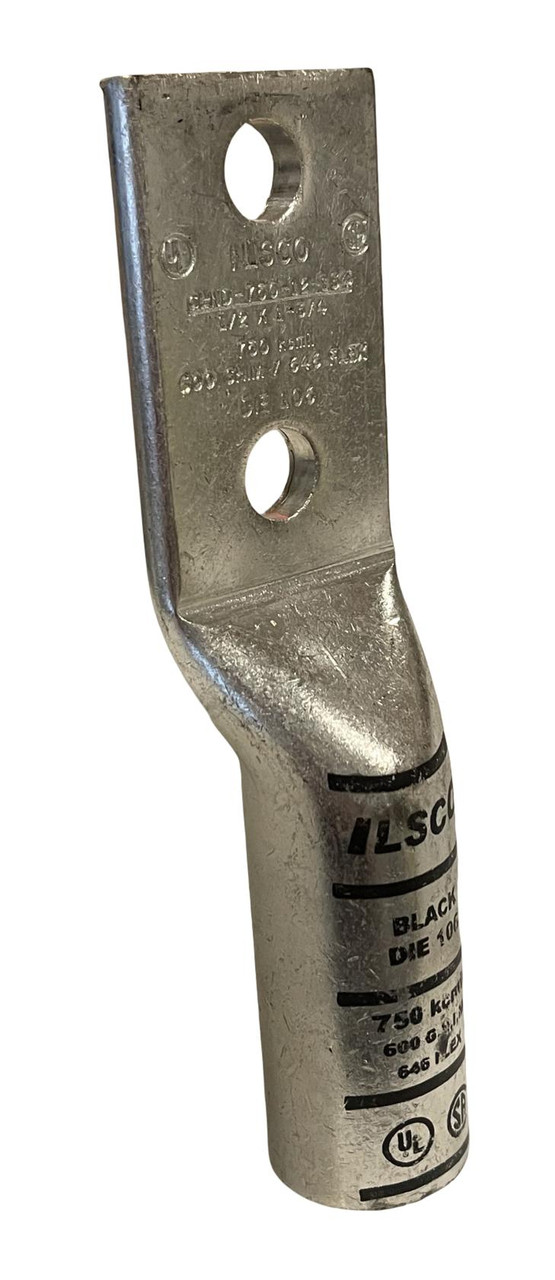

The ILSCO CLND-750-12-134 Compression Lug is a heavy-duty long-barrel copper compression connector engineered for high-current electrical applications. Designed for 750 kcmil conductors, this lug features a 2-hole NEMA mounting pattern with 1/2-inch stud holes, providing superior mechanical strength and reliable electrical performance.
Manufactured from high-conductivity copper, this compression lug ensures low resistance connections and long-term durability in industrial, commercial, and utility environments. Ideal for switchgear, panelboards, transformers, and power distribution systems.
Key Features
-
✅ ILSCO CLND-750-12-134 compression lug
-
✅ Wire size: 750 kcmil
-
✅ 2-hole mounting configuration
-
✅ 1/2-inch stud size
-
✅ Long barrel design for maximum conductivity
-
✅ High-conductivity copper construction
-
✅ Compression-type termination for secure connections
Applications
-
Power distribution systems
-
Switchgear and panelboards
-
Transformers and bus connections
-
Industrial and commercial electrical installations
Specifications
-
Manufacturer: ILSCO
-
Part Number: CLND-750-12-134
-
Connector Type: Compression Lug
-
Conductor Size: 750 kcmil
-
Number of Holes: 2
-
Stud Size: 1/2 Inch
-
Barrel Type: Long Barrel
-
Material: Copper
-
Standards: UL Listed
