Product Description

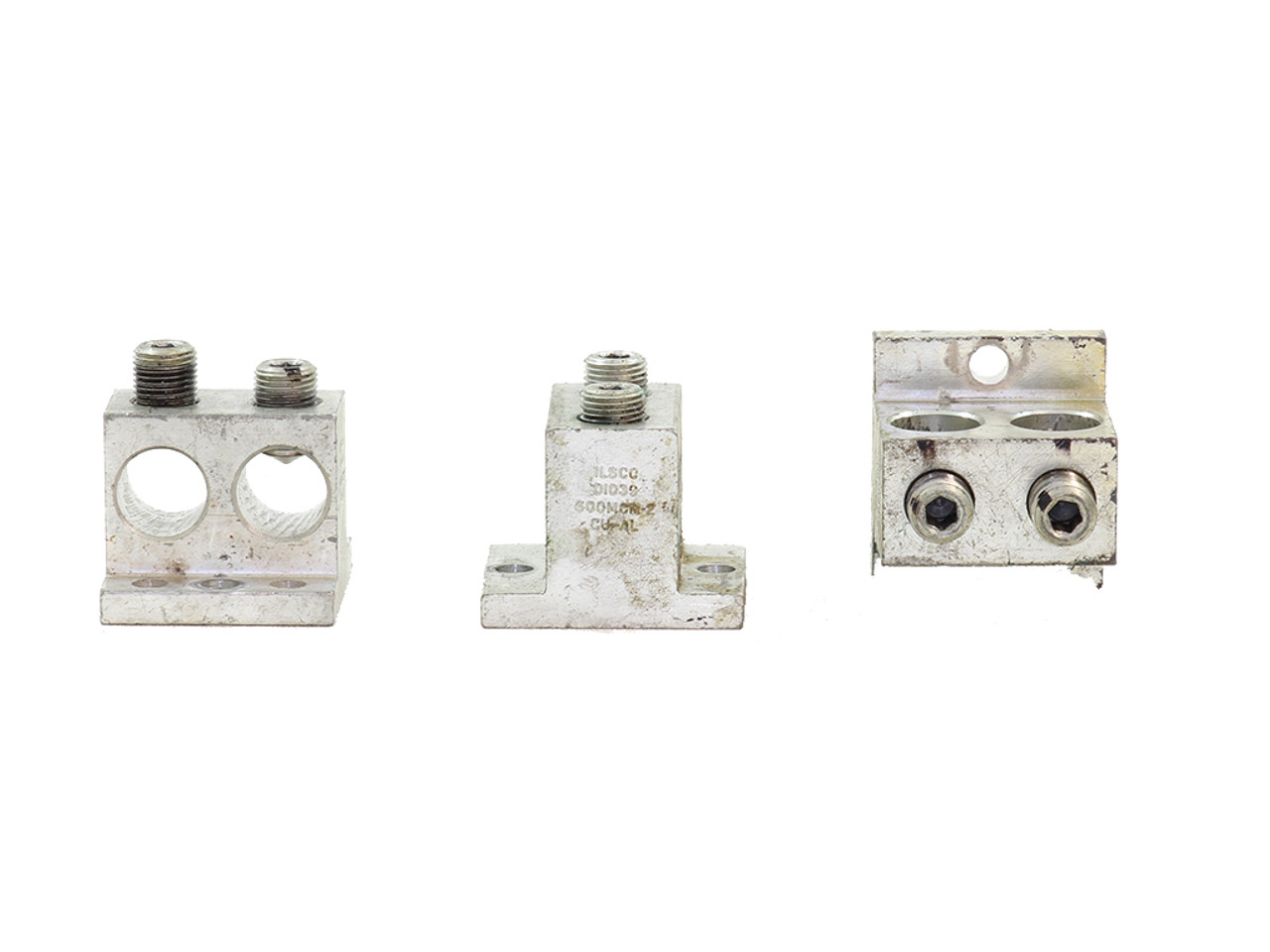

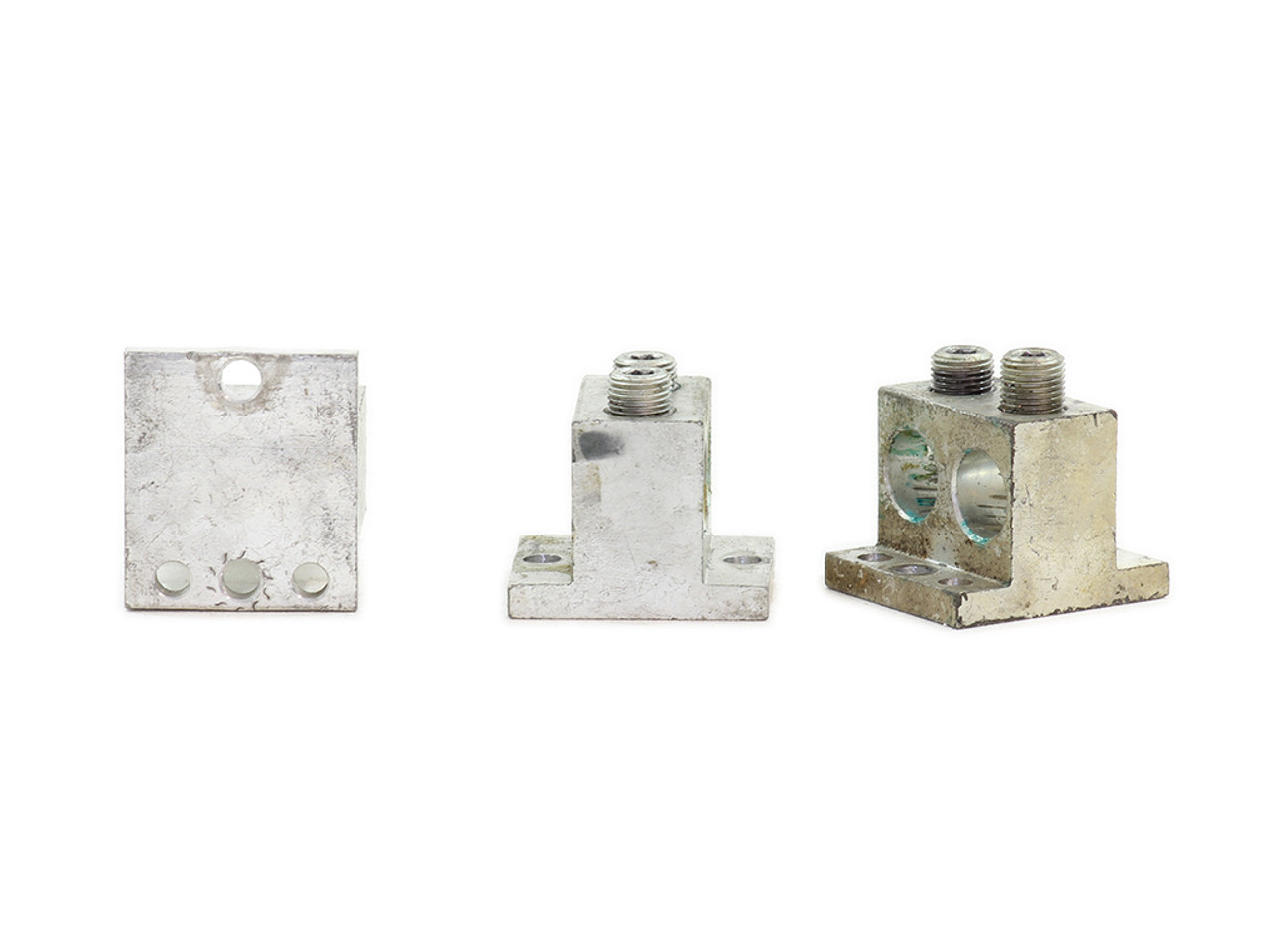

The Ilsco D1039 is a high-quality dual-rated mechanical lug designed for industrial and commercial electrical applications. Constructed from tin-plated aluminum, it supports both aluminum and copper conductors, providing a durable, corrosion-resistant, and low-resistance connection. Its two-port, two-hole design accommodates a wide range of conductor sizes, making it versatile for power distribution and panel connections.
Key Specifications
• Product Type: Mechanical Lug
• Material: Aluminum, tin-plated for corrosion resistance
• Conductor Range: 600 kcmil down to 2 AWG (Aluminum or Copper)
• Ports: 2 conductor ports
• Mounting Holes: 2 holes for secure installation
• Stud Size: 3/8 inch
• Voltage Rating: Suitable for up to 35 kV; typically used at 600 V
• Design: Dual-rated for AL/CU applications
Applications
• Electrical panels and switchgear
• Industrial and commercial power distribution
• Aluminum or copper conductor termination
