Product Description

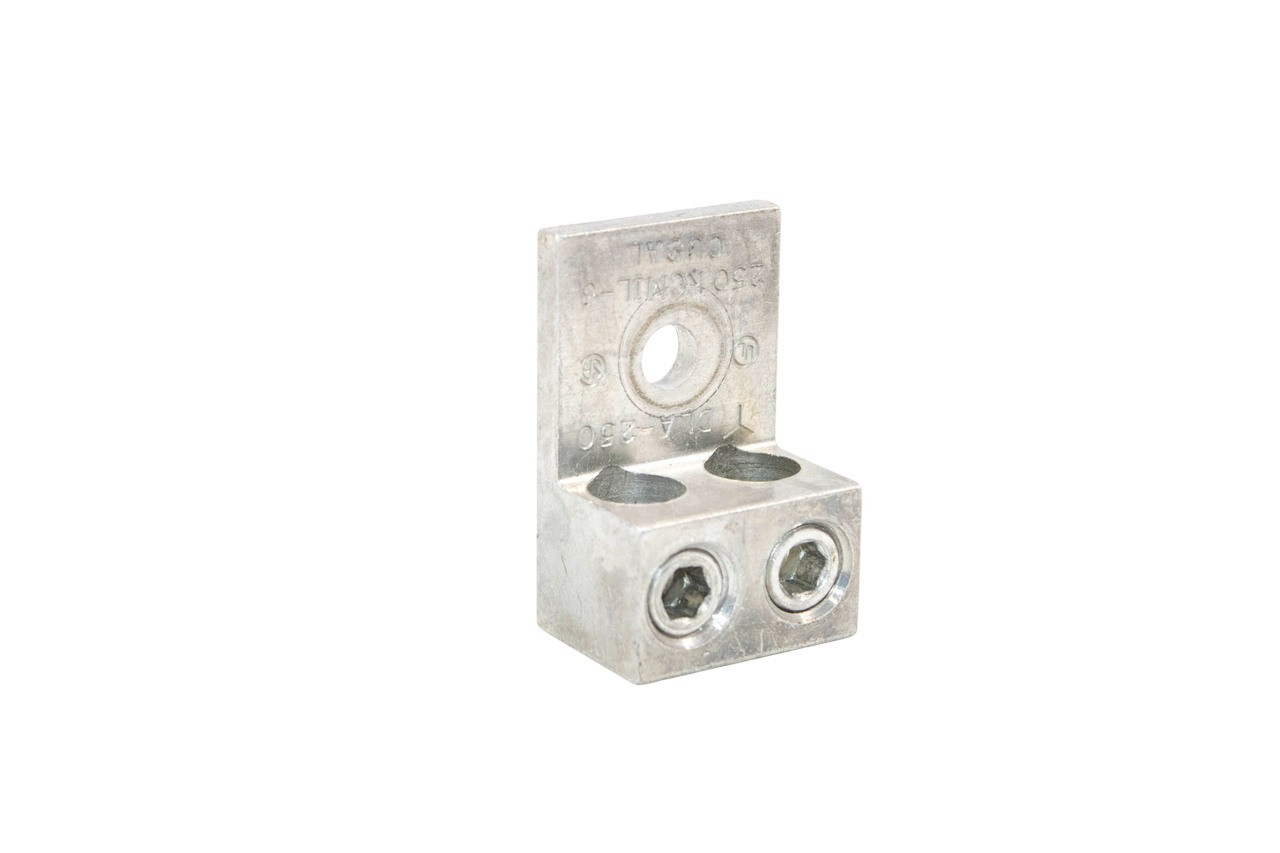

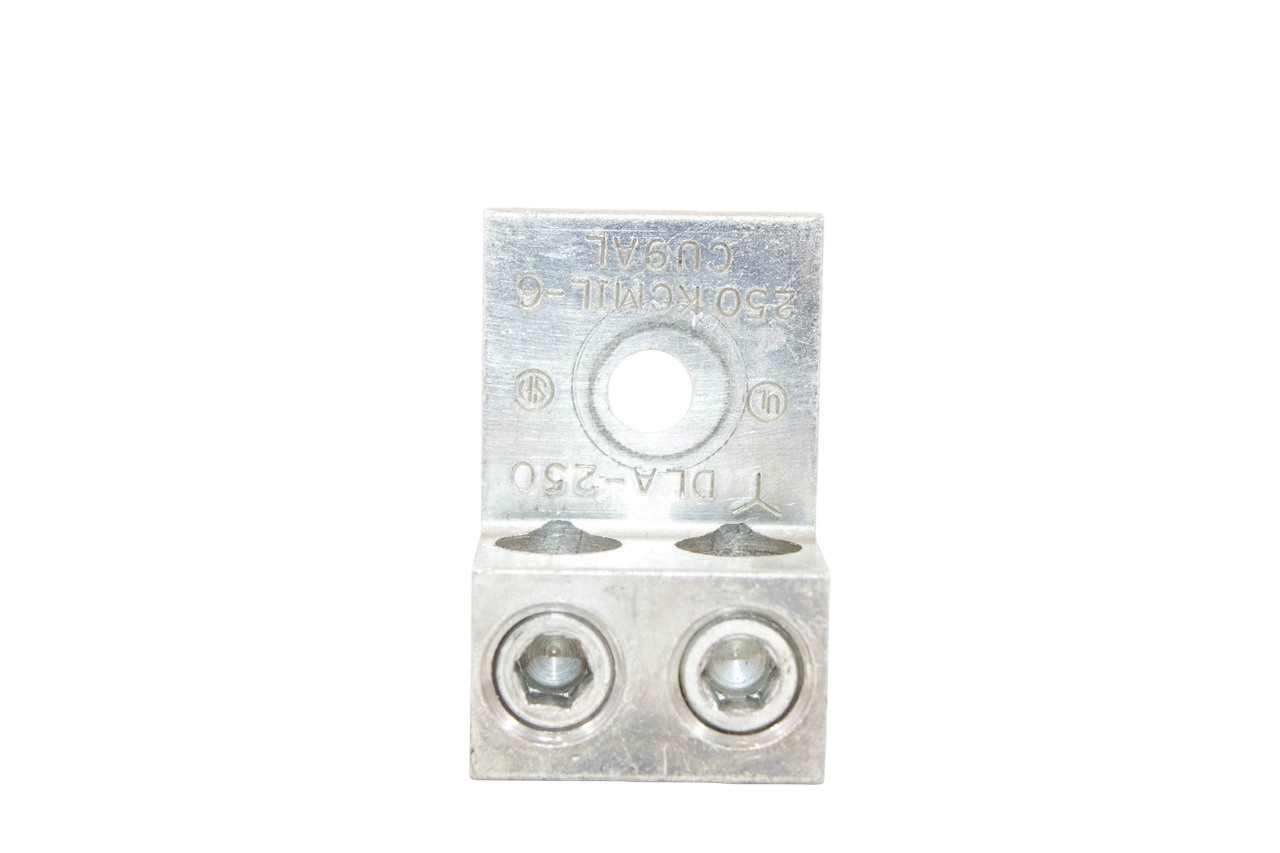

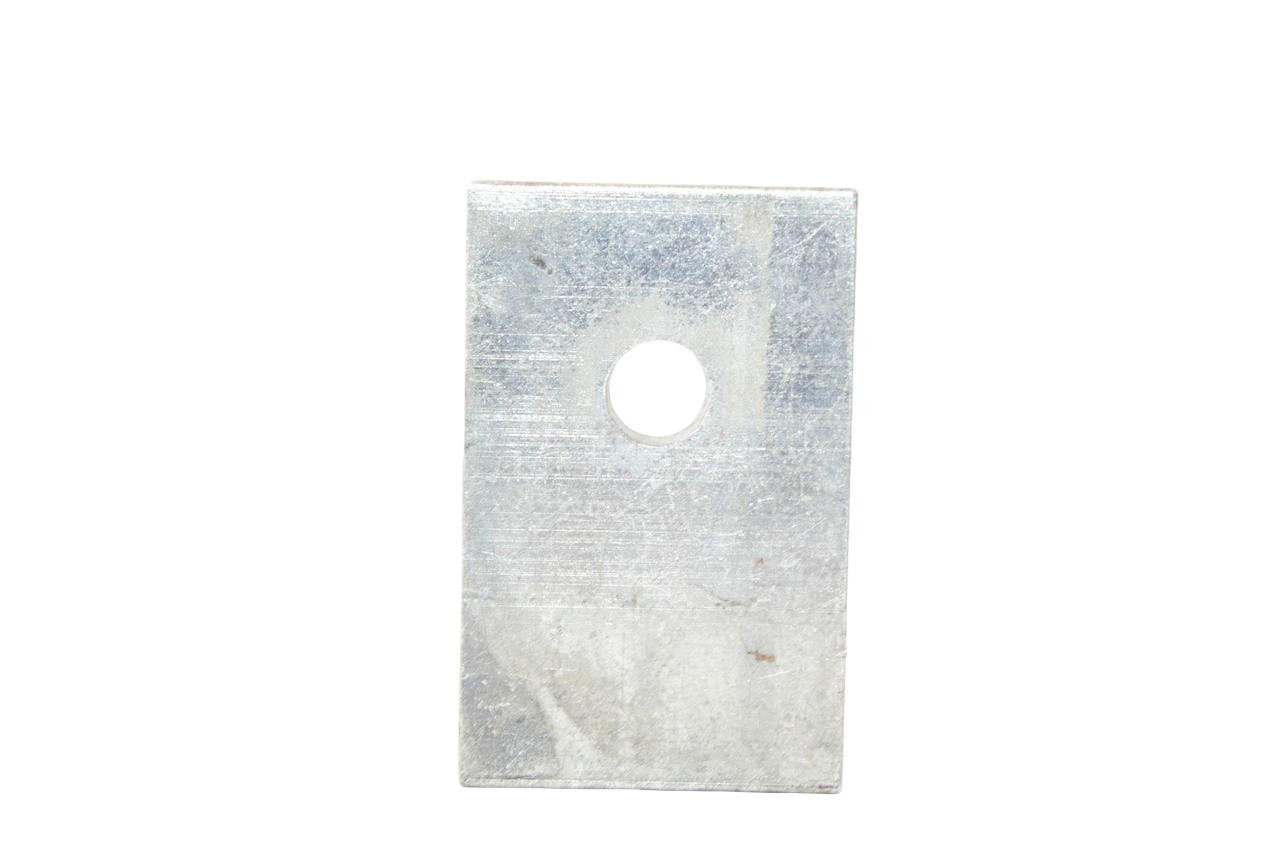

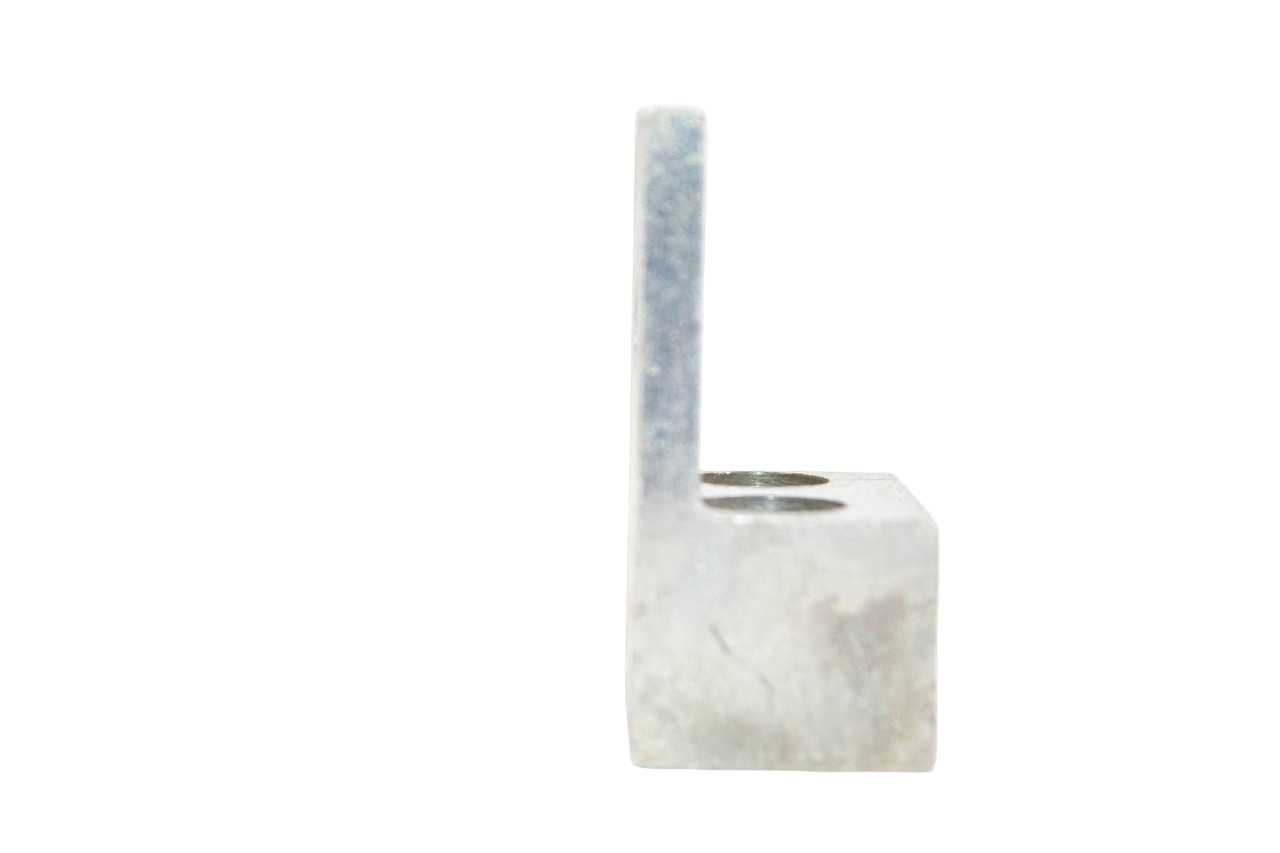

The Ilsco DLA-250 is a heavy-duty aluminum mechanical lug designed to securely terminate one or two conductors in power distribution and grounding applications.
Featuring a double-barrel, single-hole design, this lug is dual-rated for use with both copper and aluminum conductors, helping simplify inventory while maintaining reliable electrical performance.
Manufactured from high-strength 6061-T6 aluminum alloy and electro tin plated, the DLA-250 delivers excellent conductivity, corrosion resistance, and long-term durability in demanding electrical environments.
Key Features
• Dual-rated AL9CU for aluminum and copper conductors
• Double-barrel design allows termination of one or two conductors
• High-strength 6061-T6 aluminum alloy construction
• Electro tin-plated finish for low contact resistance and corrosion protection
• Reusable mechanical connection design
• Suitable for power and grounding circuits rated 35kV or less
Technical Specifications
• Brand: Ilsco
• Model: DLA-250
• Material: 6061-T6 Aluminum Alloy
• Finish: Electro Tin Plated
• Conductor Range: 6 AWG to 250 kcmil
• Conductor Type: Aluminum or Copper (Dual-Rated)
• Number of Ports: 2 (Double Barrel)
• Mounting: Single Hole
• Stud Size: 3/8 inch
• Connection Type: Mechanical (Screw-Type)
• Voltage Rating: Up to 35 kV
• Dimensions: Approx. 2.56 in (L) x 1.64 in (W) x 1.19 in (H)
Applications
• Power distribution systems
• Grounding and bonding applications
• Industrial and commercial electrical installations
• Panelboards, switchgear, and electrical enclosures
