Product Description

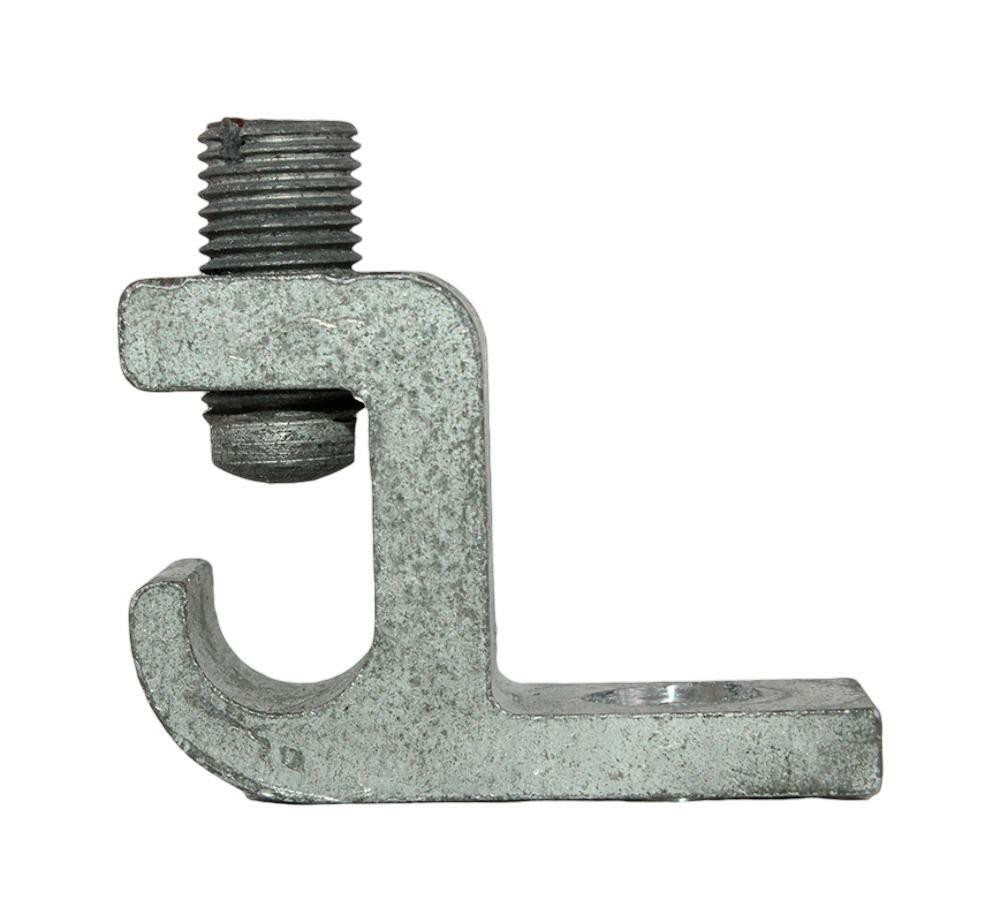

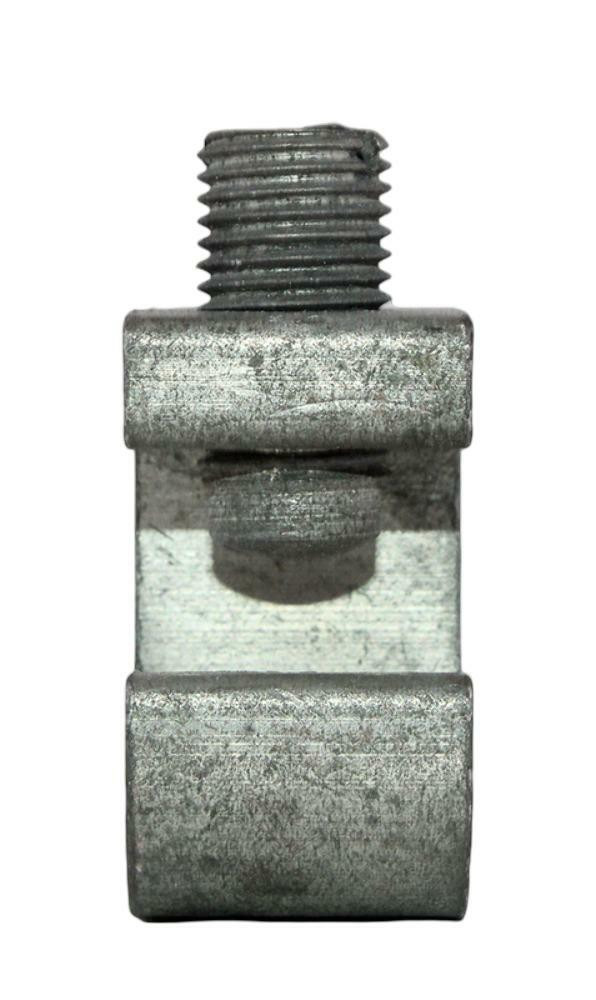

The Ilsco G-937 is a versatile, dual-rated aluminum mechanical grounding lug designed for high-efficiency bonding and grounding. Known for its "lay-in" design, it allows installers to secure a continuous grounding conductor without the need to cut or break the wire, making it an ideal choice for solar arrays, pool decks, and service entrance grounding.
Constructed from high-strength 6061-T6 aluminum alloy and finished with a durable electro-tin plating, the G-937 provides a low-resistance connection that resists corrosion. Its dual-rating (AL-CU) ensures full compatibility with both aluminum and copper conductors in various industrial and residential environments.
? Technical Specifications
-
Manufacturer: Ilsco (nVent ILSCO)
-
Part Number: G-937
-
Conductor Range: 1/0 AWG down to 14 AWG
-
Style: Lay-In / Wire Tap
-
Material: 6061-T6 Aluminum Alloy
-
Finish: Electro-Tin Plated
-
Rating: Dual-Rated AL-CU
-
Temperature Rating: 90°C
-
Voltage Rating: 600V (Grounding/Bonding)
-
Mounting Hole: 3/8" Bolt (0.410" actual diameter)
-
Overall Length: 1.160"
-
Width: 0.630"
-
Height: 0.790"
✅ Key Features & Benefits
-
Lay-In Functionality: The open-side design allows for the quick installation of continuous grounding loops, saving significant time on labor-intensive projects like solar rail bonding and grounding.
-
Corrosion Protection: The electro-tin plated finish inhibits oxidation and galvanic corrosion, which is critical for long-term outdoor grounding applications.
-
High-Strength Construction: Precision-manufactured from high-strength aluminum alloy to provide the structural integrity required for high-torque mechanical connections.
-
Dual-Rated Versatility: UL Listed for use with both copper and aluminum stranded wires, allowing for flexibility in material choice across different electrical systems.
-
Compact Footprint: The 1.16" length and single mounting hole make it easy to install on crowded busbars, equipment frames, or grounding pads.
