Product Description

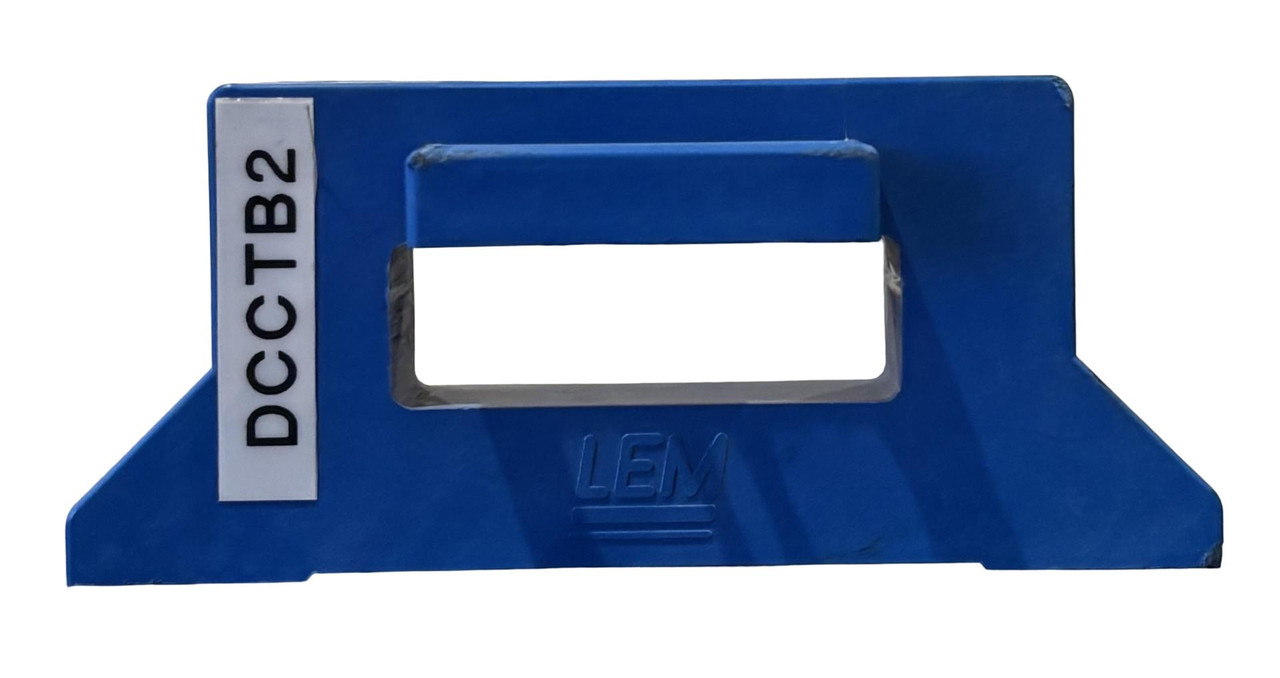

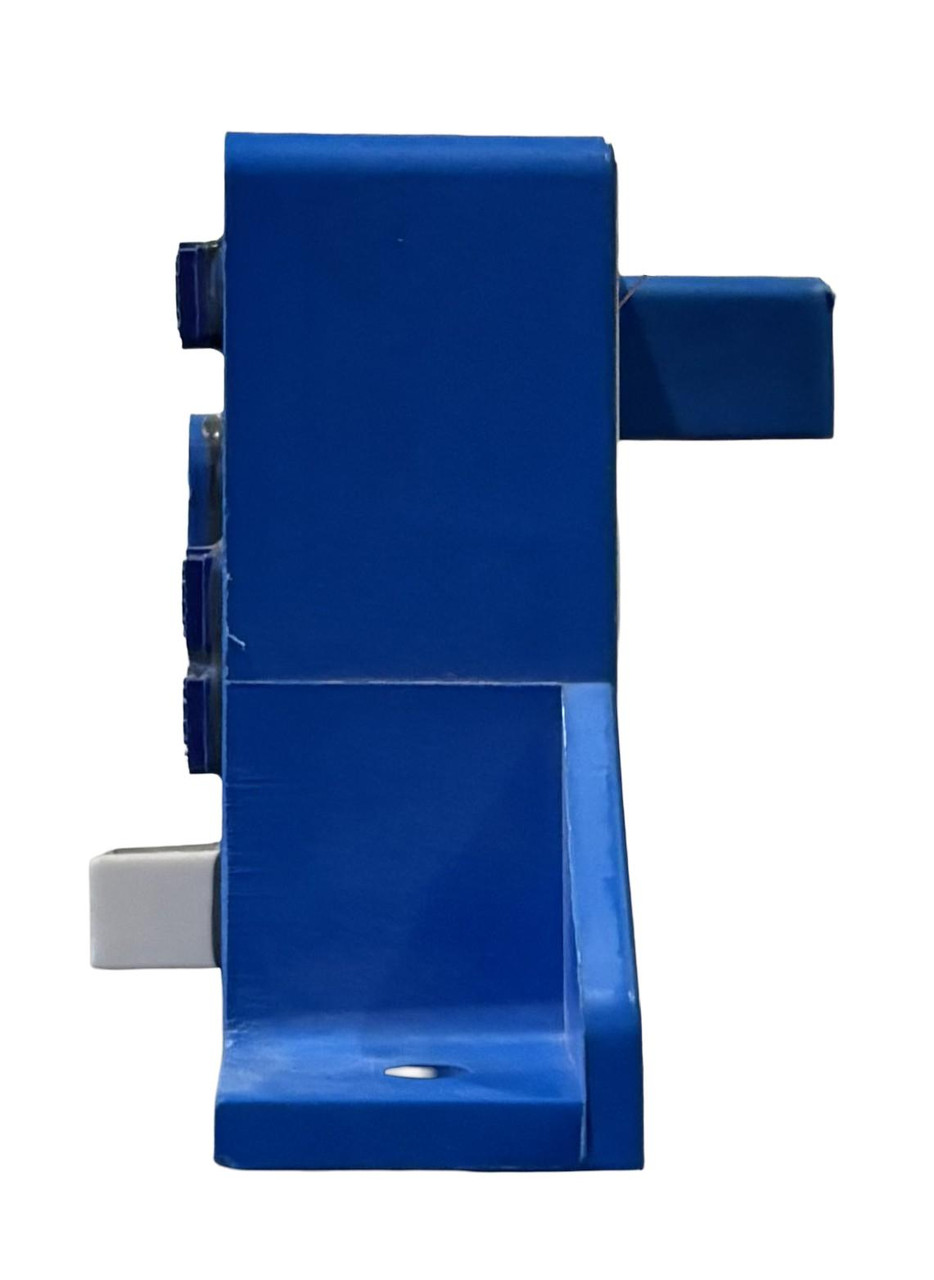

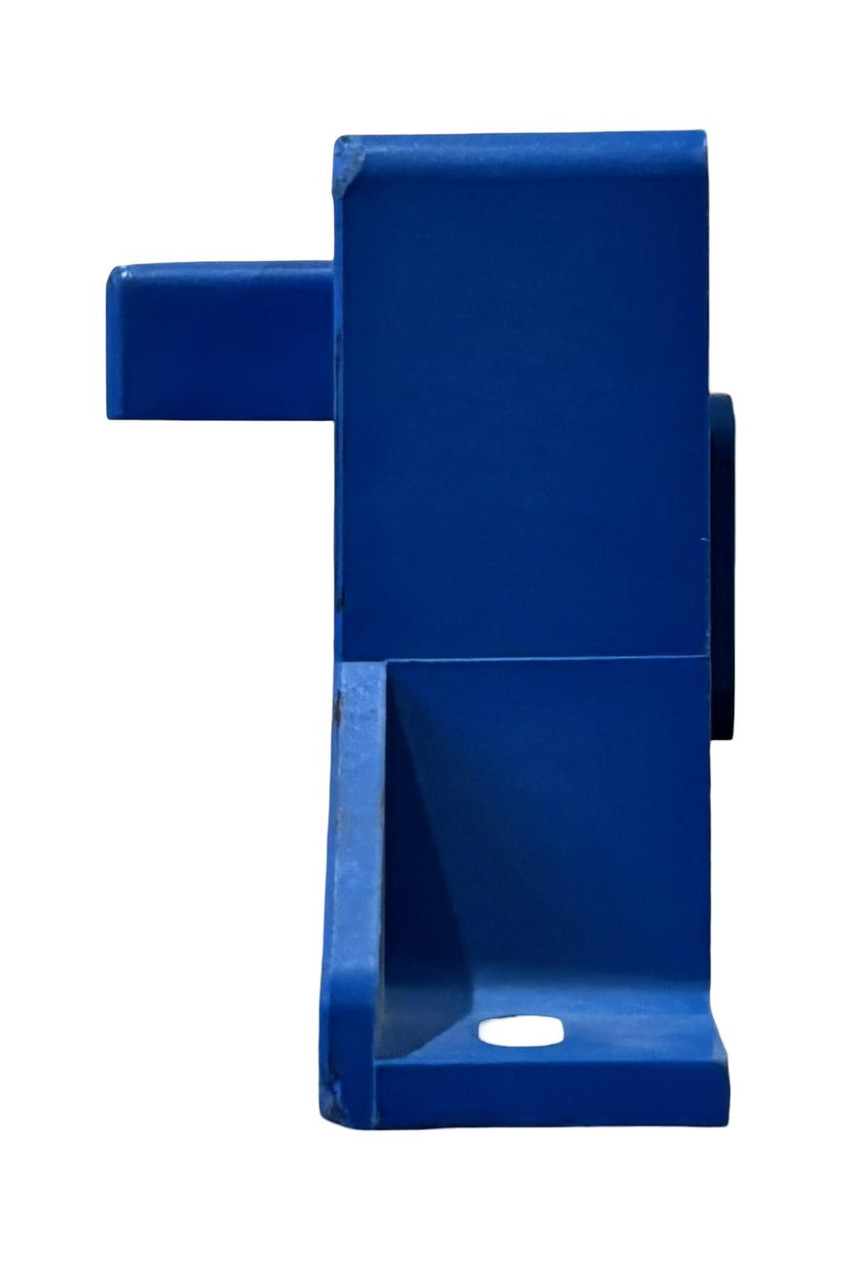

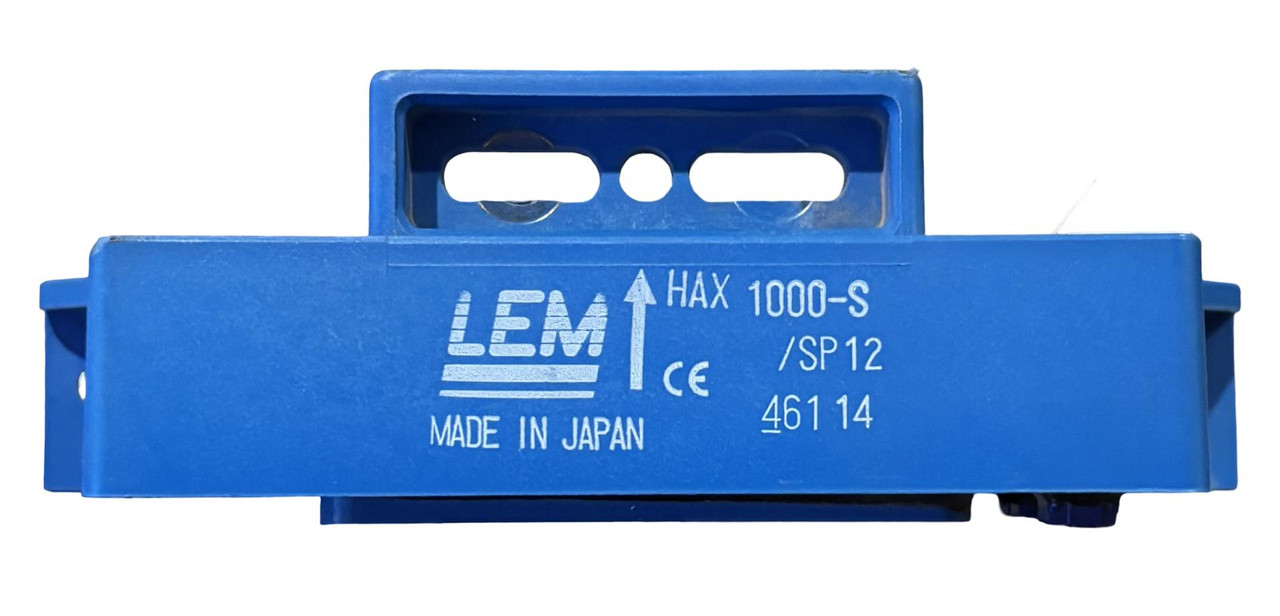

The LEM HAX 1000-S Current Transducer is a high-precision, open-loop Hall effect sensor designed for accurate current measurement in industrial and renewable energy applications.
With a nominal current of 1000A and a measuring range up to 3000A, the HAX 1000-S provides reliable AC and DC current monitoring. The transducer outputs an instantaneous 4V secondary signal and operates with an external DC bipolar supply voltage of ±15V.
Designed for panel mounting, this transducer offers 1% accuracy and robust performance in demanding environments. Ideal for applications such as drives, power supplies, renewable energy systems, and welding equipment, the LEM HAX 1000-S ensures precise current monitoring for safe and efficient operations.
Key Features:
-
Brand: LEM
-
Model: HAX 1000-S
-
Measurement Type: Current
-
Nominal Current: 1000A
-
Measuring Range: 3000A
-
Secondary Nominal Signal: Voltage, 4V instantaneous
-
Primary Signal: AC + DC
-
Supply Voltage: External DC Bipolar, ±15V
-
Accuracy: 1%
-
Technology: Open Loop Hall Effect
-
Mounting: Panel
-
Applications: Drives, Power Supplies, Renewable Energies, Welding
