Product Description

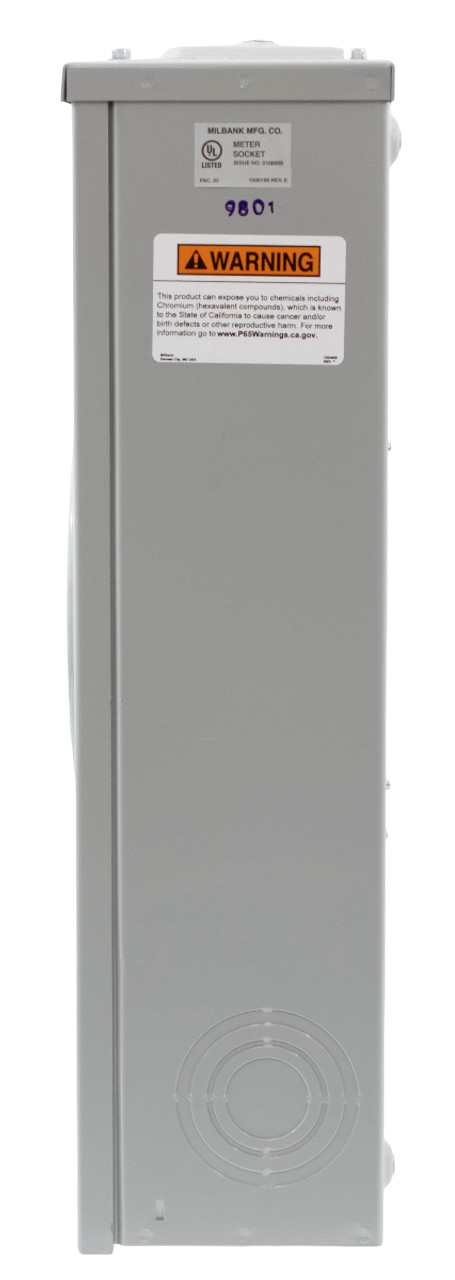

The Milbank U9801-RXL Meter Socket is a high-quality, durable residential and light commercial meter socket designed for safe and reliable power distribution.
Rated for 200A continuous service at 600 Volts AC, this 1-position ringless meter socket features a lever bypass for convenient meter removal. Its surface mount design accommodates overhead or underground feeds, making it versatile for a wide range of installations.
Constructed from G90 galvanized steel with a powder coat finish and glass polyester insulation, this UL-listed Type 3R meter socket ensures long-lasting durability in outdoor environments.
Key Features:
-
Brand: Milbank
-

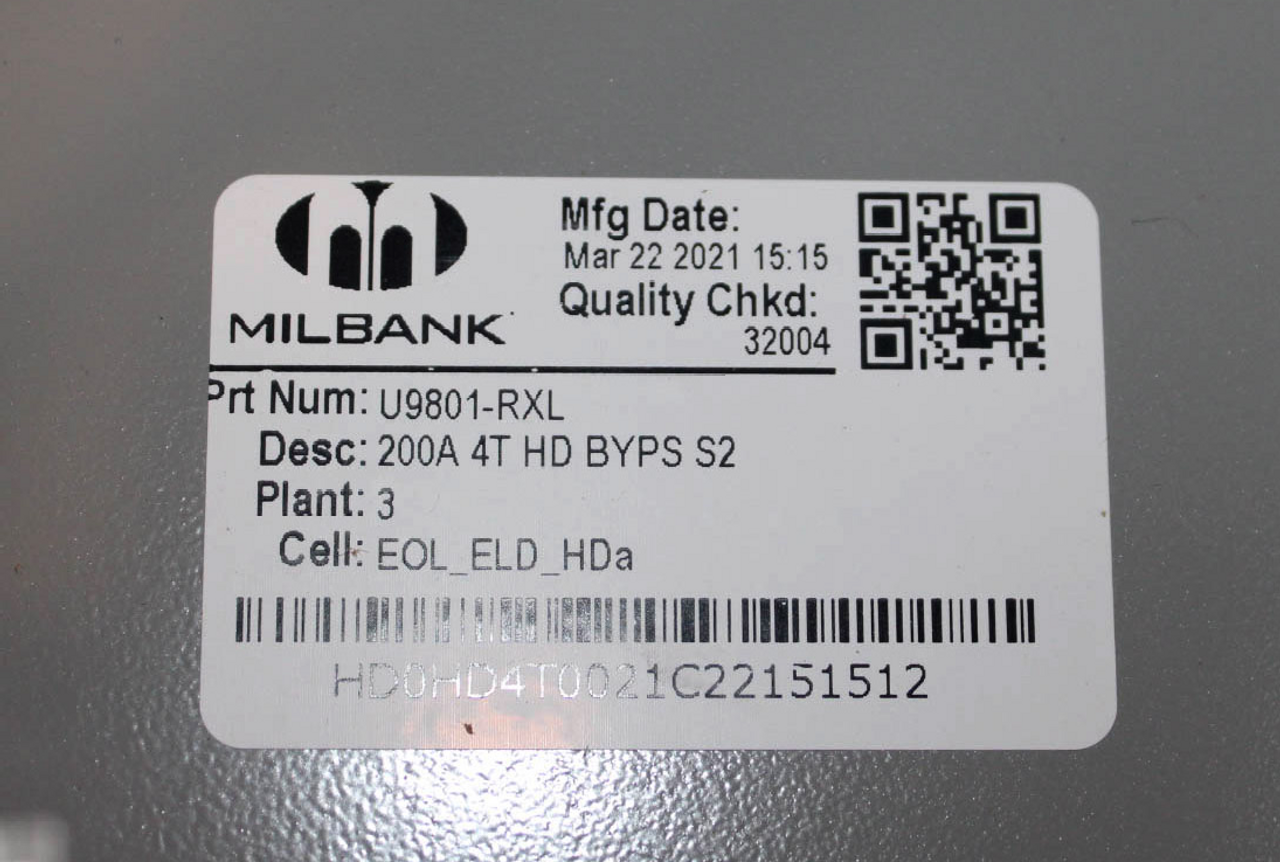

Model: U9801-RXL
-
Amp Rating: 200 Continuous Amperes
-
Voltage Rating: 600 Volts AC
-
Phase / Wire: 1-Phase
-
Meter Type: Ringless
-
Bypass Provision: Lever Bypass
-
Number of Meter Positions: 1 Position
-
Main Breaker: None
-
Cable Entry: Overhead or Underground
-
Material: G90 Galvanized Steel with Powder Coat Finish
-
Equipment Ground: Ground Lug
-
Insulation: Glass Polyester
-
Number of Jaws: 4 Terminal
-
Knockouts: True
-
Line Side Wire Range: 6 AWG – 350 kcmil
-
Load Side Wire Range: 6 AWG – 350 kcmil
-
Mounting: Surface Mount
-
Terminal Type: Lay-in
-
Hub / Closing Plate: Large hub opening adapted to small closing plate
-
Standard: UL Listed; Type 3R
-
Dimensions: 4.844L x 13W x 19H inches
