Product Description

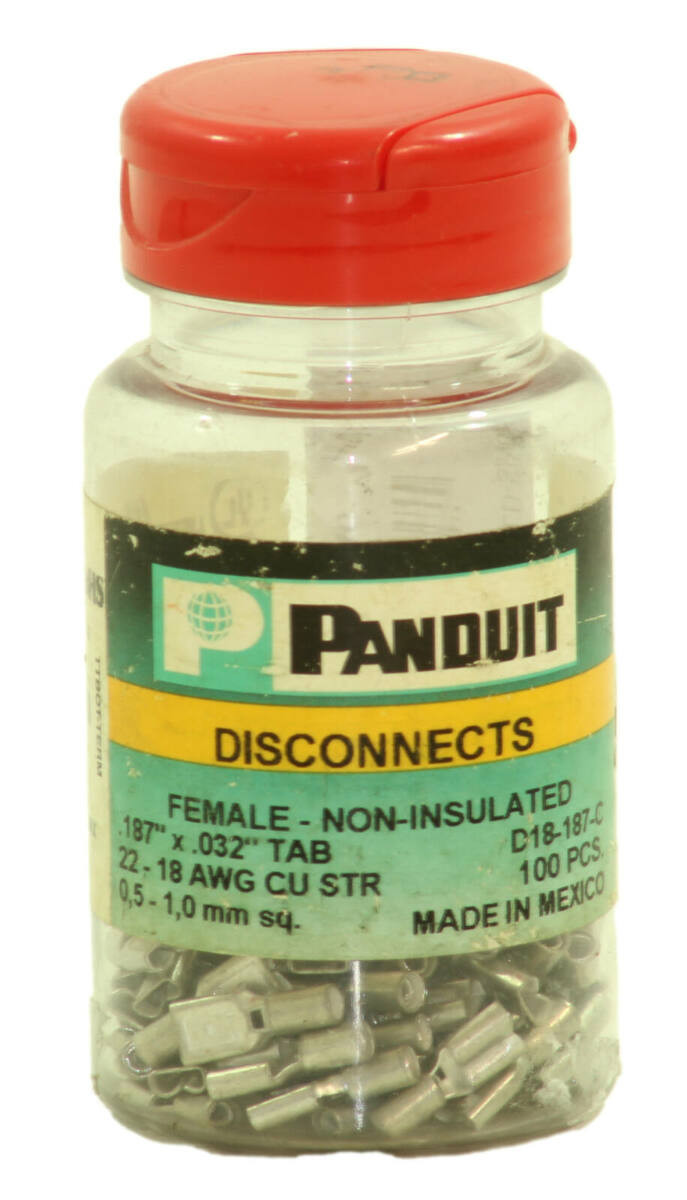

The Panduit D18-187-C is a durable, non-insulated female quick disconnect terminal designed for 22-18 AWG stranded copper wire. Ideal for applications that require frequent connection and disconnection, this terminal features a vibration-resistant design to maintain reliable electrical connections even in harsh environments.
Features & Specifications:
-
Wire Gauge Range: 22 to 18 AWG stranded copper wire
-
Tab Size: 0.187" W x 0.032" Thk (4.8 mm x 0.8 mm), compatible with male tabs
-
Material: High-strength brass construction
-
Finish: Electro-tin plated for superior corrosion resistance
-
Insulation Type: Non-insulated with a sleeved barrel configuration
-
Voltage Rating: Up to 2000 VAC per UL 486A/B
-
Temperature Rating: Maximum operating temperature 302°F (150°C)
-
Design Features: Internal barrel serrations for maximum tensile strength and crimp reliability in high-vibration applications
