Product Description

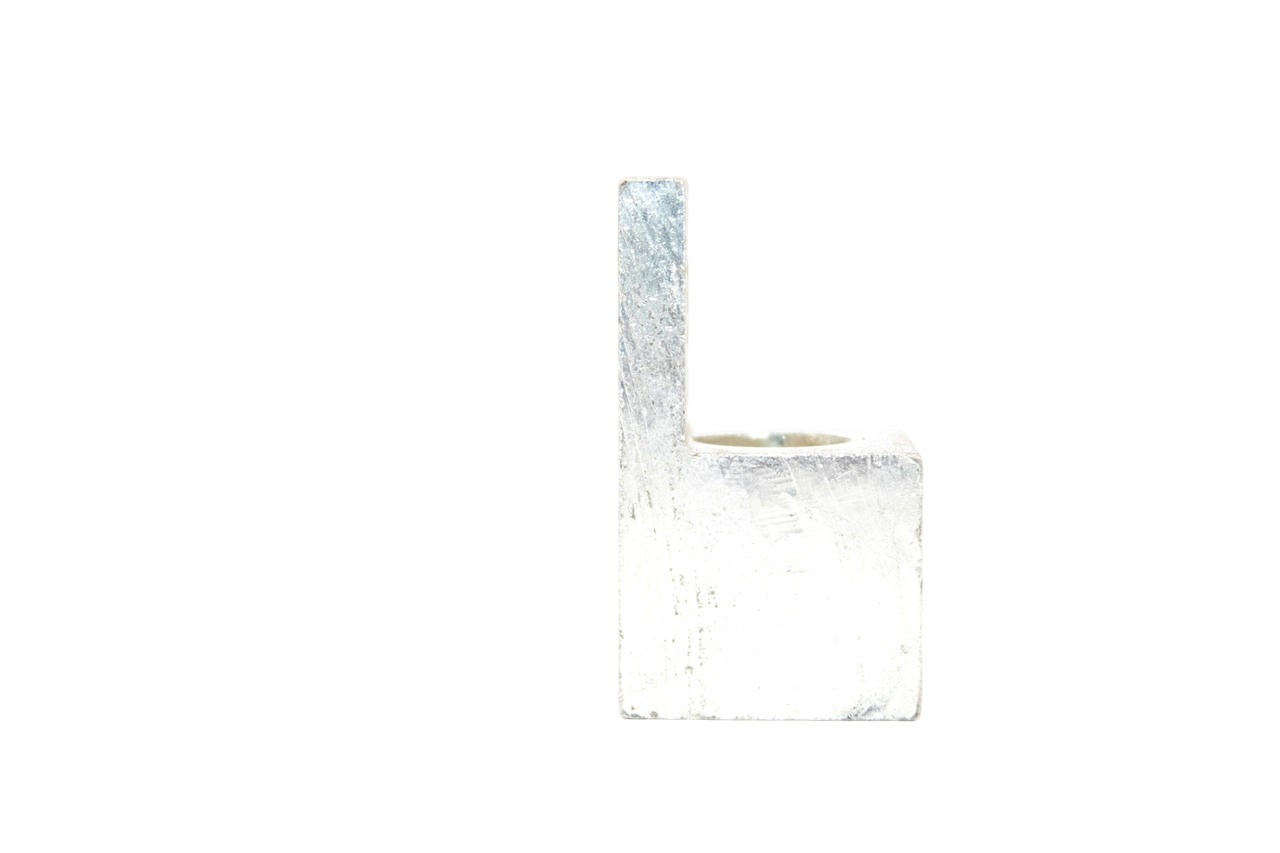

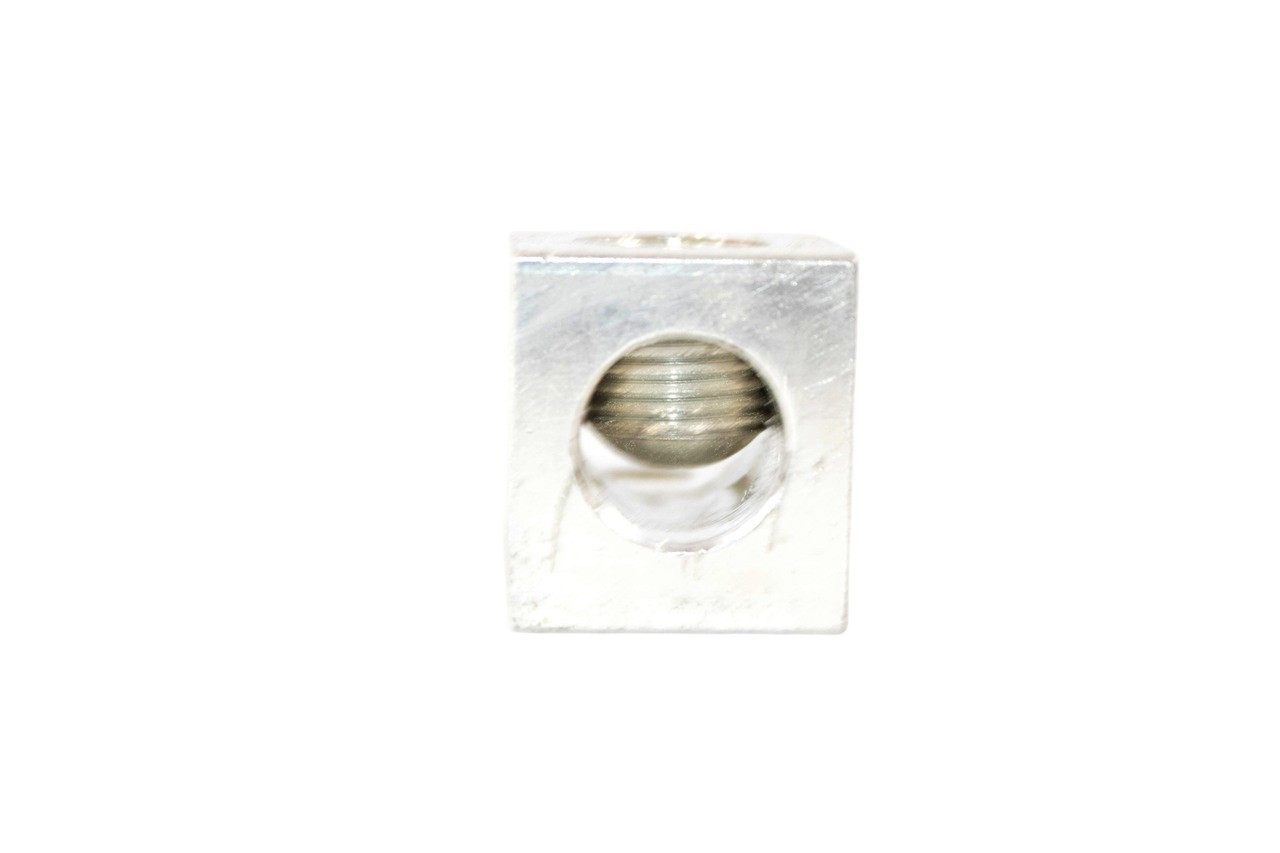

The Panduit Pan-Lug LAMA250-56-QY is a high-strength, tin-plated aluminum mechanical lug engineered for premium electrical and mechanical performance. This single-barrel, one-hole connector features a wide wire range-taking capability, allowing it to accommodate conductors from #6 AWG up to 250 kcmil (MCM). Its compact design and dual-rating make it an ideal choice for terminating either aluminum or copper stranded code conductors in industrial power applications.
Item Specifics
-
Brand: Panduit
-
MPN: LAMA250-56-QY
- Material: Tin-Plated Extruded Aluminum Alloy
-
Conductor Type: Aluminum or Stranded Copper Code Conductor
-
Wire Range: 250 kcmil (MCM) - #6 AWG
-
Number of Ports: 1 (Single Barrel)
-

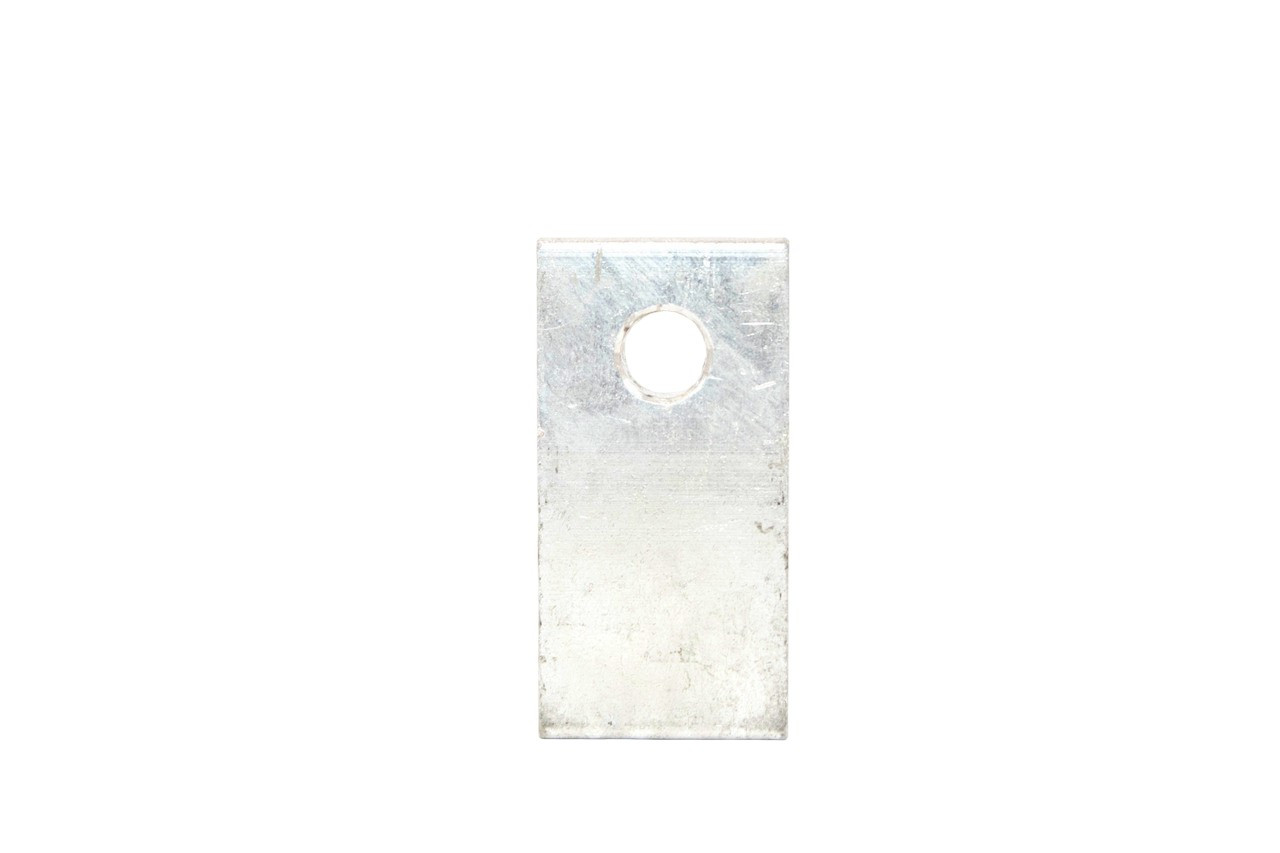

Mounting Type: 1-Hole (Straight Tongue)
Key Features
✔ Dual Rated: Fully certified for use with both Copper and Aluminum stranded cables.
✔ Inspection Window: Integrated port allows for visual verification of full conductor insertion.
✔ Corrosion Resistance: High-quality tin plating inhibits oxidation and ensures a long service life.
✔ Wide Range-Taking: Minimizes inventory by covering multiple wire sizes in a single lug.
✔ High Strength: Made from extruded aluminum alloy for superior mechanical grip and conductivity.
✔ Space Saving: Compact design allows for easy installation in tight electrical cabinets and enclosures.
Technical Specifications
-
Voltage Rating: 600V Max
-
Temperature Rating: 90°C (194°F)
-
Stud Hole Size: 5/16 Inch
-
Hex Socket Size: 5/16 Inch
-
Wire Strip Length: 1.0 Inch
-
Overall Length: 1.99 Inches
-
Tongue Width: 0.99 Inches
-
Tongue Thickness: 0.25 Inches
