Product Description

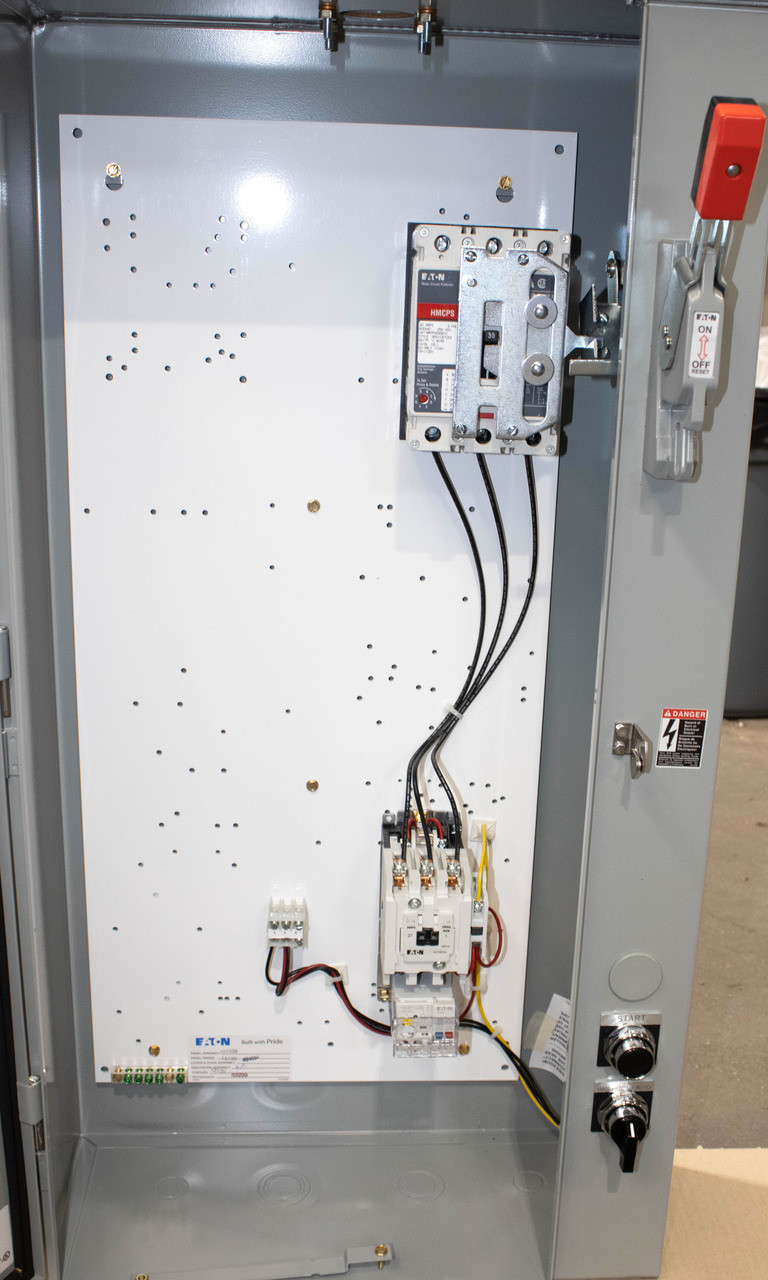

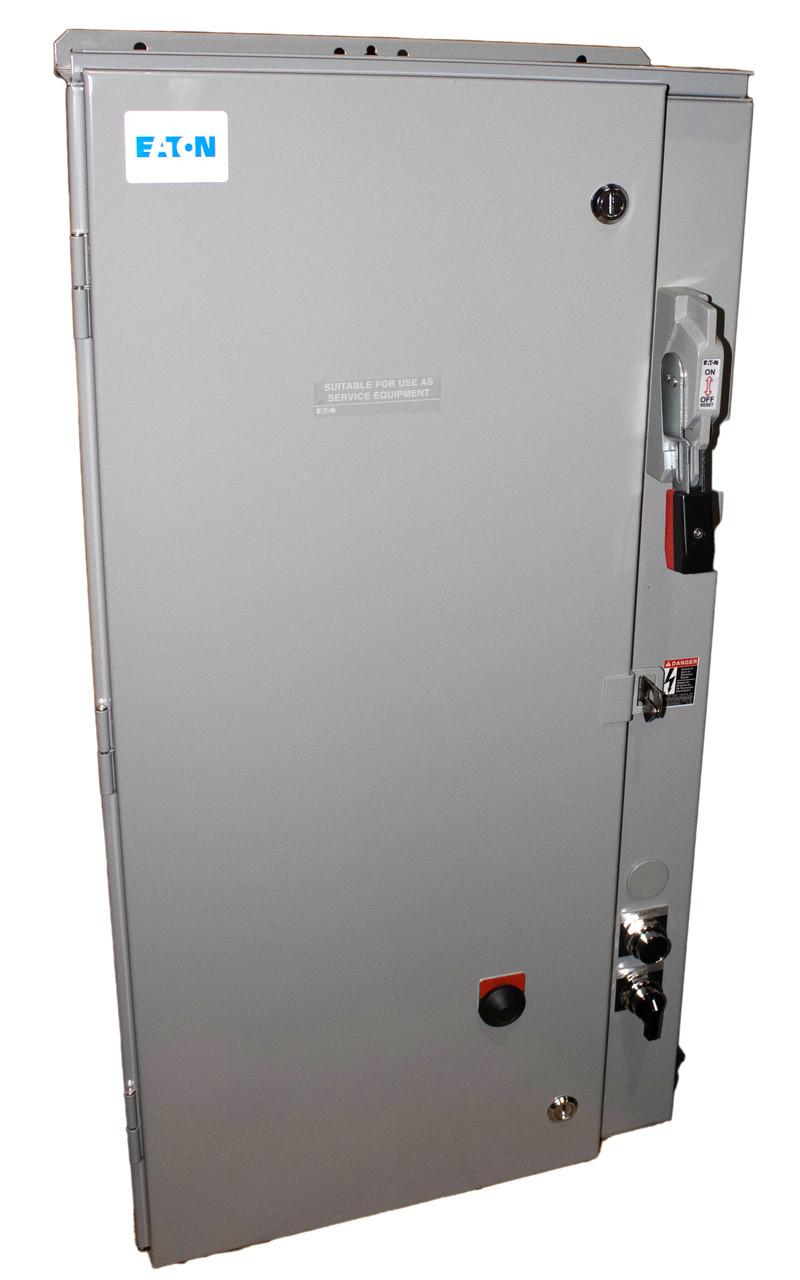

Eaton ECN5512AAE Breaker Pump Panel DisconnectECN5512AAE-N-YAG
- Eaton BREAKER
- 30A
- 600V 250VDC
- 3 POLE
- Adjustable Trip Ampere
- 90A 120A 15A 180A 210A 240A 270A 300A
- Eaton Contactor
- AN19DN0
- 27A
- NEMA SIZE 1
| Action: | Auto/Hand/Off |
|---|---|
| Amperage Rating: | 30 A |
| Voltage Rating: | 575 VAC |
| Material: | Steel |
| Phase: | 3 |
| Frequency Rating: | 50/60 Hz |
| Coil Voltage: | 110/120 VAC |
| Type: | Circuit Breaker Disconnect Combination |
| Dimensions: | 847 in L x 1886 in W x 384 in H |
| Overload Relay: | Electronic/Interchangeable Heater |
| Series: | Freedom |
| Enclosure Type: | NEMA 1/3R |
| UPC: | 786685383132 |
| Order Interval: | 1 |
| Minimum Order Qty: | 1 |
| UNSPSC: | 39121521 |
| Country of Origin: | US |
| Vendor SKU: | ECN5512AAE |
| Application: | Industrial Applications |
| Standard & Approvals: | ABS Approved|UL Listed|cUL Listed|OSHPD Approved (OSP-0015-10) |
| Manufacturer: | EATON |
- Long life, heavy duty, quick-acting, double break action motor circuit switch
- Features an adjustable magnetic trip characteristic for accurate, dependable fault protection and simultaneous trip of all poles to prevent single phasing
- Freedom overload relays with trip indication feature bi-metallic type operation with ambient compensation and a choice of either manual or automatic reset
- HAND/OFF/AUTO selector switch and start pushbutton
- Reset button - accessible from front of enclosure (booted for environmental protection) for operation of overload relay reset function
- Type 3R rainproof and sleet-resistant construction with stainless steel door latches and special corrosion-resistant paint
- Enclosure features include grounding lugs, padlocking feature on door latch, drip hood over door and provisions for top mounting conduit hubs

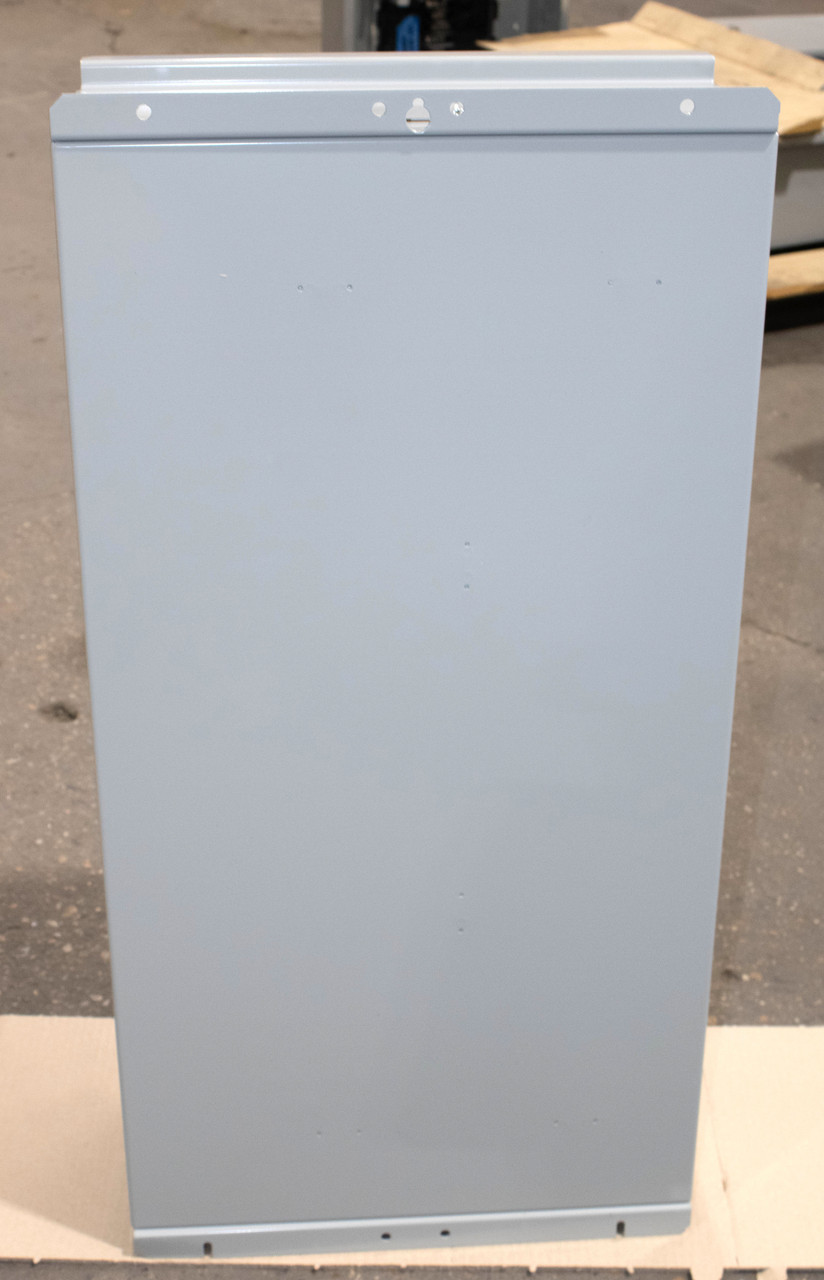

- Pole mounting feet with keyhole slots for easy mounting are standard on enclosures for sizes 1 to 5 (removable for sizes 1 to 5 standard width flange type enclosures)
- Brackets can be formed to the contour of the pole after mounting

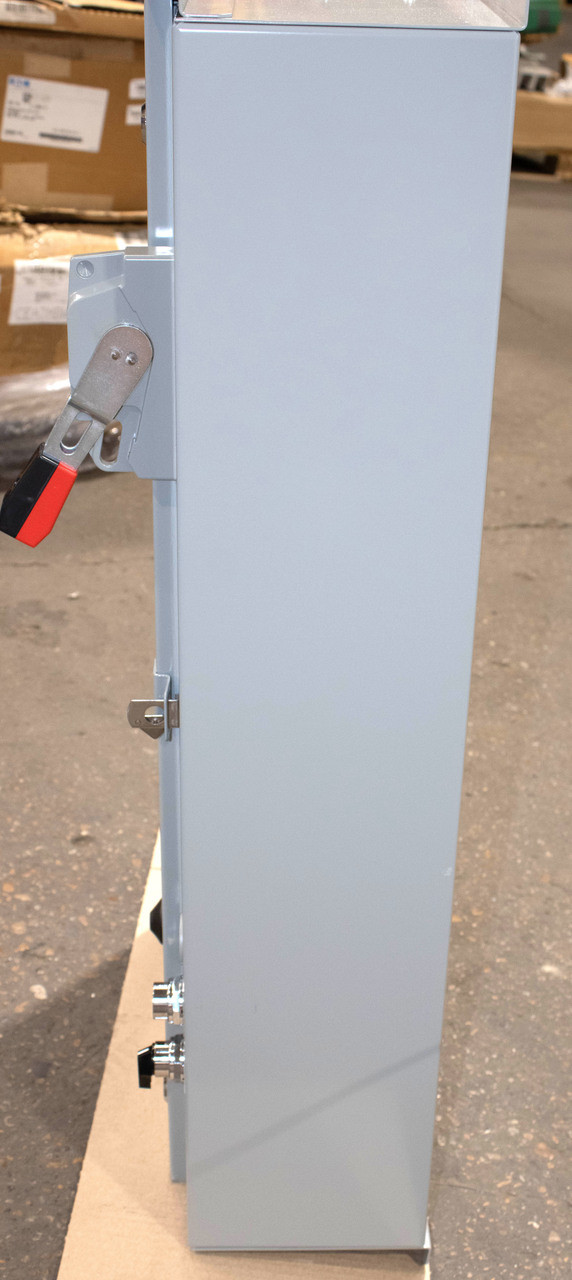

- Provision on door latch for locking door closed, as well as provision for padlocking disconnect switch in OFF position, with a simple modification, disconnect can also be padlocked in ON position
- 110 VAC at 50 Hz, 120 VAC at 60 Hz coil voltage
Product Videos
Custom Field
Disconnect Amps 30
Disconnect Volts 480
Disconnect Poles 3
Fusible or Non-Fusible Non-Fusible
Disconnect NEMA 3R
Disconnect Phase 3
