Product Description

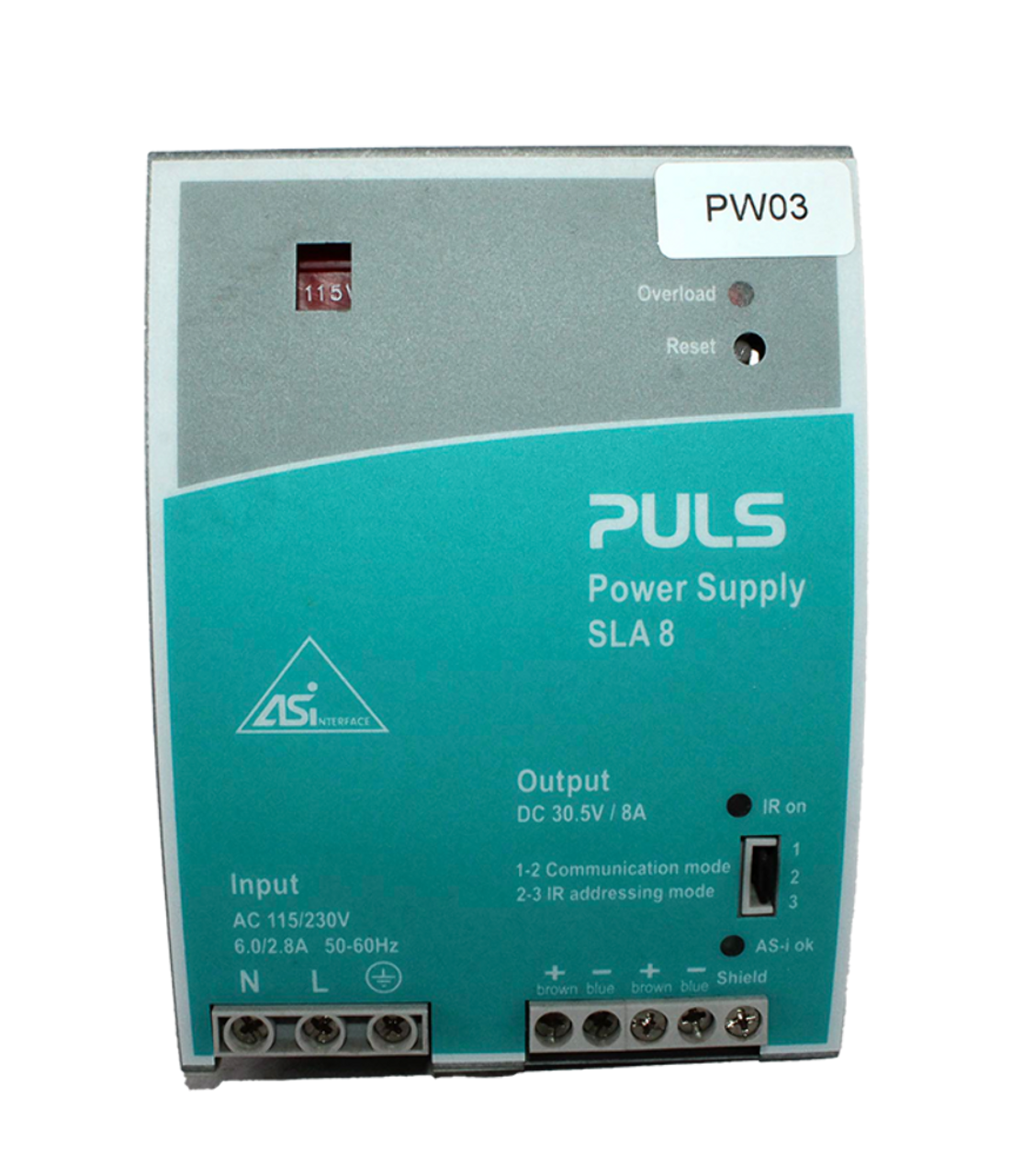

PULS SLA8.100 AS-Interface Power Supply 115/230VAC 6.0/2.8A 30.5VDC 8AInput:
AC Input Voltage: 100-120V / 220-240V (-15%/+10%)
Power Factor: 0.48
Input Inrush Current Limitation: Active
Output:
Nominal Voltage: 30.6V
Adjustment Range: 30.6V
Output Current Range: 8A
Output Current: 8A at 30.6V
Derating: 6 W/°C for >+60°C
Ripple and Noise Voltage Max.: 50 mVpp
Overview:
Mounting Method: DIN rail
Connection Method: Screw terminals
Efficiency, typ.: 92%
Power Losses, typ/: 21.2W
MTBF SN 29500 @ 40°C (h): 869000h
IS.06172024.03
